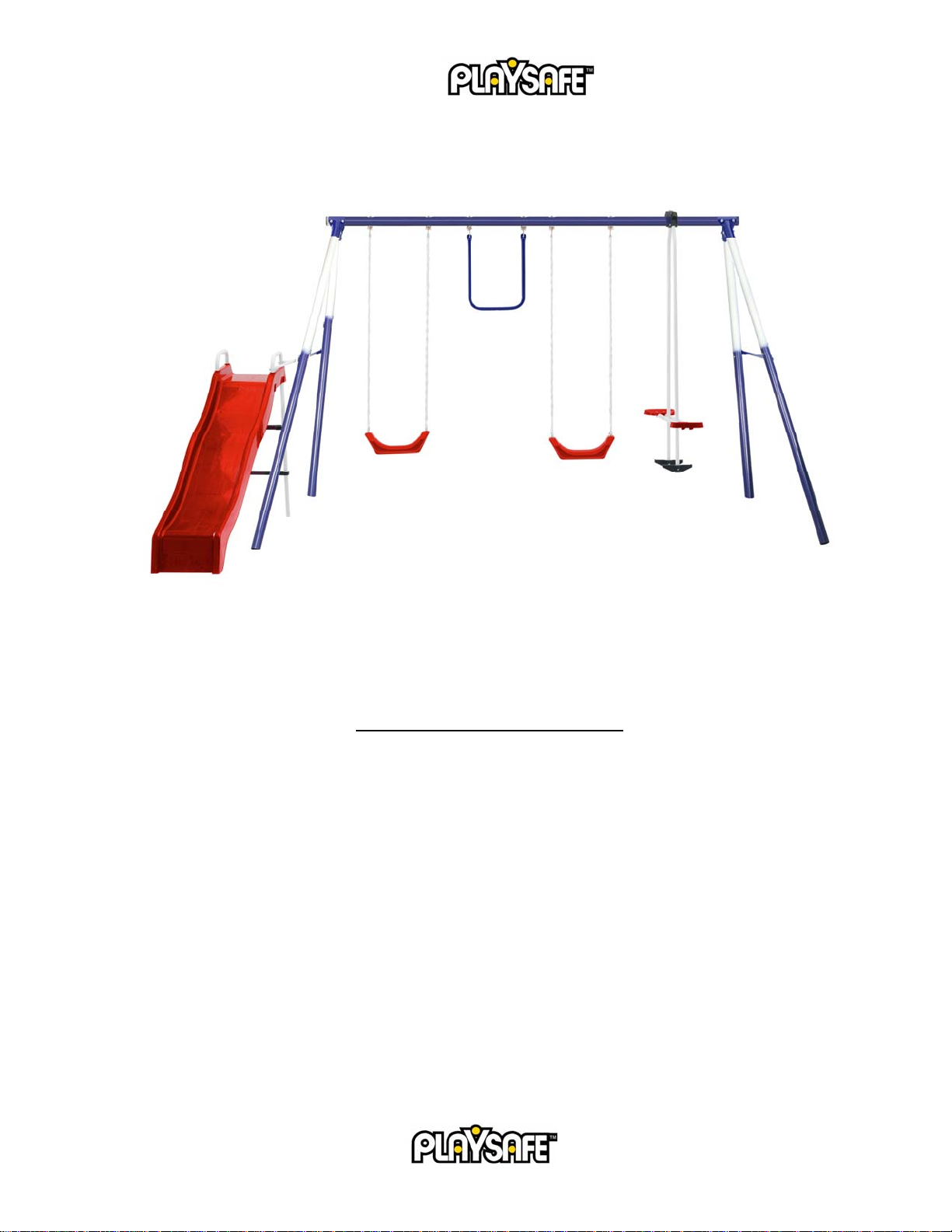

Model #: 22-PS110 Model Name: Verona II Swing Set

Manual Date: October, 2006

Important: Keep this owner’s manual; do not discard in case you need to contact Pacific Cycle, Inc.

in the future. Should there be a change of ownership, please transfer this manual to the new owner to

ensure proper assembly and safety.

90 DAY LIMITED WARRANTY

Pacific Cycle, Inc. warrants this product to be free of defective materials and workmanship for 90 days from

the date of original purchase.

THIS LIMITED WARRANTY IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT,

AND IS EXPRESSLY IN LIEU OF ANY OTHER WARRANTY. ANY IMPLIED WARRANTIES,

INCLUDING ANY WARRANTY OF MERCHANTABILITY AND WARRANTY OF FITNESS

FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF THIS

EXPRESS WARRANTY. This limited warranty gives you specific legal rights and you may also have

other rights which may vary from state to state. This warranty is extended only to the original consumer

purchaser for non-commercial use.

PACIFIC CYCLE, INC. IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL

DAMAGES. THIS LIMITED WARRANTY DOES NOT COVER ANY PERSONAL INJURIES,

DAMAGE TO, OR FAILURE OF THE PRODUCT OR ANY OTHER LOSSES DUE TO ACCIDENT,

ABUSE, MISUSE, ALTERATION, NEGLECT, NORMAL WEAR AND TEAR, RUST, IMPROPER

ASSEMBLY, IMPROPER FIT, IMPROPER MAINTENANCE OR USE OF UNAUTHORIZED

REPLACEMENT PARTS NOT DESIGNED FOR THE PRODUCT.

To make claim under warranty, notification of such defect must be given to Pacific Cycle, Inc. By calling the phone number

below, you will be instructed on how the product or part needing replacement should be shipped postpaid to Pacific Cycle, Inc.

Customer Service and Assistance

1-800-242-6110

Monday – Friday 8am-5pm CST

Please contact the Playsafe™ customer service team if you have any questions about our product, need assembly assistance or

need replacement parts for the swing set. You may also contact us by mail:

Playsafe™ Customer Service

Pacific Cycle, Inc

4730 East Radio Tower Lane

Olney, IL 62450

Or by email: info@Playsafeoutdoors.com

WARNINGS AND SAFETY INFORMATION

OBSERVE ALL WARNINGS AND STATEMENTS IN ORDER TO REDUCE THE RISK OF INJURY OR DEATH.

•BEFORE YOU ASSEMBLE THE SWING SET,FIND LEVEL GROUND NOT LESS THAN 6FEET FROM ANY

STRUCTURE OR OBSTRUCTION TO THE SWING SET.YOUR SWING SET MUST HAVE CLEARANCE ON ALL

SIDES.

•TO PREVENT SERIOUS INJURY,DO NOT ALLOW CHILDREN TO PLAY ON THE SWING SET UNTIL IT IS

COMPLETELY INSTALLED.

•DO NOT INSTALL THE SWING SET OVER CONCRETE,PACKED DIRT,OR ANY OTHER HARD SURFACE.

AFALL ONTO A HARD SURFACE CAN RESULT IN SERIOUS INJURY OR DEATH TO THE USER.

•ONLY ADULTS SHOULD ASSEMBLE OR DISASSEMBLE THIS SWING SET.

•THIS PRODUCT MUST BE ANCHORED.ANCHORS ARE SOLD SEPARATELY.CALL 1-800-242-6110 OR

EMAIL INFO@PLAYSAFEOUTDOORS.COM

•ADULT SUPERVISION OF CHILDREN IS REQUIRED AT ALL TIMES WHEN ON OR AROUND THIS SWING SET.

NEVER LEAVE CHILDREN UNATTENDED.

•DO NOT SWING TOO HIGH OR AT AN ANGLE.

•DO NOT HANG ON OR CLIMB FROM STRUCTURAL MEMBERS OF THE SWING SET.

•DO NOT EXCEED THE INTENDED WEIGHT LIMIT OR MAXIMUM NUMBER OF USERS FOR THE SWING SET.

•THE INTENDED AGE FOR USE OF THIS PRODUCT IS 2YEARS TO 10 YEARS OLD,UNDER ADULT

SUPERVISION.CHILDREN UNDER 2YEARS HAVE A HIGHER RISK OF ENTRAPMENT AND INJURY.

•BE SURE TO OBSERVE YOUR CHILDREN AND INSURE THAT THEY HAVE THE STRENGTH AND SKILLS TO

ENJOY ALL THE RIDES SAFELY BEFORE USE ON THEIR OWN.

•DO NOT ALLOW CHILDREN TO WALK CLOSE TO,BEHIND,OR IN FRONT OF MOVING ITEMS.

•DO NOT ALLOW CHILDREN TO TWIST SWING CHAINS OR LOOP THEM OVER THE TOP BAR.THIS MAY

REDUCE THE STRENGTH OF THE CHAIN.

•TEACH AND INSTRUCT CHILDREN NOT TO SWING EMPTY SEATS.

•INSTRUCT CHILDREN HOW TO SIT IN THE CENTER OF THE SEATS AND SWING WITH THEIR FULL WEIGHT

ON THE SEAT.

•WARN CHILDREN NOT TO USE THE EQUIPMENT IN ANY MANNER OTHER THAN INTENDED.

•WARN CHILDREN NOT TO GET OFF THE RIDES WHILE IN MOTION.

•WARN CHILDREN TO DRESS APPROPRIATELY.LOOSE FITTING CLOTHING IS POTENTIALLY HAZARDOUS

WHEN USING THE SWING SET.

•EQUIPMENT MAY BE SLIPPERY WHEN WET.DO NOT ALLOW CHILDREN TO USE THE EQUIPMENT WHEN

WET.

•PARENTS SHOULD REGULARLY CHECK OPENINGS AND SURFACES,SUCH AS SLIDES,FOR ITEMS THAT

MAY BE HAZARDOUS.

•PARENTS SHOULD CHECK SWING CHAINS TO INSURE THEY ARE SECURE AND CAN NOT BE LOOPED

BACK ON THEMSELVES.

•DO NOT PLACE ANY PART OF THE BODY NEAR MOVING PARTS ON GLIDE RIDES OR TOP BRACKETS.

•NEVER SLIDE HEAD FIRST DOWN THE SLIDE.

•VERIFY THAT ALL SWINGS AND CHAINS ARE SECURED AT BOTH ENDS.

•NEVER ATTACH ANY MATERIALS THAT ARE NOT SPECIFICALLY DESIGNED FOR USE WITH THIS SWING

SET,SUCH AS JUMP ROPES,PET LEASHES,ROPE OR CORDS AND OTHER CHAINS AS THESE POSE A

POTENTIAL STRANGULATION HAZARD.

•WHEN DISPOSAL OF THE SWING SET BECOMES NECESSARY,FULLY DISASSEMBLE AND KEEP PARTS OUT

OF REACH FROM CHILDREN UNTIL THEY CAN BE SAFELY HAULED AWAY.

PROPER USE

This swing set is designed for use by children ages 2 to 10 under adult supervision. The maximum number of users this

unit is intended for is 5 children with a maximum weight of 105 lbs each. The maximum fall height for this swing set is

74”.

Single Ride (i.e. Swing) 105 lbs

Double Ride (i.e. Glider) 210 lbs

This product is designed for normal residential use only. This product is not designed for use in day care, nurseries, or

other public places. This product is to be assembled by adults only in the manner described within this owner’s manual.

The swing set must be anchored. Anchors are not included in this carton. For more information on anchoring, please see

the section below.

ANCHORING

ANCHORING is necessary to prevent tipping, lifting, and overturning. Playsafe™ recommends anchoring the swing set

in concrete, especially in soft or sandy soil. When this is not possible, anchors can be purchased by calling 1-800-242-6110.

To anchor the swing set in concrete, dig a hole at least 5” deep and 10” to 12” in diameter. Place the swing set leg in the

hole, preferably on a brick or stone to keep if from sinking. Be sure the swing leg is set 3” below the ground. Also make

sure the swing set is level. Pour concrete around the legs and fill the hole. Cover concrete adequately using the

recommended surfacing instruction in this manual. Allow the concrete to cure according to the concrete manufacturer’s

instruction before use.

CONSUMER INFORMATION FOR PLAYGROUND SURFACING MATERIALS

The U.S. Consumer Product Safety Commission estimates that 100,000 playground related injuries are treated annually in U.S.

hospital emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries,

and have the potential to be fatal, particularly when the injury is to the head. The surface under and around the playground

equipment can be a major factor in determining the injury-causing potential of a fall. It is self-evident that a fall on a shock-

absorbing surface is less likely to cause a serious injury than a fall onto a hard surface. Playground equipment should never be

placed on a hard surface such as concrete or asphalt and while grass may appear to be acceptable it may quickly turn to hard,

packed earth in areas of high traffic. Shredded bark mulch, wood chips, fine sand or fine gravel are considered to be acceptable

shock absorbing surfaces when installed and maintained at a sufficient depth under and around playground equipment.

The following table lists the maximum height from which a child would not be expected to sustain a life-threatening injury in a

fall onto four different loose-fill surfacing materials if they are installed and maintained at depths of 6, 9, and 12 in. However, all

injuries due to a fall can not be prevented no matter what surfacing materials are used.

FALL HEIGHT IN FEET FROM WHICH A LIFE

THREATENING INJULY WOULD NOT BE EXPECTED

Material Type 6 in. depth 9 in. 12 in.

Double Shredded

Bark Mulch 6’ 10’ 11’

Wood Chips 6’ 7’ 12’

Fine Sand 5’ 5’ 9’

Fine Gravel 6’ 7’ 10’

It is recommended that a shock absorbing material should extend a minimum of 6’ in all directions from the perimeter of the

stationary equipment such as climbers and slides. However, because children may deliberately jump from a moving swing, the

shock absorbing material should extend in front and rear of the swing a minimum distance of 2 times the height of the pivot point

measured from a point directly beneath the pivot on the supporting structure.

The information is intended to assist in comparing the relative shock-absorbing properties of various material. No particular

method is recommended over another. However, every material is only effective when properly maintained. Materials should be

checked periodically and replenished to maintain correct depth as determined necessary for your equipment. The choice of a

material depends on the type and height of the playground equipment, the availability of material in your area and its cost.

(The information above has been extracted from CPSC documents ‘Playground Surfacing – technical Information guide” and

“Handbook for public Playground Safety.” Copies of these documents can be obtained by sending a postcard to the: Office of

Public Affairs, USCPSC, Washington D.C., 20207 or by calling 1-800-638-2772.

CARE AND MAINTENANCE

•Check all nuts and bolts twice monthly during the usage season for tightness and tighten as required. It is particularly

important that all nuts and bolts are checked prior to the first use each season.

•For extended use, remove plastic swing seats and take indoors when the temperature drops below 32º F.

•Oil all metallic moving parts monthly during the usage season.

•Check all coverings for bolts and sharp edges weekly during usage season to be certain they are in place. Replace as

needed. It is particularly important that all coverings are checked prior to the first use each season.

•Sand any rusted areas of the tubing and repaint with a non-lead based paint meeting the requirements of Title 16 CFR

Part 1303.

LOCATION AND PLACEMENT OF YOUR SWING SET

•Place your swing set a MINIMUM of six (6) feet from any other hard or fixed object.

•Do not place your swing set underneath electrical lines. If you must, ensure that there is a minimum overhead

clearance of six (6) feet.

•Please note the CPSC surfacing materials recommendations on page 3.

TOOLS REQUIRED FOR ASSEMBLY

Your swing set comes with two 5mm Allen wrenches for the assembly of most of this product. You may also need to have the

following tools available:

•Adjustable wrench

•Phillips screwdriver

Although we take pride in the quality of our swing sets, on occasion there may be a burr or rough part which will require a metal

file to remove before use.

PARTS LIST FOR SWING SET

Main Frame

Name Each

Top Bar Section 2

Leg Fitting 2

Leg 4

Support Bar 2

Glider

Name Each

Glider Pole (vertical) with Foot Rests 2

Glider Pole (horizontal) with Seats 2

Glider Frame Attachment 1

Swings and Trapeze

Name Each

Swing Seat with Chains 2

Trapeze 1

Slide

Name Each

Rail/Ladder Leg 2

Front Leg 2

Slide 1

Ladder Step 2

PRE-ASSEMBLED HARDWARE

For easier assembly, Playsafe™ has pre-assembled some of the parts for you. Most of the screws and bolts should already be

in place. If removal of this hardware is required for certain assembly steps, it should be replaced in its original position.

Hardware shown in the assembly steps are actual size.

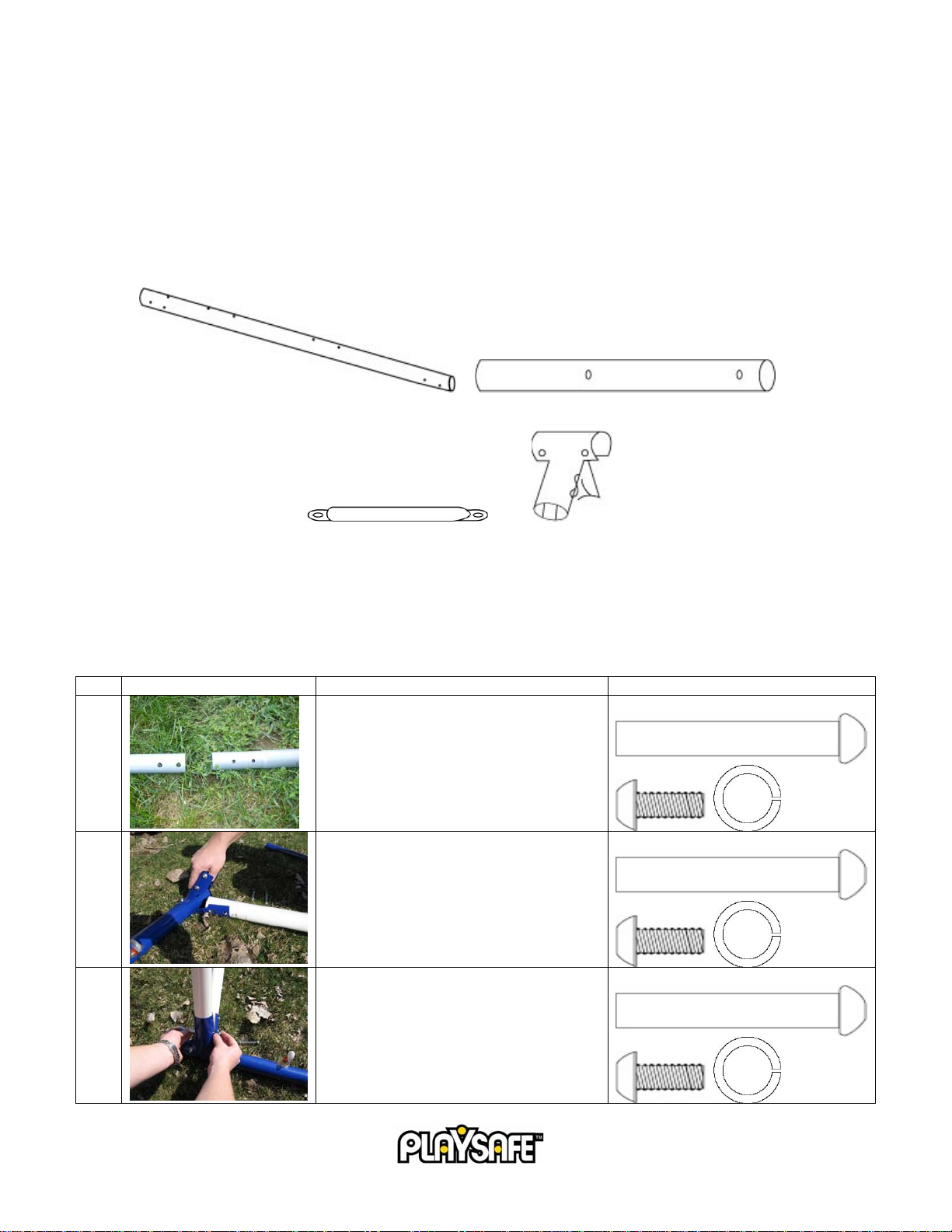

MAIN FRAME ASSEMBLY

Required Parts:

Top Bar x2 Leg x4

Support Bar x2 Leg Fitting x2

Pre-Assembled Parts:

•Corner Leg fittings should be attached to the top bar sections.

•Swing hooks should be in place on the top bar.

•Hardware for the legs should be in place in the corner fittings.

•Hardware for the support bars should be in place on the legs.

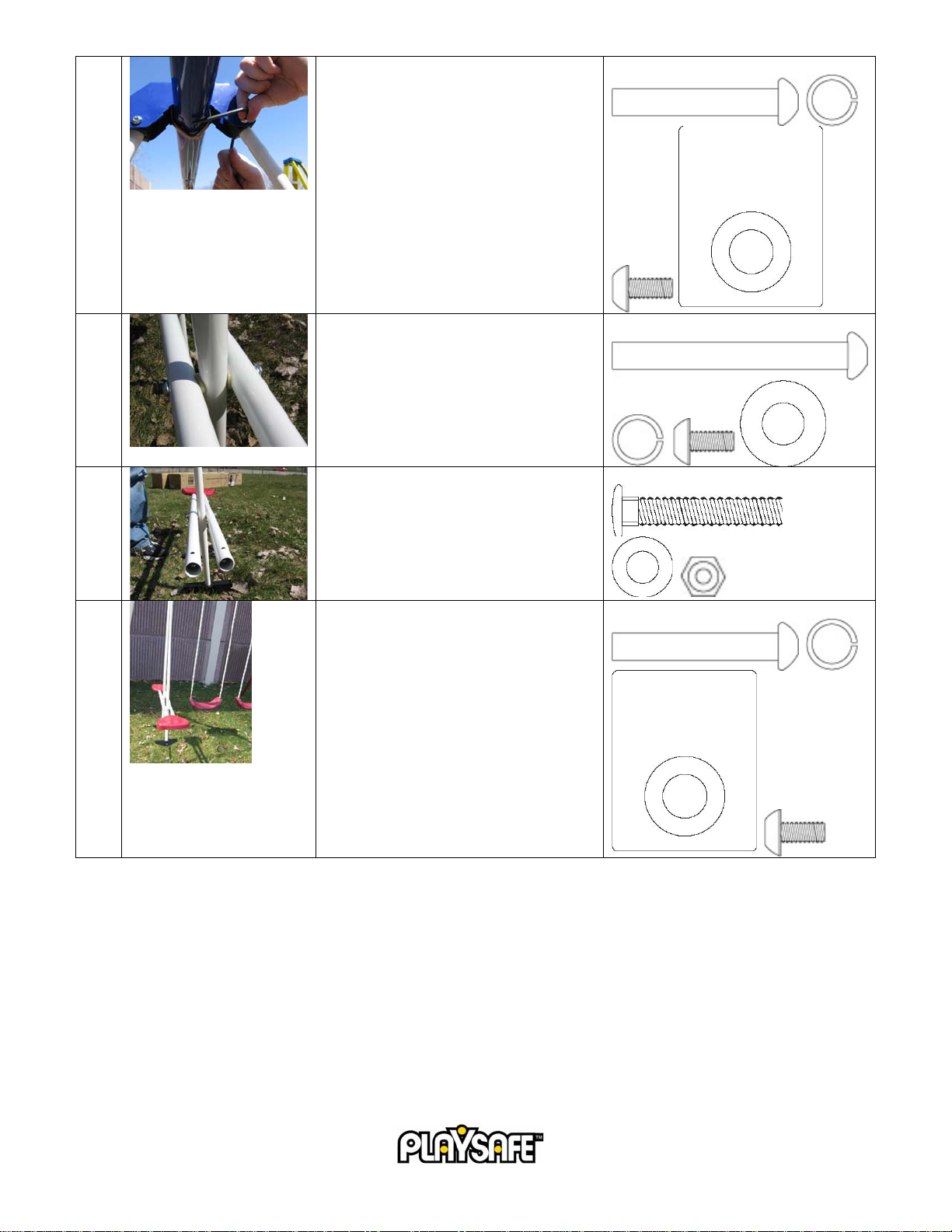

Step Illustration Instructions Hardware Reference

Attach the top bar sections. Remove the

pre-inserted hardware and join the two

sections together. After connected, align

the holes and re-insert the hardware to

secure.

Part Ref. #: PSHW10

Remove the hardware from the arm of a leg

fitting in order to insert one of the legs.

Then, align the two sets of holes and

replace the hardware through the leg fitting

arm and leg to secure.

Part Ref. #: PSHW10

Repeat the process for the other 3 legs.

Once completed, stand the frame upright. Part Ref. #: PSHW10

Remove the hardware from the middle

section of a leg. Match up the holes of the

mid-leg and support bar and re-insert the

hardware through both. Repeat the process

for the opposite side and center legs. It

may be necessary to pull both legs towards

each other in order for the holes to align

properly.

NOTE: One support bar has holes for the

slide attachment. The holes should be

positioned toward the front of the swing set.

Part Ref. #: PSHW12

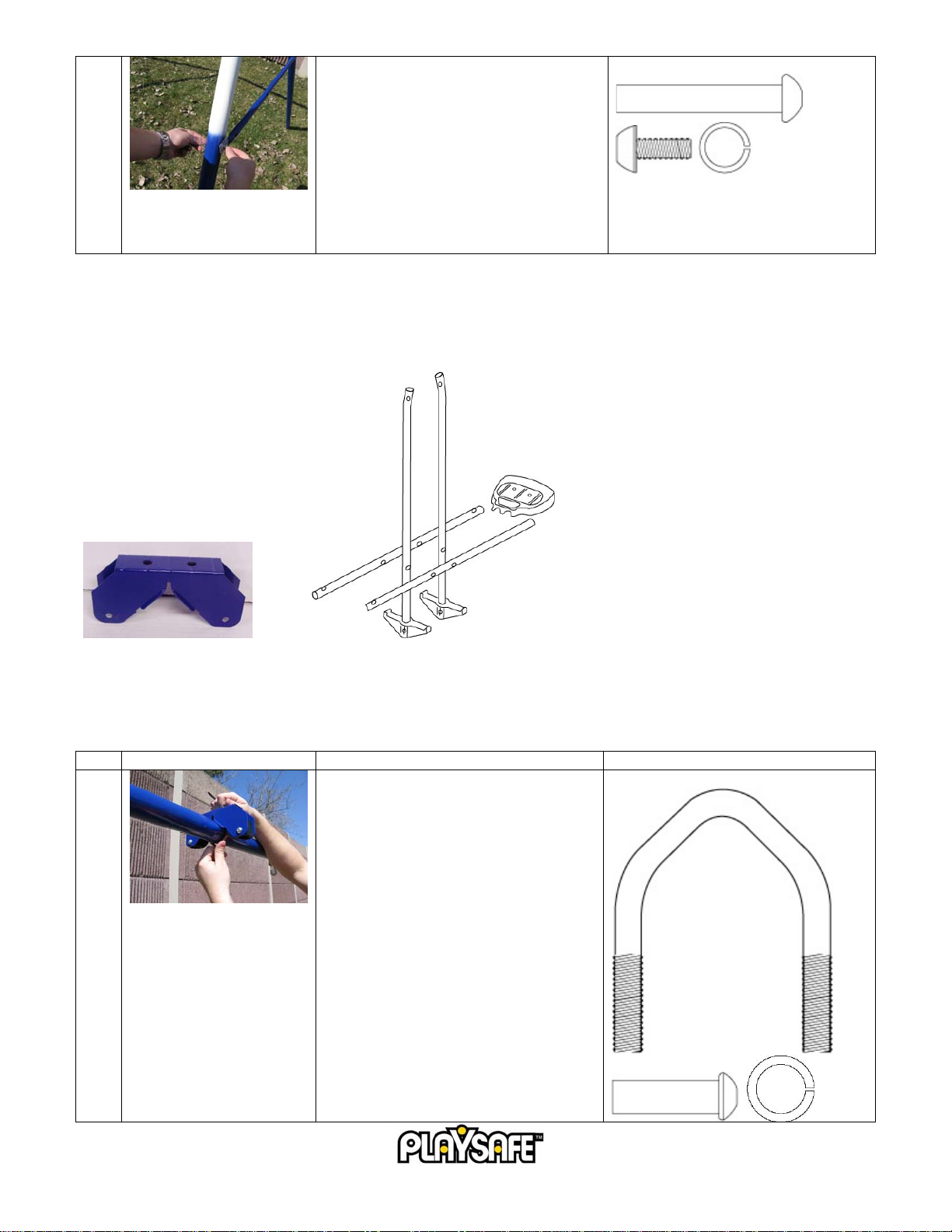

GLIDER ASSEMBLY

Required Parts: Vertical Poles x2 (Footrests attached)

Horizontal Poles x2 (Seats attached)

Glider attachment x1

Pre-Assembled Parts:

•The seats should be attached to the horizontal poles. These must be disassembled to complete the steps below.

•The foot rests should be attached to the vertical poles.

Step Illustration Instructions Hardware Reference

Secure the glider attachment with the V-

screw and the bolts at the squared portion

of the top bar.

Part Ref. #: PSHW35, PSHW22

Attach the two vertical poles to the glider

attachment. Start by removing the

hardware from the lower section of the

glider attachment. Align the vertical bar

with the glider attachment and re-insert the

hardware. Repeat the process for the other

side.

NOTE: The curved portion of the pole is

the top and it should face the inside of the

swing frame.

Part Ref. #: PSHW21, PSHW36

Connect the two horizontal poles (must

first be disassembled from the seats) to the

two vertical poles using the hardware

provided. Be sure that the plastic bushings

are between the vertical poles and

horizontal poles.

Part Ref. #: PSHW15, PSHW11

Reattach the seats onto the horizontal poles

using the flat headed screw, washer, and

lock nut.

Part Ref. #: PSHW1

Once fully assembled, check that the glider

swings freely. If it does not, make sure

that the bolts holding the vertical poles to

the top bar attachment are not overly

tightened.

Part Ref. #: PSHW21, PSHW36

SWING AND TRAPEZE ASSEMBLY

Pre-Assembled Parts

•Swing seats should be attached to the chain.

Step Illustration Instructions Hardware Reference

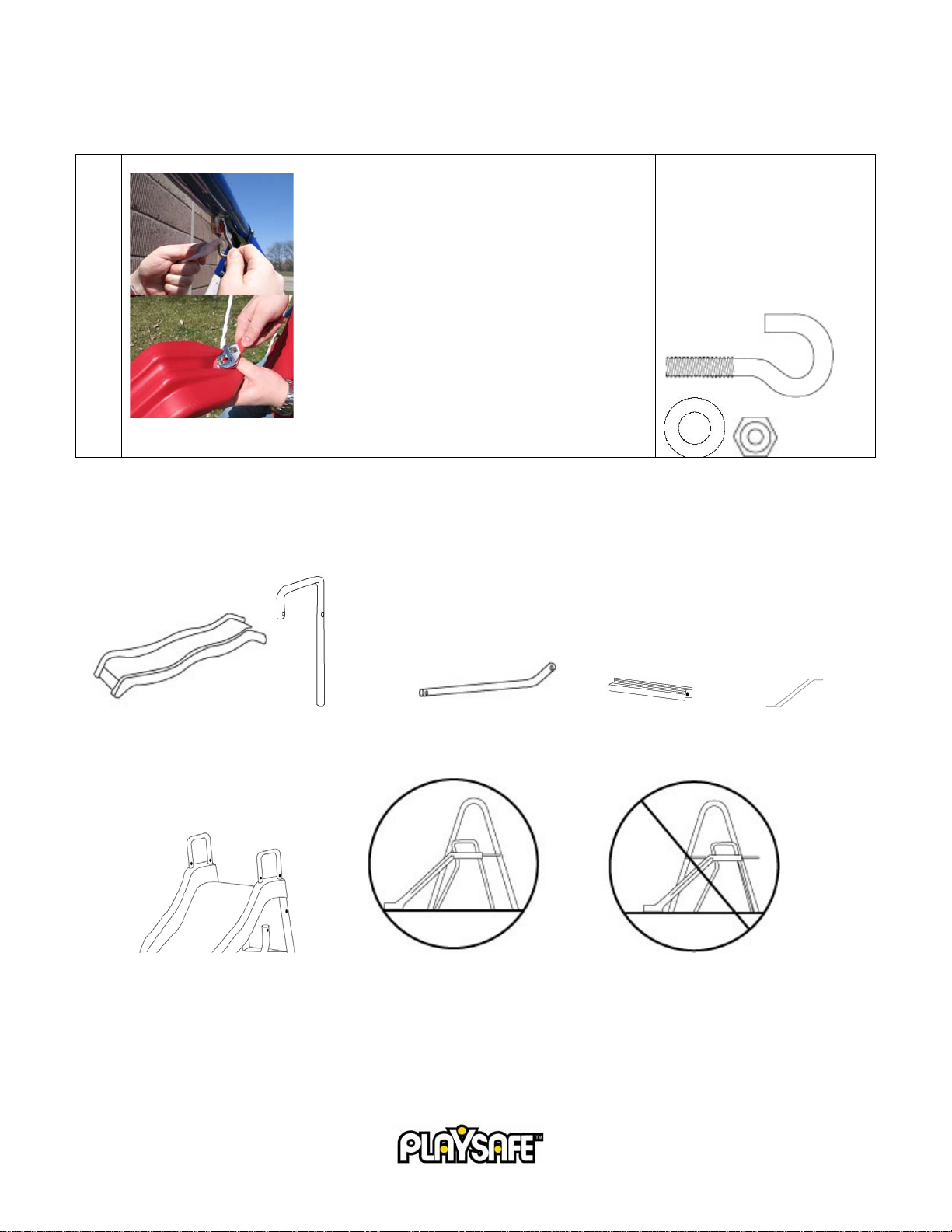

Hang the swings and trapeze in place from the

swing hooks.

Check the lock nut and bolt on the swing seat to

make sure that they are secure.

Part Ref. #: PSSH11, PSHW13

SLIDE ASSEMBLY

Required Parts:

Slide x1 Rail/Ladder Leg x2 Front Leg x2 Ladder Step x2 Link Bar x2

Proper Placement:

Slide Assembly Correct Location Incorrect Location

Pre-Assembled Parts:

•The screws and bolts for the slide rail/ladder legs are inserted on the slide. They will need to be removed prior to

inserting the legs into the slide.

•The ladder steps should have screws and nuts installed. These will need to be removed prior to inserting the legs and

then reassembled with the head of the screw facing out.

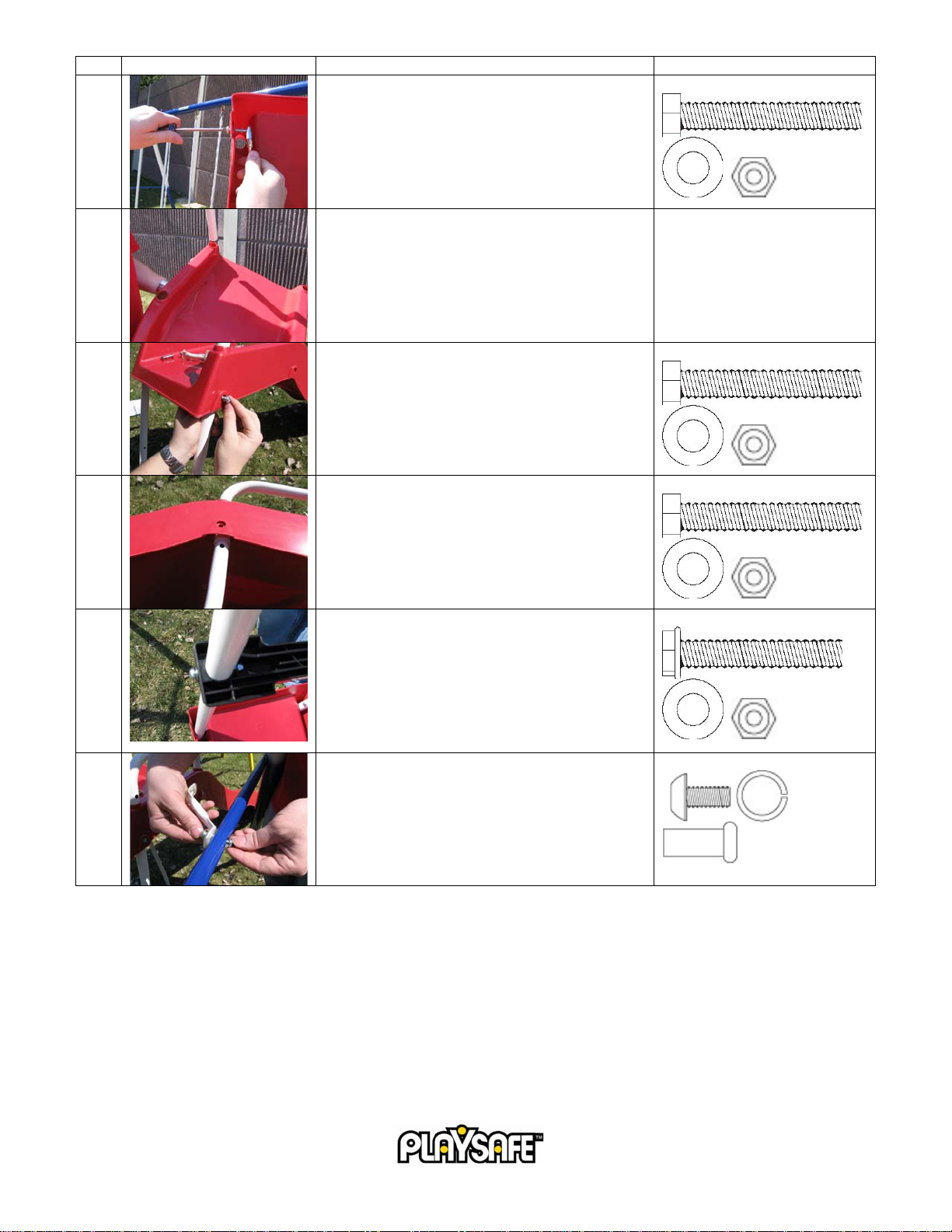

Step Illustration Instructions Hardware Reference

Remove the screws, washers, and lock nuts from

the holes in the slide.

Part Ref. #: PSHW24

Insert the rail/ladder legs through the holes in the

top of the slide. Align the ladder holes with the

slide holes.

Insert the screws through the holes in the back of

the slide and secure them to the hand rails with the

screws and locking nuts provided.

Part Ref. #: PSHW24

Locate the slide front legs and insert them into the

front hand rail tubes on the underside of the slide.

Align the holes and secure with the screws,

washers, and lock nuts.

Part Ref. #: PSHW24

Slide the two ladder steps onto the legs of the slide.

Align the holes and secure the steps with the

screws and locking nuts. The screw head should

be facing the outside.

NOTE: Once assembled and the slide is standing

upright, the steps should be flat and parallel with

the ground. If they are at an angle, they will need

to be removed, turned around, and reassembled.

Part Ref. #: PSHW5

To attach the slide to the frame, locate the two link

bars, remove the hardware, and re-attach to the side

support bar with the holes.

Part Ref. # PSHW17

TIP: In order to keep the slide legs from sinking into the ground, place a flat rock or a brick under the legs. You should dig

out a place for the brick so the slide remains even.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere PlaySafe Spielzeug Handbücher

PlaySafe

PlaySafe 22-PS140 Bedienungsanleitung

Beliebte Spielzeug Handbücher anderer Marken

marklin

marklin 37321 Bedienungsanleitung

Canon

Canon PAPER CRAFT Bedienungsanleitung

GREAT PLANES

GREAT PLANES Pitts M-12S Bedienungsanleitung

NOCH

NOCH 14261 Bedienungsanleitung

Hausler

Hausler 450 SE V2 Bedienungsanleitung

Dynaflite

Dynaflite Daydream Bedienungsanleitung

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Handbuch

Kenner

Kenner Batman 63651 Bedienungsanleitung

LEGO

LEGO 8527 Bedienungsanleitung

iKarus

iKarus ECO 8 Bedienungsanleitung

Multiplex

Multiplex EasyStar II Bedienungsanleitung

Walkera

Walkera 38 Bedienungsanleitung

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Bedienungsanleitung

MD MXION SWD Bedienungsanleitung

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Bedienungsanleitung

marklin

marklin 39671 Bedienungsanleitung

Meccano

Meccano 15103 Bedienungsanleitung

LEGO

LEGO TECHNIC 8735 Bedienungsanleitung
