PLT WPM45UNV5KD Bedienungsanleitung
—
To prevent personal injury or product damage only licensed electricians should provide all installation services.
—
To avoid electric shock or component damage disconnect power before attempting installation or servicing.
—
This product must be installed in accordance with the national electric code (NEC) and all applicable federal, state and local electric codes and safety standards.
—
Disconnect product and allow cooling prior to servicing.
—
Any alteration or modification of this product is expressly forbidden as it may cause serious personal injury, death, property damage and/or product malfunction.
—
To prevent product malfunction and/or electrical shock this product must be properly grounded.
—
This luminaire is designed to operate in ambient temperatures ranging from -30°c to 40°c and to be horizontally mounted with the LEDs facing down.
—
Wall mount only.
LED MEDIUM WALLPACK
LED WPM
Installation Guide
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
LED Product Partner
WARNING
1 Unpacking
1. Thoroughly inspect the fixture for freight damage. Freight damage should be reported to the delivery carrier.

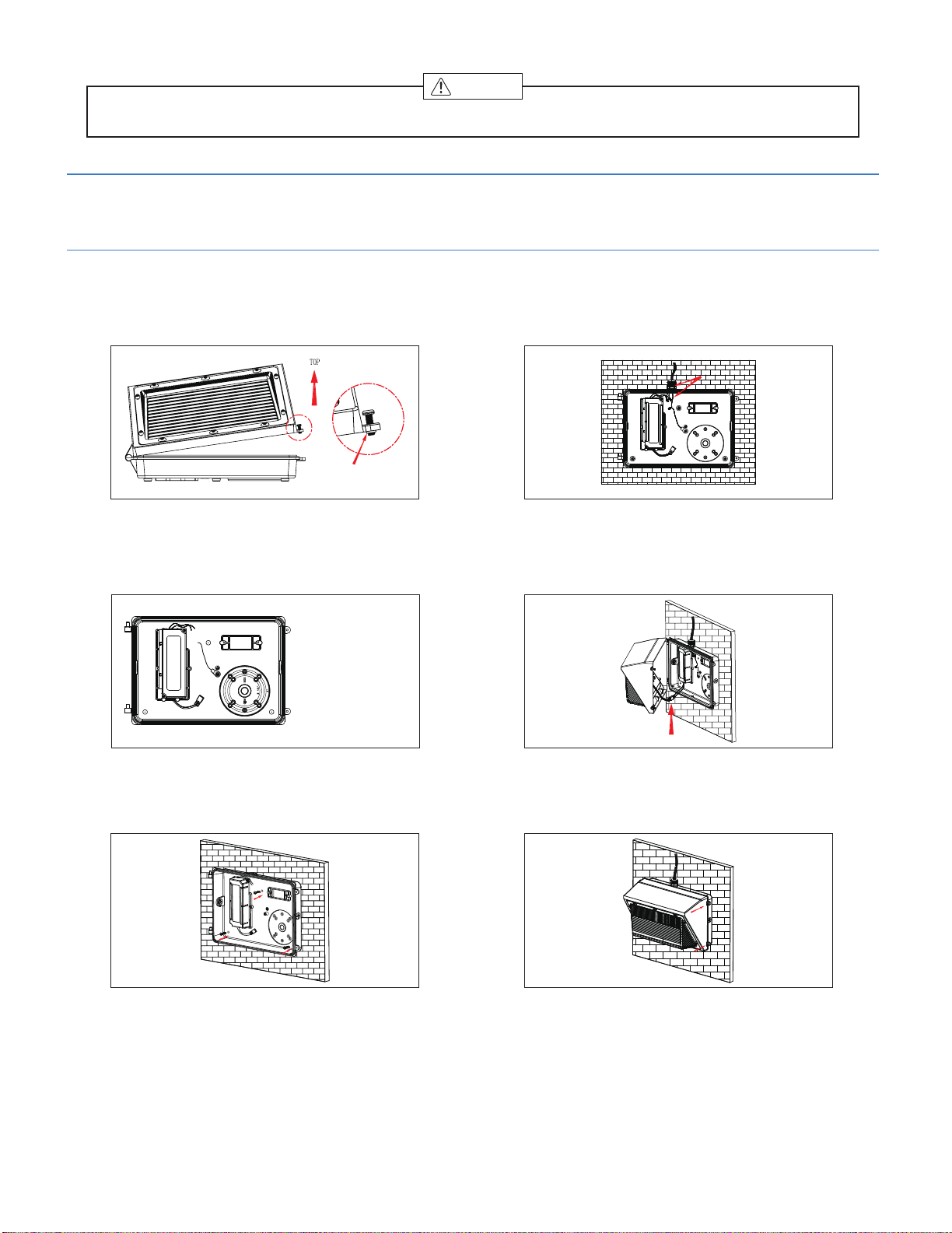

2 Installation
1. Open the front housing assembly and
Remove thefronthousing assembly.
3. Prepare the back-plate for mounting by drilling
out the two corner and the center 5/16” diameter
holes ("B")
4. If wiring is performed using a recessed junction box then
drill out the appropriate junction box houes.
5. Line up the back plate in thedesired location and mount
securely. Use thesupplied gaskets for a weather tightseal
between
back plate and junction box.
6. Attach thedriver input wires to the color matched
supply wires.
2.
Wiring can be performed using arecessed junction box or a
surface conduit. The fixture back plate has a template that
matches two standard junction box sizes. Conduit is connected
using the ½" NPS tapped holes ("A").
7.
Place the front housing assembly on the hinge pins of the back plate.
8.
Attach the female connector of driver into the male connector
of the led board
9. Fasten thefront housing assembly to the ba
ck pla
te
A–1/2” NPS tapped holes
(surface conduit or photo control)
B–5/16” dia.Screw hole
RISK OFELECTRIC SHOCK.DISCONNECT POWER BEFORE SERVICING
WARNING
A
AA
B
B B
