User’s Manual

20060814

8.5” Swivel Screen Portable DVD Player

PVU-8557

Important Safety Instructions

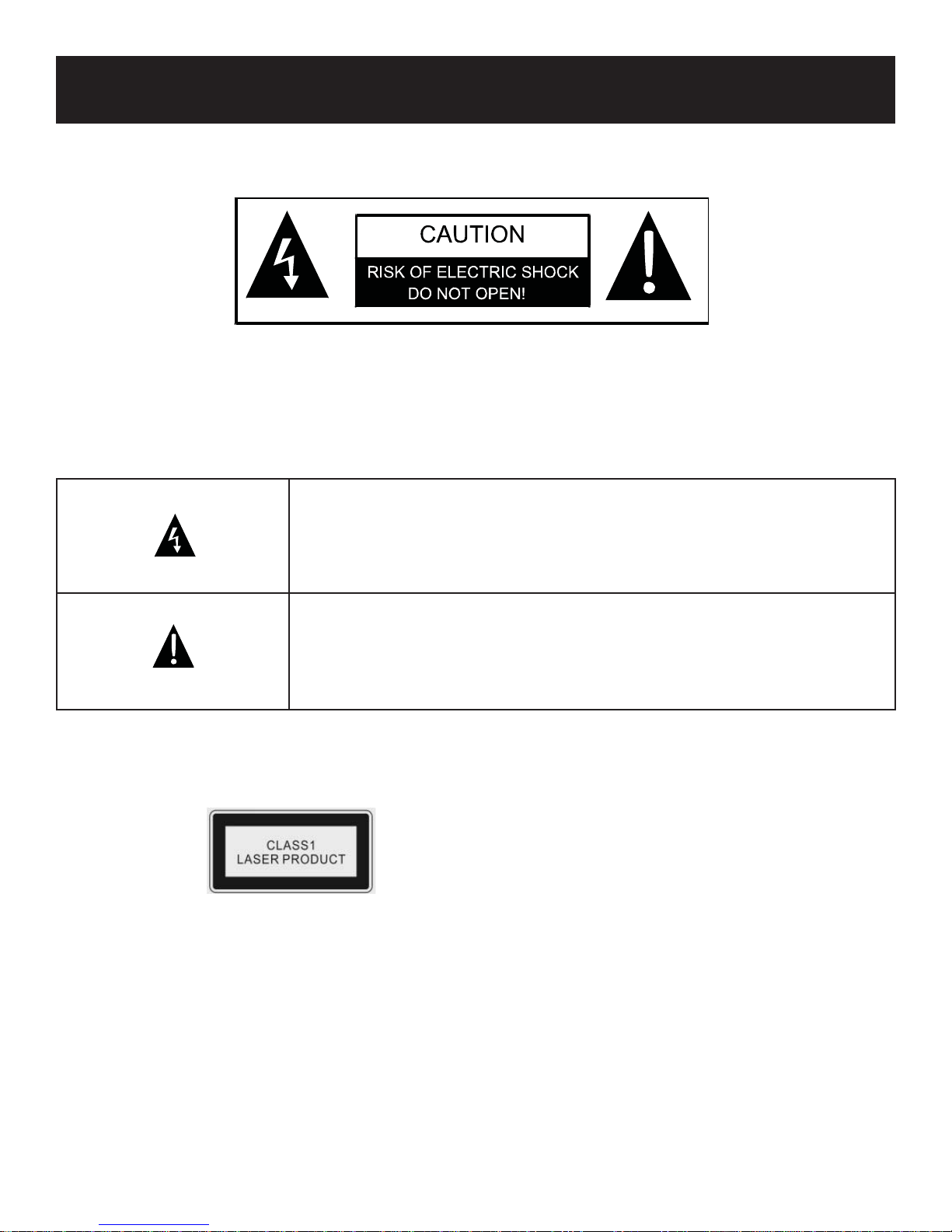

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USE-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightening ﬂash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of uninsulated “dangerous voltage”

within the product’s enclosure that may be of sufﬁcient magnitude to constitute

a risk of electrical shock.

The exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance (servicing) instructions

in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

Caution: Laser radiation when open. Do not stare into beam.

CAUTION: USE OFANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

Power Supply:

Connect the supplied power adapter to the side of the DVD player in the slot marked “Power In”. Plug the two-

prong end of the power cord to an AC100-240V outlet. If you have difﬁculty inserting the plug, turn it over and

reinsert it; if the unit will not be used for a long time, disconnect the power from the outlet.

Note: before plugging in the power cord to an AC outlet, make sure that all the connections have been made.

Important Safety Instructions

CAUTION: These servicing instructions are for use by qualiﬁed service personnel only. To reduce the risk of

electric shock, do not perform any servicing other than that contained in the operating instructions unless you

are qualiﬁed to do so.

Refer to service manual for servicing instructions.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use near water.

Clean only with dry cloth.

Do not block any ventilation openings. Maintain well-ventilated conditions around the product. Do not

place on bed, sofa, or anything that blocks ventilation. Install in accordance with the manufacturer’s

instructions.

Do not install near any hear sources such as radiators, heat registers, stoves, or other apparatus (including

ampliﬁers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The

wide blade or the third prong is provided for your safety. If the provided plug does not ﬁt in your outlet,

consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and

at the point where they exit the apparatus.

Only use attachments/accessories speciﬁed by the manufacturer.

Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer or sold with the

apparatus. When a card is used, use caution when moving the car/apparatus to avoid injury from tip-over.

Unplug this apparatus during lightening storms or when unused for long periods of time.

Refer all servicing to qualiﬁed personnel. Servicing is required when the apparatus has been damages in

any way, which as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into

the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been

dropped.

Apparatus shall not be exposed to dripping or splashing and no objects ﬁlled with liquids such as vases,

shall be placed on the apparatus.

Note: Do not touch the color TFT LCD screen by hand directly.

10.

11.

12.

13.

14.

15.

Important Safety Instructions

This product incorporates copyright protection technology that is protected by U.S. patents and other

intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision,

and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.

Reverse engineering or disassembly is prohibited.

Region Code Information

DVD players and discs are coded by region. If the region number described on the DVD disc does not

correspond to the region number of this product, this product cannot play the disc.

The region code of this unit is 2.

WEEE

IMPORTANT FOR LASER PRODUCTS

CLASS 1 LASER PRODUCT

DANGER: Visible laster radiation when open and interlock failed or

defected. Avoid direct exposure to beam.

CAUTION: Do not open the top cover. There are no user serviceable

parts inside the unit. Leave all servicing to qualiﬁed personnel.

This product contains electrical or electronic materials. The presence of these

materials may, if not disposed of properly, have potential adverse effects on the

environment and human health. Presence of this label on the product means it

should not be disposed of as unsorted waste and must be collected separately. As a

consumer, you are responsible for ensuring that this product is disposed of properly.

To ﬁnd out how to properly dispose of this product, please go to www.polaroid.

com and click on “Company“ or call the customer service number for your country

listed in the instruction manual.

Features

High-quality Audio and Video

Excellent Sound: Dolby Digital Decoder delivers great sound.

AV Input: External audio, video can be connected to most external AV sources.

AV Output: Analog audio output can be connected to external ampliﬁer.

Advanced Playing Functions

Compatibility: Compatible with DVD, CD, and JPEG discs, etc.

On-Screen Display: You can choose English, French, Spanish, etc. for the on-screen display language.

Particular Performance: Multi-speed, fast forward, fast backward, and slow playback.

Search by Time: Search for a certain track of a disc by selected time.

Last Memory Playback: Memorizes the stopped playback track and continues playing the disc from

this spot when the power remains on. (Only available for DVD and CD discs.)

Special Functions: Supports aspect ratio changing, screen multi-angle viewing, and zooming functions.

Other Special Functions

High Resolution: MPEG-2 decoding format archieves more than 500 lines of horizontal resolution.

Power Adapter Switch: Automatically adapts to voltage requirements in US and other countries.

•

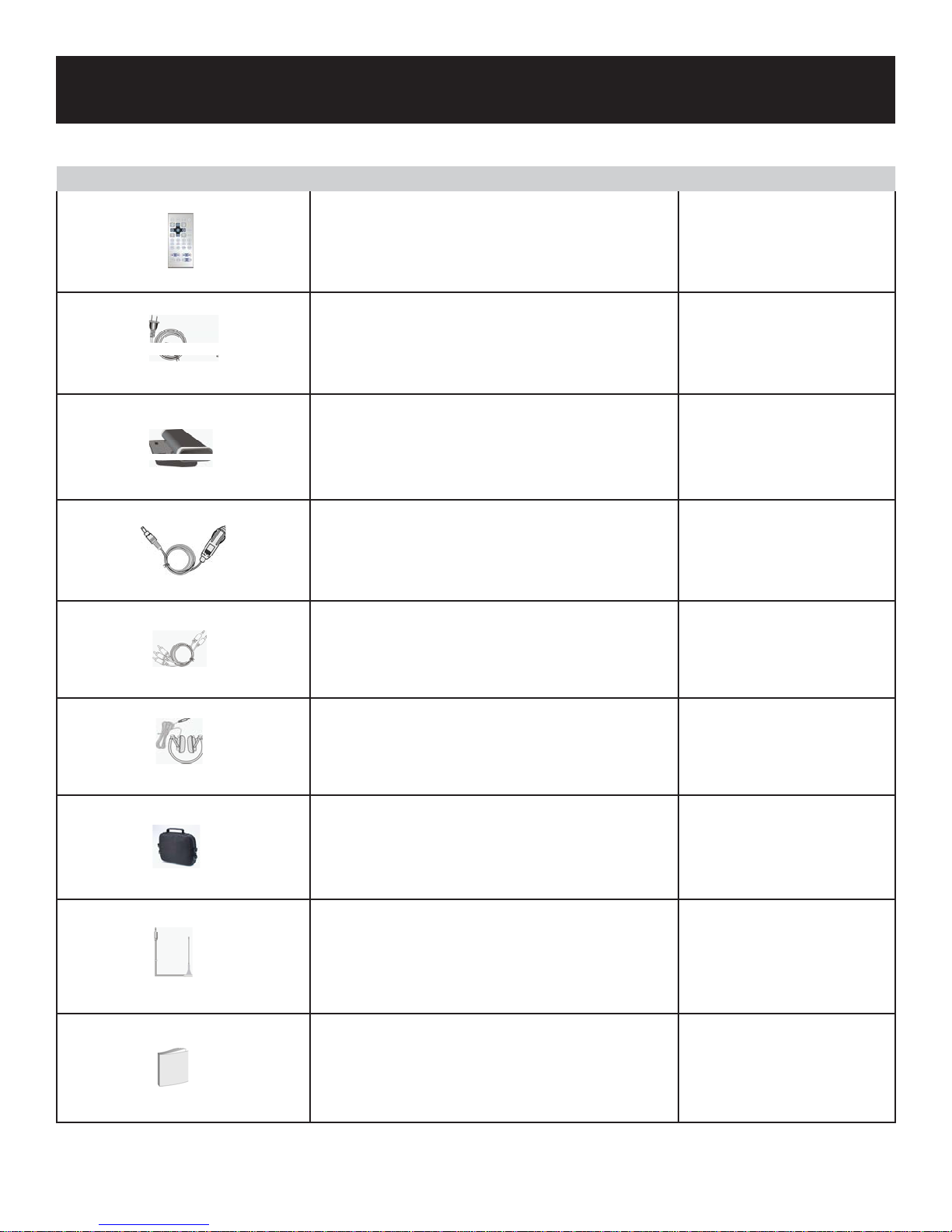

Accessories

ITEM

NAME

QTY

Remote Control (with battery) 1

Power Supply Cord with AC Adaptor 1

Rechargeable Battery Pack 1

DC Adapter (Car Adapter) 1

Audio/Video Cord 1

Headphone 1

Bag 1

DVB-TAntenna 1

Operation Manual 1

Note: Accessories and their parts numbers are subject to change without prior notice.

Contents

Important Safety Instructions 2

Features 5

Accessories 6

View of Front Panel 8

View of Side Panels 9

View of Bottom Panel 10

Revolving LCD Screen 11

Remote Control 12

System Connections 15

Power Supply 16

Rechargeable Battery 17

DBV Setup 19

Notes on Discs 22

Playback Operation 23

DVD Playback 24

CD Playback 25

JPEG Playback 26

System Setup 28

Carrying Case 32

Deﬁnitions 34

Troubleshooting 35

Speciﬁcations 36

View of Front Panel

LCD screen

Speakers

AV IN/OUT button: press to switch between AV in and out

DVD/DVB/USB/SD switching button

TITLE button: press to display disc title if disc is coded

MENU button: press to access the disc menu during playback

MODE button: press to enter the brightness, contrast, or color adjusting mode. Press and hold for several seconds

to change the aspect ratio among 16:9, 4:3, 16:9 overturn, and 4:3 overturn. (This button is invalid when the unit is

connecting to the docking station.)

SETUP button: press to access or exit the system setup menu

STOP button: press stop to stop playback, press twice to stop completely. Press the PLAY button to resume

playback; press the STOP button to exit the audio scanning process column in DVB mode. Press to return

to the channel last viewed in DVB mode

//+ button: press to select different items; press to pause the playback; press the mode button and then

the +button to increase the level of brightness, contrast, and color. //- button: press to select different items;

press to stop playback or press it twice to stop completely, then press the (PLAY) button to resume playback

from the stopped spot; press the MODE button and then press the -button to decrease the level of brightness, color,

and contrast. //button: press to select different items; press and hold to search backward fast; press 

to return to previous list/track/chapter. //button: press to select different items; press and hold  to search

forward fast; press to go to next list/track/chapter.

ENT button: press to conﬁrm selection;

(PLAY) button: press to start playback

Remote sensor

Charge indicator: light is red when the battery is being charged; green when battery is fully charged.

Power indicator: green when the unit is powerd on; red when in standby mode

Disc tray

Open button: press to open the disc tray cover

10.

11.

12.

13.

14.

15.

16.

17. 8

View of Side Panels

Ride Side View

Volume Control Knob: Used to adjust the volume of headphones and speaker

Headphone Jack: Used to connect to headphones for private listening. When headphone is plugged in,

the speakers will automatically turnoff.

SD/MS/MMC Card Slot

Audio Input/Output Jack: For connecting to an external ampliﬁer or audio source

Video Input/Output Jack: For connecting to an external monitor or video source

AV IN/OUT Switch: Switch to “IN” to input external Audio/Video signal. Switch to “OUT” to play

disc or output AV signal

DC 9.5/12V Input Jack: Used to connect the DC 9.5/12V adaptor

Left Side View

DVB-TANT Jack

USB Slot

Power ON/OFF Switch: Switch the power on or off

View of Bottom Panel

Rechargeable Battery Contacts: For connecting the rechargeable battery pack1.
