Assembly Instructions
Movable Range Coop 20' x 36' FC3000
P.O. Box 458 - 27725 Danville Avenue - Castle Rock, MN 55010 - www.poly-tex.com
U.S. & Canada Toll Free - 800-852-3443 - (651) 463-7009 - fax (651) 463-2479
REV: AK-210302
Safety Guidelines 2
PLEASE READ THE INSTALLATION INSTRUCTIONS CAREFULLY
BEFORE BEGINNING TO ASSEMBLE THE STRUCTURE. SAVE
THESE INSTRUCTIONS FOR FUTURE REFERENCE.
There is no guarantee of the load capacity of the
structure or foundation for snow, wind, seismic, or
other loads unless buyer has received certified
engineering drawings with the structure, and Poly-Tex
does not warrant that the frame or foundation will
comply with local or state building codes in buyer's
location.
This structure is intended to be self-supporting, provided it is
constructed with all frames, hardware, sheathing, sheeting,
bracing, cables, and membrane in place, and secured to the
foundation as shown in the manual. Stability during
construction, from winds and loads imposed during erection, is
the sole responsibility of the installer. Observe safety codes
required by the local jurisdiction, and relevant safety practices
for working at heights. Avoid the risk of electrical shock from
overhead lines or electrical storms. Poly-Tex recommends
contracting a licensed electrician to perform electrical work.
Eye protection is recommended under all circumstances and
hearing protection is recommended when cutting components
with power tools.
No part of this structure is engineered to function as an
anchorage point for a fall arrest system. Use a safety net or
work from a safe work platform (i.e. scaffolding). Select a
calm day for work. Wind can be sufficient enough to knock
materials or workers off a work platform or ladder, resulting in
a potentially deadly fall.
Overview of assembly procedure
While each structure and site is unique, and may require
special considerations, these instructions are for a tilt-up
method (where frames are assembled on the ground and tilted
onto ground stakes or anchor rods using ropes or lifts). If
installer is not confident to erect the structure, Poly-Tex
suggests hiring a general contractor, carpenter, or similar
licensed business familiar with construction, to assemble and
erect the structure.
Do not overload structure. Consult with a Poly-Tex
representative prior to adding any amount of weight over the
specified capacity of this structure. Basket purlins, shelving or
any objects of significant weight shall not be hung, attached,
or secured to roof or truss members in a manner that will
overload the structure.
Do not walk on polycarbonate sheets. If structure is to be
covered with polycarbonate sheets, always use scaffolding for
the erection process to avoid damage to sheeting and to
ensure safety. Polycarbonate sheeting has UV coating
protected with vinyl film on the exterior surface. Install sheets
with the film intact and toward the exterior. Remove film once
the sheet has been fastened
AK-210302 2
Warranty and Sheet Index 3
AK-210302
Poly‐Tex,Inc.LimitedWarranty
Poly‐Tex,Inc.warrantsitsproductstobefreefromdefectsin
materialandworkmanshipforaperiodof(1)yearfromdateof
invoice.Thiswarrantyisprovidedtotheoriginalpurchaserofthe
productandisnottransferable.Poly‐Texdoesnotwarrantparts
notmanufacturedbyPoly‐Tex,butdoesassignanytransferable
manufacturerorsupplierwarranties.Shouldanydefectbefound,
fullrepairofreplacementwillberenderedtothecustomeratno
costfollowinginspectionbyaPoly‐Texrepresentativeandthe
returnofthedefectiveproducttoourCastleRock,MNfactory.
Expensesforremovalorreinstallationofdefectiveproductswillnot
becoveredbythewarranty.Thesaleofcustomprojectsarefinal
andarenoteligibleforrefund.
POLY‐TEXSHALLNOTBEHELDRESPONSIBLEFORANYSPECIALOR
CONSEQUENTIALDAMAGES,ORFORANYDELAYINPERFORMANCE
OFTHISWARRANTYBEYONDOURCONTROL.THISWARRANTYIS
EXCLUSIVEANDINLIEUOFALLOTHERWARRANTIESWHETHER
IMPLIED,WRITTEN,ORORALINCLUDINGTHEWARRANTIESOF
MERCHANTIABILITYANDFITNESSFORAPARTICULARPURPOSE.
ADDITIONALLY,THEREISNOGUARANTEEOFTHELOADCAPACITY
OFTHESTRUCTUREFORSNOW,WIND,SEISMIC,OROTHERLOADS
UNLESSBUYERHASRECEIVEDCERTIFIEDENGINEERINGDRAWINGS
WITHTHESTRUCTURE.POLY‐TEX,INCDOESNOTWARRANTTHAT
FRAMEWILLCOMPLYWITHLOCALORSTATEBUILDINGCODESIN
BUYERSLOCATION.
Thiswarrantydoesnotcoverdamagefromcustomerabuse,misuse,
improperinstallation,customermodifications,customernegligence
inperformingnormalmaintenance,ordamageresultingfromactsof
nature.
REV‐11/20
3
SHEET INDEX
Safety Guidelines
Warranty and Index
Parts - Structure
Parts - Structure
Parts - Fittings
Parts - Miscellaneous
Parts - Hardware
Structure Overview
Skid Assembly
Cross Brace Assembly
Basic Frame Assembly
Intermediate Frame Assembly
Frame and Windbrace Installation
Ridge & Eave Purlin Installation - Part 1
Ridge & Eave Purlin Installation - Part 2
Intermediate Purlin Installation - Part 1
Intermediate Purlin Installation - Part 2
End Frame Installation
Equipment Rail Installation
Wood Skirt Installation
Netting and Wiggle Wire Base
Wiggle Wire Installation
End Frame Poly
Gable Vent Installation - Part 1
Gable Vent Installation - Part 2
Roof Poly Installation - Part 1
Roof Poly Installation - Part 2
Side Vent Installation - Part 1
Side Vent Installation - Part 2
Shade Fabric Installation
Door Installation
Eye Hook Installation
Anchoring
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
HT1015
92 3/4" Chord
HT1016
92 3/4" Chord SWD
HT2143
1.75" Sq x 81 1/8" w/Hole
HP3420
EXT 2.0" Sq 6'-11"
CF1014
1.315" Tube w/Swage (116")
RC1319
Roll-Up Crank (84")
HP3506
HT Diagonal Brace 78"
HP3557
9'-7" 2.0" x 14 ga.
RR2109
9'-8" R.F. U Channel w/Swage
HP3340
9'-8" Truss Purlin w/Swage-Red
HT2161
Skid Rail Swaged 9' x 6' (1.66)
HT2160
Skid Rail 9' x 6' (1.66)
HT2162
Skid Rail Swaged 9' x 6' (1.66)
Parts - Structure 4
AK-210302 4
1 5/16"
9'-8"
9'-6 15/16"
DR5082
Door Vertical (100")
FC1002
Poultry Rafter 20' (2.0)
HP3556
FC Straight Side (Gothic 20')
HP3503
HT Peak Brace (111")
DR5073
Door Frame Header (46 1/2")
WT1618
Gable Peak Header
FC1003
Poultry Peak 20' (2.0)
FT4040
2" x 1.375" Cross (Set) w/Bolts
HT1085
Roll-Up DR/Vent Tube (80")
FC1001
2" Tie Post 1' x 5'
HT1076
Door Jamb Extension (24")
HT1023
34 1/2" STRUT
FT4041
1.375" Brace Band HY2027
C-Bracket (SF-23)
FT2079
Long Speed Hook (2")
FT2108
1 1/2" UNI Pipe Clamp
FT2071
Door "J" Hook
FT2106
R.F. End Strap
WWBASE9
8'11" Wiggle Base
Parts - Structure 5
AK-210302 5
DR6041
Latch, Swinging Door
DR7033
Steel Flat Bracket
FT2057
2" U-Clamp
FT2119
Purlin Fastener 1.315
KH1000
Purlin Fastener
PT2200
Earth Anchor 30"
HTA1058
Anchor Rod
HTA1034
Skid Insert
RC1330
Cradle Assy (Short) w/Hook
RC1311
Bracket Assy With S Hook
HTA1064
Anchor Rod Shackle (5")
RC1303
U-Joint w/Bolts
HY2026
U-Bracket (SF-23)
FT1990
R.F. "L" Bracket
FT3504
"L" Bracket
FT2117
R.F. End Strap (1.66")
Parts - Fittings 6
AK-210302 6
RC1010
Roll-Up Tube Clip 1.315"
RS5000
1 1/4" Rnd Blk Plug
FB2527
1" x 1 1/2" Rect Blk Plug 16 ga.
RC1406
Nylon Rope 1/4"x 66'
DR6038
Door, Swinging, Assembly, 4' x 6'-8"
DR2410
Door Poly, Reinforced, 60" x 96"
SC303890K-HGLS
Shade 30' x 38' 90% Blk. HGLS KHR36-20TW
36' x 38' White Top GMENDW
14' x 23' White End Frame Poly
Parts - Miscellaneous 7
AK-210302 7
FT2570
Stop Tab
NB1809
Self-Drill Screw
1/4-14 x 1"
NB1807
1 1/2" x #9 Woodtight
NB1749
Lock Nut 3/8" zp. Nylon Insert
NB1841
Carriage Bolt 3/8" x 3" G5
NB1942
Hex Bolt 3/8" x 2" zp. G5
NB1837
Carriage Bolt 3/8" x 1-1/4" G5
NB1832
Carriage Bolt 5/16" x 1-1/4" G5
NB1863
Flat Washer 3/8" zp.
NB1864
Lock Washer 3/8" zp.
NB1874
Hex Nut 3/8" zp.
NB1886
Flat Washer 5/16" zp.
NB1862
Lock Washer 5/16" zp.
NB1872
Hex Nut 5/16" zp.
NB1805
Self-Drill Screw
#12-14 x 1-1/2"
NB1816
Carriage Bolt, 5/16" x 2-1/2"
NB1958
Hairpin 1-5/8" x .093 zp.
NB1622
Eye Bolt, 3/8"-16 unc x 3"
NB1603
Screw, #10-16 x 1" SD Pan Head
Parts - Hardware 8
AK-210302 8
3/8" Hardware
5/16" Hardware
Structure Overview 9
AK-210302 9
Intermediate
Frame (x5)
End Frame
each end
Intermediate
Frame Truss
Wind Brace
at 4 corners
Cross Brace
at each frame
Door Frame
Peak Purlin
Eave Purlin
each side
Intermediate Purlin
each side
Equipment Rails (x3)
Door
Roll-up
Gable Vent
End Wall Poly
Roof Poly
and Shade Fabric
Roll-Up
Sides
Anchors
Wood Skirts
(Wood not provided
by Poly-Tex)
DETAIL B DETAIL A

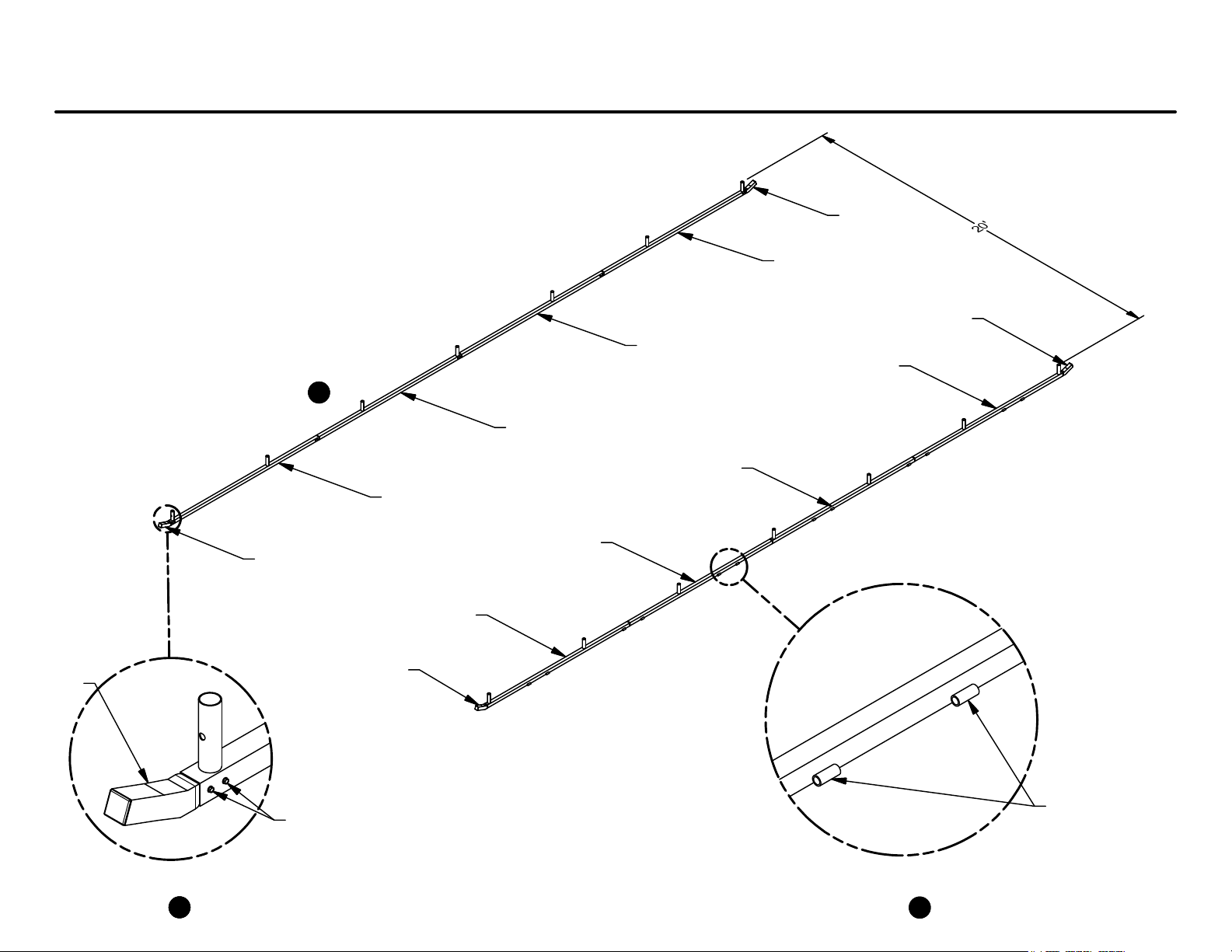

Skid Assembly 10
AK-210302 10
B
A
HT2160
HT2160
HTA1034
HTA1034
HTA1034
HTA1034
1
NB1809
1" Self-Drill Screw
Typ. at all
connection points
HTA1034
21
1. Assemble Skid Rails using 1x HT2104 and 2x HT2105 for each side.
Ensure that the hold down tubes face the outside of the structure.
(see Detail A)
2. Install 1x HTA1034 at each end of rail. secure connections
using 2x NB1809 screws. Drive screws from the inside of
the structure towards the outside. (see Detail B)
HT2161
HT2162
HT2161
HT2161
HT2162
HT2161
Hold down tubes to be
oriented towards the
outside of the structure
