PortaPivot StealthPivot DG08 Bedienungsanleitung
Patented technology
Watch our instruction videos on www.portapivot.com
MOUNTING DOORGRIPS

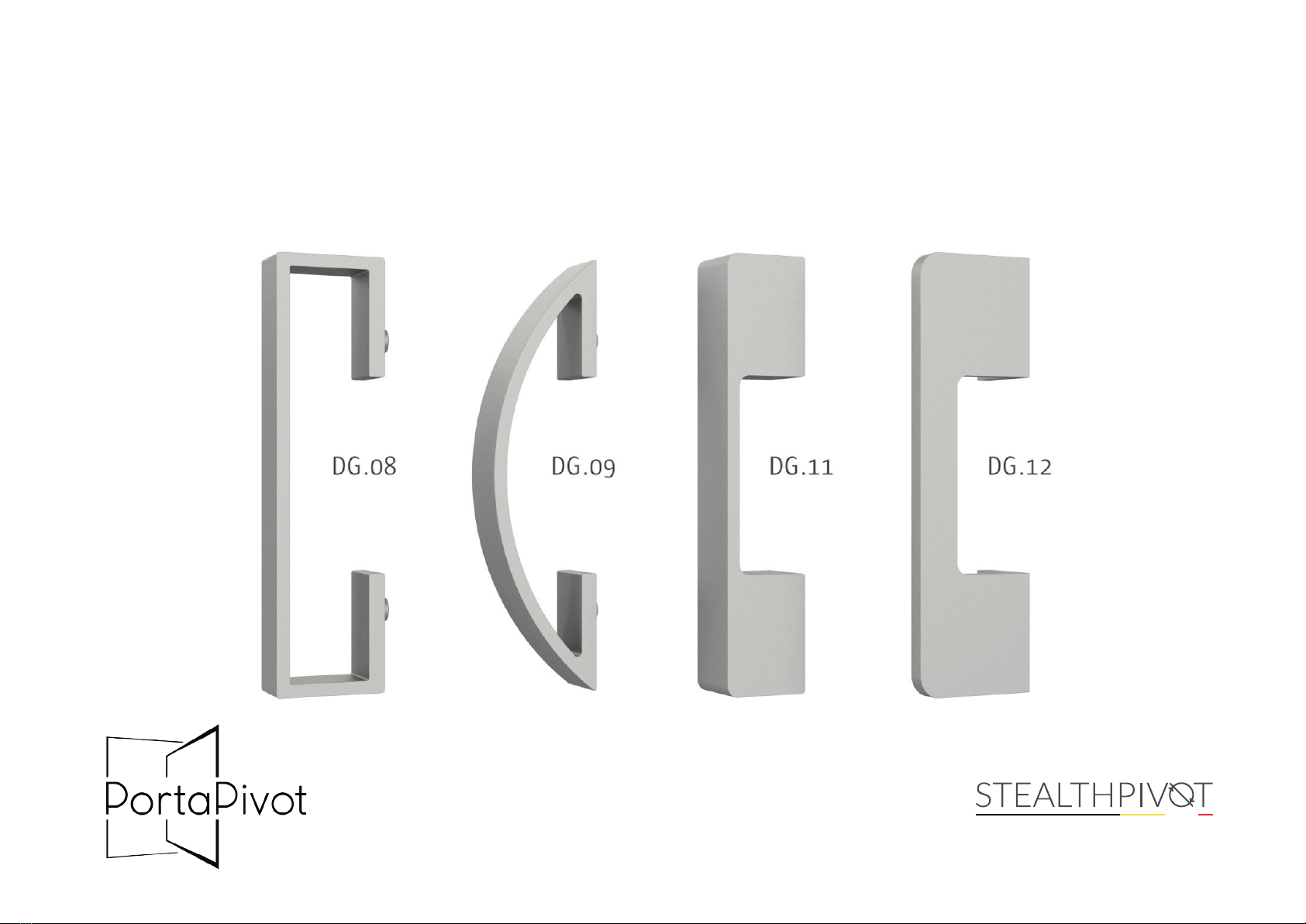

DG08-09-11-12
By PortaPivot

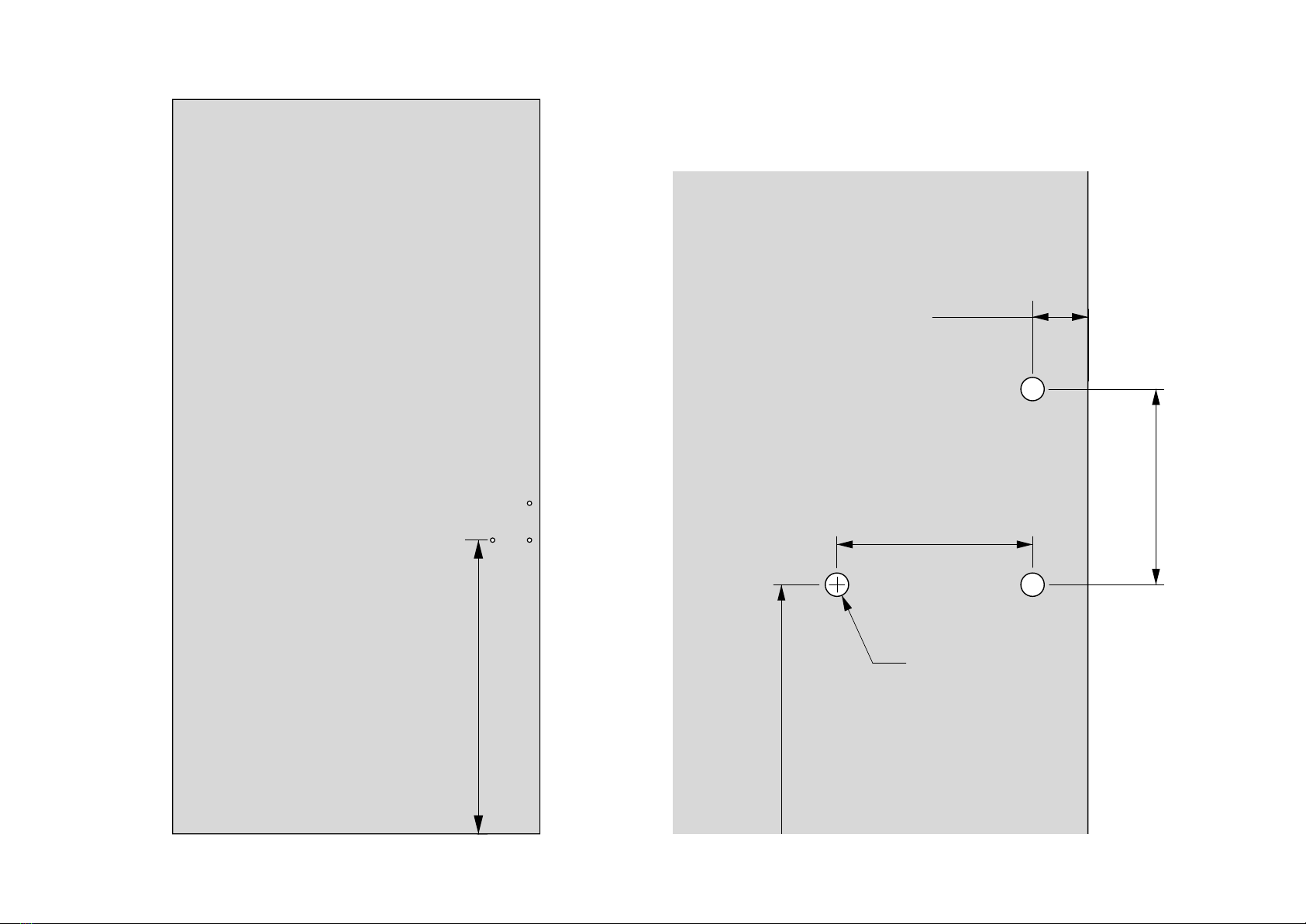

Mounting locations
1000 mm
35 mm
125 mm
Ø15 mm
126 mm
1000 mm
(Depending on the door leaf thickness, different mounting parts are needed)

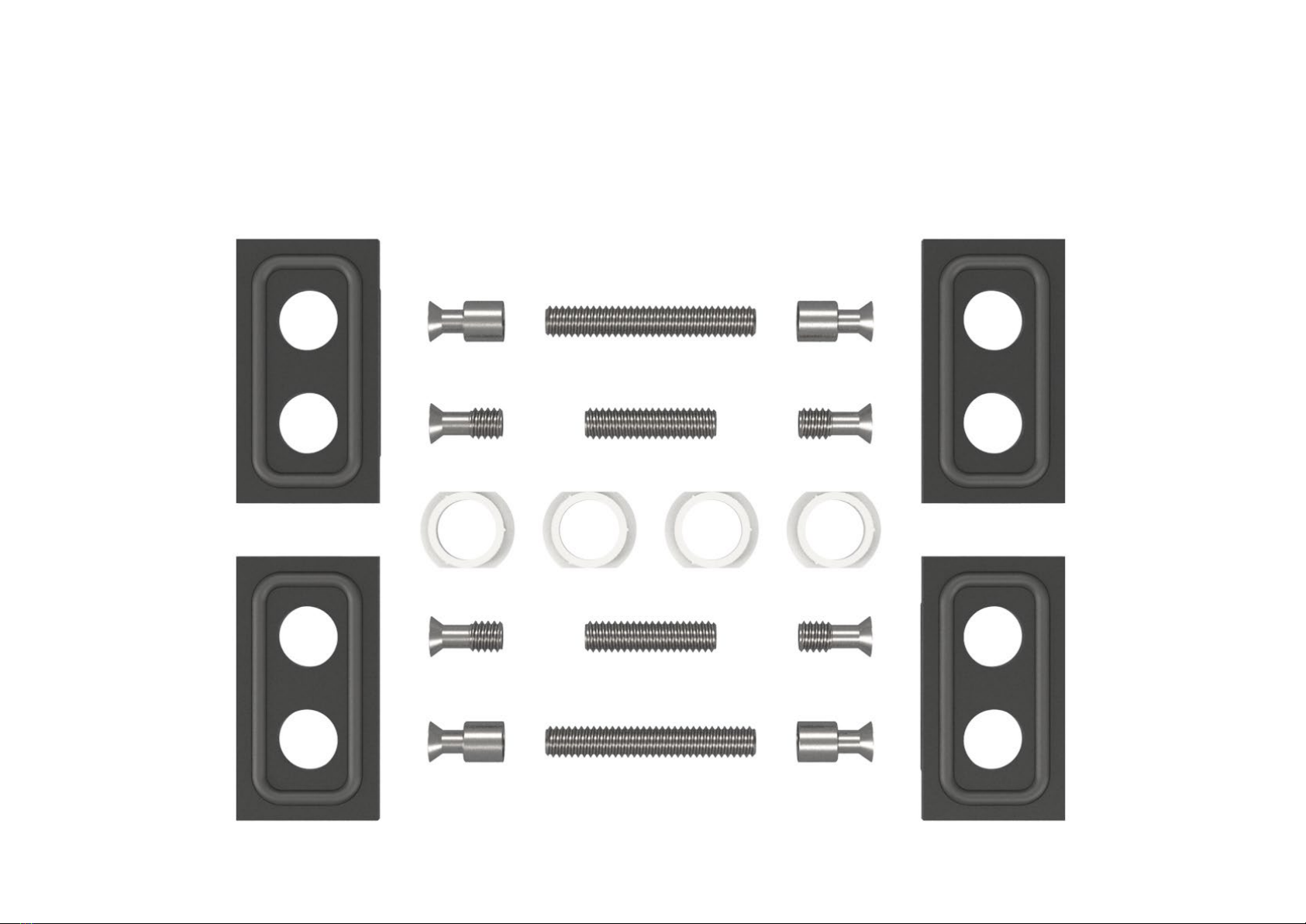

Mounting hardware

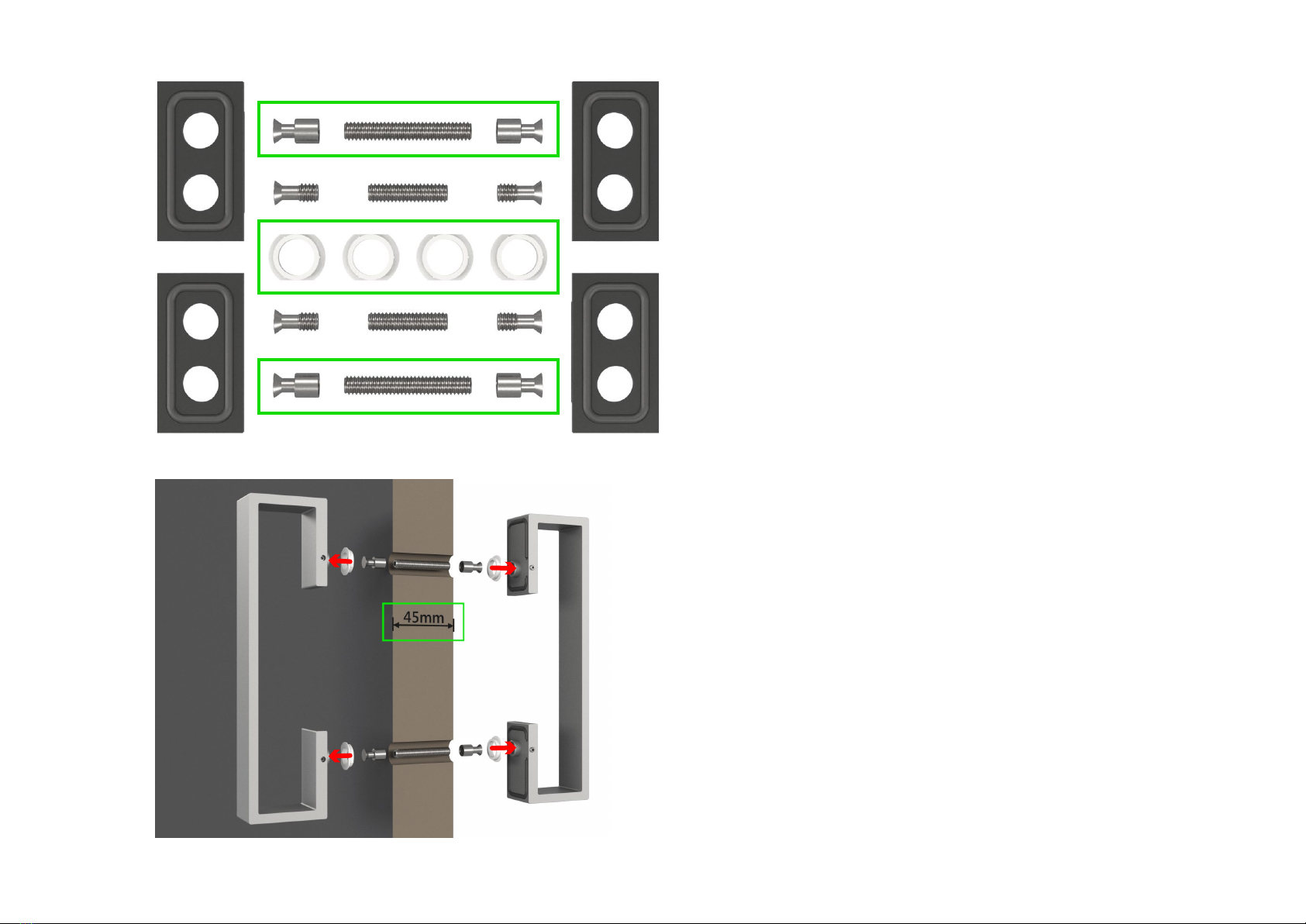

Parts necessary for door leaf
thickness from 43 tot 52 mm.
Slide the nylon bushings over the door
handles as shown.

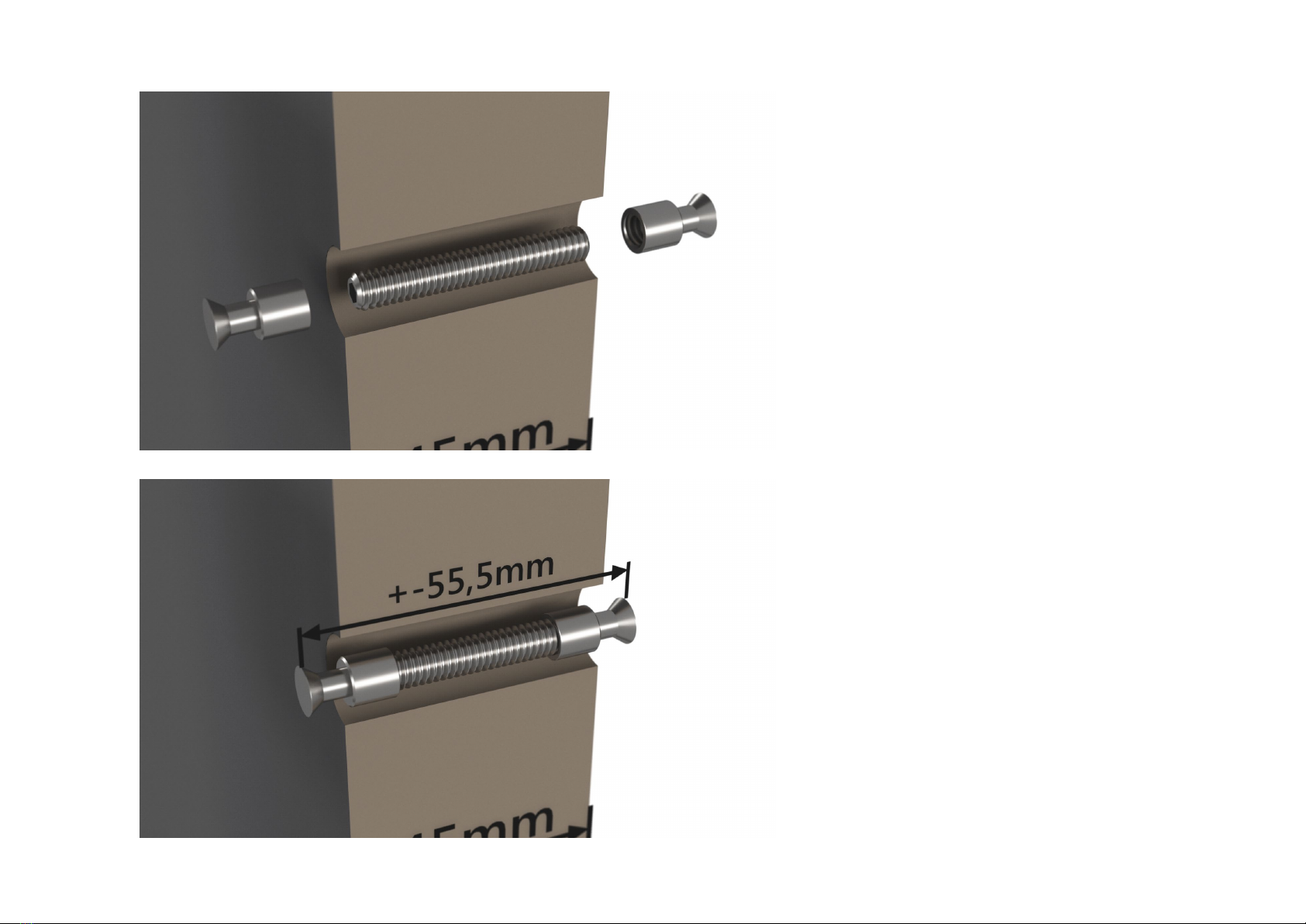

Screw both ends to the thread.
Total length = door leaf width + 10,5 mm

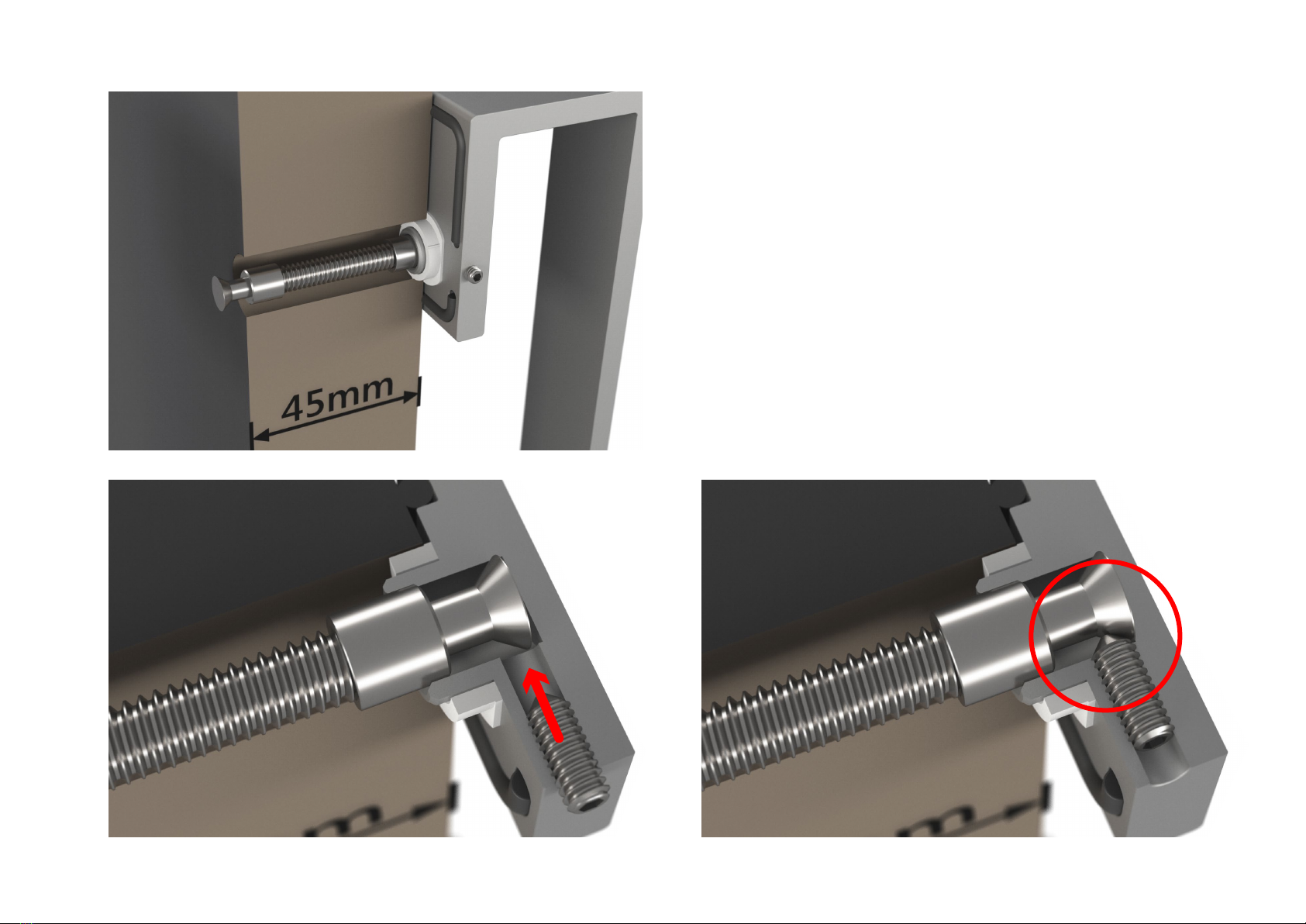

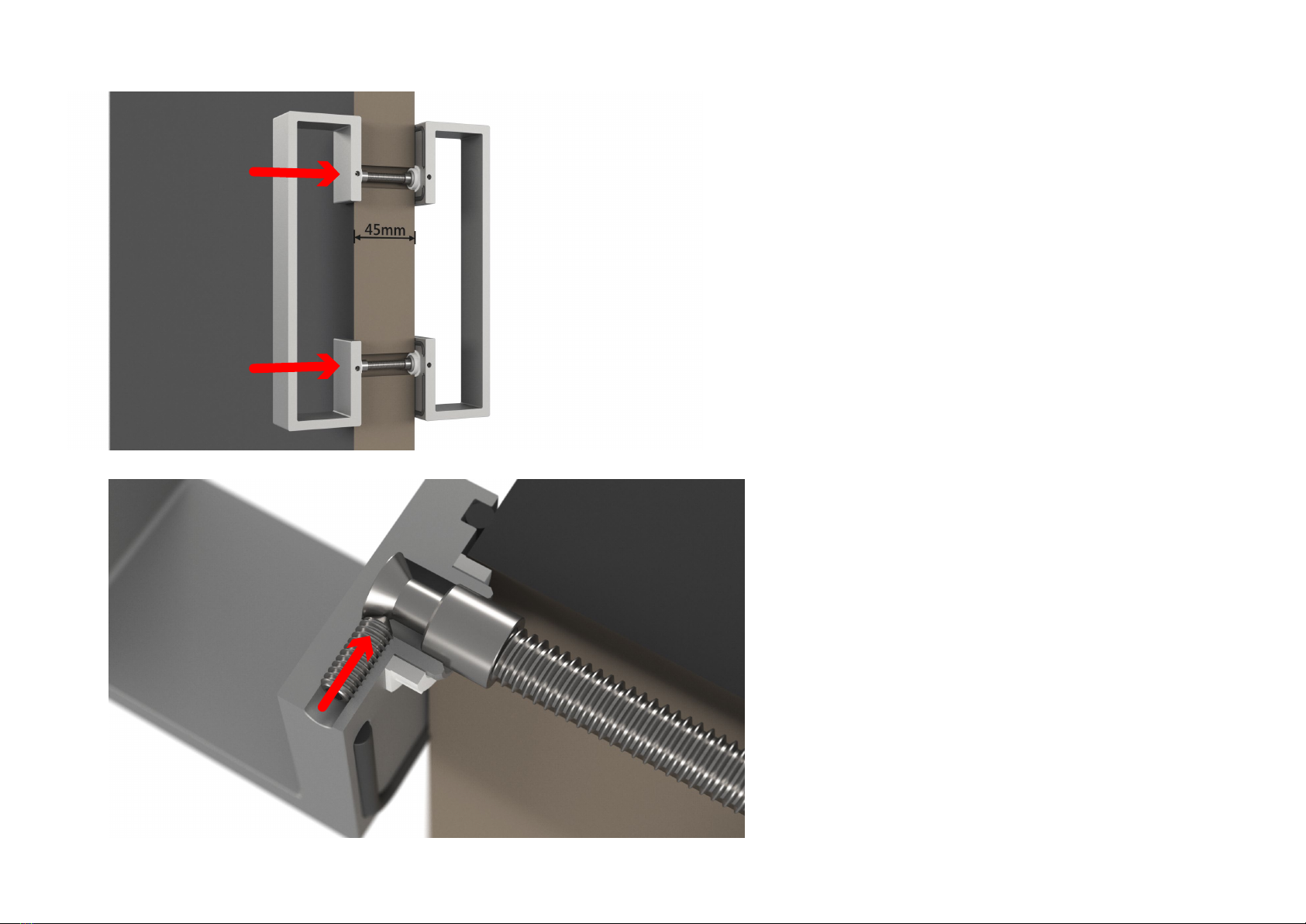

Insert the 2 rods into the handle, and
tighten the 2 inbus screws.
This will pull back the rod completely in
the handle.
Insert the handle with its 2 rods into the
door leaf, and place the other handle on
the other side over the rod ends.
Tightening the 2 inbus screws will pull
both handles closer to each other, locking
them firmly to the door leaf.

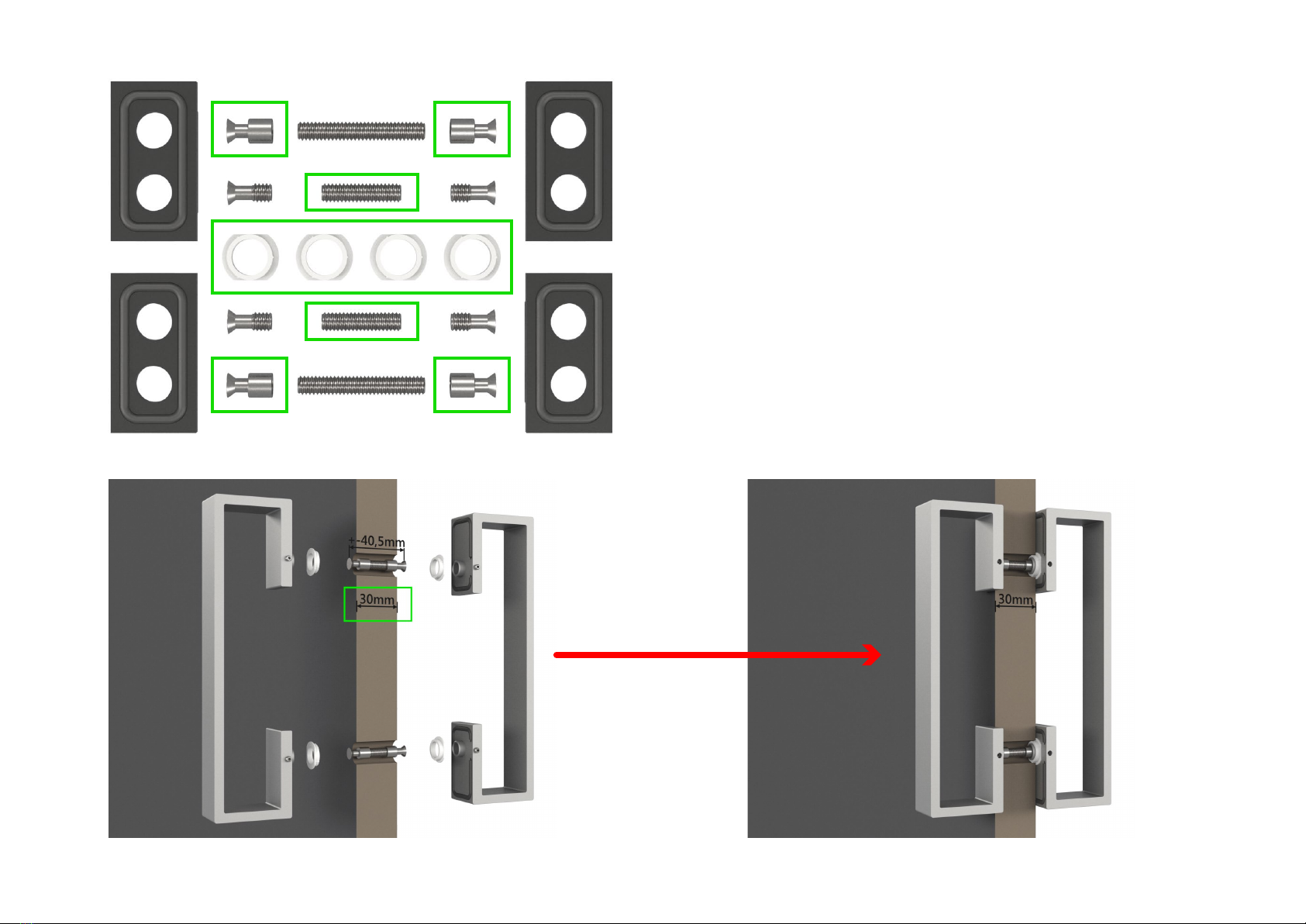

Parts necessary for door leaf
thickness from 30 tot 36 mm.
Follow the same steps from page 4 to 7,
using the short threaded rod.
Total rod length = door leaf width + 10,5 mm

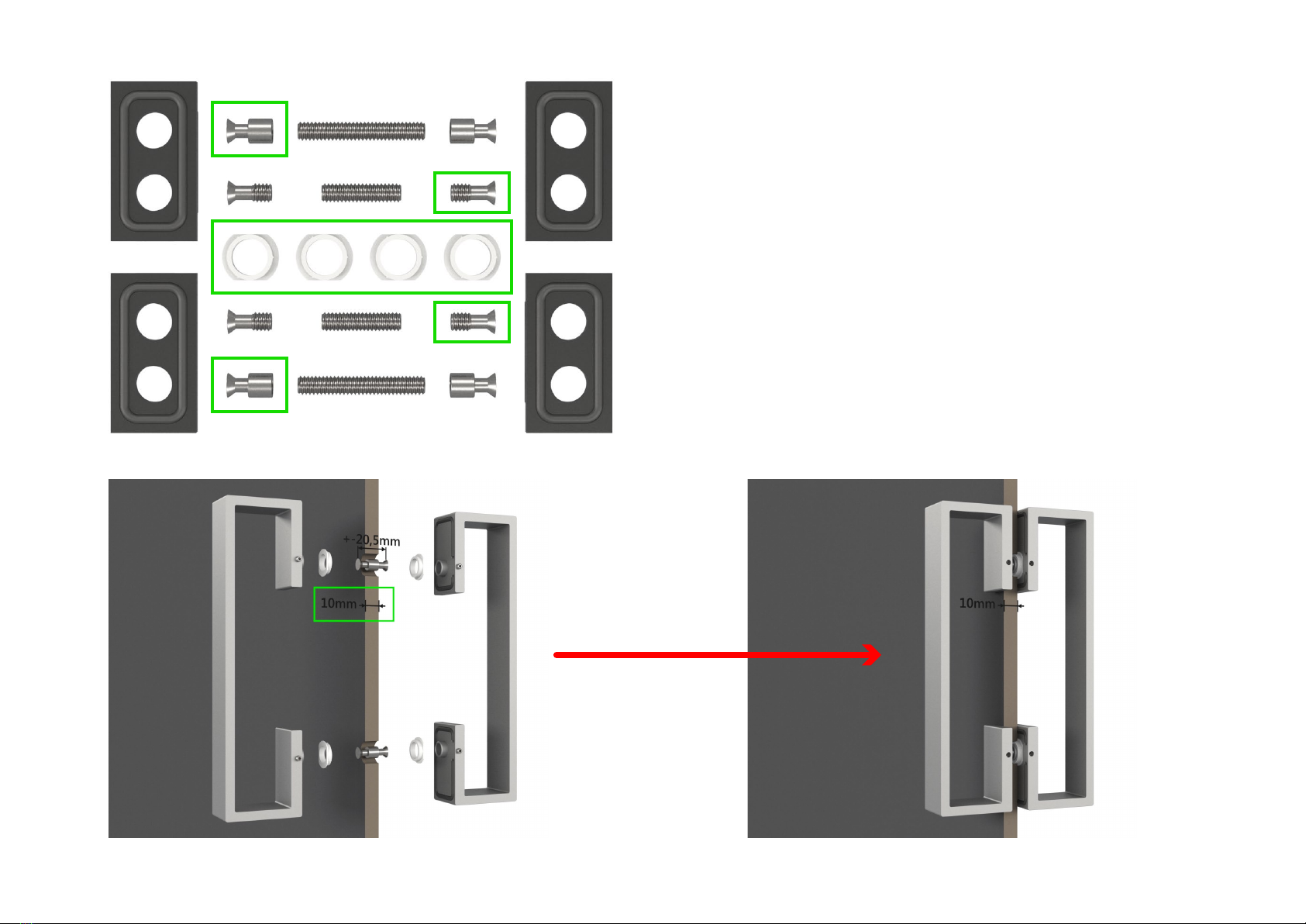

Parts necessary for door leaf thickness of 10 mm.
Screw the 2 small ends together.
Total rod length = 20,5 mm
Then follow the steps from page 6 and 7 to install
the handles to the door leaf.

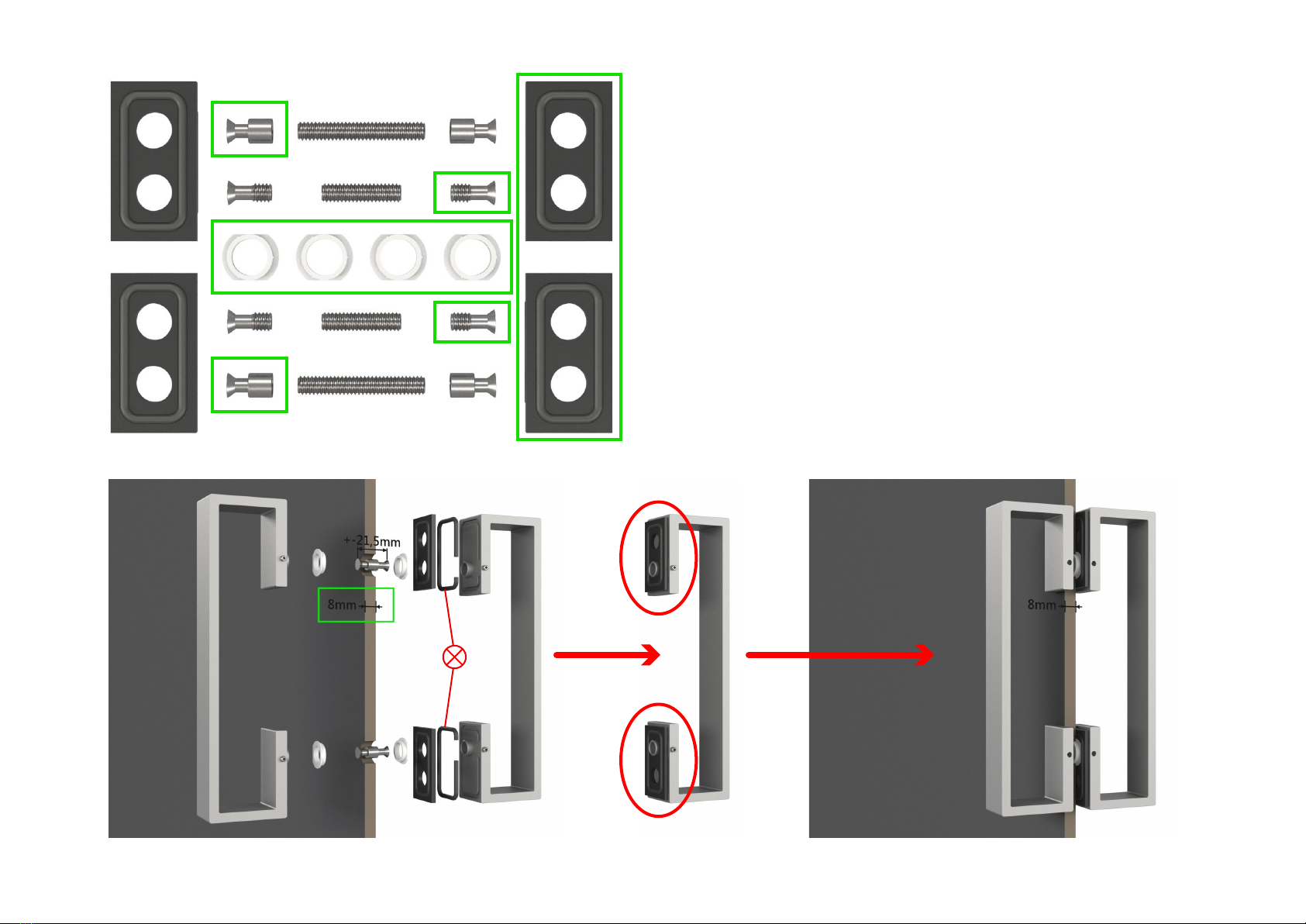

Parts necessary for door leaf thickness of 8 mm.
Screw the 2 small ends together.
Total rod length = 21,5 mm
Remove the rubber parts from 1 handle, and
insert the aluminium spacers instead.
Then mount the nylon bushings to both handles,
and follow the steps from page 6 and 7 to install
the handles to the door leaf.
