Porter-Cable C7550 Bedienungsanleitung

Oil Lube Two Stage

Air Compressor

Instruction

manual

IMPORTANT

Please make certain that the person

who is to use this equipment carefully

reads and understands these

instructions before starting operations.

Part No. D27042-045-0

ESPAÑOL: PÁGINA 27

FRANÇAIS: PAGE 53

To learn more about Porter-Cable

visit our website at:

http://www.porter-cable.com

The Model and Serial No. plate is located on the frame.

Record these numbers in the spaces below and retain for

future reference.

Model No.

Type

Serial No.

MODEL

C7550

2-ENGD27042

SAFETY GUIDELINES - DEFINITIONS

Indicates an imminently

hazardous situation

which, if not avoided, will result in death

or serious injury.

Indicates a potentially

hazardous situation

which, if not avoided, could result in

death or serious injury.

Indicates a potentially

hazardous situation

which, if not avoided, may result in

minor or moderate injury.

Used without the

safety alert symbol

indicates a potentially hazardous

situation which, if not avoided, may

result in property damage.

This manual contains information that is important for you to know and

understand. This information relates to protecting YOUR SAFETY and

PREVENTING EQUIPMENT PROBLEMS. To help you recognize this

information, we use the symbols below. Please read the manual and pay

attention to these symbols.

IMPORTANT SAFETY INSTRUCTIONS

Some dust created by power sanding, sawing, grinding,

drilling, and other construction activities contains chemicals

known (to the State of California) to cause cancer, birth defects or other

reproductive harm. Some example of these chemicals are:

●lead from lead-based paints

●crystalline silica from bricks and cement and other masonry products

●arsenic and chromium from chemically-treated lumber

Your risk from these exposures varies, depending on how often you do this

type of work. To reduce your exposure to these chemicals: work in a well

ventilated area, and work with approved safety equipment, always wear

MSHA/NIOSH approved, properly fitting face mask or respirator when using

such tools.

When using air tools, basic safety precautions should always be followed to

reduce the risk of of personal injury.

3-ENG D27042

IMPORTANT SAFETY INSTRUCTIONS

Save these instructions

Improper operation or maintenance of this product could result in serious injury and

property damage. Read and understand all warnings and operation instructions before

using this equipment.

HAZARD

WARNING: Risk of explosion or fire

How To Prevent It

What Could Happen

It is normal for electrical contacts

within the motor and pressure switch to

spark.

If electrical sparks from compressor

come into contact with flammable

vapors, they may ignite, causing fire or

explosion.

Restricting any of the compressor

ventilation openings will cause serious

overheating and could cause fire.

Unattended operation of this product

could result in personal injury or

property damage. To reduce the risk of

fire, do not allow the compressor to

operate unattended.

Always operate the compressor in a well

ventilated area free of combustible

materials, gasoline, or solvent vapors.

If spraying flammable materials, locate

compressor at least 20 feet away from

spray area. An additional length of hose

may be required.

Store flammable materials in a secure

location away from compressor.

Never place objects against or on top

of compressor. Operate compressor in

an open area at least 12 inches away

from any wall or obstruction that would

restrict the flow of fresh air to the

ventilation openings.

Operate compressor in a clean, dry well

ventilated area. Do not operate unit

indoors or in any confined area.

Always remain in attendance with the

product when it is operating.

Always disconnect electrical power by

moving pressure switch lever to the off

position and drain tank daily or after

each use.

4-ENGD27042

WARNING: Risk of Bursting

Air Tank: The following conditions could lead to a weakening of the tank, and result

in a violent tank explosion and could cause property damage or serious injury.

How To Prevent It

What Could Happen

WARNING: Risk from Flying Objects

The compressed air stream can cause

soft tissue damage to exposed skin

and can propel dirt, chips, loose

particles, and small objects at high

speed, resulting in property damage or

personal injury.

Always wear ANSI Z87.1 approved safety

glasses with side shields when using the

compressor.

Never point any nozzle or sprayer

toward any part of the body or at other

people or animals.

Always turn the compressor off and

bleed pressure from the air hose and tank

before attempting maintenance, attaching

tools or accessories.

HAZARD

Drain tank daily or after each use. If

tank develops a leak, replace it

immediately with a new tank or replace

the entire compressor.

Failure to properly drain condensed

water from tank, causing rust and

thinning of the steel tank.

Modifications or attempted repairs to

the tank.

Unauthorized modifications to the

unloader valve, safety valve, or any

other components which control tank

pressure.

Never drill into, weld, or make any

modifications to the tank or its

attachments.

Excessive vibration can weaken the

air tank and cause rupture or

explosion

The tank is designed to withstand specific

operating pressures. Never make

adjustments or parts substitutions to

alter the factory set operating

pressures.

For essential control of air pressure, you

must install a pressure regulator and

pressure gauge to the air outlet (if not

equipped) of your compressor. Follow the

equipment manufacturers

recommendation and never exceed the

maximum allowable pressure rating of

attachments. Never use compressor to

inflate small low pressure objects such

as children’s toys, footballs,

basketballs, etc.

ATTACHMENTS & ACCESSORIES:

Exceeding the pressure rating of air

tools, spray guns, air operated

accessories, tires, and other inflatables

can cause them to explode or fly apart,

and could result in serious injury.

How To Prevent It

What Could Happen

5-ENG D27042

WARNING: Risk to Breathing

WARNING: Risk of Electrical Shock

HAZARD

Your air compressor is powered by

electricity. Like any other electrically

powered device, If it is not used

properly it may cause electric shock.

Repairs attempted by unqualified

personnel can result in serious injury

or death by electrocution.

Electrical Grounding: Failure to provide

adequate grounding to this product

could result in serious injury or death

from electrocution.

See grounding instructions.

Never operate the compressor outdoors

when it is raining or in wet conditions.

Never operate compressor with

protective covers removed or damaged.

Any electrical wiring or repairs required

on this product should be performed by

authorized service center personnel in

accordance with national and local

electrical codes.

Make certain that the electrical circuit to

which the compressor is connected

provides proper electrical grounding,

correct voltage and adequate fuse

protection.

The compressed air directly from your

compressor is not safe for breathing.

The air stream may contain carbon

monoxide, toxic vapors, or solid

particles from the tank. Breathing these

contaminants can cause serious injury

or death.

Sprayed materials such as paint, paint

solvents, paint remover, insecticides,

weed killers, may contain harmful

vapors and poisons.

Air obtained directly from the compressor

should never be used to supply air for

human consumption. In order to use air

produced by this compressor for

breathing, suitable filters and in-line

safety equipment must be properly

installed. In-line filters and safety

equipment used in conjunction with the

compressor must be capable of treating

air to all applicable local and federal

codes prior to human consumption.

Work in an area with good cross

ventilation. Read and follow the safety

instructions provided on the label or

safety data sheets for the materials you

are spraying. Use a NIOSH/ MSHA

approved respirator designed for use with

your specific application.

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

6-ENGD27042

WARNING: Risk of Burns

Touching exposed metal such as the

compressor head or outlet tubes, can

result in serious burns.

Never touch any exposed metal parts

on compressor during or immediately

after operation. Compressor will remain

hot for several minutes after operation.

Do not reach around protective shrouds

or attempt maintenance until unit has

been allowed to cool.

WARNING: Risk from Moving Parts

Never operate the compressor with

guards or covers which are damaged or

removed.

Moving parts such as the pulley, flywheel,

and belt can cause serious injury if they

come into contact with you or your

clothing.

WARNING: Risk of Falling

A portable compressor can fall from a

table, workbench, or roof causing

damage to the compressor and could

result in serious injury or death to the

operator.

Always operate compressor in a stable

secure position to prevent accidental

movement of the unit. Never operate

compressor on a roof or other elevated

position. Use additional air hose to

reach high locations.

HAZARD

Any repairs required on this product

should be performed by authorized

service center personnel.

Attempting to operate compressor with

damaged or missing parts or attempting

to repair compressor with protective

shrouds removed can expose you to

moving parts and can result in serious

injury.

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

7-ENG D27042

Review and understand all instructions

and warnings in this manual.

Become familiar with the operation and

controls of the air compressor.

Keep operating area clear of all persons,

pets, and obstacles.

Keep children away from the air

compressor at all times.

Do not operate the product when

fatigued or under the influence of

alcohol or drugs. Stay alert at all times.

Never defeat the safety features of this

product.

Equip area of operation with a fire

extinguisher.

Do not operate machine with missing,

broken, or unauthorized parts.

WARNING: Risk of Unsafe Operation

Unsafe operation of your air compressor

could lead to serious injury or death to

you or others.

HAZARD

WARNING: Risk of Serious Injury or Property Damage When

Transporting Compressor

Oil can leak or spill and could result in

fire or breathing hazard; serious injury or

death can result. oil leaks will damage

carpet, paint or other surfaces in

vehicles or trailers.

Always place COMPRESSOR on a

protective mat when transporting to

protect against damage to vehicle from

leaks. Remove COMPRESSOR from

vehicle immediately upon arrival at your

destination.

(Fire, Inhalation, Damage to Vehicle Surfaces)

HAZARD

SAVE THESE INSTRUCTIONS

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

8-ENGD27042

Model No. C7550

Horsepower Peak 7.0

Voltage-Single Phase 240V

Minimum Branch Circuit Requirement 30 amps

*Fuse Type Time Delay

Air Tank Capacity, Gallons 80 ASME, Vertical

Approximate Cut-in Pressure 140 PSIG

Approximate Cut-out Pressure 175 PSIG

SCFM @ 100 psig 15.6

SCFM @ 175 psig 15.2

GLOSSARY

DUTY CYCLE

Accessories for this unit are available at the store the unit was purchased.

ACCESSORIES

Become familiar with these terms

before operating the unit.

CFM: Cubic feet per minute.

SCFM: Standard cubic feet per

minute; a unit of measure of air

delivery.

PSIG: Pounds per square inch gauge;

a unit of measure of pressure.

Code Certification: Products that

bear one or more of the following

marks: UL, CUL, ETL, CETL, have

been evaluated by OSHA certified

independent safety laboratories and

meet the applicable Underwriters

Laboratories Standards for Safety.

Cut-In Pressure: While the motor is

off, air tank pressure drops as you

continue to use your accessory.

When the tank pressure drops to a

certain low level the motor will restart

automatically. The low pressure at

which the motor automatically

restarts is called "cut-in" pressure.

Cut-Out Pressure: When an air

compressor is turned on and begins

to run, air pressure in the air tank

begins to build. It builds to a certain

high pressure before the motor

automatically shuts off - protecting

your air tank from pressure higher

than its capacity. The high pressure

at which the motor shuts off is called

"cut-out" pressure.

Branch Circuit: Circuit carrying

electricity from electrical panel to

outlet.

To Lock Out Power: Place a lock on

the line power switch so no one else

can turn on the power.

This air compressor pump is capable

of running continuously. However, to

prolong the life of your air

compressor, it is recommended that a

50%-75% average duty cycle be

maintained; that is, the air compressor

pump should not run more than 30-45

minutes in any given hour.

SPECIFICATIONS

Multi-Viscosity

motor oils, like 10W

30, should not be used in an air

compressor. They leave carbon

deposits on critical components,

thus reducing performance and

compressor life. Use air

compressor oil only.

NOTE: Oil is included with some

units. If oil is not included, use an oil

specifically formulated for use in an

air compressor, such as Porter-Cable

PAS1 air compressor oil. Oil may be

found at the store where the air

compressor was purchased.

1. Place unit on a level surface.

Drain tank to

release air pressure

before removing the oil fill cap or oil

drain plug.

2. Remove oil fill plug (A) and slowly

add a compressor oil to the

middle of sight glass (B). NOTE:

When filling the crankcase, the oil

flows very slowly into the pump.

If the oil is added too quickly, it

will overflow and appear to be

full. NOTE: Crankcase oil

capacity is approximately 48 fluid

ounces.

3. Replace oil fill plug.

9-ENG D27042

ASSEMBLY

Tools Required for Assembly

1 - 9/16" socket or open end wrench

1 - Electric drill

Unpacking

1. Remove all packaging.

It may be

necessary to brace

or support one side of the outfit

when removing the pallet because

the air compressor will have a

tendency to tip.

2. Remove and discard the (4)

screws and washers holding the

compressor to the pallet.

3. With the help of another person

carefully remove air compressor

from pallet and place on a level

surface.

Contents of Carton

1 - Air Compressor

1 - Parts bag containing:

1 - Operator’s Manual

1 - Parts Manual

4 - 5/8" Washers

To Add Oil To Pump

Compressors are

shipped with some

oil due to factory testing. Do not

operate this air compressor

without adding the correct amount

of oil to the pump crankcase.

Serious damage can result from

even the minimal operation if the

pump crankcase does not contain

the correct amount of oil. Make

sure the break-in procedure is

completed before operating the air

compressor.

10-ENGD27042

1. Place the air compressor on a

solid, level surface.

2. Mark the surface using the holes

in the air compressor feet as a

template.

3. Drill holes in the surface for the

concrete anchors. Install

concrete anchors.

4. Line-up holes in surface with

holes in air compressor feet.

5. Place the (4) washers (supplied)

between the floor and air

compressor feet. If needed, solid

shims may be placed between

the washers and floor to evenly

distribute weight on all four feet.

See next figure.

6. Place the (4) 3/8" lag screws

through the air compressor feet,

washers, shims, and into the

anchors.

7. Torque 3/8" lag screws to 7-10

ft.-lbs.

INSTALLATION

HOW TO SET UP YOUR UNIT

Location of the Air Compressor

• Locate the air compressor in a

clean, dry, and well ventilated

area.

• Located the air compressor at

least 12" away from the wall or

other obstructions that will

interfere with the flow of air.

• Locate the air compressor as

close to the main power supply

as possible to avoid using long

lengths of electrical wiring.

NOTE: Long lengths of electrical

wiring could cause power loss to

the motor.

• The air filter must be kept clear

of obstructions which could

reduce air flow to the air

compressor.

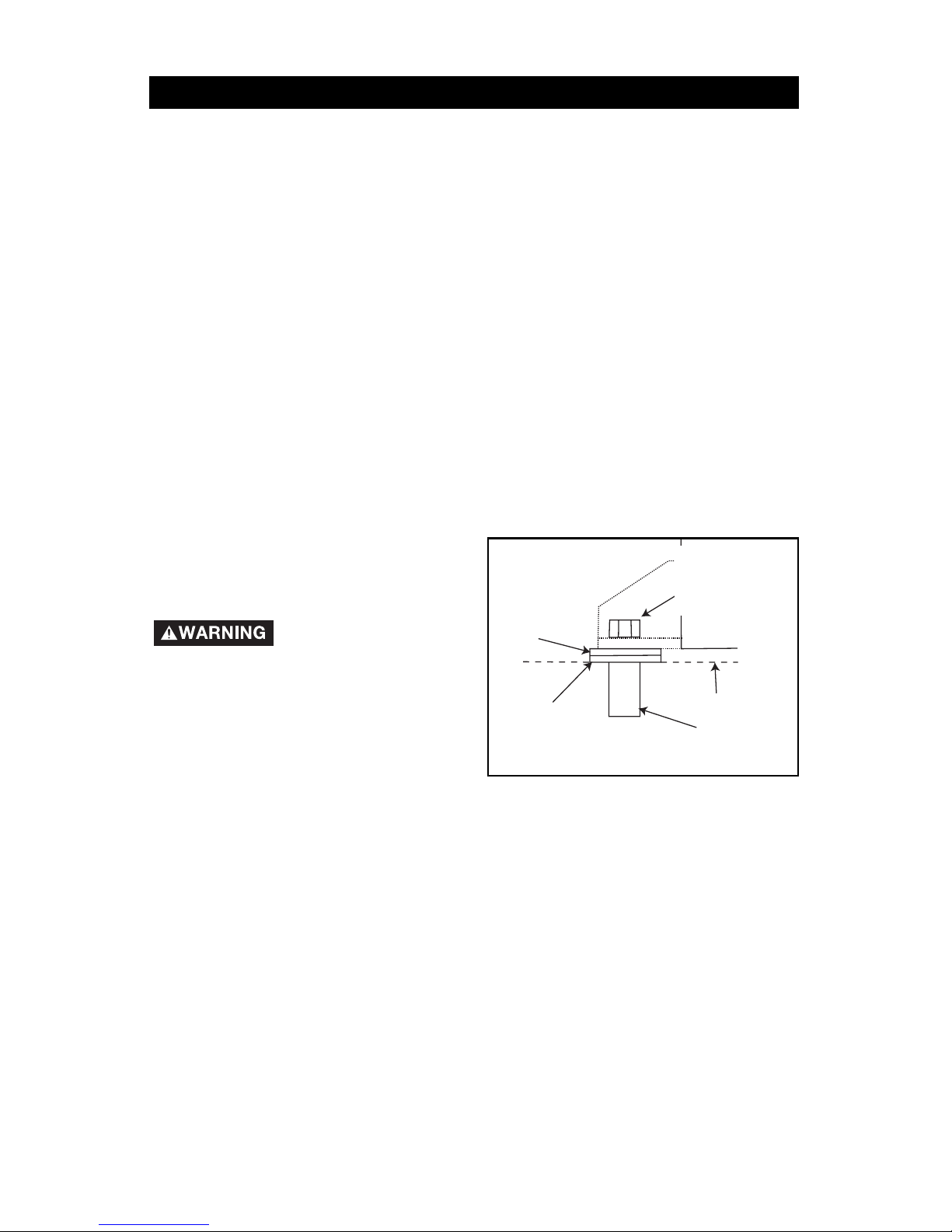

Anchoring of the Air

Compressor

Risk of Bursting.

Excessive Vibration

can weaken the air tank and cause

an explosion. The compressor

must be properly mounted.

The air compressor MUST be bolted

to a solid, level surface.

Hardware needed:

4 - Concrete anchors (not

supplied)

4 - 3/8" Lag screw to fit

concrete anchors

(not supplied)

4 - 5/8" Washer (supplied)

shims (if needed)

3/8" Lag

Screw

(not supplied)

5/8" Washer

(supplied)

Shim Under

Washer

(not supplied) Concrete Anchor

(not supplied)

Surface Line
