KS –6115 / KS –6115 UPS

Fan Free Touch Terminal

w/ Slim Base

User’s Manual

Rev. A1

P/N:

1652090

Part 2

ALERT TO OUR HONORABLE CUSTOMERS:

lPlease always read thoroughly all the instructions and documents

delivered with the product before you do anything about it. Don’t

take any premature action before you have a full understanding of

the consequences.

lThis product contains inside a Lithium battery. Please always

follow local environmental protection laws / regulations for disposal

of used batteries and always replace only with battery of same type.

lIf you have an UPS battery installed in the product:

²Temperature above 40°C must be strictly avoided as it

could cause termination of battery life and unexpected result

even if the battery is not in work.

²Do not power off the system just by shutting off the AC

power leaving the battery supporting the whole system till

completely exhausted. Repeatedly using it up or improper

maintenance reduces the battery life dramatically.

²Always fully recharge the battery at least once every 3

months if the battery is not connected.

²Always disconnect the UPS battery from the system if the

system is to be left OFF for more than 72 hours to prevent

possible damage. Only connect the UPS battery back right

before you are going to re-power on the system.

²Replace the battery as soon as the monitoring software

indicates the battery is out of service. Attempt to recharge a

dead battery is dangerous!

²A separate battery monitor is not required for this series.

DAILY MAINTENANCE GUIDE

For regular cleaning of the KS systems, please use only soft haired

brush or dry soft cloth. You may use moist soft cloth to remove stains when

necessary. Apply only proper amount of mild neutral detergent for obstinate

stains. Please note that never use Acryl dissolving solvent or Polycarbonate

dissolving solvent. You may apply ammonia-based glass cleaner only on the

screen surface.

CAUTION

Risk Of Explosion If Battery Is Replaced By An IncorrectType

Dispose Of Used Batteries According To Local Regulations

Part 3

INTRODUCTION

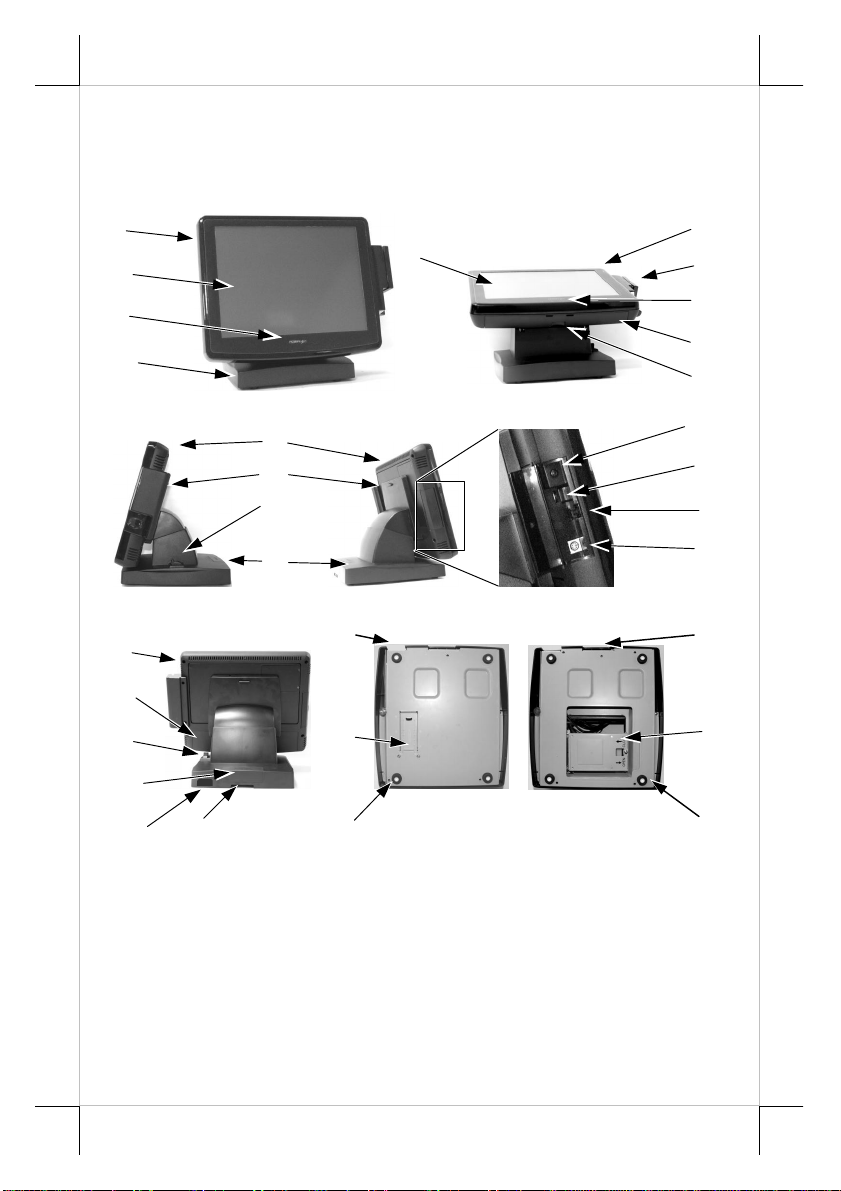

PRODUCT PICTURES

Front Views

Side Views

Rear View Bottom View

(standard) (for 2.5”HDD in base)

PARTS IDENTIFICATION

1. Main unit

2. Touch panel / LCD panel

3. Optional side mount kit e.g. SD-400

4. Power indicator / Logo

5. Slim base stand

6. Cable cover

7. Removal hollow in cable cover

8. Lock / release lever for tilt angle adjust

Part 4

9. Lock / release button for main unit detach

10. Touch open cover

11. Power switch

12. Brightness adjust thumb wheel

13. Touch open door latch

14. PS/2 KB port

15. Rear connect cover

16. Cable exit

17. 2nd cable exit

18. Auxiliary cable exit

19. Rubber feet

20. Option 2.5”HDD bracket

PRODUCT FEATURES

Standard Features:

a) CPU: AMD LX-700

b) Fan free structure with metal main unit casing for harsh environment

c) Data storage device: CF memory card (default) or optional IDE HDD

3.5” or 2.5”40 GB in base stand or optional IDE HDD 2.5” 40 GB in

main unit. (only one device allowed)

d) An advanced slim base design. The slim base supports 2nd LCD display

or pole mount customer display in desktop mount application, storage

room for HDD and optional UPS battery (for KS-6115UPS).Also

possible to be without base but wall mount bracket for wall mount

application.

e) Support WinCE, WEPOS and Linux environment

f) High quality 15” TFT active matrix LCD panel

g) Brightness control by hardware

h) Vertical type LCD panel with easy tilt angle adjustment from 15° to

72.5°

i) Durable resistive type (leading edge Infra Red type optional) touch

panel that endures 35 million touches min. at same spot

j) Spill proof water resistant structure allowing easy cleaning

k) Easy maintenance construction

l) Various I/O ports supported, including:

1. one PS/2 KB port (inside touch-open cover)

2. 2 serial ports with capability for +5V DC support in form of 10 pin

RJ45 jacks with conversion cables for system revision before “G”

and in form of DB9 connectors for system revision “G”and later

3. one parallel port

4. 4 standard USB ports

Part 5

5. one proprietary USB port for optional side mount kit (e.g. SD-400)

6. one LAN port 10/100 base T Ethernet with LAN status indicators on

jack (green for link, orange for data transmission), upgradeable to 1

Gbps

7. one external VGA monitor port

8. one 5.5/2.5 Øcoaxial type DC 12 V power input connector

9. one CF card reader slot or optional IDE + power connectors for

HDD in base

10.one UPS battery connector (for KS-6115UPS)

m) Touch control functions: left/right button, double click, drag & draw

n) VGA memory size shared from system memory (8 ~ 254 MB)

o) Support high performance DDR DRAM with maximum memory size

1GB in one module

p) Integrated structure for various side mount upgrade kit

q) Built-in internal speaker with 2 W audio amplifier

r) Built-in UPS function (for KS-6115UPS) to support the system from

intermittent power failure (battery itself is an option)

s) Accidental power off protection –The power switch is safely located

inside a push-open cover. It can be defined as a “ON” switch only

through software command (for KS-6115UPS)

t) Preconditioned power up function –by alarm clock

Option Items:

Note: The underlined option items in the following list must be set prior to

shipment from the factory. The rest items can be set by the dealers.

a) DDR SDRAM memory expansion up to 1GB

b) Integrated side mount upgrade kit:

²SD400: MSR, fingerprint reader and audio ports (Mic. in / line out)

²SD600: iButton reader, MSR and audio ports (Mic. in / line out)

²SD700: Fingerprint reader and bar code card reader

²KP300: Programmable keypad, MSR, smart card reader and Audio

ports (Mic. in / line out)

c) Integrated base mount device choice among: PD2501 or PD2602 VFD

pole display or PD305 low profile LCD customer display or PD306

LCD pole display or PD7622 graphic LCD customer display or 12.1”

2nd LCD panel monitor LM-6201 or 15” 2nd LCD monitor LM-6301

d) 3.5”or 2.5”HDD kit in base or 2.5”HDD kit in main unit

e) UPS battery in base (for KS-6115UPS)

f) Preload OS

g) Wall mount kit: WB-6000, WB-6300, WB-6600

Part 6

INSTALLATION GUIDES

CAUTION: Before any installation or cable connection to the set, please

always make certain that the system is turned off and the

external power source to the set is removed to prevent electric

hazard! Never touch any metal pin in the connectors or

circuits to avoid high voltage hazard or electrostatic discharge

damage unless the operator is well grounded. Failure to do the

above will void the product warranty!

OPENING CABLE COVER

Please follow steps A to C sequentially with reference to pictures

below to remove the cable cover for the slim base models.

DISCONNECTING ALL CABLES

After removal of the cable cover, the connector area will be accessible

then. Please first note orientationsof every existing cable connection and

then disconnect every cable properly before separating the main unit from the

adjustable base stand assembly. Please note that the click lock spring has to be

pressed down prior to pulling out the connector such as the LAN port. Please

also note that the fixing screws have to be loosened free prior to disconnection

such as the LPT port. Please always hold the connector head instead of

pulling on the cable wire when disconnecting any connector. Failure to do this

could damage the cable and jack that is considered as an artificial destruction.

Damages due to incorrect disconnection operation are not covered by

product warranty!

or the COM ports of system revision before “G”

or the COM ports of system revision since “G”

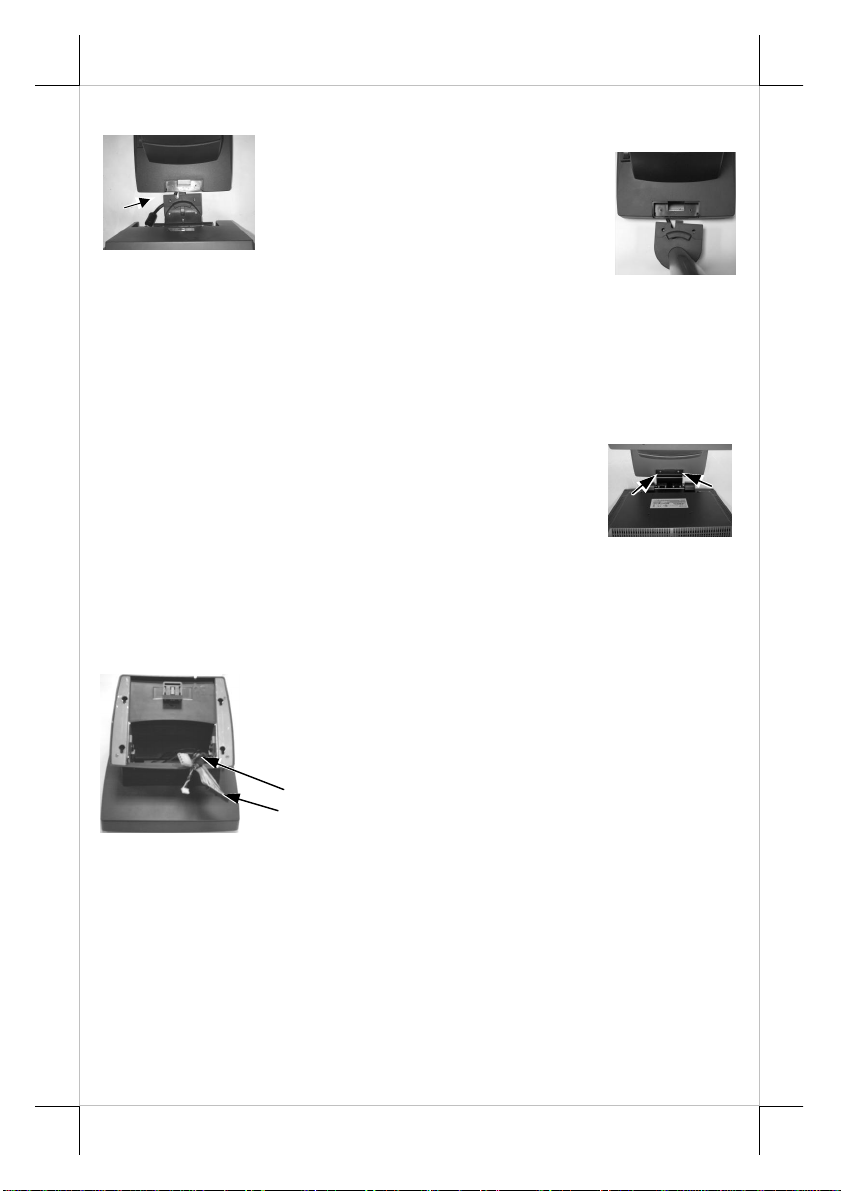

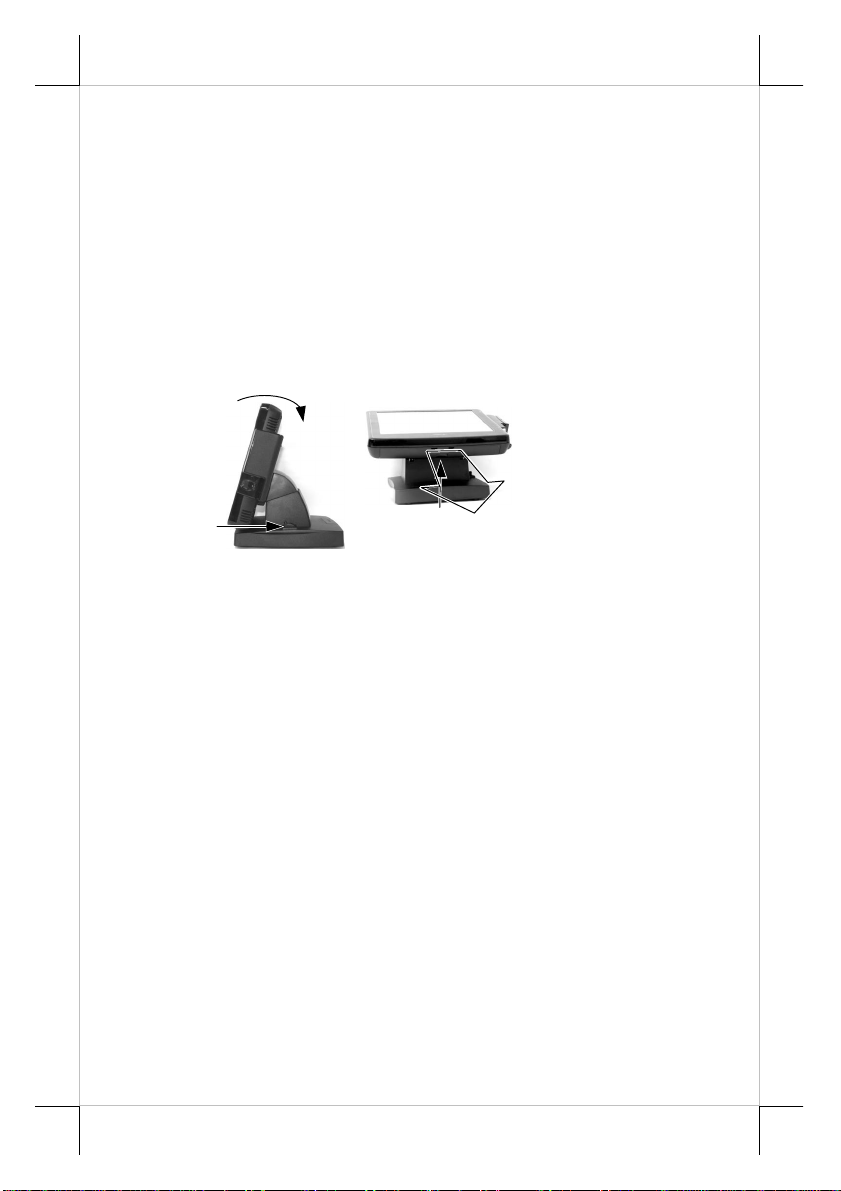

Step A: Push lock/release lever for tilt angle adjust backward

Step B: Turn panel to most horizontal position

Step C: Pull at the removal hollow toward the user

Part 7

SEPARATING MAIN UNIT

In order to settle the touch terminal properly in a point of sale system,

all the cable connections have to be routed through its base. Therefore, please

observe the procedures from A to C below to separate the main unit from the

slim base stand assembly after all cables in cable cover disconnected.

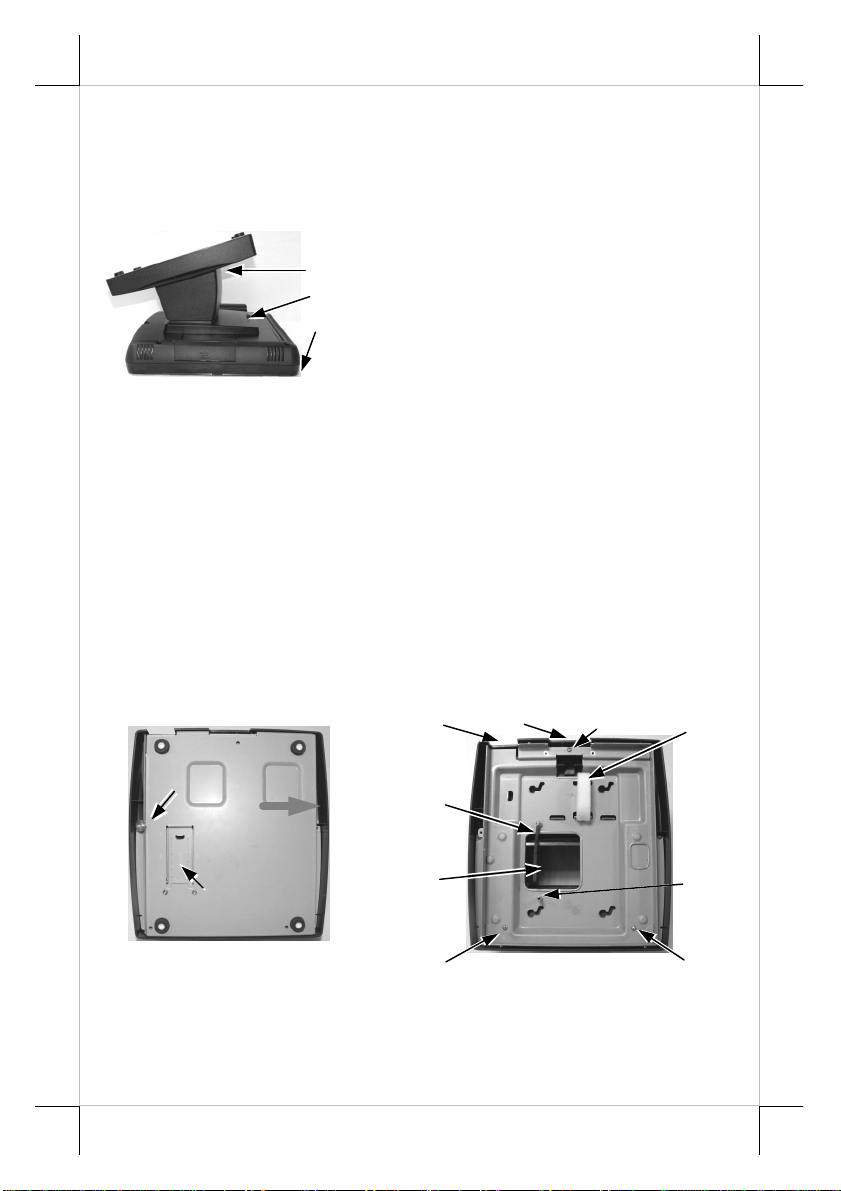

OPENING STAND ASSEMBLY

Take the adjustable stand assembly and turn it up side down to show

the bottom of the base. Remove the bottom plate fixing screw and push the

bottom plate aside as in left picture below for slim base to open. The inside

will look like the right picture below with each numbered items described

further below. However, there could be some variation to the contents inside

depending on what option items actually installed. Please note that for optional

2.5”HDD in base the base bottom looks different from the picture with a HDD

maintanance window instead of the auxiliary cable exit.

1. Cable Exit for External Connections

2. Base Box Screw

3. Cable Tie

Step A:

Prepare a

soft

clean flat

surface,

such as a piece of cloth on the

deskto seat and protect the front

surface of main unit

Step C:

Slide the base stand assembl

y to

left to separate the main unit from

base stand

Step B: Press the Lock/Release button for main unit detach and meantime ...

Bottom Plate

Fixing Screw

Push Bottom

Plate This

Way To Open

Auxiliary

Cable Exit

Slim base bottom

Inside slim base

Part 8

4. Velcro Strap for UPS Battery (for KS-6115UPS)

5. Cable Passage To Main Unit For Desktop Mount Application

6. HDD Bracket Fixing Screw

CABLE PASSAGE

Please route all cables through the cable passage to main unit in

desktop mount application. Hold them together with the cable tie. Pass all

cables (but those for HDD and UPS battery for KS-6115UPS) through the

cable exit to external connections. For desktop mount application, when cable

connection through a hole on desktop underneath the system is required, please

slide open the auxiliary cable exit on bottom plate and route all external

connections through this auxiliary exit. Then fix back the bottom plate if there

is no option unit to install.

INSTALLING UPS BATTERY

The optional UPS battery for KS-6115UPS is

delivered in the carton if it is ordered. Please place the

UPS battery in the direction shown in the right picture and

use the Velcro strap through the 2 standing slits on base

box to fix the battery in position firmly. Route the battery

connection cable through the cable passage to the battery

connector on the main unit. Please pay particular attention

to the environment requirements for UPS battery in next chapter “USING THE

TOUCH POS”.

BASE MOUNT UPGRADE KIT

On rear edge of the stand assembly for

desktop mount application, there is a rear connect

cover. Either a 2nd LCD display panel option 12” LM-

6201 or 15”LM-6301 or a customer display option

among PD-2501, PD-2602, PD-305, PD-306, PD-306U

or PD-7622 can be installed here after removing this

cover. Please note that there could be some restrictions to the tilt angle range

for the main unit due to existence of base mount upgrade kit if mounted.

Investigation for the acceptability of such kind of restrictions must be taken

before decision to install a base mount upgrade kit.

To remove the rear connect cover in slim base

please refer to the inside view of the base unit at right

and use a flat head screwdriver to pick the plastic hook

plate of the rear connect cover from inside behind the

area with Velcro strap.

Part 9

12” 2nd LCD Panel Or Customer Display

Fit the joint base of PD-2501, PD-2602, PD-305,

PD-306/U, PD-7622 or LM-6101 to the

rear connect cover opening. Please route

the interface cable through the normal

cable exit (under the joint base) as in the

2pictures. Fit 2 screws through

washers to hold the joint tight. For low profile customer

display PD-305, the display is right on the joint base without pole. Remember

to enable the +5 V DC supply in the COM port of the main unit for PD-2501,

PD-2602, PD-305, PD-306 or PD-7622 or the +12 V DC in VGA port for LM-

6101. PD-306U will be powered through the USB port without specific setting.

15” 2nd LCD Panel

A bracket kit including a steel interface bracket will be provided with

the 15” 2

nd LCD panel LM-6301. Please follow the

accompanying installation guide to mount the interface

bracket and fix it to the rear connect area of the system as in

the right picture. Route the VGA cable through the cable

exit of the base stand to the main unit. Connect its attached

power adaptor to the power source.

ROUTING THE CABLES

Place all the cables required for connections to the main unit through

the front part inside the stand assembly. Be sure not to damage any cable

during this operation. The joint of the DB9 RS232 cable of

the external devices and the RS232 conversion cable if

used is most recommended to be kept inside the base stand

assembly for system revision before “G”.

Now, turn the adjustable stand assembly back to normal orientation

and arrange all cables to come out of the area for mounting main unit from the

lower front edge for ease of later operation..

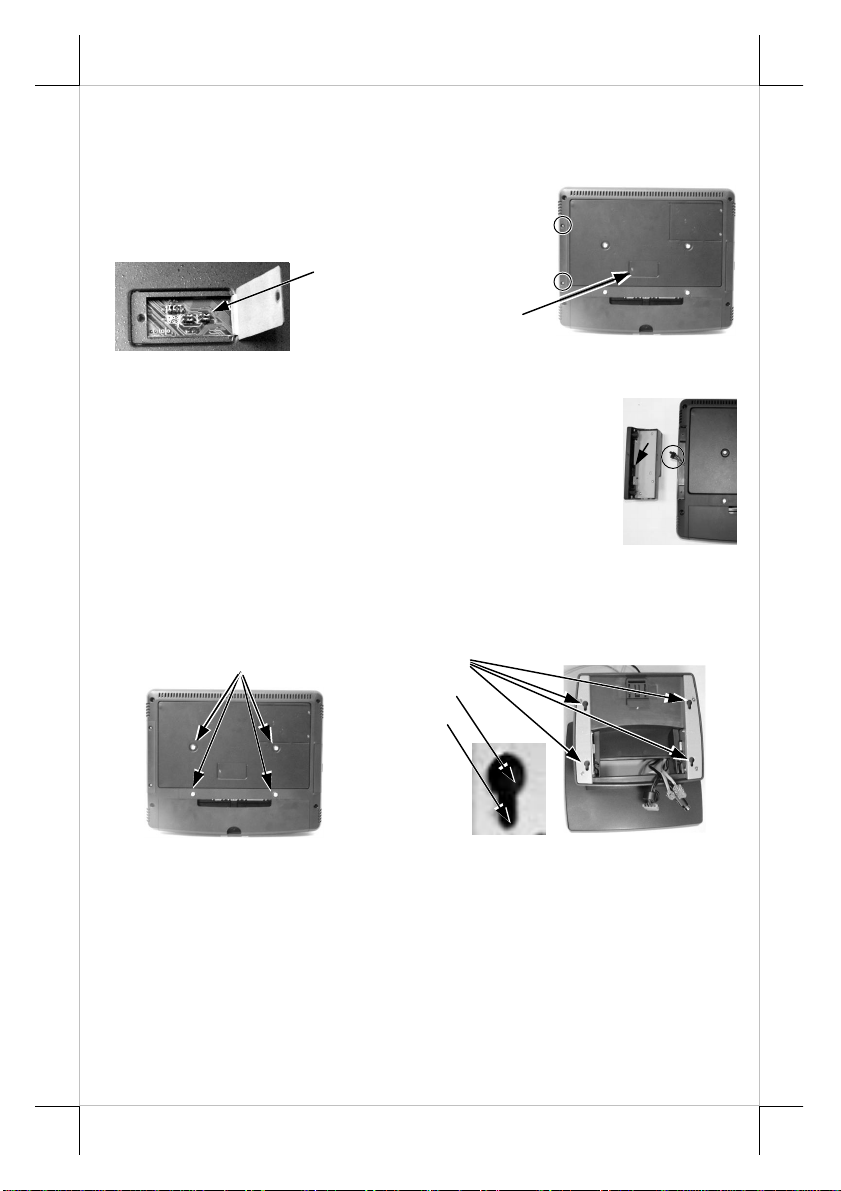

PREPARING THE MAIN UNIT

On the back of the main unit, there is a service window among the 4

matching pegs. Remove the service window lock screw to find several jumpers.

The jumpers in this window are designated for VGA port and COM port power

supply function. Please consult your dealer for technical support on setup of

Route Cablesthrough Front Part

Connect this End to Main Unit

Part 10

these jumpers as shown in pictures below. Please note that only those qualified

technicians may adjust in this window with information from Posiflex and the

contents in the service window may change without notice as time develops.

SIDE MOUNT UPGRADE KIT

Remove the 2 circled screws in the above right

picture to remove the cover for side mount upgrade kit. Take

out the cable inside this cover as circled in the right picture

and then connect it to connector inside the side mount upgrade

kit like SD400 as arrowed in left part of the same picture.

Gently arrange the excessive length of this cable back in the

hole and screw-fit it back to the position originally occupied

by the cover.Please reserve the cover if there is chance to have the side mount

kit removed in the future.

DESKTOP MOUNTINGKS6115:258~355

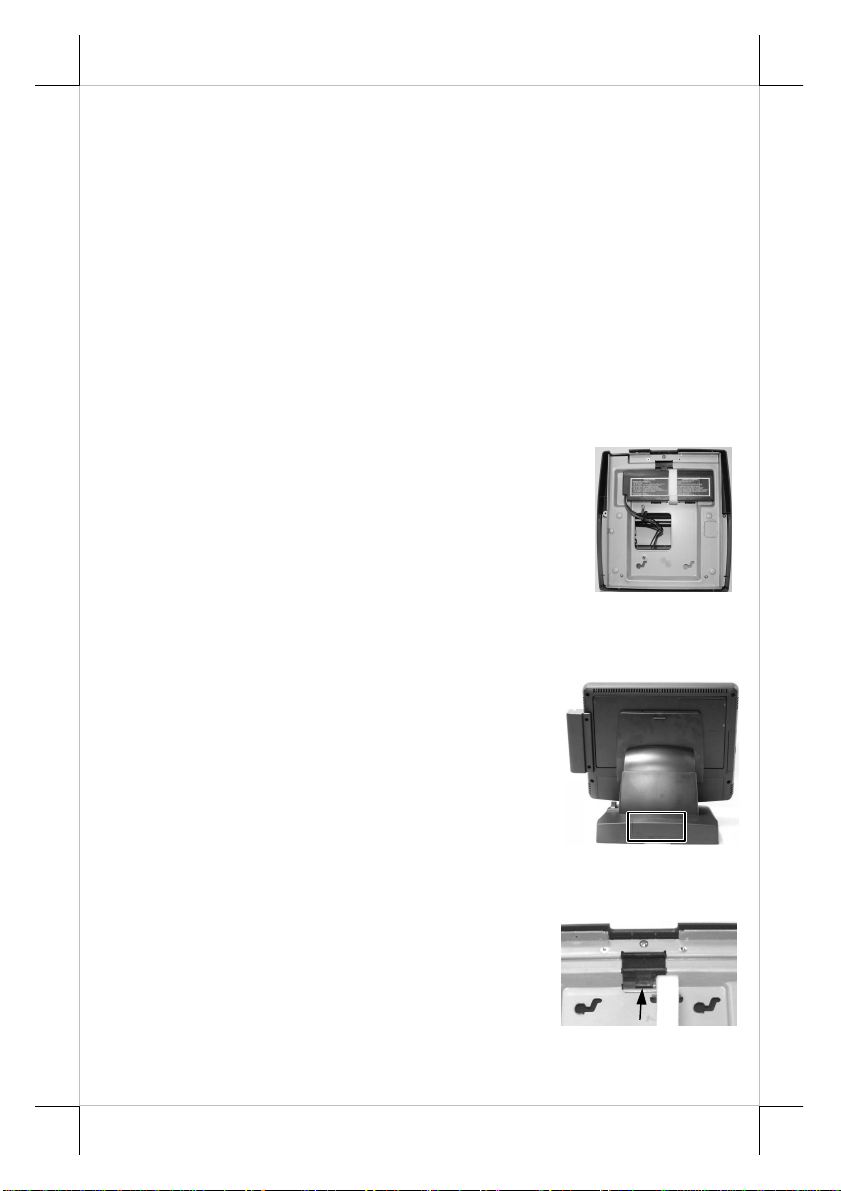

Match the matching pegs on the back of the main unit against the

matching holes on the stand base assembly. First aim the matching pegs

toward the upper round part of the hole and make sure that all pegs are inside

the holes. Then slide the main unit down to move the pegs into the lower slot

part of the holes till it clicks. Note that all the cables come out of the stand

from the lower edge shouldn’t get trapped by this mounting operation. If later

on you want to remove the main unit from the stand, you’ll have to press down

the lock/release button on back of the stand at the time lifting the main unit.

For desk top/counter application, the body of KS-6115 occupies a

Matching Holes

Matching Pegs

Round Part

Slot Part

Service Window

Lock Sc

rew

Jumpers

Andere Handbücher für KS-6115

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere POSIFLEX Touch-Terminal Handbücher

POSIFLEX

POSIFLEX KS - 6910 series Bedienungsanleitung

POSIFLEX

POSIFLEX XT-5415 Bedienungsanleitung

POSIFLEX

POSIFLEX XT-4015 Bedienungsanleitung

POSIFLEX

POSIFLEX XT-3817 Bedienungsanleitung

POSIFLEX

POSIFLEX RT-2015E Bedienungsanleitung

POSIFLEX

POSIFLEX PS-3515 Bedienungsanleitung

POSIFLEX

POSIFLEX KS - 6215N Bedienungsanleitung

POSIFLEX

POSIFLEX Jiva 5815 Pro Bedienungsanleitung

POSIFLEX

POSIFLEX HC-1621IR Bedienungsanleitung

POSIFLEX

POSIFLEX XT-3815-G2 Bedienungsanleitung

POSIFLEX

POSIFLEX HT-4000 Series Bedienungsanleitung

POSIFLEX

POSIFLEX XP-2000 Series Bedienungsanleitung

POSIFLEX

POSIFLEX HC-1521 Series Bedienungsanleitung

POSIFLEX

POSIFLEX Jiva KS-6615 Series Bedienungsanleitung

POSIFLEX

POSIFLEX PS Series Bedienungsanleitung

POSIFLEX

POSIFLEX JIVA HS-2410W Bedienungsanleitung

POSIFLEX

POSIFLEX XT-6015C Bedienungsanleitung

POSIFLEX

POSIFLEX TX-4200 Bedienungsanleitung

POSIFLEX

POSIFLEX XT-3915 Bedienungsanleitung

POSIFLEX

POSIFLEX TX-3000 Series Bedienungsanleitung

POSIFLEX

POSIFLEX MT-4308W Series Bedienungsanleitung

POSIFLEX

POSIFLEX HT-4600 Series Bedienungsanleitung

POSIFLEX

POSIFLEX XT-5515: XT-5515Pro Bedienungsanleitung

POSIFLEX

POSIFLEX MT-4310W/R Bedienungsanleitung

Beliebte Touch-Terminal Handbücher anderer Marken

Wincor Nixdorf

Wincor Nixdorf iPOS plus Advanced Bedienungsanleitung

Ingenico

Ingenico AXIUM EX4000 Bedienungsanleitung

Heisei Electronics

Heisei Electronics Q-POS 815 Bedienungsanleitung

Amano

Amano MTX-15 Bedienungsanleitung

FLOWBIRD

FLOWBIRD CWT Compact Touch Bedienungsanleitung

Demco

Demco SP7 Bedienungsanleitung

Lathem

Lathem PC600 Series Bedienungsanleitung

Partner

Partner MF-2352 Bedienungsanleitung

NCR

NCR RealPOS 7460-2 Handbuch

Simrad

Simrad MS50 Montageanleitung

Unitech

Unitech MR350 MKII Kurzanleitung

Jungheinrich

Jungheinrich WMT 210 Bedienungsanleitung

Motorola

Motorola MTP850 Bedienungsanleitung

YASKAWA

YASKAWA 62H-MDC0 Bedienungsanleitung

MVG industries

MVG industries NeptuLink Bedienungsanleitung

Price Industries Limited

Price Industries Limited FDC Gebrauchsanweisung

Honeywell

Honeywell TemaKey Bedienungsanleitung

EBN

EBN BPC65-B-A16G Bedienungsanleitung
