FCC Notes:

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions manual, may cause interference to radio communications.

It has been tested and found to comply with limits for a Class A digital device pursuant to subpart

J of Part 15 of FCC Rules, which are designed to provide reasonable protection against

interference when operated in a commercial environment. Operation of this equipment in a

residential area is likely to cause interference in which case the user at his own expense will be

required to take whatever measures to correct the interference.

Warranty Limits:

Warranty terminates automatically when any person other than the authorized technicians opens

the machine. The user should consult his/her dealer for the problem happened. Warranty voids if

the user does not follow the instructions in application of this merchandise. The manufacturer is by

no means responsible for any damage or hazard caused by improper application.

About This Manual:

Posiflex has made every effort for the accuracy of the content in this manual. However, Posiflex

Technology, Inc. will assume no liability for any technical inaccuracies or editorial or other errors

or omissions contained herein, nor for direct, indirect, incidental, consequential or otherwise

damages, including without limitation loss of data or profits, resulting from the furnishing,

performance, or use of this material.

This information is provided “as is” and Posiflex Technology, Inc. expressly disclaims any

warranties, expressed, implied or statutory, including without limitation implied warranties of

merchantability or fitness for particular purpose, good title and against infringement.

The information in this manual contains only essential hardware concerns for general user and is

subject to change without notice. Posiflex Technology, Inc. reserves the right to alter product

designs, layouts or drivers without notification. The system integrator shall provide applicative

notices and arrangement for special options utilizing this product. The user may find the most up

to date information of the hardware from: http://www.posiflex.com or http://www.posiflex.com.tw

or http://www.posiflexusa.com

All data should be backed-up prior to the installation of any drive unit or storage peripheral.

Posiflex will not be responsible for any loss of data resulting from the use, disuse or misuse of this

or any other Posiflex product.

All rights are strictly reserved. No part of this documentation may be reproduced, stored in a

retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying,

or otherwise, without prior express written consent from Posiflex Technology, Inc. the publisher of

this documentation.

©Copyright Posiflex Technology, Inc. 2009

All brand and product names and trademarks are the property of their respective holders.

XP-2000 Series

Fan Free Touch Terminal

User’s Manual

Rev.: Original

15460900010

Page 1

ALERT TO OUR HONORABLE CUSTOMERS:

Please always read thoroughly all the instructions and documents delivered

with the product before you do anything about it. Don’t take any premature

action before you have a full understanding of the consequences.

DAILY MAINTENANCE GUIDE

For regular cleaning of the XP systems, please use only soft haired brush or

dry soft cloth. You may use moist soft cloth to remove stains when necessary.

Apply only suitable amount of mild neutral cleaner for obstinate stains. Please

note that never use Acryl dissolving solvent or Polycarbonate dissolving

solvent. You may apply ammonia-based glass cleaner only on the screen

surface.

ABOUT THIS PRODUCT

Posiflex XP-2000 series presents a whole new generation POS terminal, which

is a combination of touch screen, printer, MSR, and the most reliable FanFree

structure. This integrated solution of XP-2000 series not only less cable

connection, but also carrying a brilliant performance to user in order to face

the busiest situation.

XP-2000 Series applies Intel Celeron M technology; fast speed Ethernet as

well as plenty of connects ports of USB, Serial, VGA and CR ports. It also

integrated with thermal printer, touch screen and MSR, as well as designed

with gorgeous appearance and small footprint for counter space saving. The

small and fully integrated system is suitable for many kinds of segments, such

as general retailer, hospitality and restaurant. In addition, XP-2000 series

terminal assist small and medium business to serve customer effectively,

speedy and precise.

All-in-one integrated system including touch screen, thermal printer and

MSR which is the best choice of ECR Replacement.

Integrated thermal printer with paper jams easy to fix design.

One touch power ON/OFF design provides convenience control for

terminal and printer.

The most reliable Fanfree structure for harsh environment.

Support Win XP Pro, POSReady, WEPOS, Windows CE and Linux

environment

Vertical type LCD panel with easy tilt angle adjustment

Supports SSD (Solid-State Drive) Data Storage Device or HDD

Page 2

INTRODUCTION

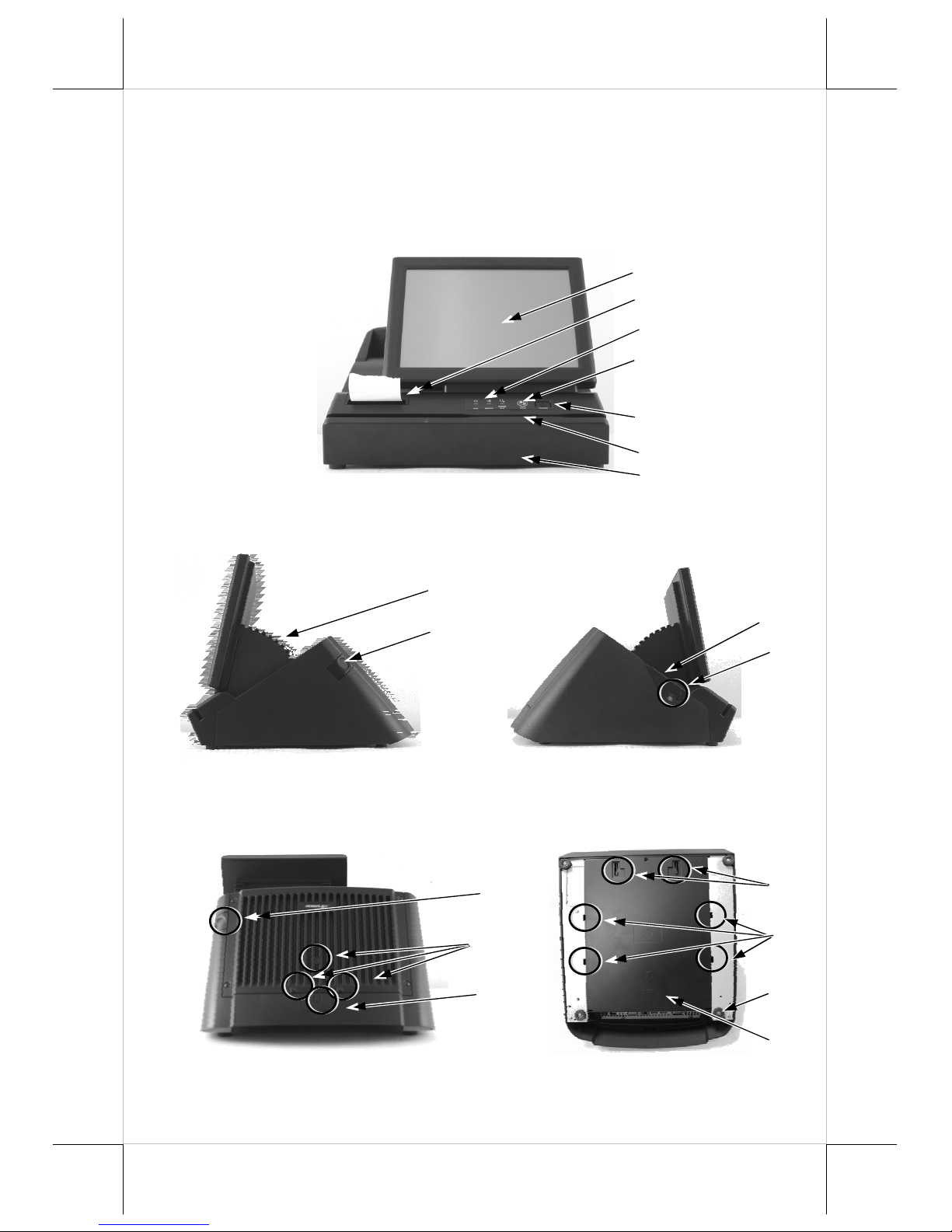

PRODUCT PICTURES

Front Views

Side Views

Rear & Bottom Views

Page 3

PARTS IDENTIFICATION

1. LCD display with or without touch panel

2. Printed paper exit

3. LED indicator for power and printer status

4. Paper feed button

5. Power switch

6. Magnetic Stripe Reader(Option)

7. Base Stand

8. LCD adjustable Holder

9. Lock/Release button for tilt angle adjust

10. Printer cover

11. Printer cover release button

12. Three screw holes in back cover for customer pole display

integration

13. Cable Exit

14. Bottom plate compression lock

15. Bottom plate tenon

16. Rubber foot with bottom plate fixing screw

17. Bottom plate

PRODUCT FEATURES

Standard Features:

Models

Item

XP-2007

XP-2008H

XP-2010H

XP-2012H

CPU Intel Celeron M 600Mhz

VGA port D-SUB 15Pin

LCD DISPLAY(TFT

LCD Panel )

Digital 7"

(800x600

resolution)

Digital 8"

(800x600

resolution)

Digital 10. 4"

( 800x600

resolution)

Digital 12.1"

( 1024x768

resolution)

DRAM Memory

(SO-DIMM X 1) DDR-II, 512MB DDR-II, 1GB

Serial port 1, DB9 X 1 on the I/O Plate

CR PORT X1

Standard USB PORT

4 port on the I/O plate

AUDIO PORT buzzer only

ETHERNET port 10/100 MB

TOUCH function N/A USB Interface

Page 4

TOUCH SENSOR N/A 5 Wire Touch Pad

Storage device DOM (Optional SSD HDD or SATA HDD)

Power switch On the front bezel

Power saving Suspension mode

Power supply power adaptor, 60W

Indicator LED and

Control panel switch

Power ON/ standby, Printer Error /Paper Out (RED),

paper feed and power ON switch.

Fan-Free system Yes

OS support Linux, Window CE. WEPOS. POSReady

Printer build in 2" thermal printer (60mm/sec, MAX)

Printer auto cutter

Option (Upgradeable

auto cutter)

Yes

Paper Width

58mm

LCD panel tilt angle 14~55 (degree)

Table: Summary of features

Option Items:

Note: The underlined items in the following list means that option must be

set prior to shipment from the factory. The rest items can be set by the

dealers.

a) DDR2 SODIMM memory expansion up to 2GB max.

b) HDD kit or SSD kit (SSD can’t coexist with HDD in main unit).

c) Integrated upgrade kit:

2 or 3 track MSR.

PD-330, 2x20 LCD customer display.

PD-2606, 2x20 VFD customer display.

PD-7630, LCD pole display.

d) Integrated 2

LCD monitor 8”(LM-2208)

e) Preload OS Windows XP Pro WEPOS, POS Ready, Windows CE or

Linux

f) Wireless LAN adaptor in USB interface

Page 5

INSTALLATION GUIDES

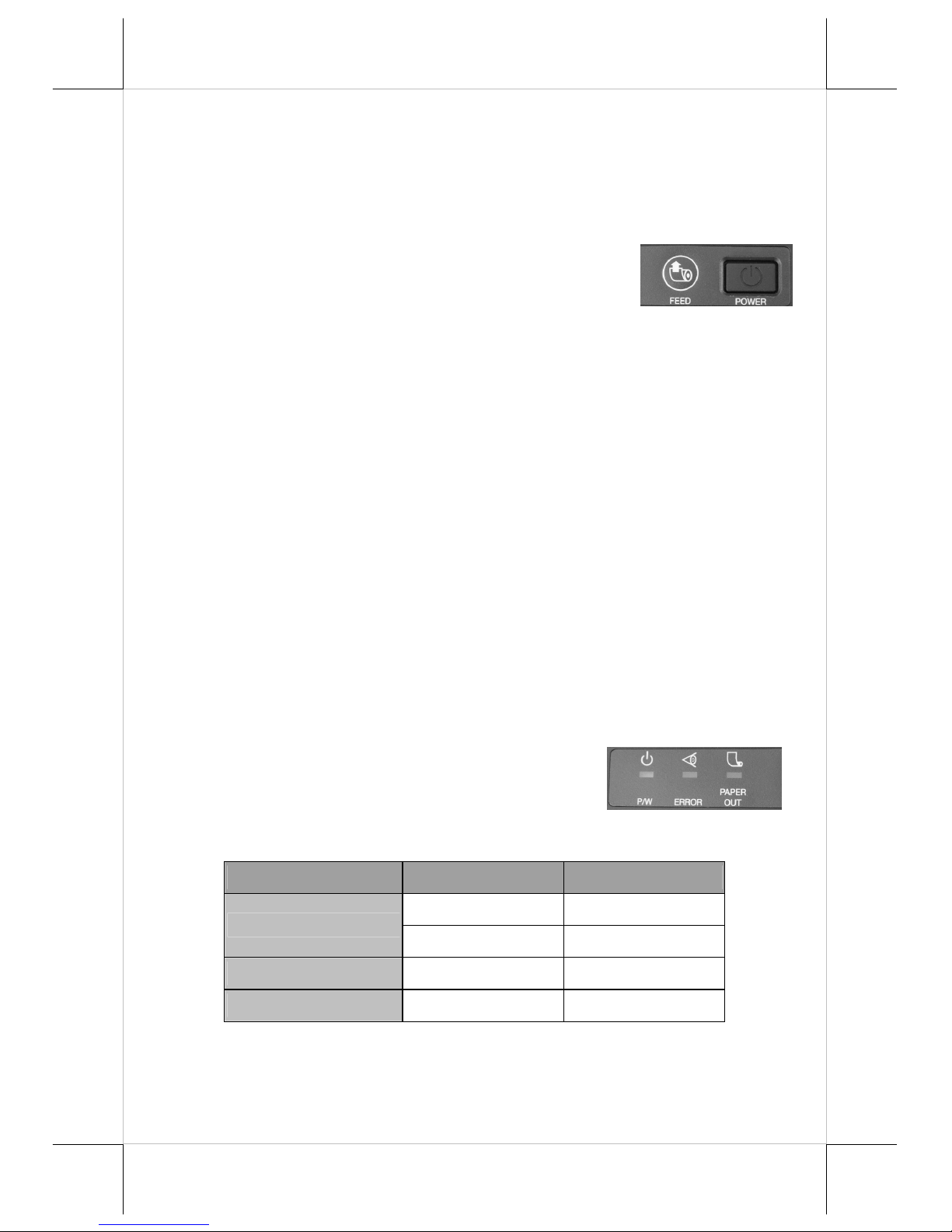

Hardware Power Switch and printer paper feed

The power switch located in the front bezel of main unit.

It is a pushbutton switch and controls the power on/off of

the system. Also, next to the power switch is the paper

feed button for integrated printer.

This power switch turns the system on when pushed only. This switch turns

the system off when pushed again during power on status. However, if the

system hangs due to any reason such as software resource conflict, a simple

push on the switch in 10 sec may turn off the power.

For build-in auto-cutter model, it will cut paper once when the top cover

closed. For manual cutter model, please press FEED button and rip the

unnecessary paper manually after paper loading. For more information about

printer operation, please refer to following chapter “Printer operation”.

Note: There must always be at least 10 seconds waiting before switching

on again once the system is powered off successfully.

Indicators of power and status

There is an indicator LED module serving for

several purposes at front bezel. The relationship

between the indicator status and other conditions is

summarized in following table:

CAUTION: Before any installation or cable connection to the set, please

always make sure that the system is turned off and the

external power source to the set is removed to prevent electric

Indicator Terminal Status

LED colour

Standby Orange

Power Status Power On Blue

Printer Error Error Red

Printer Paper Out

Paper Out Red

Page 6

hazard! Never touch any metal pin in the connectors or

circuits to avoid high voltage hazard or electrostatic discharge

damage unless the operator is well grounded. Failure to do the

above will void the product warranty!

Display Issues

Main LCD Display

For best viewing result, please set your display resolution at 800 x 600 for 7”,

8” and 10” LCD, as well as for XP-2012H is 1024 x 768. The system Video

Memory is shared from system memory. XP-2000 series support DVMT

Function and the video memory size is default in 128 MB and can be set to be

64 MB.

VGA Port

The VGA port in the XP-2000 system supports either a rear mount 2

display

or a separately connected LCD monitor or touch monitor. To support the DC

power to the 2

display monitor, it required a qualified technician to set an

internal jumper in XP main unit. To supply the necessary power through the

VGA connector, please refer to the Posiflex technical information. Do not

connect other monitor to this port before the power in this port is disabled.

Posiflex USB Touch Manager

A program named “Posiflex USB Touch Manager” and a right-click sticky

button tool in the program group “Posiflex USB Touch Tools” is installed in

the preloaded Windows system with a USB interface touch panel controller.

This program can also be obtained by download from the POSIFLEX web site.

Mouse Emulation

The touch panel in XP-2000 system uses internal USB

interface as standard and occupies no external port.

When the touch driver is properly installed, this touch

panel works exactly like a standard mouse for each interface. Nevertheless, if

the system is running under safe mode, the touch panel calibration may

become unsatisfactory due to disabled drivers. It is recommended to use a

standard USB mouse or keyboard in this mode.

Page 7

All the mentioned mouse emulation functions can be manipulated through

relevant software. The system can give a beep and a click on the left button of

a mouse at the point when the touch panel is touched. If the point touched is

dragged across the screen surface, it works as the mouse drag and drop feature.

If the point is touched, released and touched within a short time interval, it is

double-clicking left button of the mouse. To obtain the effect like clicking on

the right button of a mouse, touching any point on the screen surface after

touching the right-click sticky button results as a click on the right button of

the mouse at that point.

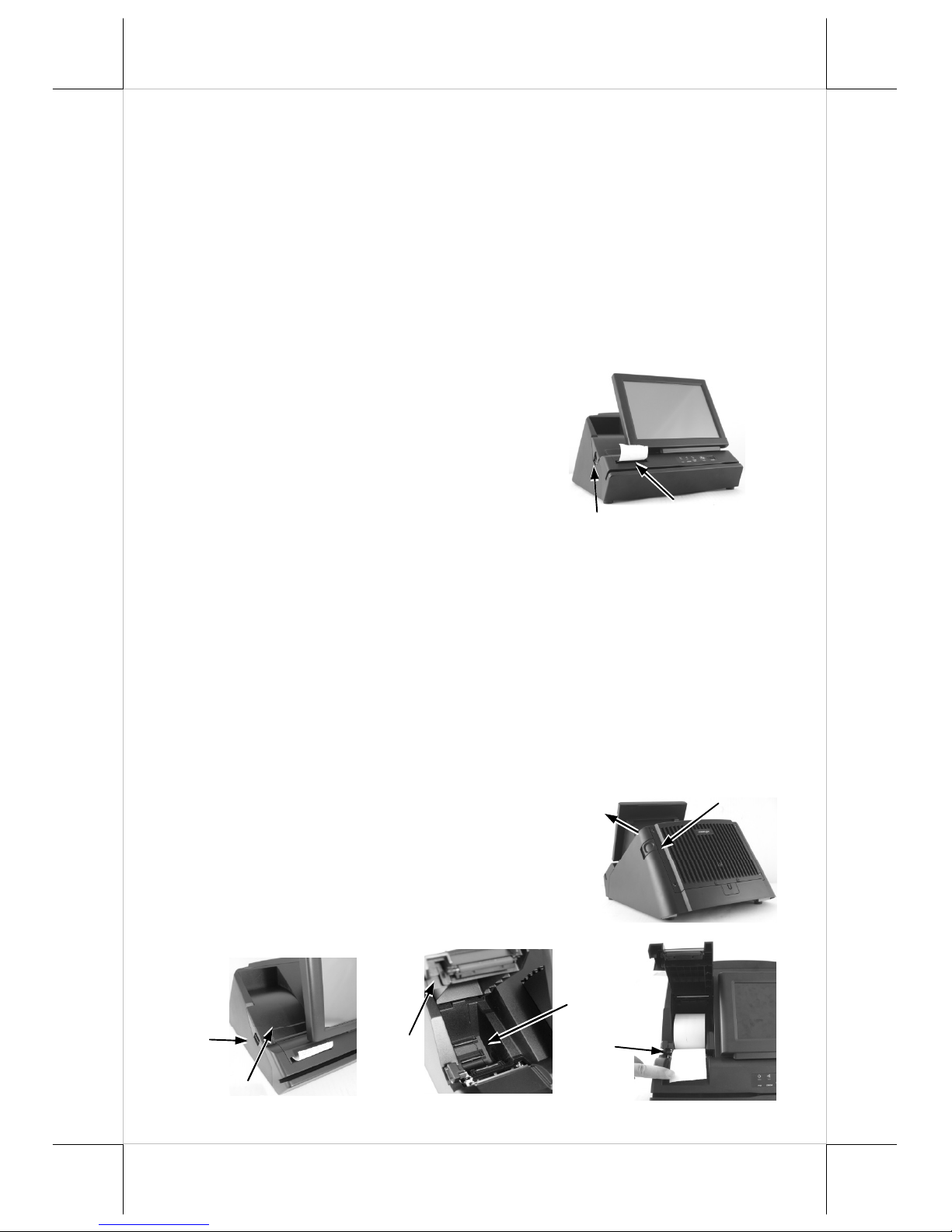

Printer Operation

In the left side of XP-2000 series’ main

unit, there is a 2” printer integrated. For

XP-2007/2008, it built-in printer with

manual cutter and could be option an auto-

cutter. The printer with auto cutter is

integrated in XP-2010/2012.

For loading paper, please follow step A to F sequentially with refer to pictures

to use the printer.

Step A: Please hold the LCD panel and push lock/release lever for tilt angle

adjust forward. Turn the panel forward to most vertical position

Step B: Push the printer cover release button.

Step C: Pull up the printer cover.

Step D: Loading the paper roll and please notice that the paper roll’s

orientation should be face the printer head.

Step E: Please pull the paper longer then paper

exit and press the front of paper by

using index finger. Then close the

printer cover at the centre of front and

please watch your finger during this

step in order to reduce hurt occur.

Printer cover

release button

Paper Exit

Page 8

After finished steps A to E, please notice that the dissimilarity of manual cutter

and auto cutter. For auto cutter, the printer will cut the excess paper

automatically after the paper cover closed. For Manual cutter, user can choose

to rip the unnecessary paper by hand or not to rip.

Self Test

For XP-2000 series printer’s test mode, please turn off the

terminal first. After the system power off, please press and hold

down the feed button while turning on the system power switch.

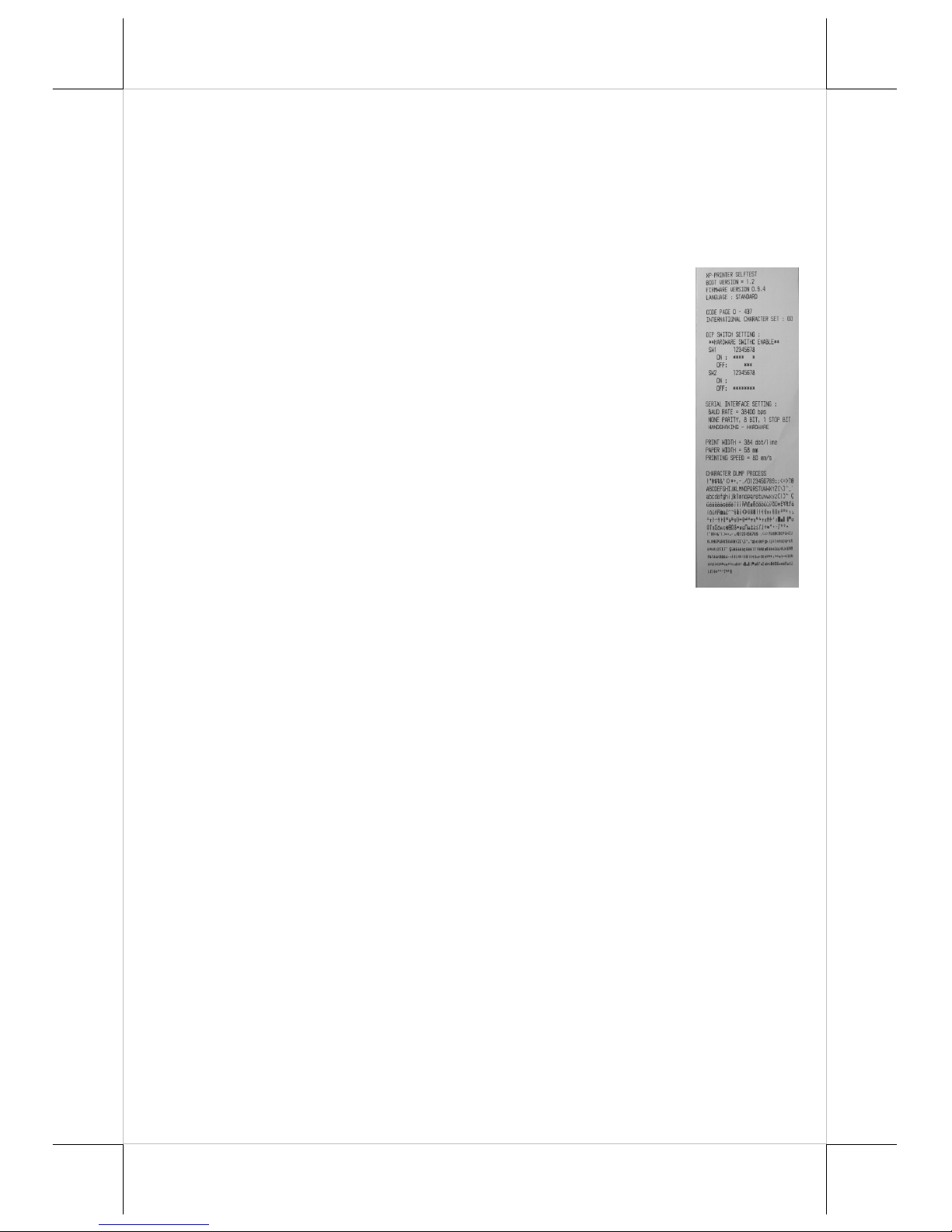

The printer will then perform a self-test mode. A sample slip of

self-test result is printed as in the sample at right.

The header is printed in text mode and the rest part of this slip

is printed in page mode. If FEED button is pressed at this

moment, a font table will be printed in text mode again. To exit

the test printing, please turn the printer off and on again.

Paper Cutting

Generally, after paper printed and automatically cut or manually rip every time,

printer will retract the paper roll in order to reduce the paper loss (adjustable

function, please see following chapter “Printer setup”).

For build-in auto-cut models such as XP-2010 or XP-2012, once the auto-cut

function enable, the printer will leave the advance paper in 4.8 mm long. It is

highly suggested to print the logo and necessary paper feeding to make 4.8 mm

paper advance right after each cut to prevent curling up and jamming of paper

front edge inside the paper exit slot. Another important issue is please set

every receipt length at least 6cm for every auto-cut model in order to let the

receipt pass through the paper exit channel and easily to take.

For build-in manual cutter models such as XP-2007 or XP-2008, in order to

prevent curling up and paper jam, it highly recommend to reserve 4.8 mm

paper advance for logo and necessary paper feeding length. For the printed

receipts, please rip them right after each print finished.

Page 9

Printer setup

There are two difference way to setup XP-2000’s printer. Firstly, one is the

DIP Switch inside of terminal for setup the function such as baud rate, Full-cut

mode and others. Another switch is setup trough software to adjust not only

the hardware switch function but also add printer density and others.

Following explanation is going to descript each function of these two switches.

The SW1 Hardware DIP switch 1 or Software switch 1 works as following:

Switch

position

Function description

Baud rate definition. There are four speed can be choose which are

19200 bps, 115200 bps, 9600 bps and 38400 bps.

3 Control paper auto-cut when cover close and switch on the printer

(For auto-cutter models only).

4 Full-cut mode or Partial-cut mode choice

(For auto-cutter models only).

5 Busy on “buffer full” and/or “off line” control

6 Cut with or without paper feed.

7 Enable or disable auto Cutter. (For auto-cutter models only).

Enable or disable back feed 6mm before print

(For manual-cutter models, auto-cutter models disable auto-cut

function and when enable partial cut function only).

Note: For SW1-7, if the printer build-in auto cutter, the default setting

will be auto-cutter enable. If printer use manual cutter, it will default at

disable.

SW2 software switch works as following:

Switch

position

Function description

Set Hardware Switch 1 Valid or Invalid.

(When hardware switches 1 invalid, software switch 1 can instead of

hardware switch 1. Note: Hardware switch can not co-work with

software switch)

5 Raster Bitmap Print by line print or by buffer batch.

6 Even parity or None parity

Inhaltsverzeichnis

Andere POSIFLEX Touch-Terminal Handbücher

POSIFLEX

POSIFLEX XT-7315 Bedienungsanleitung

POSIFLEX

POSIFLEX HT-2000 Series Bedienungsanleitung

POSIFLEX

POSIFLEX HT-4712 Bedienungsanleitung

POSIFLEX

POSIFLEX PS-3216A Bedienungsanleitung

POSIFLEX

POSIFLEX RT-2015E Bedienungsanleitung

POSIFLEX

POSIFLEX RT-1016A-G2 Bedienungsanleitung

POSIFLEX

POSIFLEX XT-3815 Bedienungsanleitung

POSIFLEX

POSIFLEX LCD Customer Display PD-7100 Bedienungsanleitung

POSIFLEX

POSIFLEX LM-31XXE Bedienungsanleitung

POSIFLEX

POSIFLEX HT-3600 Series Bedienungsanleitung

POSIFLEX

POSIFLEX HS-35 W-G2 Series Bedienungsanleitung

POSIFLEX

POSIFLEX RT-2015-G2 Bedienungsanleitung

POSIFLEX

POSIFLEX KS - 2010 Bedienungsanleitung

POSIFLEX

POSIFLEX BB-2000 Bedienungsanleitung

POSIFLEX

POSIFLEX HT-3200 SERIES Bedienungsanleitung

POSIFLEX

POSIFLEX TP/LT- 5600 Bedienungsanleitung

POSIFLEX

POSIFLEX SA-304 Bedienungsanleitung

POSIFLEX

POSIFLEX PS Series Bedienungsanleitung

POSIFLEX

POSIFLEX TX-2000 Bedienungsanleitung

POSIFLEX

POSIFLEX XT-5315 Bedienungsanleitung

POSIFLEX

POSIFLEX KS-6115 Bedienungsanleitung

POSIFLEX

POSIFLEX HS-66 W Series Bedienungsanleitung

POSIFLEX

POSIFLEX KS-7410 Bedienungsanleitung

POSIFLEX

POSIFLEX XP-3000 Series Bedienungsanleitung

Beliebte Touch-Terminal Handbücher anderer Marken

Wincor Nixdorf

Wincor Nixdorf iPOS plus Advanced Bedienungsanleitung

Ingenico

Ingenico AXIUM EX4000 Bedienungsanleitung

Heisei Electronics

Heisei Electronics Q-POS 815 Bedienungsanleitung

Amano

Amano MTX-15 Bedienungsanleitung

FLOWBIRD

FLOWBIRD CWT Compact Touch Bedienungsanleitung

Demco

Demco SP7 Bedienungsanleitung

Lathem

Lathem PC600 Series Bedienungsanleitung

Partner

Partner MF-2352 Bedienungsanleitung

NCR

NCR RealPOS 7460-2 Handbuch

Simrad

Simrad MS50 Montageanleitung

Unitech

Unitech MR350 MKII Kurzanleitung

Jungheinrich

Jungheinrich WMT 210 Bedienungsanleitung

Motorola

Motorola MTP850 Bedienungsanleitung

YASKAWA

YASKAWA 62H-MDC0 Bedienungsanleitung

MVG industries

MVG industries NeptuLink Bedienungsanleitung

Price Industries Limited

Price Industries Limited FDC Gebrauchsanweisung

Honeywell

Honeywell TemaKey Bedienungsanleitung

EBN

EBN BPC65-B-A16G Bedienungsanleitung
