POSIFLEX KS - 6715 Bedienungsanleitung

Part 1

FCC Notes:

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions manual, may cause interference

to radio communications. It has been tested and found to comply with limits for a Class

A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to

provide reasonable protection against interference when operated in a commercial

environment. Operation of this equipment in a residential area is likely to cause

interference in which case the user at his own expense will be required to take whatever

measures to correct the interference.

Warranty Limits:

Warranty terminates automatically when any person other than the authorized

technicians opens the machine. The user should consult his/her dealer for the problem

happened. Warranty voids if the user does not follow the instructions in application of

this merchandise. The manufacturer is by no means responsible for any damage or

hazard caused by improper application.

About This Manual:

Posiflex has made every effort for the accuracy of the content in this manual. However,

Posiflex Technology, Inc. will assume no liability for any technical inaccuracies or

editorial or other errors or omissions contained herein, nor for direct, indirect,

incidental, consequential or otherwise damages, including without limitation loss of

data or profits, resulting from the furnishing, performance, or use of this material.

This information is provided “as is”and Posiflex Technology, Inc. expressly disclaims

any warranties, expressed, implied or statutory, including without limitation implied

warranties of merchantability or fitness for particular purpose, good title and against

infringement.

The information in this manual contains only essential hardware concerns for general

user and is subject to change without notice. Posiflex Technology, Inc. reserves the

right to alter product designs, layouts or drivers without notification. The system

integrator shall provide applicative notices and arrangement for special options utilizing

this product. The user may find the most up to date information of the hardware from:

http://www.posiflex.com or http://www.posiflex.com.tw or http://www.posiflexusa.com

All data should be backed-up prior to the installation of any drive unit or storage

peripheral. Posiflex will not be responsible for any loss of data resulting from the use,

disuse or misuse of this or any other Posiflex product.

All rights are strictly reserved. No part of this documentation may be reproduced,

stored in a retrieval system, or transmitted in any form or by any means, electronic,

mechanical, photocopying, or otherwise, without prior express written consent from

Posiflex Technology, Inc. the publisher of this documentation.

©Copyright Posiflex Technology, Inc. 2012

All brand and product names and trademarks are the property of their respective holders.

KS –6715

Fan Free Touch Terminal

User’s Manual Rev.: A1

P/N: 16510900020

Part 2

ALERT TO OUR HONORABLE CUSTOMERS:

Please always read thoroughly all the instructions and documents

delivered with the product before you do anything about it. Don’t

take any premature action before you have a full understanding of

the consequences.

This product contains inside a Lithium battery. Please always

follow local environmental protection laws / regulations for disposal

of used batteries and always replace only with battery of same type.

DAILY MAINTENANCE GUIDE

For regular cleaning of the KS systems, please use only soft haired brush or

dry soft cloth. You may use moist soft cloth to remove stains when necessary.

Apply only proper amount of mild neutral detergent for obstinate stains. Please

note that never use Acryl dissolving solvent or Polycarbonate dissolving

solvent. You may apply ammonia-based glass cleaner only on the screen

surface.

CAUTION

Risk of Explosion If Battery Is Replaced By An Incorrect Type

Dispose Of Used Batteries According To Local Regulations

Part 3

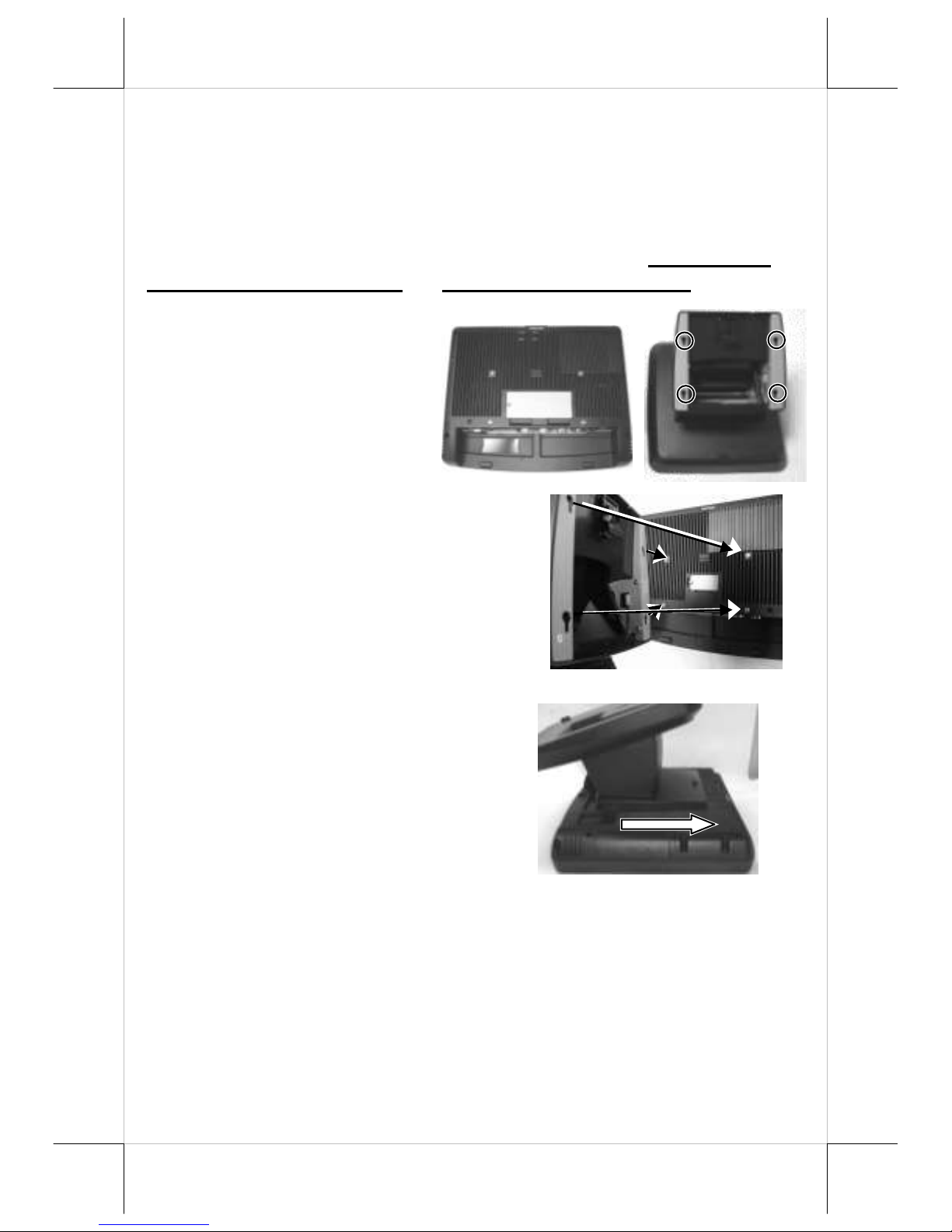

INSTALL GUIDE

After pass through all of connecting cable from the base as instruct in part

10 & 11, please follow the steps to install the terminal and base stand

carefully when first time open the carton.

Since the monitor and stand are packaged separately, please Take Out and

Hold the PE foams Carefully and DO NOT detach and drop it.

After take the PE foam out from

the carton, please remove the PE

foam with extra care and make

sure place the terminal and stand

on a soft clean flat surface such

as table and as show in the

picture at the right side.

Please find the four holes in the top of stand.

Take the stand and align these four matching

holes to the four matching pegs which are in

the back on terminal.

After matching the stand and terminal, push

the stand to the arrowed direction as show in

the right picture. At this time, turn the

terminal to the normal position and plug the

power then it can start to use.

Part 4

INTRODUCTION

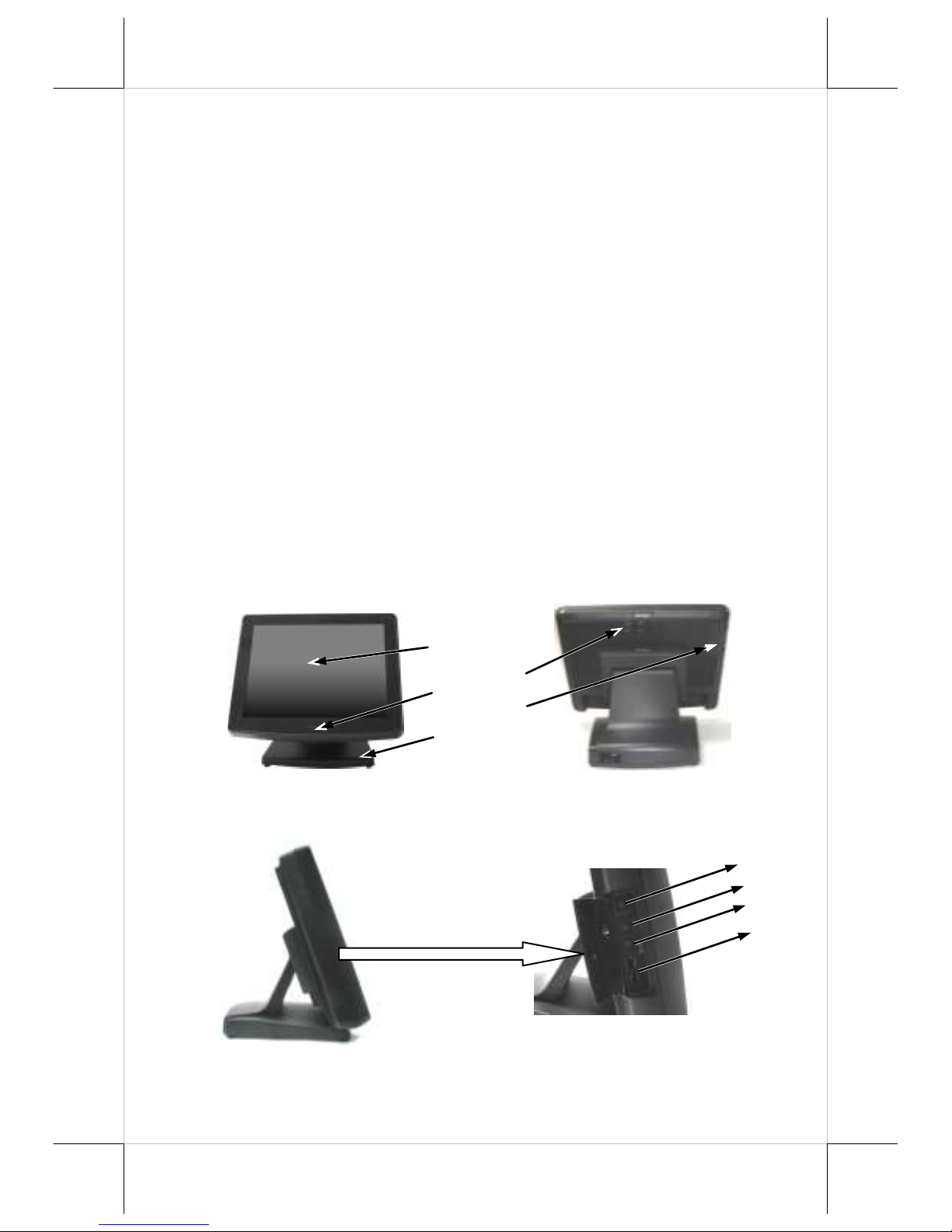

PRODUCT PICTURES for Gen.5 Base Stand

Front Views Rear Views

Side Views

PARTS IDENTIFICATION

1. Main Unit

2. Touch panel / LCD panel

3. Power indicator

4. Gen 5 base stand

5. Screw holes for optional rear top mount kit such as PD-310 or

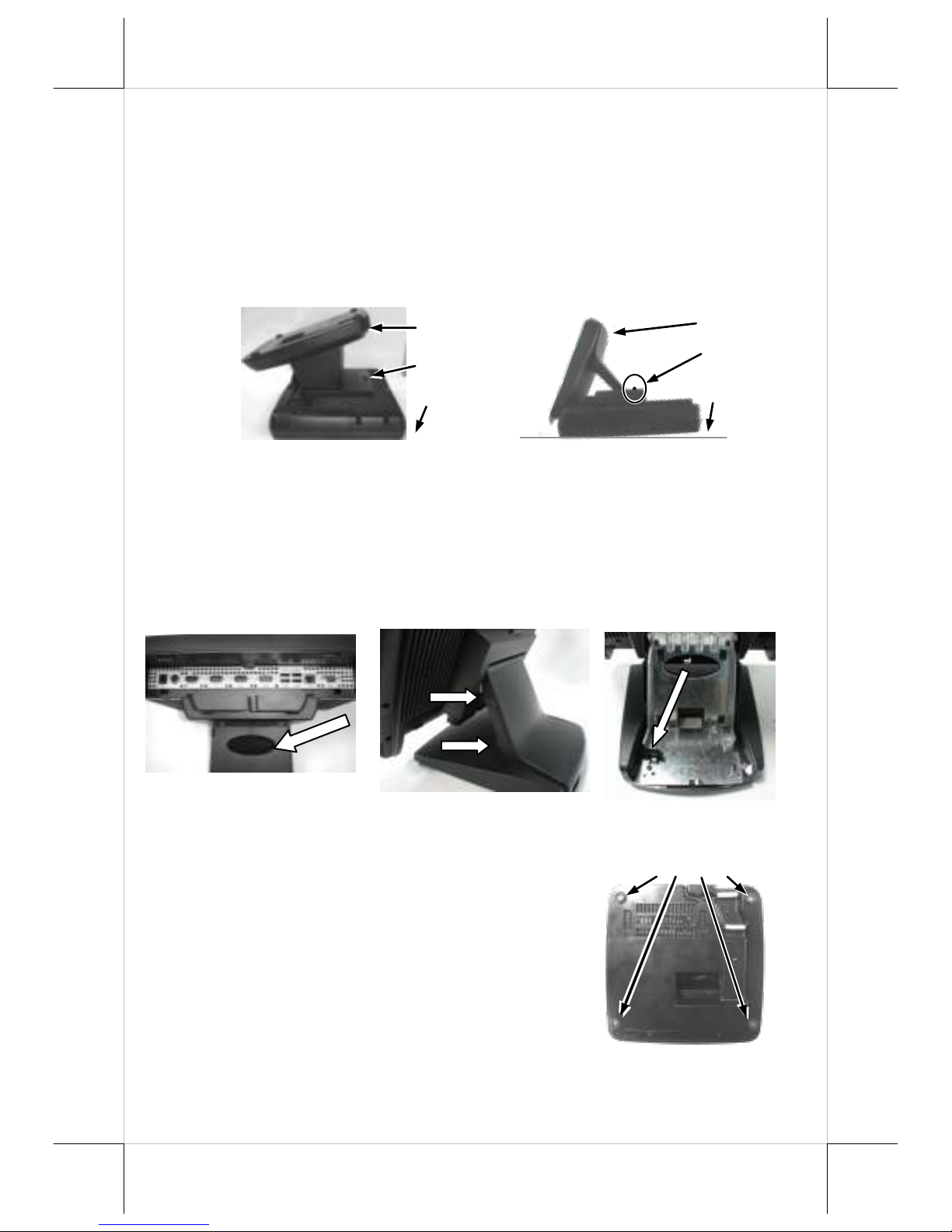

Base Stand and Bottom View

Inside touch open door

Part 5

PD-2604 or LM-2312 or LM-8035

6. HDD cover

7. Power switch

8. Brightness adjust push button “+”

9. Brightness adjust push button “-”

10. USB ports

11. Base stand

12. Compression lock for base stand cover

13. Cable exit

14. Cable groove

15. Cable exit

16. Cable holder

17. Bottom plate

18. Cable passage in bottom plate

19. Rubber feet with bottom plate fixing screw

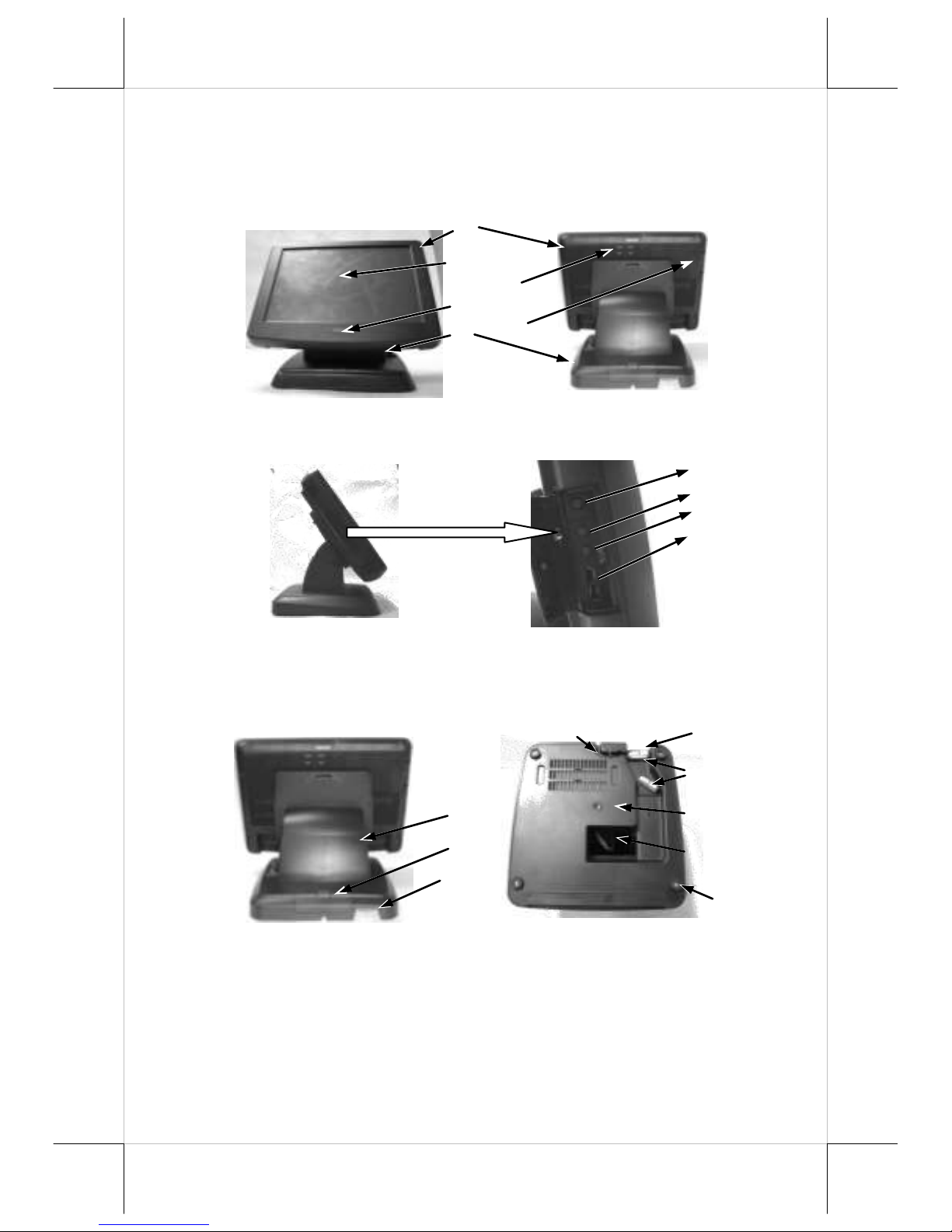

PRODUCT PICTURES for Gen.6 Base Stand

Side Views

Front View

Rear View

Inside touch open door

Part 6

PARTS IDENTIFICATION

1. Touch panel / optional flat screen LCD

2. Power indicator

3. Gen 6 slim base

4. Screw holes for optional rear top mount kit PD-310 or PD-2604

or LM-2312 or LM-8035

5. HDD cover

6. Power switch

7. Brightness adjust push button “+”

8. Brightness adjust push button “-”

9. USB ports

10. Compression locks for base stand cover

11. Cable groove

12. Cable exit

13. Rubber feet with bottom plate fixing screw

14. UPS battery bracket

PRODUCT FEATURES

Standard Features:

a) CPU: VIA Nano 1.6G CPU, 1M Cache.

b) Fan free structure with Aluminum die-cast main unit casing for harsh

environment.

c) Data storage device: 2.5”SATA HDD in main unit or optional SSD in

main unit or optional SATA HDD in base.

d) An advanced slim base design that supports 2nd LCD display or pole

mount customer display on rear base, storage room for optional 2.5”

HDD. Also possible to be without base but wall mount bracket for wall

mount application.

e) Support DOS,XP pro, POS Ready, Win7 and Linux environment

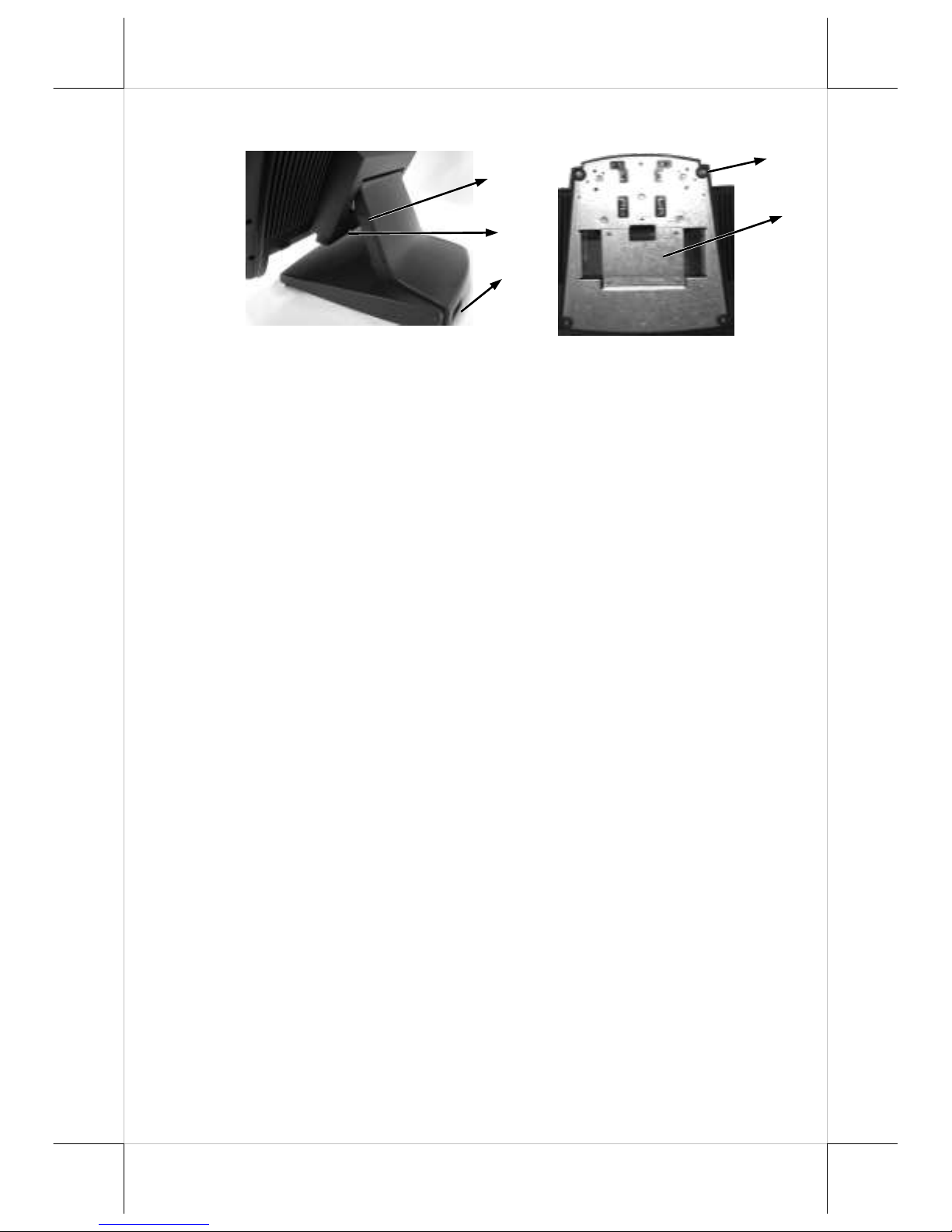

Base Stand and Bottom View

Part 7

f) High quality 15” TFT active matrix LCD panel

g) LCD panel with easy tilt angle adjustment from 15° to 60°

h) LCD brightness adjust buttons at side of main unit

i) Durable resistive type touch panel that endures 10 million touches min.

at same spot (Infra Red type optional)

j) Easy maintenance construction

k) Various I/O ports supported, including:

1. 4 serial ports in form of DB9 connectors. COM1/2/3/4 ports can

support +5V through BIOS setup and +12V DC power through

Jumper setting.

2. 6 standard USB ports with 2 at side, 4 in I/O area.

3. two internal proprietary USB ports for touch function and optional

side mount kit (e.g. SD-400Z/400)

4. one LAN port Ethernet 10/100/1000 Base T with LAN status

indicators on jack (green for link, orange for data transmission)

5. one external VGA monitor port with +12V DC support through

BIOS setting.

6. one SATA port with one 4 pin power connector for optional SATA

HDD in base

7. LED indicators for systems operation status

8. one CR port capable of controlling 2 cash drawers max.

9. reserved one LPT interface through use of optional special cable in

service window

10.one 4 pin DIN type DC 12 V power input connector

l) Touch control functions: left/right button, double click, drag & draw

m) Dual display support (per OS capability)

n) Support high performance DDR3 SDRAM with maximum memory

size 4GB in one SODIMM.

o) Integrated structure for side mount upgrade kit like SD-400Z/SD-400/

SD-600/SD-800 with software programmable MSR for Win OS.

p) Preconditioned power up function –by alarm clock or LAN

Option Items:

Note: The underlined items in the following list means that option must be

set prior to shipment from the factory. The rest items can be set by the

dealers.

a) DDR3 SODIMM memory expansions up to 4GB max in one SODIMM.

b) SSD kit (It can’t coexist with HDD in main unit)

c) 2nd SATA HDD in base

d) USB interface Infra-Red type touch panel

Part 8

e) Touch Panel Options:

Resistive, USB controller

Resistive, PS/2 controller

Infrared touch, USB controller

Resistive with flat screen, USB controller

Projective Capacitive with flat screen, USB controller

f) Integrated side mount upgrade kit:

SD-400Z/SD-400/ SD-600/SD-800: with options MSR, optical

fingerprint sensor, RFID or Wi-Fi.

KP300W: Programmable keypad with options MSR, smart card

reader

g) Integrated rear base mount device such as

VFD pole display: PD2602/U

LCD pole display: PD-306/U

Graphics LCD display: PD-76X2

12”second LCD monitor: LM-6101B

15”second LCD monitor: LM-8015/LM-8025/LM/TM-8045/LM-8055

h) Integrated rear top mount upgrade kit such as PD-310 LCD customer

display or PD-2604 VFD customer display or LM-2312 12”second

LCD monitor or LM-8035 15”second LCD monitor.

i) Preload OS Win XP Pro, POS Ready, Win 7 or Linux

j) Wireless LAN adaptor in USB interface

k) Split cable for 2 cash drawer control

l) LPT interface conversion cable

m) Wall mount kit: WB-6000VB

INSTALLATION GUIDES

CAUTION: Before any installation or cable connection to the set, please

always make certain that the system is turned off and the

external power source to the set is removed to prevent

electric hazard! Never touch any metal pin in the connectors

or circuits to avoid high voltage hazard or electrostatic

discharge damage unless the operator is well grounded.

Failure to do the above will void the product warranty!

TECHNICAL MANEUVERS

Some technical maneuvers in KS-6715 series such as serial COM port +5V

DC support through BIOS setup or +12V power supply through jumper setting.

Nevertheless, such support is limited to the applications of specific Posiflex

Part 9

peripherals and must be disabled when the Posiflex peripherals are

disconnected. Failure to follow the discipline would result in electric or fire

hazard and such consequences are not covered by product warranty!

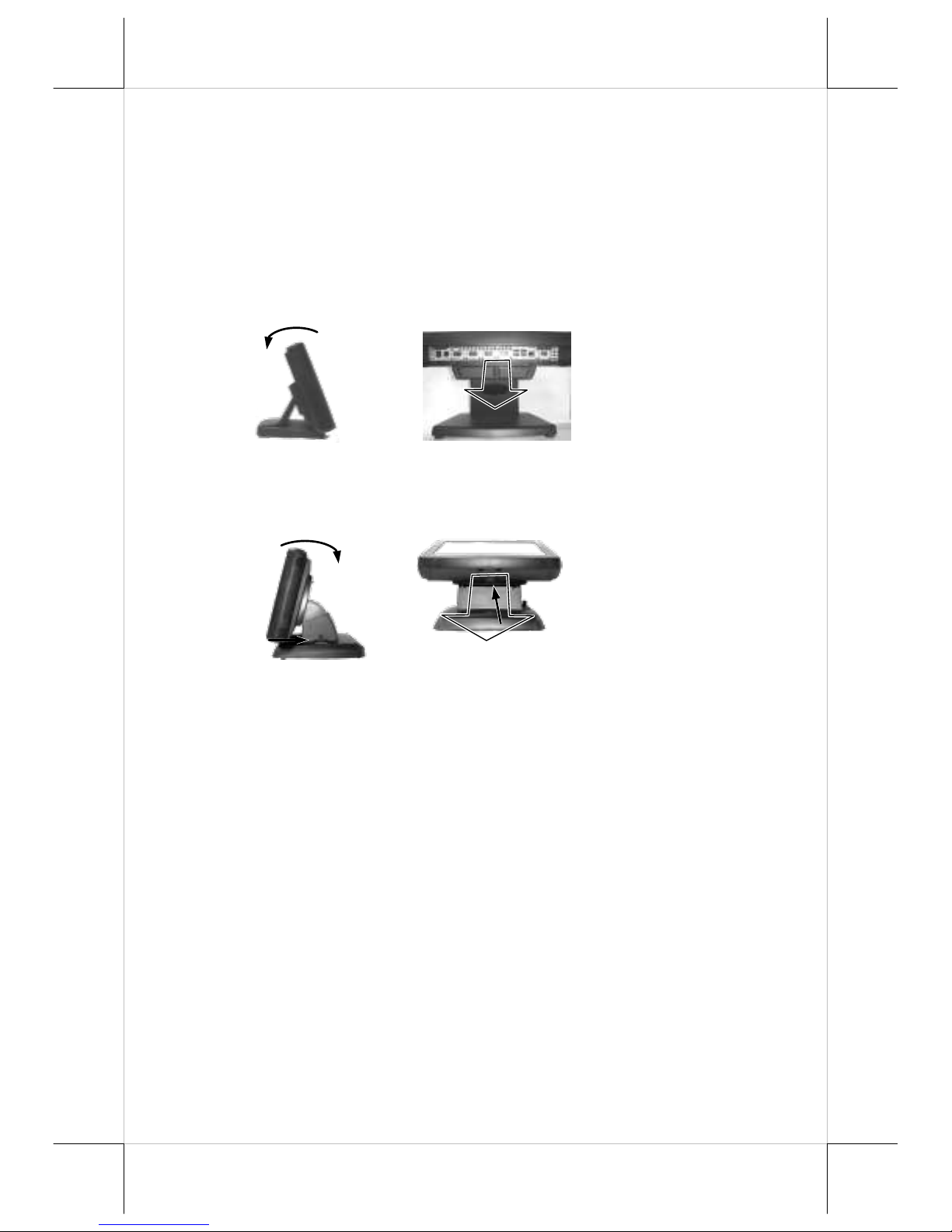

OPENING CABLE COVER

Please follow steps sequentially with reference to pictures below to remove the

cable cover for Gen 5 or Gen 6 slim base models.

Step A: Turn panel backward to most horizontal position

Step B: Pull at the removal hollow toward the user

Step A: Push lock/release lever for tilt angle adjust backward

Step B: Turn panel backward to most horizontal position

Step C: Pull at the removable cover toward the user

DISCONNECTING ALL CABLES

After removal of the cable cover, the connector area will be accessible then.

Please first note orientations of every existing cable connection and then

disconnect every cable properly before separating the main unit from the

adjustable stand assembly. Please note that the click lock spring has to be

pressed down prior to pulling out the connector such as the LAN port or the

CR port. Please also note that the fixing screws have to be loosened free prior

to disconnection such as the DB9 form COM ports or the VGA port. Please

always hold the connector head instead of pulling on the cable wire when

disconnecting any connector. Failure to do this could damage the cable and

jack that is considered as an artificial destruction. Damages due to incorrect

disconnection operation are not covered by product warranty!

SEPARATING MAIN UNIT

In order to settle the touch terminal properly in a point of sale system, all the

cable connections have to be routed through its base, either slim or universal.

Part 10

Therefore, please observe the procedures from A to C below to separate the

main unit from the slim base stand assembly after all cables in cable cover

disconnected.

Step A: Prepare a soft clean flat surface, such as a piece of cloth on the desk to

seat the front surface of main unit

Step B: Press the Lock/Release button for main unit detach and meantime.

Step C: Slide the base stand assembly to left to separate the main unit from

base stand.

CABLE PASSAGE FROM BOTTOM for Gen 6 Slim Base

Please route all cables through the cable passage to main unit in desktop mount

application. Pull the compress lock to open the back cover of base stand. Hold

them together with a cable tie. Pass all cables through the cable exit to external

connections.

OPENING STAND ASSEMBLY for Gen 5 Base

Take the adjustable stand assembly and turn it up

side down to show the bottom of the base. Remove

the bottom plate fixing screws in rubber feet to open

the bottom plate as in the picture at the right.

The inside of an example base will look like the

picture below with numbered items listed. However,

there could be some variation to the contents inside

depending on what option items actually installed.

Gen.6th base stand.

Gen.5th base stand.

Fixing Screws

Base bottom

Inhaltsverzeichnis

Andere POSIFLEX Touch-Terminal Handbücher

POSIFLEX

POSIFLEX XT-2614E Bedienungsanleitung

POSIFLEX

POSIFLEX BB-2000 Bedienungsanleitung

POSIFLEX

POSIFLEX KS7300 Series Bedienungsanleitung

POSIFLEX

POSIFLEX PS-3416 Bedienungsanleitung

POSIFLEX

POSIFLEX PD - 2600 Bedienungsanleitung

POSIFLEX

POSIFLEX KS-7415 Bedienungsanleitung

POSIFLEX

POSIFLEX Jiva LT - 8300 Bedienungsanleitung

POSIFLEX

POSIFLEX PS-3415 Bedienungsanleitung

POSIFLEX

POSIFLEX XT-5315 Bedienungsanleitung

POSIFLEX

POSIFLEX XT- 3015 Bedienungsanleitung

POSIFLEX

POSIFLEX Cash Drawer CR400X Bedienungsanleitung

POSIFLEX

POSIFLEX HC-1521 Series Bedienungsanleitung

POSIFLEX

POSIFLEX KS - 7210 series Bedienungsanleitung

POSIFLEX

POSIFLEX KS - 6910 series Bedienungsanleitung

POSIFLEX

POSIFLEX KS - 7212/X Bedienungsanleitung

POSIFLEX

POSIFLEX XT-3915 Bedienungsanleitung

POSIFLEX

POSIFLEX RT-2015E Bedienungsanleitung

POSIFLEX

POSIFLEX KS-6115 Bedienungsanleitung

POSIFLEX

POSIFLEX JIVA TP-5700 Bedienungsanleitung

POSIFLEX

POSIFLEX KS-6812A Bedienungsanleitung

POSIFLEX

POSIFLEX KS - 6910 series Bedienungsanleitung

POSIFLEX

POSIFLEX PS-3216A Bedienungsanleitung

POSIFLEX

POSIFLEX MT-5208A Bedienungsanleitung

POSIFLEX

POSIFLEX WT-3007A Bedienungsanleitung

Beliebte Touch-Terminal Handbücher anderer Marken

Wincor Nixdorf

Wincor Nixdorf iPOS plus Advanced Bedienungsanleitung

Ingenico

Ingenico AXIUM EX4000 Bedienungsanleitung

Heisei Electronics

Heisei Electronics Q-POS 815 Bedienungsanleitung

Amano

Amano MTX-15 Bedienungsanleitung

FLOWBIRD

FLOWBIRD CWT Compact Touch Bedienungsanleitung

Demco

Demco SP7 Bedienungsanleitung

Lathem

Lathem PC600 Series Bedienungsanleitung

Partner

Partner MF-2352 Bedienungsanleitung

NCR

NCR RealPOS 7460-2 Handbuch

Simrad

Simrad MS50 Montageanleitung

Unitech

Unitech MR350 MKII Kurzanleitung

Jungheinrich

Jungheinrich WMT 210 Bedienungsanleitung

Motorola

Motorola MTP850 Bedienungsanleitung

YASKAWA

YASKAWA 62H-MDC0 Bedienungsanleitung

MVG industries

MVG industries NeptuLink Bedienungsanleitung

Price Industries Limited

Price Industries Limited FDC Gebrauchsanweisung

Honeywell

Honeywell TemaKey Bedienungsanleitung

EBN

EBN BPC65-B-A16G Bedienungsanleitung
