FT-6315

Fan Free Touch Control

Desktop POS Terminal

User’s Manual

Rev.: Original

P/N:

09000

Part 2

ALERT TO OUR HONORABLE CUSTOMERS:

lPlease always read thoroughly all the instructions and documents

delivered with the product before you do anything about it. Don’t

take any premature action before you have a full understanding of

the consequences.

lThis product contains inside a Lithium battery and maybe also a

sealed type Lead acid battery if the UPS battery option is ordered.

Please always follow local environmental protection laws /

regulations for disposal of used batteries and always replace only

with battery of same type.

lIf you have an UPS battery installed in the product:

²Temperature above 40°C must be strictly avoided as it

could cause termination of battery life and unexpected result

even if the battery is not in work.

²Do not power off the system just by shutting off the AC

power leaving the battery supporting the whole system till

completely exhausted. Repeatedly using it up or improper

maintenance reduces the battery life dramatically.

²Always fully recharge the battery at least once every 3

months if the battery is not connected.

²Always disconnect the UPS battery from the system if the

system is to be left OFF for more than 72 hours to prevent

possible damage. Only connect the UPS battery back right

before you are going to re-power on the system.

²Replace the battery as soon as the monitoring software

indicates the battery is out of service. Attempt to recharge a

dead battery is dangerous!

²A separate battery monitor is not required for this series.

DAILY MAINTENANCE GUIDE

For regular cleaning of the FT systems, please use only soft haired

brush or dry soft cloth. You may use moist soft cloth to remove stains when

necessary. Apply only proper amount of mild neutral detergent for obstinate

stains. Please note that never use Acryl dissolving solvent or Polycarbonate

dissolving solvent. You may apply ammonia-based glass cleaner only on the

screen surface.

CAUTION

Risk Of Explosion If Battery Is Replaced By An IncorrectType

Dispose Of Used Batteries According To Local Regulations

Part 3

INTRODUCTION

PRODUCT PICTURES

Front Views

Side Views

Detail inside front cover

Part 4

Rear Views

PARTS IDENTIFICATION

1. Optional base mount kit

2. Touch panel / LCD panel

3. Optional side mount kit

4. LOGO & Power indicator

5. Base unit

6. Front cover

7. CF memory card reader slot in front cover

8. USB port in front cover

9. LAN status indicator

10. HDD status indicator

11. LCD brightness / contrast adjust buttons

12. CF reader status indicator

Detail inside back cover

Please no

te that the picture for inside front and back cover is for reference

only. The actual layout may disagree from this picture if there is any

difference in model or options selected or in the system revision. Please

follow the actual layout for cable connections in this case.

CAUTION: DO NOT release the HDD compartment (items 37, 38

and 39) or system damage may occur.

Part 5

13. LCD panel tilt adjust button

14. Power switch button

15. Acoustic vent

16. Back cover release button

17. Reserved back cover lockup screw hole

18. Back cover

19. External power connector for power adaptor

20. Power adaptor

21. Internal power connector

22. UPS battery connector

23. Additional serial COM port

24. Standard serial COM ports

25. USB ports in back

26. PS/2 KB port

27. LAN port

28. Cash drawer port

29. VGA port

30. Microphone input port

31. Audio line out port

32. LPT port

33. Semi-cut PCI plate window

34. PS/2 mouse port

35. PCI bracket

36. PCI bracket fixing screw

37. HDD bracket

38. HDD hold spring

39. HDD bracket handle

40. UPS battery hold spring

41. UPS battery compartment

PRODUCT FEATURES

Standard Features:

a) CPU: Celeron M 1.5 GHz

b) Fan free structure with Aluminum die cast main unit base casing for

harsh environment or metal

c) Data storage device: HDD 2.5”40 GB with status indicator in base or

CF card.

d) Support Win 2000, Win XP Pro, WEPOS and Linux OS

e) High quality 15” TFT active matrix LCD panel.

f) Vertical type LCD panel with easy tilt angle adjustment from 10° to

45°

Part 6

g) Brightness control by 2 push buttons in front side of base

h) Durable resistive type touch panel that endures 35 million touches min.

at same spot (leading edge Infra Red type optional)

i) Spill proof water resistant structure allowing easy cleaning

j) Easy maintenance construction

k) Various I/O ports supported, including:

1. one PS/2 KB port

2. one PS/2 mouse port

3. 4serial ports with capability for +5V and +12V DC support in form

of DB9 connectors with one additional serial port in form of 10 pin

RJ45 modular jack.

4. one parallel port

5. 4 standard USB ports (1 in front, 3 in back) with 2 additional

internal used USB ports

6. one LAN port 10/100 base T Ethernet with LAN status indicators on

jack and one indication LED in front side of base (green for link,

orange for data transmission)

7. one external VGA monitor port

8. one PCI extension slot

9. one DIN 4 pin lock type DC 12 V power input connector

10.one UPS battery connector

11.one cash drawer connector for control over max. 2 cash drawers

12.one microphone input port

13.one audio line out port

14.one CF memory card reader slot on front side of base

l) Touch control functions: left/right button, double click, drag & draw

m) Dual display support (per OS capability)

n) VGA memory size shared from system memory (8 ~ 32 MB)

o) Support high performance DDR SDRAM with maximum memory size

2GB in 2modules

p) Integrated structure for side mount upgrade kit like FA-200 with

software programmable MSR parameters for Win 2000 or Win XP pro

q) Built-in internal stereo speaker with 2 W audio amplifier

r) Built-in UPS function to support the system from intermittent power

failure (battery itself is an option)

s) Accidental power off protection –The power switch is safely located

inside a push-open cover, and it can be defined as a “ON” switch only

through software command

t) Preconditioned power up function –by alarm clock or COM port

MODEM ring or LAN

Part 7

Option Items:

Note: The underlined items in the following list means that option must be

set prior to shipment from the factory. The rest items can be set by the

dealers.

a) DDR SDRAM memory expansion up to 2GB

b) RS232 interface Infra-Red type touch panel durable for 50 million

touches min. at same spot

c) SATA control card with 2.5”SATA HDD installation

d) Conversion cable for the additional COM5 port to connect DB9 RS232

device. Please note that only the correct conversion cable must be used

e) 2-in-1 cash drawer control cable

f) Integrated side mount upgrade kit:

²FA-200: MSR

²or other later developed side mount upgrade kit

g) Integrated base mount device:

²PD2603 VFD pole display

²PD308 LCD pole display

²PD7623 graphic LCD customer display

²or other later developed base device

h) UPS battery in base

i) Preload OS

Part 8

INSTALLATION GUIDES

CAUTION: Before any installation or cable connection to the set, please

always make certain that the system is turned off and the

external power source to the set is removed to prevent electric

hazard! Never touch any metal pin in the connectors or

circuits to avoid high voltage hazard or electrostatic discharge

damage unless the operator is well grounded. Failure to do the

above will void the product warranty!

TECHNICAL ENHANCEMENTS

Applicable technical enhancements in FT-6315 series include serial

COM port power supply settings, RTC battery replacement, VGA port power

supply setting, DRAM upgrades and adding a half length PCI adapter card. All

these technical enhancement operations require purchase of applicable

Technical Manual from Posiflex or consultation from Posiflex authorized

dealers and should be handled only by a qualified technician.

NON-USER-INSTALLABLE OPTIONS

When the FT-6315 system is ordered with options like expanded

system memory or side mount upgrade kit, the option(s) is (are) already

installed in the system delivered. Therefore, no more installation is required.

HALF LENGTH PCI EXTENSION CARD

Adding a half-length PCI extension card is possible. However, the

whole operation will involve cautiously accessing the interior of the system,

replacing the slot window metal plate, applying the card and installing its

driver. Therefore, only a computer expert can perform this operation on his

own risk.

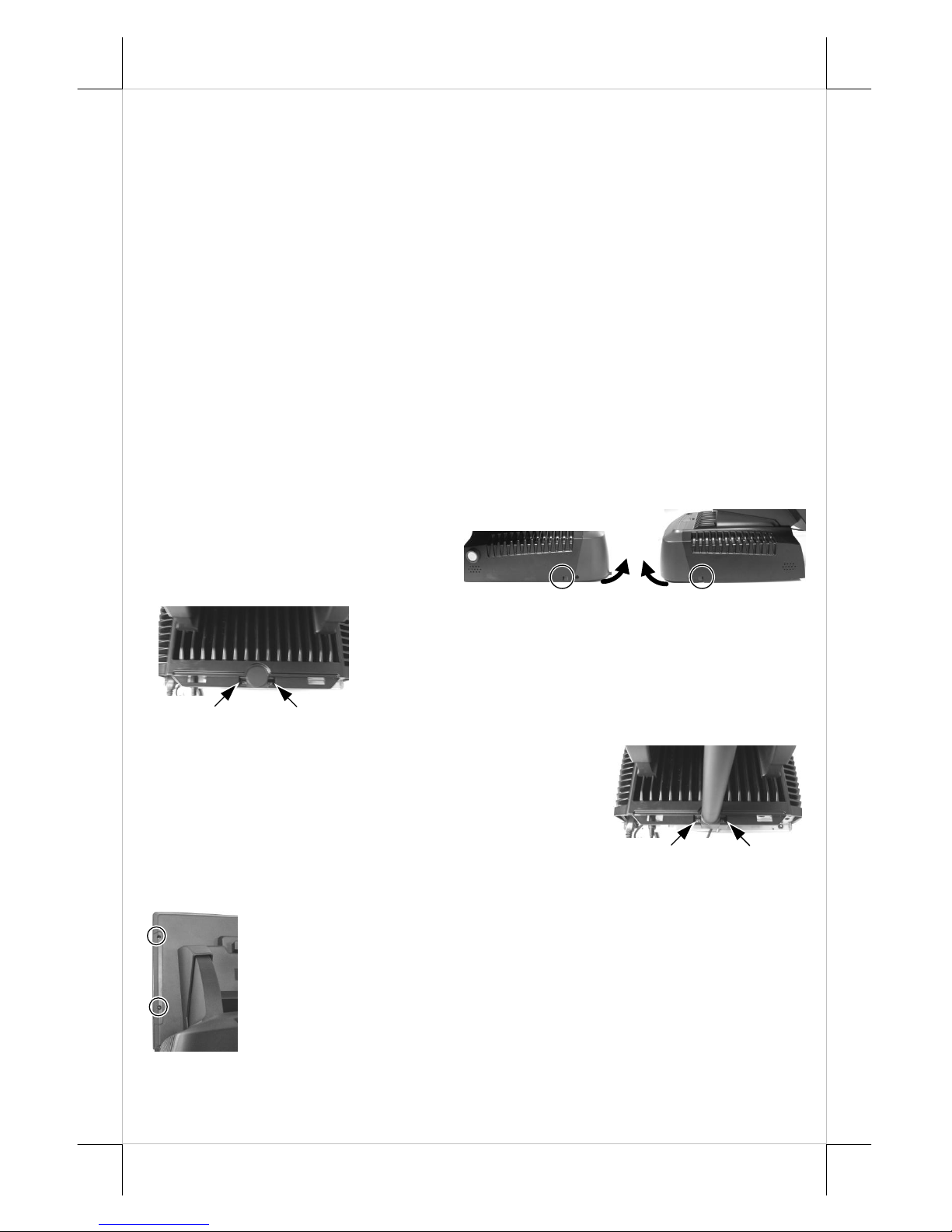

OPENING BACK COVER

The FT-6315 series is

constructed for very easy

maintenance. Press inward both

back cover release buttons at

lower rear corners on both sides of

the system base unit (circled in

right picture) to release the lower

part of back cover. Please note

that there are 2 hooks on top edge of back cover holding to the base as marked

on upper part of the picture. Carefully release the back cover from the hooks to

show the main connection area for cable connections and installation of

Push This Button

and also The One

on The Other

Side to Open

Back Cover

Part 9

optional UPS battery.

Note: Never press the HDD hold spring carelessly or system damages could

occur. The user shall be responsible for such kind of damage.

INSTALLING UPS BATTERY (OPTION)

When the FT-6315 system is ordered

with the UPS battery, the UPS battery is

separately stored in the carton at delivery.

Please take it out and place it into the battery

compartment by first pressing down the UPS

battery hold spring and then allow the spring to

spring back and hold the UPS battery in the

compartment as indicated by lower rectangle in

picture at right. Connect the cable to its

connector above the battery compartment in correct orientation (observe the

shape of the connector –red wires at left) only when the system is about to

power up for operation. Always disconnect the UPS battery when the

system is to be left powered off for more than few days. Please pay particular

attention to the environment requirement for UPS battery in next chapter

“USING THE TOUCH TERMINAL”.

CONNECTING CASH DRAWER (OPTION)

The RJ11 connector in main connection area of a FT-6315 system can

be used for controlling most of the common cash drawers available on the

market. However, it is most recommended that the Posiflex CR-2000 or CR-

2200 or CR-3100 or CR-3200 or CR-4000 or CR-4100 or CR-4210 or CR-

6200 be used for best compliance.

The FT-6315 system will directly control the cash drawer using the

cash drawer port (CR) both to operate the opening mechanism and to monitor

the drawer open status. Both functions may be accomplished under software

control of the COM1 serial port.

Use the cable supplied with the cash drawer (Part No. 21863018010)

for connection to the CR port in FT-6315 system. This cable has a 6-pole plug

at one end and an 8-pole plug at the other. The 8-pole plug should be inserted

into the connector marked: “signal cable from POS Printer” at the rear of the

cash drawer. The 6-pole plug should be inserted in the connector marked “CR”

found in the main connection area in the system.

The user may also use the optional 2-in-1 cash drawer control cable

CCBLA-238 to control 2 cash drawers in 1 port. It has a 6-pole plug at one end

and two 8-pole plugs at the other. The 6-pole plug should be inserted in the

connector marked “CR” found in the main connection area in the system. Each

8-pole plug should be inserted into the connector marked “signal cable from

UPS Battery Compartment

UPS Battery Connector

Part 10

POS Printer” at the rear of one of the cash drawers. The cable lengths for the

two 8-pole plugs are different. Use the shorter one for the original cash drawer

“CR1” and use the longer one for the extended cash drawer “CR2” that will be

distinguished by the software command.

INSTALLING BASE MOUNT KIT (OPTION)

When the FT-6315 series is ordered with the base mount upgrade kit

like customer display PD-2603/2603U, PD-308/308U or PD-7623 option, the

customer display together with the pole for installing them to rear of base will

be delivered in separate package from the system unit. Please follow the step

by step installation guidesbelow with reference to the attached pictures. The

customer display will occupy one USB or COM port in the connection area.

Consult your distributor for technical support on setting up the +5V DC supply

to the COM port used if the customer display is of the serial interface type.

The USB interface type such as PD-2603U or PD-308U will be powered

through the USB port without specific setting.

1. First open the back cover of FT system base by pushing in the circled

buttons on both sides as in the right pictures and

lift from bottom edge to

remove the back cover.

2. Remove the pole cover on rear edge of the

base top cover of FT system by first

removing the 2 arrowed screws in the left

picture and then pushing the wedge shaped

pole cover up.

3. Insert the base of base mount upgrade kit from top of FT system base

with the flat side of the pole base facing the

back cover direction and screw back the 2

screws as in the right picture. Connect the

interface cable to appropriate port.

SIDE MOUNT UPGRADE KIT

When a side-mount upgrade kit option such as FA-200 is ordered with

the FT-6315 system, this option is already installed in the

delivery. No matter the kit itself contains MSR only, finger print

sensor only or both options, the connection to the FT-6315

system is through an internal cable in right side cover of the

LCD/touch unit. Remove the 2 circled screws in the left picture to

remove the cover for side mount upgrade kit. Take out the cable

inside this cover as circled in the left picture here and connect it

to connector inside the side mount upgrade kit as arrowed in the same picture.

Inhaltsverzeichnis

Andere POSIFLEX Touch-Terminal Handbücher

POSIFLEX

POSIFLEX KS - 7212/X Bedienungsanleitung

POSIFLEX

POSIFLEX XT-6015C Bedienungsanleitung

POSIFLEX

POSIFLEX JIVA HS-2410W Bedienungsanleitung

POSIFLEX

POSIFLEX TX-5300 Bedienungsanleitung

POSIFLEX

POSIFLEX Jiva LT-5600 Bedienungsanleitung

POSIFLEX

POSIFLEX RT-1016A Bedienungsanleitung

POSIFLEX

POSIFLEX Jiva LT 8015 Bedienungsanleitung

POSIFLEX

POSIFLEX KS-6812A Bedienungsanleitung

POSIFLEX

POSIFLEX WT-3007A Bedienungsanleitung

POSIFLEX

POSIFLEX PST-1000 Series Bedienungsanleitung

POSIFLEX

POSIFLEX KS - 2010 Bedienungsanleitung

POSIFLEX

POSIFLEX HT-4000 Series Bedienungsanleitung

POSIFLEX

POSIFLEX Jiva LT - 8300 Bedienungsanleitung

POSIFLEX

POSIFLEX PS-3416 Bedienungsanleitung

POSIFLEX

POSIFLEX MT-4210A Bedienungsanleitung

POSIFLEX

POSIFLEX HT-4600 Series Bedienungsanleitung

POSIFLEX

POSIFLEX HT-4600 Series Bedienungsanleitung

POSIFLEX

POSIFLEX DT-308 Series Bedienungsanleitung

POSIFLEX

POSIFLEX XT-2614E Bedienungsanleitung

POSIFLEX

POSIFLEX XP-3000 Series Bedienungsanleitung

POSIFLEX

POSIFLEX KS7300 Series Bedienungsanleitung

POSIFLEX

POSIFLEX RT-1016A-G2 Bedienungsanleitung

POSIFLEX

POSIFLEX XT-2614Q Bedienungsanleitung

POSIFLEX

POSIFLEX HS-2510W-2D Bedienungsanleitung

Beliebte Touch-Terminal Handbücher anderer Marken

Wincor Nixdorf

Wincor Nixdorf iPOS plus Advanced Bedienungsanleitung

Ingenico

Ingenico AXIUM EX4000 Bedienungsanleitung

Heisei Electronics

Heisei Electronics Q-POS 815 Bedienungsanleitung

Amano

Amano MTX-15 Bedienungsanleitung

FLOWBIRD

FLOWBIRD CWT Compact Touch Bedienungsanleitung

Demco

Demco SP7 Bedienungsanleitung

Lathem

Lathem PC600 Series Bedienungsanleitung

Partner

Partner MF-2352 Bedienungsanleitung

NCR

NCR RealPOS 7460-2 Handbuch

Simrad

Simrad MS50 Montageanleitung

Unitech

Unitech MR350 MKII Kurzanleitung

Jungheinrich

Jungheinrich WMT 210 Bedienungsanleitung

Motorola

Motorola MTP850 Bedienungsanleitung

YASKAWA

YASKAWA 62H-MDC0 Bedienungsanleitung

MVG industries

MVG industries NeptuLink Bedienungsanleitung

Price Industries Limited

Price Industries Limited FDC Gebrauchsanweisung

Honeywell

Honeywell TemaKey Bedienungsanleitung

EBN

EBN BPC65-B-A16G Bedienungsanleitung
