POSIFLEX PB-4700DVI Bedienungsanleitung

HT-4712 PB-4700/4700DVI

Package Contents

HT-4712 POS terminal or PB-4700/4700DVI POS box x 1

Power adaptor x 1

Power cord x 1

Quick installation guide x 1

Recovery or information CD x 1

Product Features

Standard Features

System

Intel Haswell CPU, LGA 1150 package

Intel H81 or optional Q87 supporting RAID

Dual-channel DDR3 SO-DIMM x2, 1600MT/s, Max 16GB

Mechanical Structure

Gear button to adjust LCD tilt angle from 40°to 75°

Gear button to adjust LCD swivel angle from 0°to 16°

Display (for HT-4712 ONLY)

12" LCD touch panel, 1024x768 resolution

5 wires, touch panel

15570900020 Ver. A0

http://www.posiflex.com

HT-4712 / PB-4700 / PB-4700DVI

POS Terminal / POS Box

User Manual

Optional Items

System

SSD, through SATA interface

POSReady 7, Windows 7, Windows Embedded 8.1 Industry,

Linux per request

WIFI

802.11 b/g/n, through external USB dongle

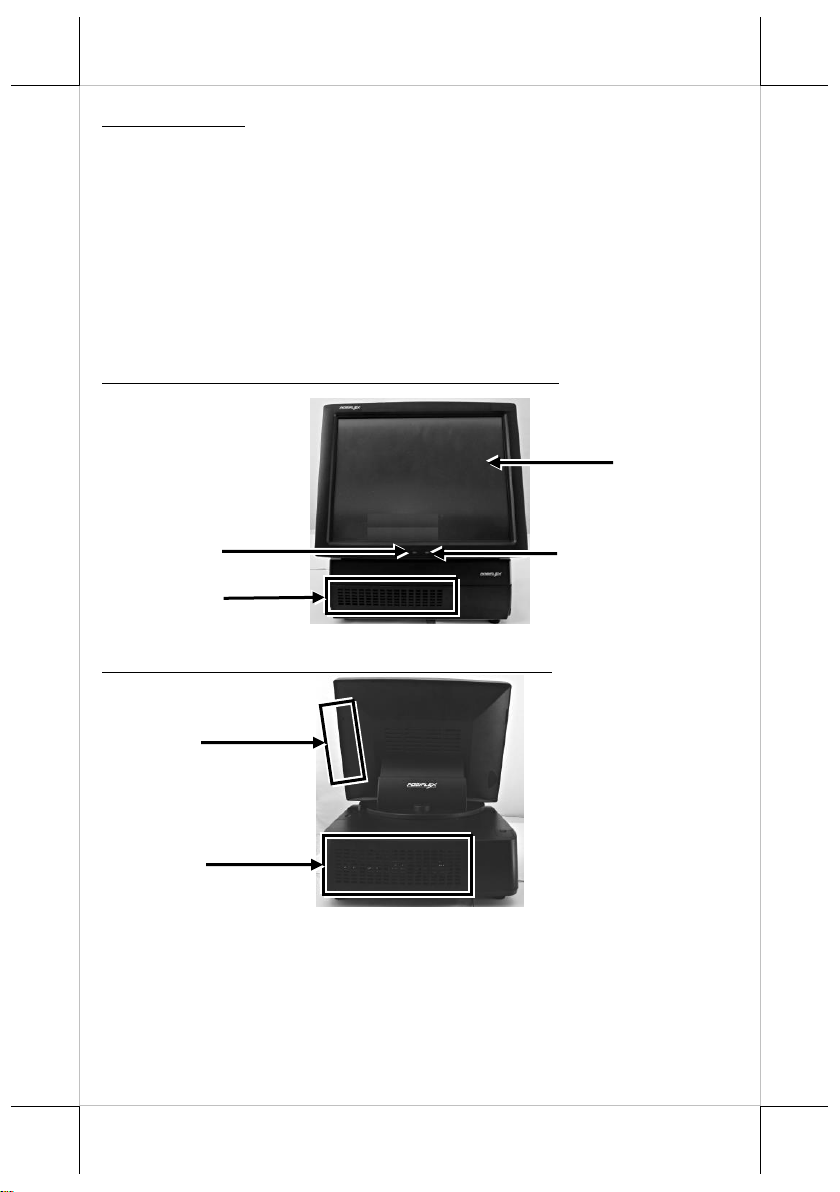

Views of the HT-4712/PB-4700/PB-4700DVI

Front View of HT-4712/PB-4700/PB-4700DVI

Rear View of HT-4712/PB-4700/PB-4700DVI

Ventilation Grids

12-inch LCD Touch Panel

LAN LED Indicator

Power LED Indicator

Ventilation Grids

Side Mount Upgrade Kit

Mounting Portion (Optional)

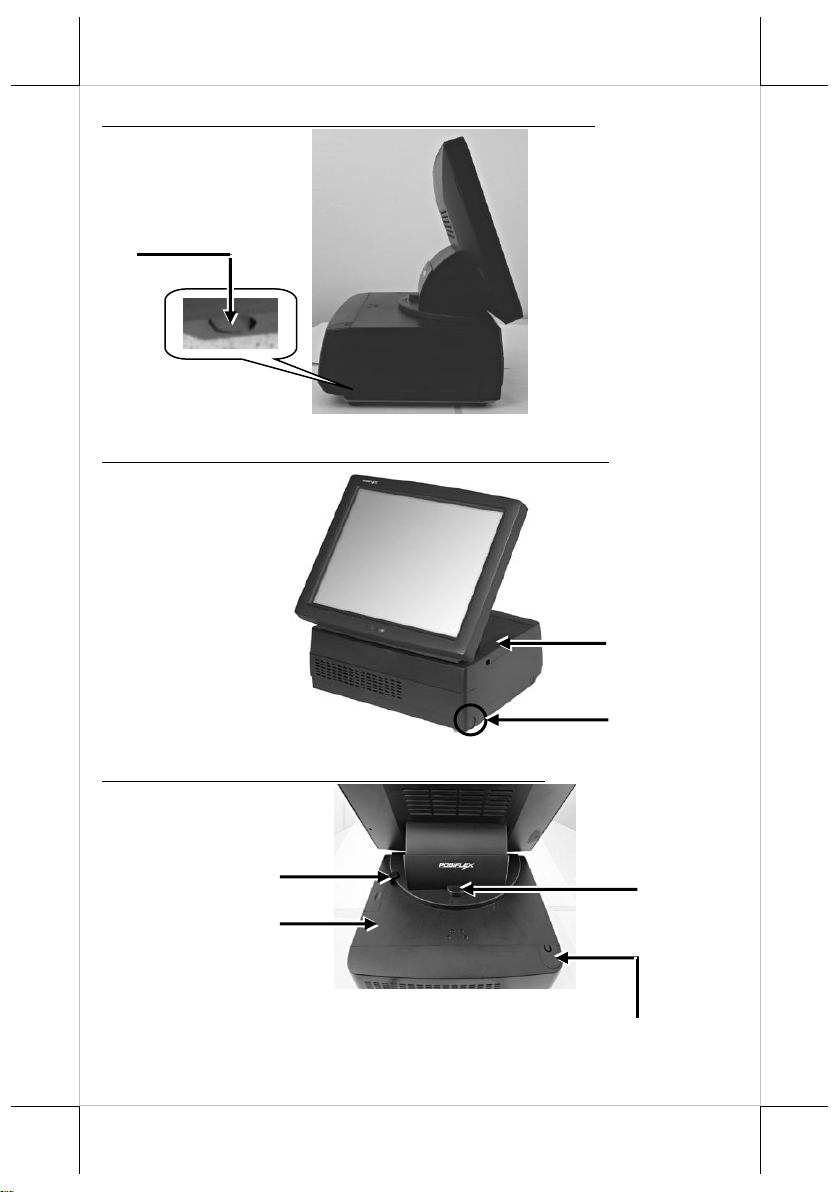

Left Side View of HT-4712/PB-4700/PB-4700DVI

Right Side View of HT-4712/PB-4700/PB-4700DVI

Top View of HT-4712/PB-4700/PB-4700DVI

I/O-Port Protective Cover

Release Button

Power Button

Extended USB Port Cover

Customer Pole Display

Mounting Portion (Optional)

Up-Down Viewing Angle

Adjustment Button

Left-Right Viewing Angle

Adjustment Button

Upper Cover

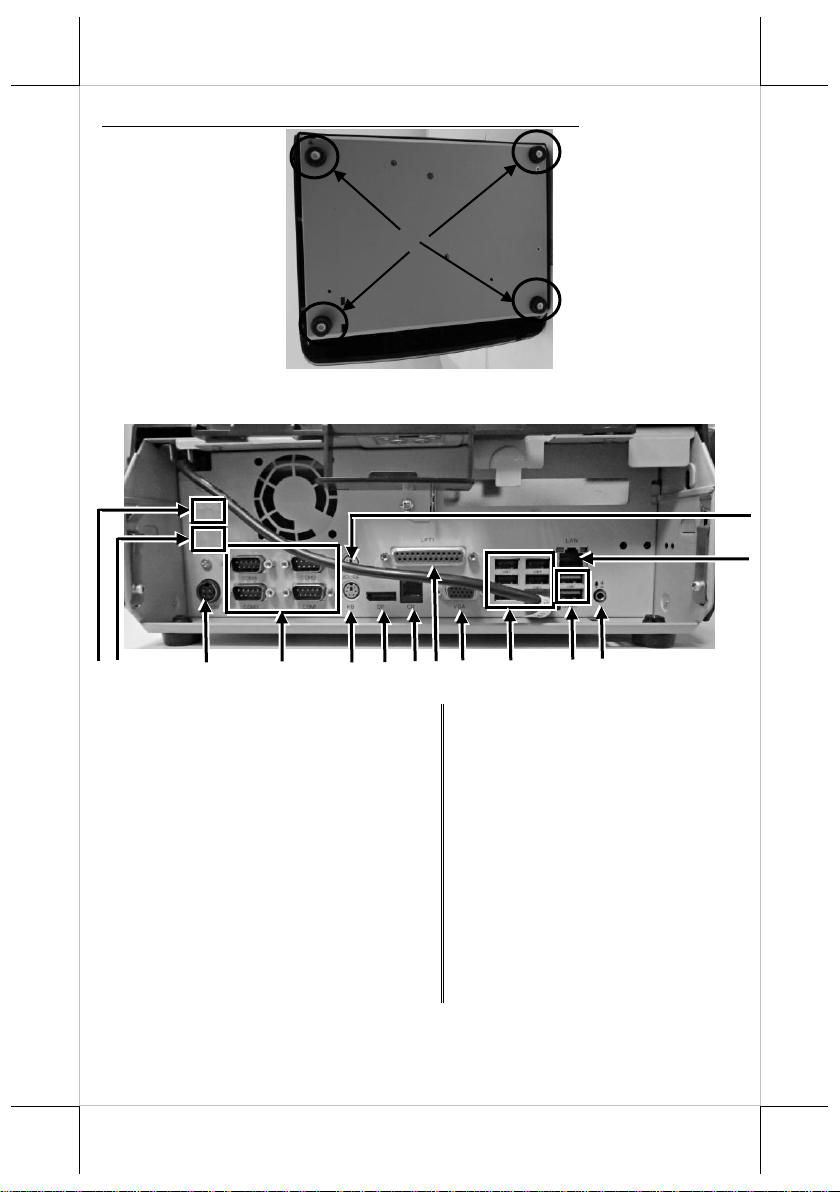

Bottom View of HT-4712/PB-4700/PB-4700DVI

View of I/O Interfaces of HT-4712/PB-4700

(Reserved for optional

PoweredUSB Port or COM port)

(Reserved for optional

PoweredUSB Port or

COM port)

12V DC-IN Power Jack

COM1 ~ COM4

PS2 Port for Keyboard

DisplayPort

Cash Drawer Port

Parallel Port

VGA Port

USB2.0 Port

USB3.0 Port

MIC-IN / Line-Out for

Combo Jack

RJ45 LAN Port

PS2 Port for Mouse

Rubber

Cushion

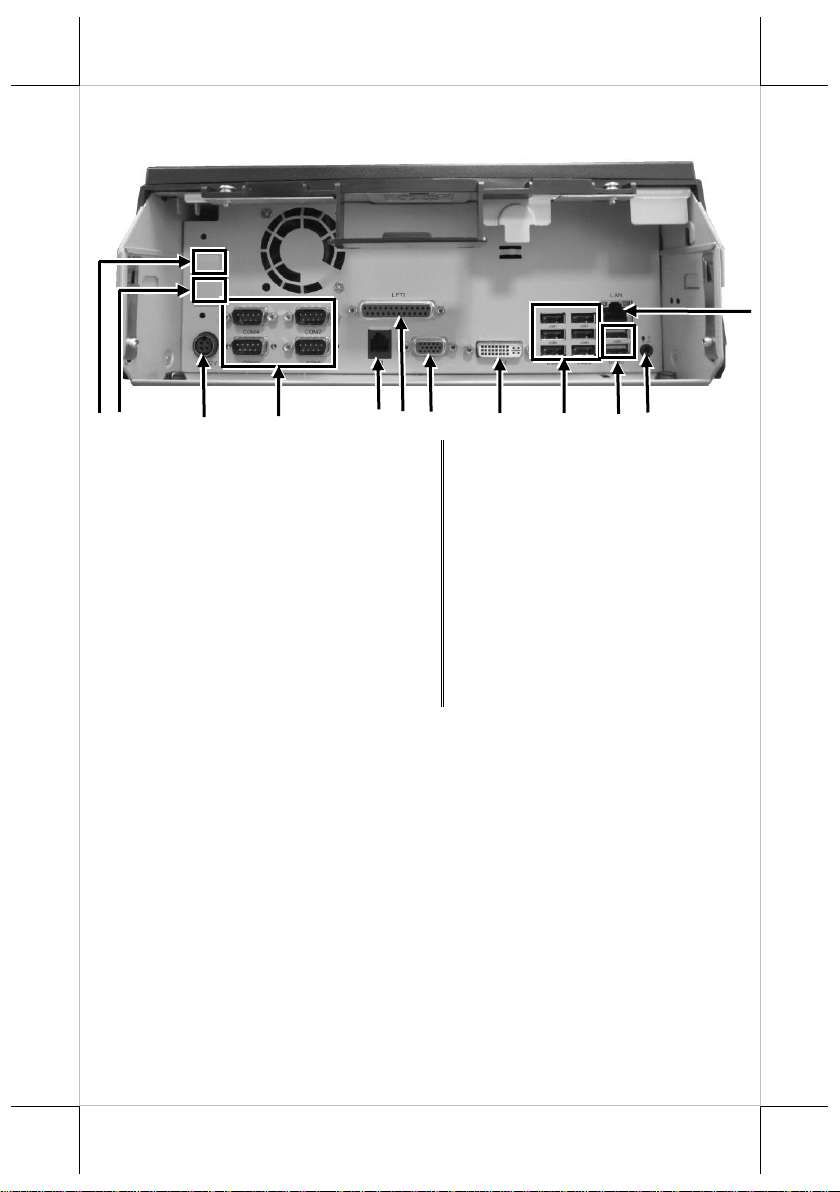

View of I/O Interfaces of PB-4700DVI

(Reserved for optional

PoweredUSB Port or COM port)

(Reserved for optional

PoweredUSB Port or

COM port)

12V DC-IN Power Jack

COM1 ~ COM4

Cash Drawer Port

Parallel Port

VGA Port

DVI Port

USB2.0 Port

USB3.0 Port

MIC-IN / Line-Out for Combo

Jack

RJ45 LAN Port

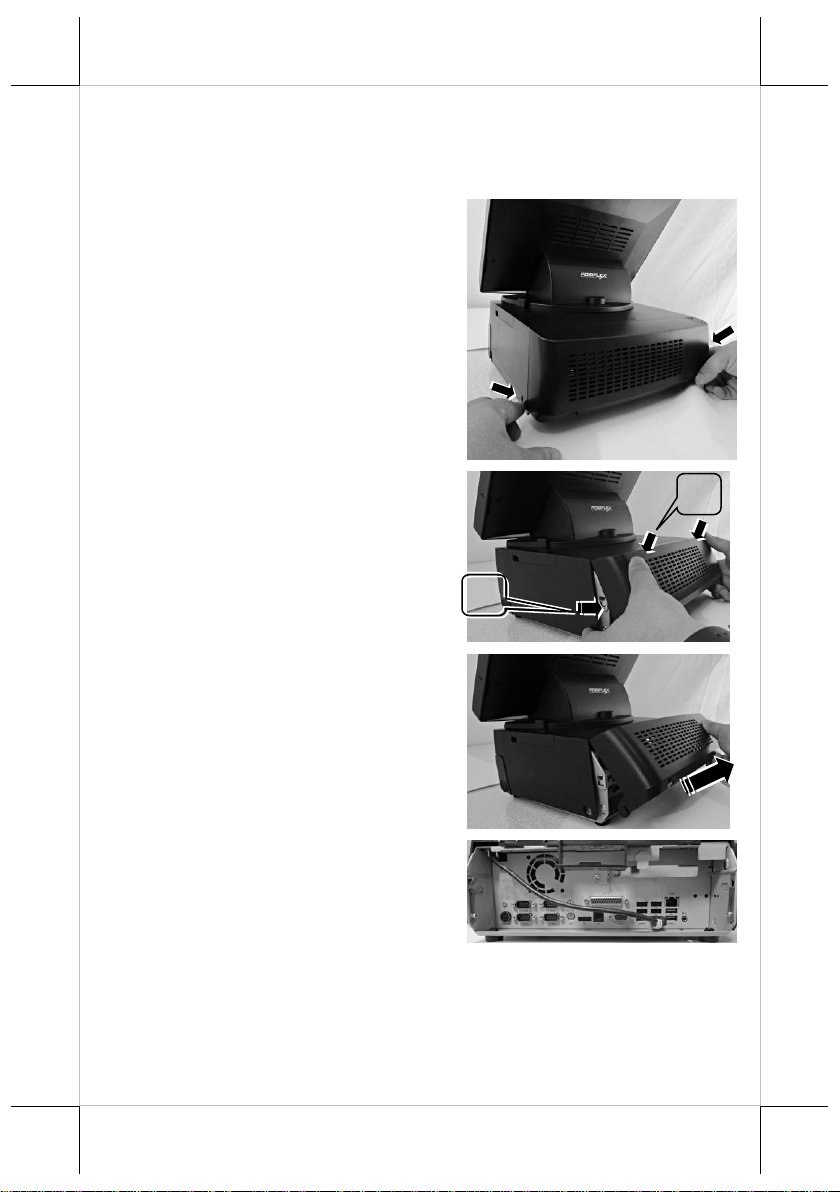

Connecting Power Adapter and I/O Cables

Follow the steps listed below to open the rear I/O-port protective

cover and connect cables.

1. Press the release buttons, with

forefingers, on the left and

right sides of the upper cover

of the POS box.

2. Press and hold the upper right

and upper left sections of rear

I/O-port protective cover with

thumbs, and pull outwards the

cover.

3. Remove the rear I/O-port

protective cover.

4. Connect power adapter and

I/O cables to the I/O interface

of the POS box.

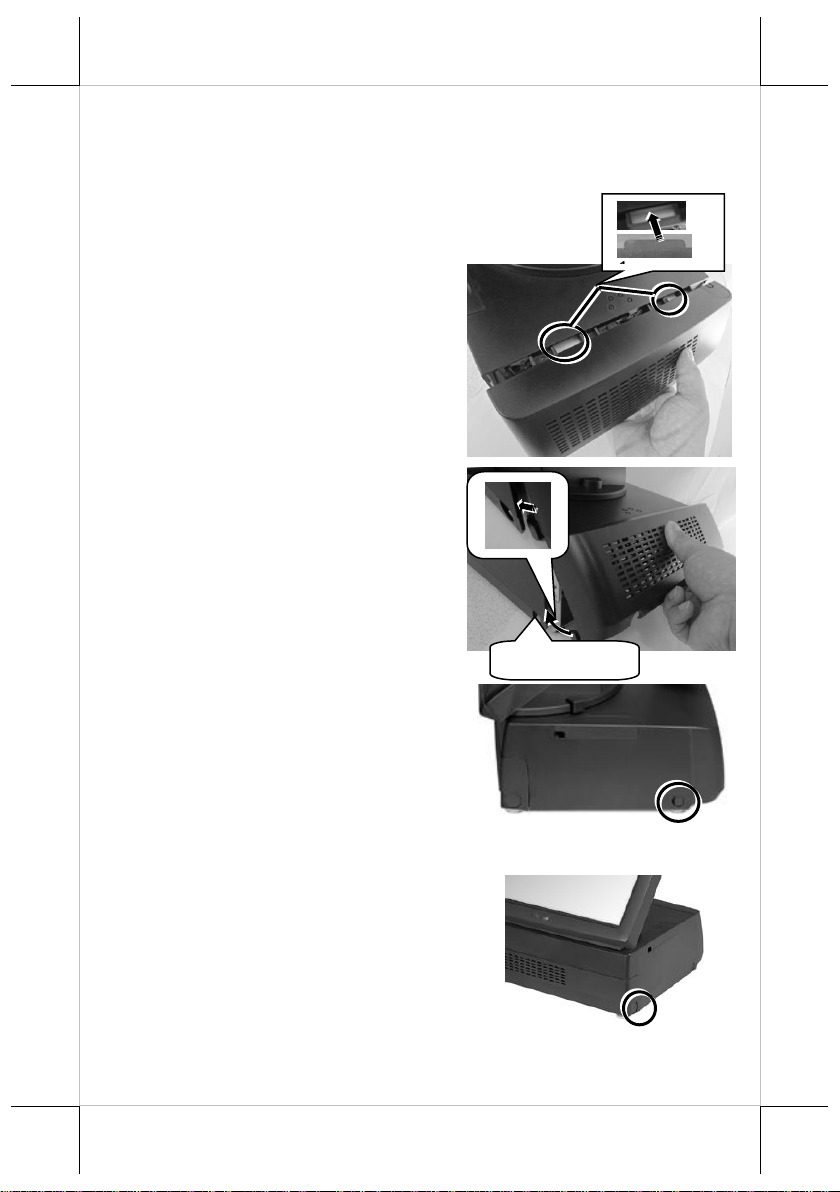

Close the rear I/O-port protective cover

Remember to close the rear I/O-port protective cover after

completing in the power adapter and I/O cable connection.

Follow the steps listed below to close the cover.

1. Align the two wedges of the top

of the rear I/O-port protective

cover with the two wedged

portions of the upper cover of the

POS box.

2. Press and hold the upper right

and upper left sections of rear

I/O-port protective cover with

thumbs, and push the release

button of I/O-port protective

cover into the section between

the upper cover and chassis of

the POS box.

3. When the release button is

wedged to the wedged hole of

the upper cover, you will hear a

click sound, indicating that the

rear I/O-port protective cover is

well closed.

Powering ON the HT-4712/PB-4700/PB-4700DVI

Then press the power button to power on

the main unit. To power it off, press the

button again.

Once powering off the system, if you want

to power it on again, please wait for at

least 3 seconds.

Wedged Hole

If the system hangs due to a reason, such as software resource

conflict, please press and hold the power button for 10 seconds

around to forcedly shut down the system.

Status LED Indicator

After powering ON the HT-4712/PB-4700/PB-4700DVI and

connecting to the LAN port, you can read the system operation

status from the power and LAN LED indicators. The LED status

is described below.

LED

Status

Description

POWER

Solid blue

System power ON

Solid orange

System standby

LAN

Solid green

LAN link

Flickering green & yellow

Data transmission

Installing an Operating System

This product is highly professional equipment. Therefore, we do

NOT encourage you to install any operating system into this

machine without professional assistance. Posiflex Technology,

Inc. shall not be responsible for any technical support to

questions on this aspect. We suggest that you contact your dealer

for OS installation.

Operating System Recovery

For the HT/PB-4700/PB-4700DVI main system preloaded with

an operating system on HDD, Posiflex provides a recovery CD

shipped with the main system for the preloaded operating system.

The system integrator shall take care of software restoration after

the OS is recovered.

If you plan to recover your operating system, we do NOT

encourage you to recover any operating system. Please contact

your service center for operating system recovery.

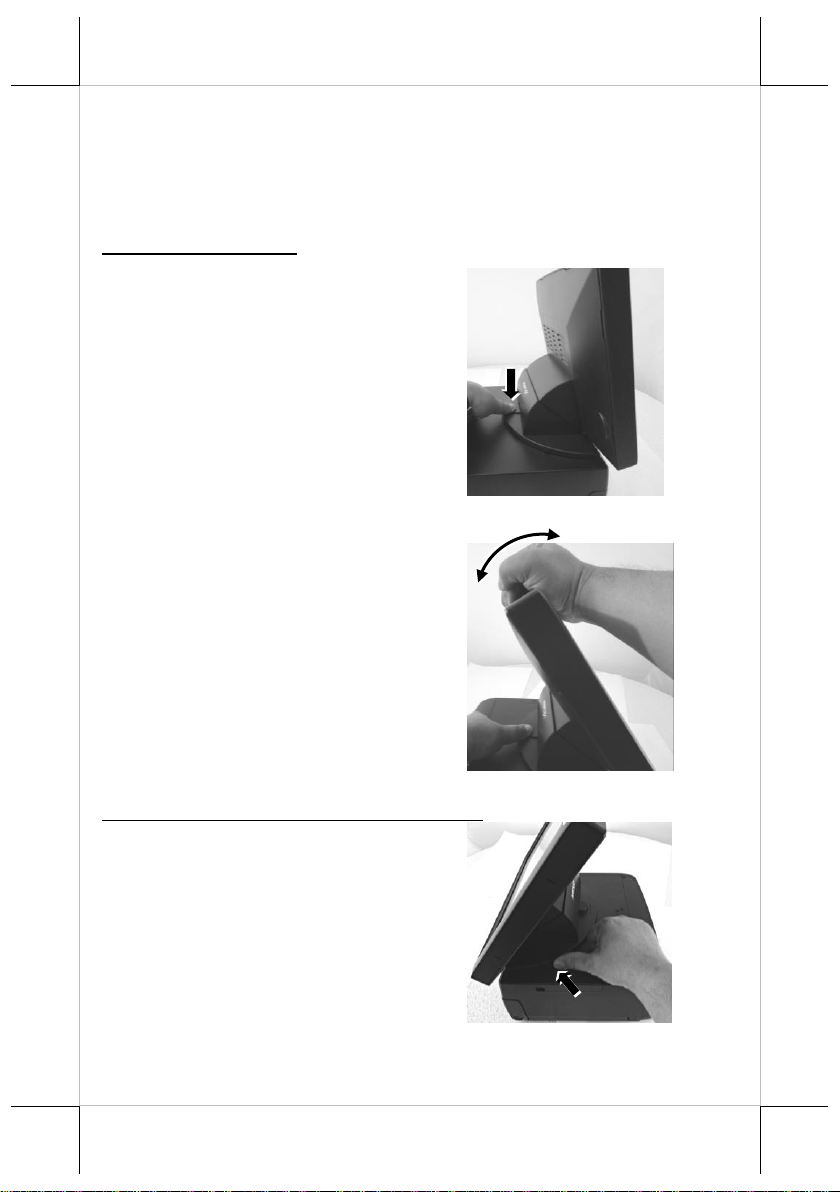

Adjustment of LCD Monitor for A Better Viewing Angle

(For HT-4712 Only)

For an optimal viewing angle, follow the steps listed below to

adjust the LCD monitor of the HT-4712.

Vertical Adjustment

1. Press and hold the up-down

viewing angle adjustment

button.

2. Adjust the LCD monitor up

and down around the

directions A and B.

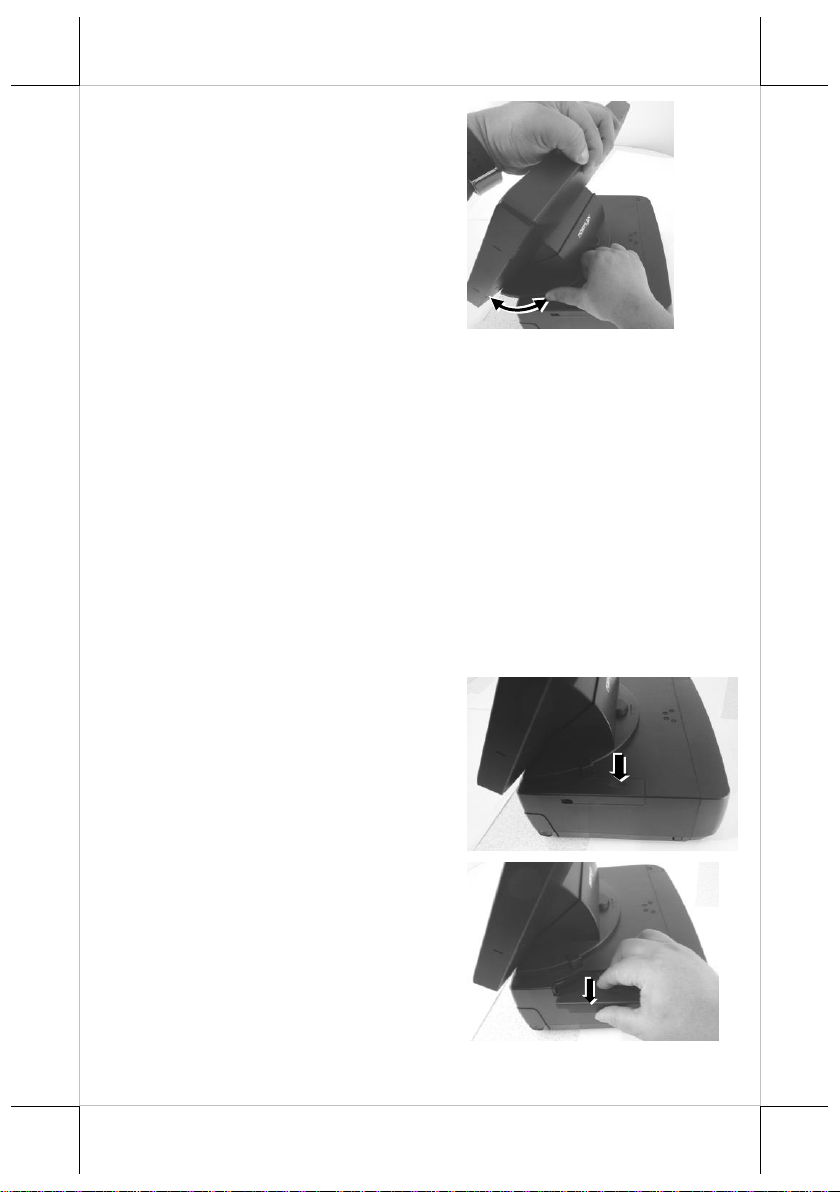

Horizontal Adjustment (from 0°to 16°)

1. Press and hold the left-right

viewing angle adjustment

button.

2. Horizontally adjust the LCD

monitor left and right around

the directions A and B.

Optional Upgrade Kits

Posiflex HT-4712/PB-4700/PB-4700DVI can work with multiple

optional upgrade kits, such as 2nd LCD monitor, customer pole

display, side-mount MSR, keyboard and the like. For the detailed

instruction, refer to the technical manual of HT-4712/PB-

4700/PB-4700DVI or each of the user manuals of the optional

upgrade kits.

Extended USB Port

The extended USB port is provided for connection of the side

mount upgrade kit to the POS box. To open the extended USB,

follow the steps listed below.

1. Press the extended USB port

with thumb or forefinger.

2. Pull and move the cover in the

direction A.
