TX-5600/5600E/5700/5700E

Fanless POS Box

User Manual

SOME IMPORTANT NOTES

FCC NOTES

This system meets industry & government requirements and applicable standards.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions manual, may cause

interference to radio communications. It has been tested and found to comply with

limits for a Class A digital device pursuant to subpart B of Part 15 of FCC Rules,

which are designed to provide reasonable protection against interference when

operated in a commercial environment. Operation of this equipment in a residential

area is likely to cause interference in which case the user at his own expense will

be required to take whatever measures to correct the interference.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CE CLASS A WARNING

This equipment is compliant with Class A of CISPR 32. In a residential

environment this equipment may cause radio interference.

AVERTISSEMENT CE CLASSE A

Cet équipement est conforme àla classe A de CISPR 32. Dans un environnement

résidentiel, cet équipement peut provoquer des interférences radio.

WARRANTY LIMITS

Warranty will terminate automatically when the machine is opened by any person

other than the authorized technicians. The user should consult his/her dealer for the

problem happening. Warranty voids if the user does not follow the instructions in

application of this merchandise. The manufacturer is by no means responsible for

any damage or hazard caused by improper application.

LIMITES DE GARANTIE

La garantie prend fin automatiquement lorsque la machine est ouverte par une

personne autre que les techniciens autorisés. L'utilisateur doit consulter son

revendeur pour le problème qui se produit. La garantie s'annule si l'utilisateur ne

suit pas les instructions d'application de cette marchandise. Le fabricant n'est en

aucun cas responsable de tout dommage ou danger causé par une mauvaise

application.

警告使用者

這是甲類的資訊產品，在居住的環境中使用時，可能會造成射頻干擾，在這

種情況下，使用者會被要求採取某些適當的對策。

SAFETY INSTRUCTIONS

This equipment is not suitable for use in locations where children are likely to be

present.

CONSIGNES DE SÉCURITÉ

Cet équipement ne convient pas à une utilisation dans des lieux pouvant accueillir

des enfants.

BATTERY CAUTION NOTES

Dispose of used batteries according to the instructions.

Replacement of a battery with an incorrect type that can defeat a safeguard

(for example, in the case of some lithium battery types)

Disposal of a battery into fire or a hot oven, or mechanically crushing or

cutting of a battery that can result in an explosion.

Leaving a battery in an extremely high temperature surrounding

environment that can result in an explosion or the leakage of flammable

liquid or gas.

A battery subjected to extremely low air pressure that may result in an

explosion or the leakage of flammable liquid or gas.

BATTERIE ATTENTION NOTES

Jetez les piles usagées conformément aux instructions.

Remplacement d'une batterie avec un type incorrect qui peut annuler une

sauvegarde (par exemple, dans le cas de certains types de batterie au

lithium)

Mise au rebut d'une batterie dans le feu ou dans un four chaud, ou

écrasement ou coupure mécanique d'une batterie pouvant entraîner une

explosion.

Laisser une batterie dans un environnement environnant à des températures

extrêmement élevées pouvant entraîner une explosion ou la fuite de liquide

ou de gaz inflammable.

Une batterie soumise à une pression atmosphérique extrêmement basse

pouvant provoquer une explosion ou une fuite de liquide ou de gaz

inflammable.

警告

本電池如果更換不正確會有爆炸的危險，請依製造商說明書處理用過之電

池。

Views

Front View of TX-5600/5700

Front View of TX-5600E/5700E

Top View of TX-5600/5700/5600E/5700E

Power Button

Powered USB Port

Storage Status LED Indicator

Power Status LED Indicator

Heat-Dissipation Fins

Power Button

USB 2.0 Port

Power Status LED Indicator

Storage Status LED Indicator

Bottom View of TX-5600/5700/5600E/5700E

Rear I/O Ports

TX-5600/5700/5600E/5700E

Mic-in / line-out combo jack

USB 3.0 port

RJ45 LAN port

RJ11 cash drawer (CR) port

DVI port

HDMI port

VGA port

COM port

12VDC-IN power jack

Rubber Pad

Service Door

Connecting Power Adapter and I/O Cables

To have the terminal ready for operation, please connect the connector of

power adapter and all of the connectors of required I/O cables respectively to

the 12VDC-IN power jack and appropriate I/O ports. Please make sure that

each of the cables is fully connected to the correct port. Damages due to

incorrect connection or orientation are not covered by product warranty!

Some cable connectors like the connectors of LAN or cash drawer (CR) cables

have to be gently inserted until a click is heard. It is recommended that the I/O

ports, such as COM port, parallel port, and VGA port, should be screwed after

the I/O cable connectors are completely connected. And please make sure that

each connector has to be connected to the right peripheral device in the right

way.

CAUTION: On doing insertion or extraction of a cable connector, please

always hold the connector head itself instead of pulling the cable wire.

Doing this could damage the cables and ports, which is considered as an

artificial damage and is not covered by the warranty. The means of power

cord should be connected to a socket-outlet with earthing connection.

ATTENTION: Lors de l'insertion ou de l'extraction d'un connecteur de

câble, veuillez toujours tenir la tête du connecteur elle-même au lieu de

tirer le fil du câble. Cela pourrait endommager les câbles, ce qui est

considéré comme un dommage artificiel et n'est pas couvert par la

garantie. Le cordon d'alimentation doit être connectéà une prise de

courant avec mise à la terre.

Note: The COM ports of TX-5600/5600E/5700/5700E do not supply power by

default. To make the COM ports supply power, you can set up the

COM ports through the dedicated settings listed in the table below.

The VGA port of TX-5600/5600E/5700/5700E can supply +12VDC

power through system BIOS setting for Posiflex LCD monitor.

Nevertheless, except Posiflex VGA monitor, do not connect any other

monitor to this port with VGA power enabled.

TX-5600/5600E/5700/5700E

COM1/2/3

VGA

5VDC

12VDC

BIOS Setting

Jumper Setting

Installing Optional Peripheral Devices

Posiflex TX-5600/5600E/5700/5700E can work with multiple optional

peripheral devices, such as LCD monitor, cash drawer and the like.

Before installing an optional peripheral device, make sure that the system is

powered off and the external power source is removed from the POS box to

prevent electric hazard! Failure to follow the warning description will void the

product warranty!

For the detailed instruction, refer to each of the user manuals of the optional

peripheral devices.

Installing an Optional Second Storage (SSD)

The TX-series system is provided with a second storage bracket for you to

install an optional second storage. To avoid users from damaging the main

board of the system, it is highly recommended that the optional second storage

installation is implemented by professional technicians.

Installing a Memory Upgrade Module

The TX-series system is provided with two DRAM slots for you to expand or

replace memory. Before shipping, one memory has been inserted into one

socket of the main board. To expand or replace memory, follow the two steps

below.

1. Loosen and remove the screw from the service

door.

2. Remove the service door.

To avoid users from damaging the main board of the system, it is highly

recommended that the memory expansion and replacement are implemented

by professional technicians.

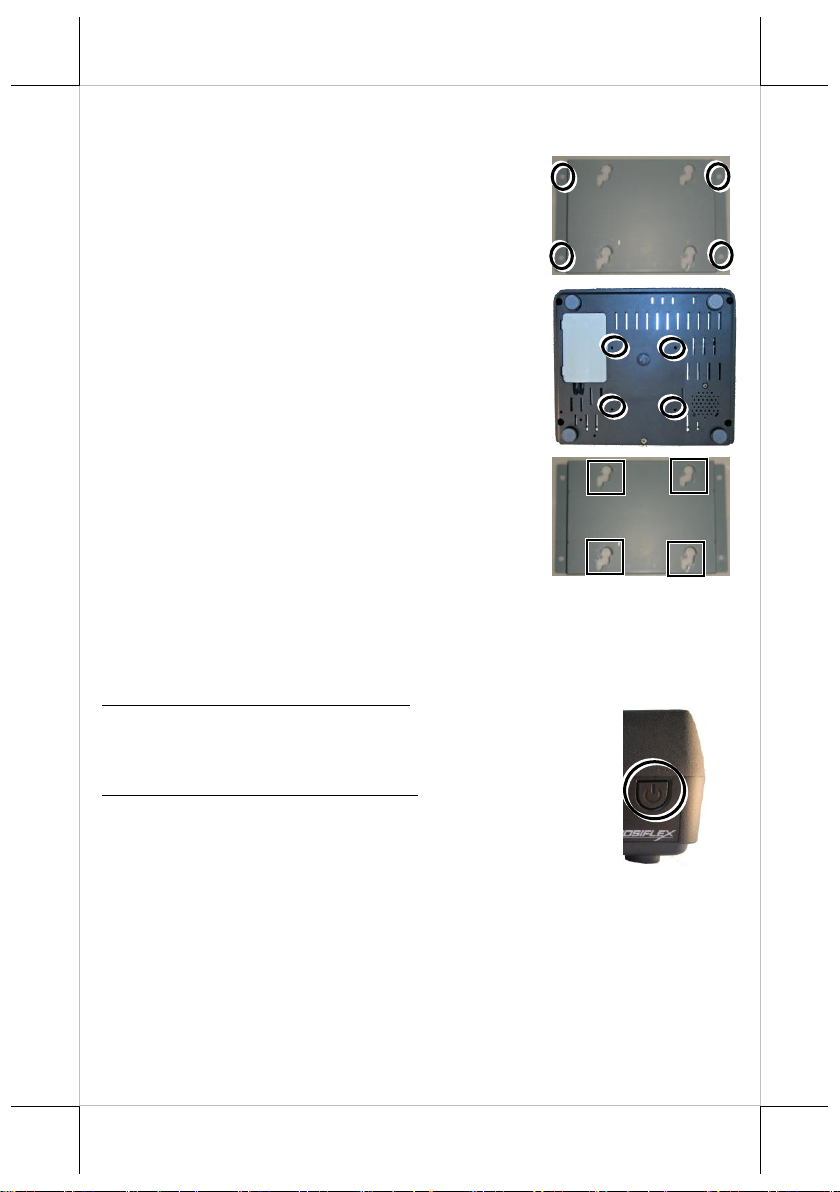

Mounting the TX-5600/5600E/5700/5700E on the Wall

(Optional)

1. Fix the wall mount bracket onto the wall by

using attached plastic anchors and four M3.5-

16L screws.

2. Do spiral insertion of 4 M4-7L screw bolts into

the 4 screw bolt holes.

3. Lineup the 4 screw bolts to be inserted into the 4

tracks. Then slide downwards the system along

the track until a click sound is given for

completely mounting the system with the bracket

on the wall.

For detailed installation description, please refer to the WB-4200 bracket

installation guide.

Powering ON/OFF the POS Box

Power ON TX-5600/5600E/5700/5700E

Press down the power button to power on the TX-

5600/5600E/5700/5700E.

Power OFF TX-5600/5600E/5700/5700E

In most cases, push the power button again to power the system

off. However, if the POS box halts for unknown reasons, please

be advised to hold the power more than 10 seconds to initiate a

forced shutdown.

Status LED Indicator

There are two status LED indicators, power status LED indicator and SSD

status LED indicator, on the front side of the TX-5600/5600E/5700/5700E.

After powering ON the POS system, you can read the system operation status

from the power and SSD status LED indicators. The LED status is described

below.

LED

Status

Description

POWER

Solid green

System power ON

Solid red

System standby

SSD

Flash green

Data access

Installing an Operating System

This product is highly professional equipment. Therefore, we do NOT

encourage you to install any operating system into this machine without

professional assistance. Posiflex Technology, Inc. shall not be responsible for

any technical support to questions on this aspect. We suggest that you contact

your dealer for OS installation.

Operating System Recovery

For the TX-5600/5600E/5700/5700E main system preloaded with an operating

system, Posiflex provides a recovery DVD shipped with the main system for

the preloaded operating system. The system integrator shall take care of

software restoration after the OS is recovered.

If you plan to recover your operating system, we do NOT encourage you to

recover any operating system. Please contact your service center for operating

system recovery.

Operation Environment

This terminal must NOT be operated in an environment with restricted

ventilation. There must be at least 25 mm air clearance around any top or side

ventilation holes with a free flow of air around the unit at all times for system

operation.

Specifications

TX-5600

TX-5600E

TX-5700

TX-5700E

CPU

Intel Skylake-S: Core i3

Processor

Intel Skylake-S: Core i5

Processor

Chipset

H110

Q170

Memory

DDR4 SO-DIMM x2, Max. 16GB

Windows 10 IoT / Windows 7 / POSReady 7 / Linux (by request)

VGA Port

VGA(DB15 pin) x 1 , supporting +12V/2.5A

HDMI Port

HDMI x 1

DVI Port

DVI-I x 1

Serial Port

DB9 x 3 for COM1 ~ COM3

COM5 & COM6 pin header through service door

5 x RS-232(COM1/2/3/5/6)

Ethernet Port

10/100/1000 Mb x 2

TX-5600

TX-5600E

TX-5700

TX-5700E

Wireless Com.

Optional, 802.11 ac with dipole antenna, M.2 (2230) module

Power Supply

TX-5600/5700:

12VDC power adaptor, 84W

TX-5600E/5700E:

12VDC power adaptor, 150W

CR Port

CR port x 1, controlling 2 cash drawers

USB Port

TX-5600/5700:

USB 3.0 x 4 (on the rear I/O side)

USB 2.0 x 3 (on the front side)

1 x internal USB port by pin header

TX-5600E/5700E:

USB 3.0 x 4 (on the rear I/O side)

24V/2A powered USB port x 1 (on the front side)

12V/1A powered USB port x 2 (on the front side)

1 x internal USB port by pin header

Audio Port

MIC-in / line-out x 1 & 1 x internal speaker

Storage

SATAIII x 2 + M.2 (2280)

Extension Slot

M.2 (2230)

Power Switch

Soft switch

Mechanical Installation

Desktop or wall mount, VESA mount 75 x 75

Wall-Mount Bracket

Optional, WB-4200

LED Indicator

Front Panel: Power on/ standby, bi-color LED indicators and

storage LED indicator

Rear Panel: Ethernet link LED on Ethernet connector

COM 5/6 Extension

Cable

Optional for COM 5/6 pin header inside service door

Dimension

(W x D x H)

220 x 202 x 83 mm

Weight

2.75 kg

Operating Condition

0°C - 40°C, 20%RH - 90%RH

Storage Condition

-20°C - 70°C, 10%RH - 90%RH

※The product information and specifications are subject to change without prior notice.

To get the detailed information on TX-5600/5600E, please check this model from

Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere POSIFLEX Touch-Terminal Handbücher

POSIFLEX

POSIFLEX RT-1016A-G2 Bedienungsanleitung

POSIFLEX

POSIFLEX HS-3510W-E Bedienungsanleitung

POSIFLEX

POSIFLEX HT-4312 Series Bedienungsanleitung

POSIFLEX

POSIFLEX HT-4600 Series Bedienungsanleitung

POSIFLEX

POSIFLEX DT-207 series Bedienungsanleitung

POSIFLEX

POSIFLEX XT-5315 Bedienungsanleitung

POSIFLEX

POSIFLEX SA-304 Bedienungsanleitung

POSIFLEX

POSIFLEX MT-4310W/R Bedienungsanleitung

POSIFLEX

POSIFLEX PD - 7301 Series Bedienungsanleitung

POSIFLEX

POSIFLEX Jiva KS-6215 Series Bedienungsanleitung

POSIFLEX

POSIFLEX XP-3000 Series Bedienungsanleitung

POSIFLEX

POSIFLEX XT-3817 Bedienungsanleitung

POSIFLEX

POSIFLEX XP-3000 Series Bedienungsanleitung

POSIFLEX

POSIFLEX Jiva LT 8015 Bedienungsanleitung

POSIFLEX

POSIFLEX HS-2510W-2D Bedienungsanleitung

POSIFLEX

POSIFLEX JIVA TP-5700 Bedienungsanleitung

POSIFLEX

POSIFLEX KS-6115 Bedienungsanleitung

POSIFLEX

POSIFLEX XT-4015 Bedienungsanleitung

POSIFLEX

POSIFLEX KS-7415 Bedienungsanleitung

POSIFLEX

POSIFLEX RA-301 Bedienungsanleitung

POSIFLEX

POSIFLEX PS-3515-G2 Bedienungsanleitung

POSIFLEX

POSIFLEX TX-2101 Bedienungsanleitung

POSIFLEX

POSIFLEX PST-6000 SERIES Bedienungsanleitung

POSIFLEX

POSIFLEX HT-3200 SERIES Bedienungsanleitung

Beliebte Touch-Terminal Handbücher anderer Marken

Wincor Nixdorf

Wincor Nixdorf iPOS plus Advanced Bedienungsanleitung

Ingenico

Ingenico AXIUM EX4000 Bedienungsanleitung

Heisei Electronics

Heisei Electronics Q-POS 815 Bedienungsanleitung

Amano

Amano MTX-15 Bedienungsanleitung

FLOWBIRD

FLOWBIRD CWT Compact Touch Bedienungsanleitung

Demco

Demco SP7 Bedienungsanleitung

Lathem

Lathem PC600 Series Bedienungsanleitung

Partner

Partner MF-2352 Bedienungsanleitung

NCR

NCR RealPOS 7460-2 Handbuch

Simrad

Simrad MS50 Montageanleitung

Unitech

Unitech MR350 MKII Kurzanleitung

Jungheinrich

Jungheinrich WMT 210 Bedienungsanleitung

Motorola

Motorola MTP850 Bedienungsanleitung

YASKAWA

YASKAWA 62H-MDC0 Bedienungsanleitung

MVG industries

MVG industries NeptuLink Bedienungsanleitung

Price Industries Limited

Price Industries Limited FDC Gebrauchsanweisung

Honeywell

Honeywell TemaKey Bedienungsanleitung

EBN

EBN BPC65-B-A16G Bedienungsanleitung
