Package Contents

17” fanless touch terminal with Gen 7E or Gen 8E base stand (x 1)

Power adapter (x 1)

Power cord (x 1)

User manual (x 1)

FCC NOTES

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be required to correct

the interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

CE CLASS A WARNING

This equipment is compliant with Class A of CISPR 32. In a residential environment this

equipment may cause radio interference.

AVERTISSEMENT CE CLASSE A

Cet équipement est conforme àla classe A de CISPR 32. Dans un environnement

résidentiel, cet équipement peut provoquer des interférences radio.

WARRANTY LIMITS

Warranty will terminate automatically when the machine is opened by any person other than

the authorized technicians. The user should consult his/her dealer for the problem happening.

Warranty voids if the user does not follow the instructions in application of this merchandise.

The manufacturer is by no means responsible for any damage or hazard caused by improper

application.

LIMITES DE GARANTIE

La garantie prend fin automatiquement lorsque la machine est ouverte par une personne

autre que les techniciens autorisés. L'utilisateur doit consulter son revendeur pour le

problème qui se produit. La garantie s'annule si l'utilisateur ne suit pas les instructions

d'application de cette marchandise. Le fabricant n'est en aucun cas responsable de tout

dommage ou danger causé par une mauvaise application.

XT-3817-G2

Fanless LCD Touch Terminal

User Manual

16780907010 Ver. A0

http://www.posiflex.com

警告使用者

此為甲類資訊技術設備，於居住環境中使用時，可能會造成射頻擾動，在此種情況

下，使用者會被要求採取某些適當的對策。

SAFETY INSTRUCTIONS

This equipment is not suitable for use in locations where children are likely to be present.

CONSIGNES DE SÉCURITÉ

Cet équipement ne convient pas à une utilisation dans des lieux pouvant accueillir des

enfants.

WARNING

Power cord shall be connected to a socket-outlet with earthing connection.

ATTENTION

Le cordon d'alimentation doit être connecté à une prise de courant avec mise à la terre.

BATTERY WARNING

Risk of explosion if battery is replaced by an incorrect type. Dispose of expended

battery in accordance with local disposal regulations.

AVERTISSEMENT DE BATTERIE

Risque d'explosion si la batterie est remplacée par un type incorrect. Jetez la batterie

usagée conformément aux réglementations locales en matière d'élimination.

警告

本電池如果更換不正確會有爆炸的危險，請依製造商說明書處理用過之電池。

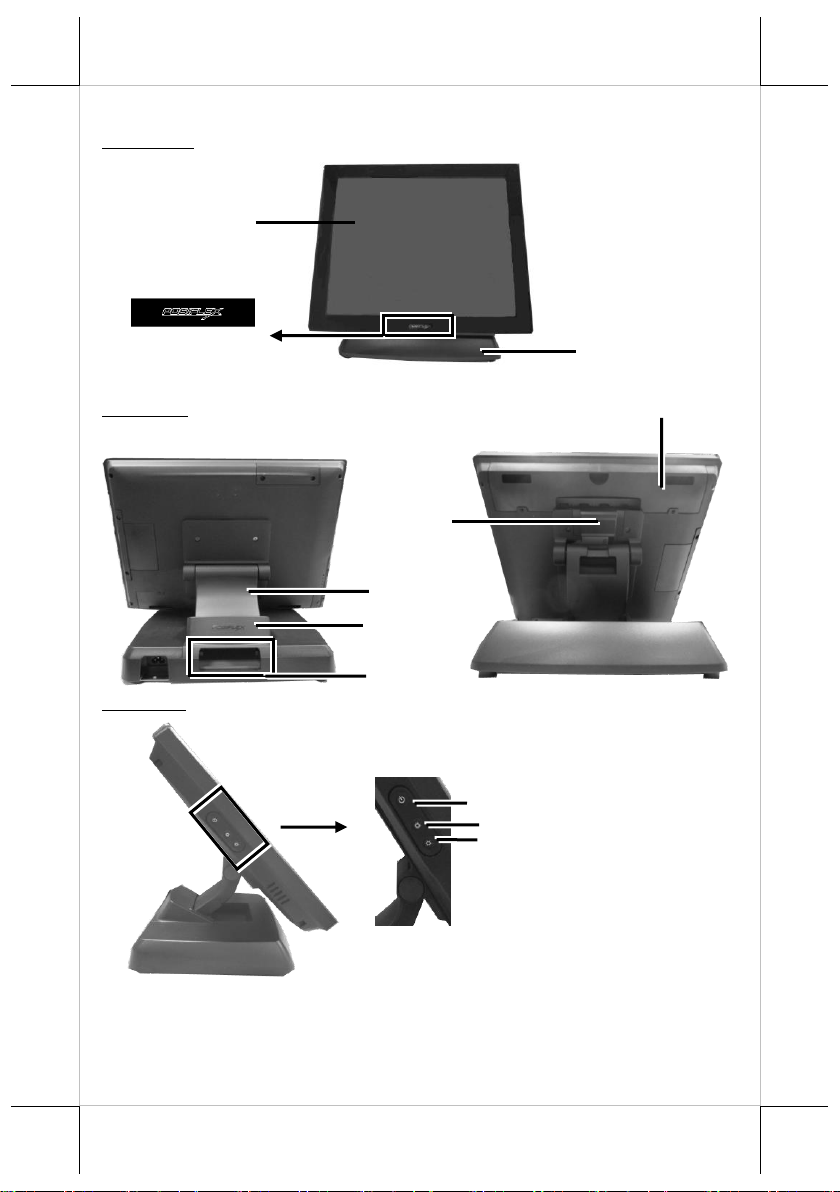

Views of the XT-3817-G2 with Gen 7E Base Stand

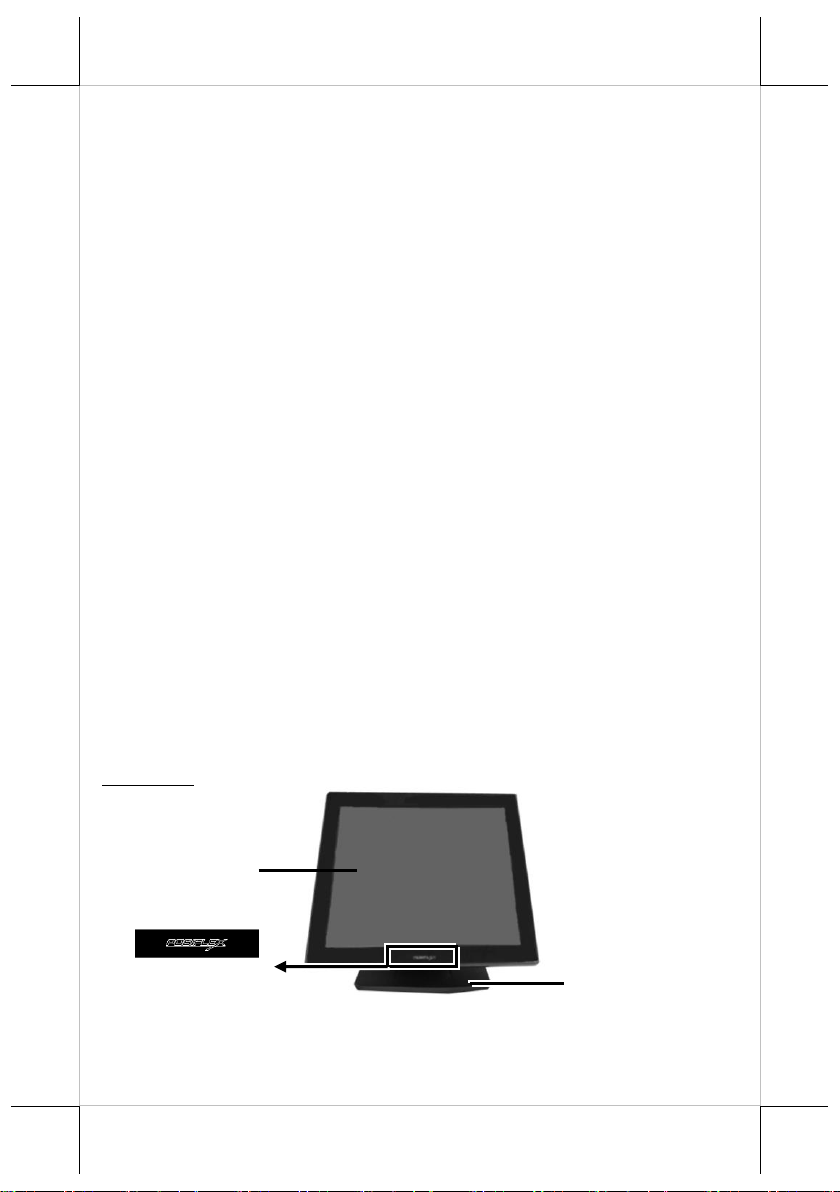

Front View

XT-3817-G2

P-Cap Touch Panel

LED indicator

Gen 7E Base Stand

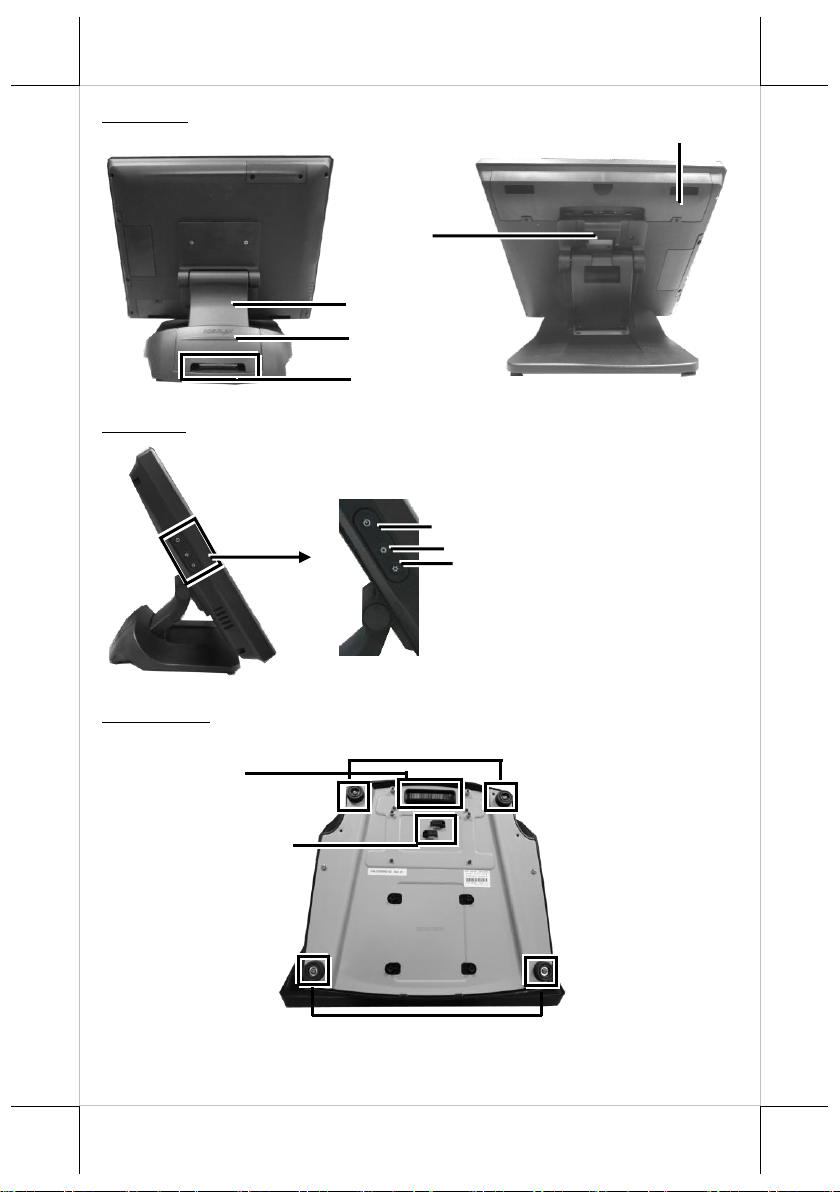

Rear View

Side View

Bottom View

Cable Cover

Neck Cover

Cable Holder

Cable Exit

Power Button

Brightness Adjustment Button ＋

Brightness Adjustment Button －

Rubber Feet with Fixing Screw

Cable Exit

I/O Compartment

Cover

Cable Arrangement

Cover

Views of the XT-3817-G2 with Gen 8E Base Stand

Front View

Rear View

Side View

XT-3817-G2

P-Cap Touch Panel

Power Button

Brightness Adjustment Button ＋

Brightness Adjustment Button －

I/O Compartment

Cover

Cable Arrangement

Cover

Cable Cover

Neck Cover

Cable Exit

LED indicator

Gen 8E Base Stand

Bottom View

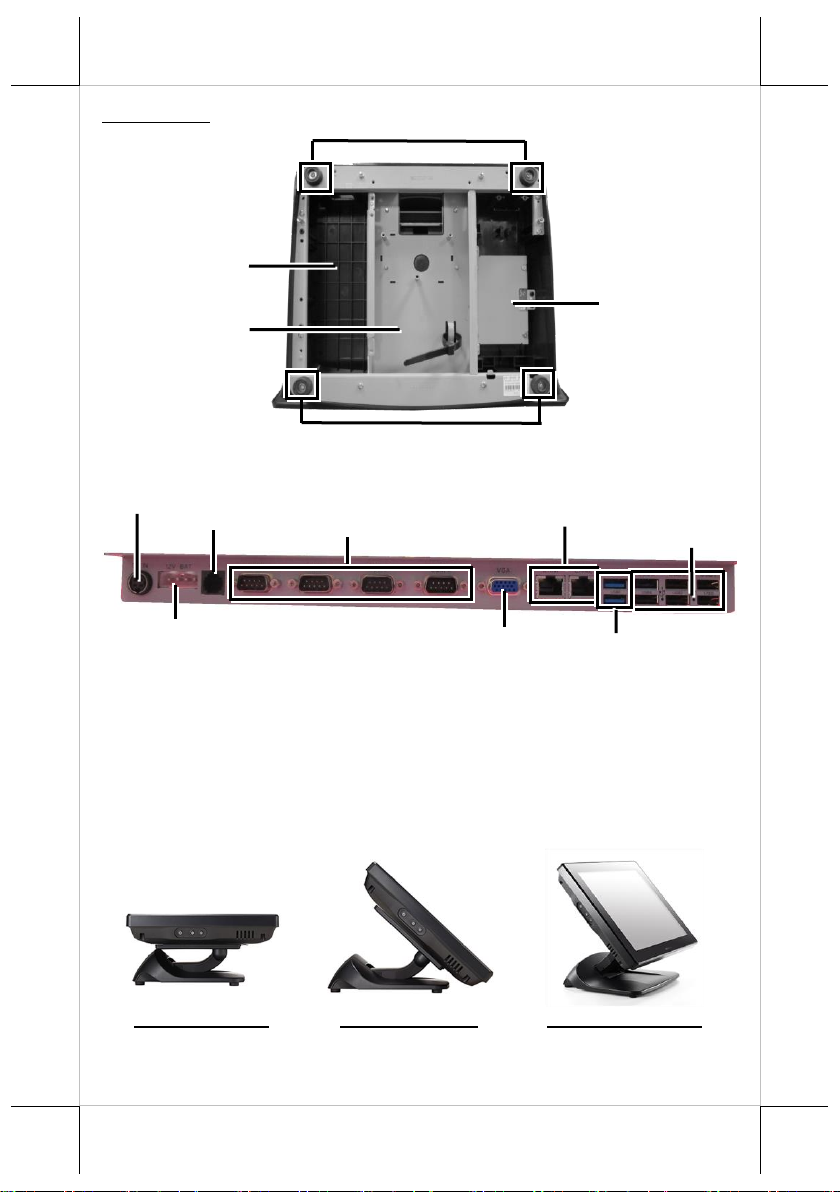

View of I/O Interface of XT-3817-G2

Positioning your POS for a Perfect Viewing Angle

The adjustable bases designed for XT-3817-G2 come in two models, Gen

7E/8E, and allow you to determine an ideal position for your terminal by using

its unique tilt adjustment mechanism. As the below figures suggest, both bases

provide three standard positioning solutions for your terminal: Flat Folded

mode, Low Profile mode, and Full Extended mode.

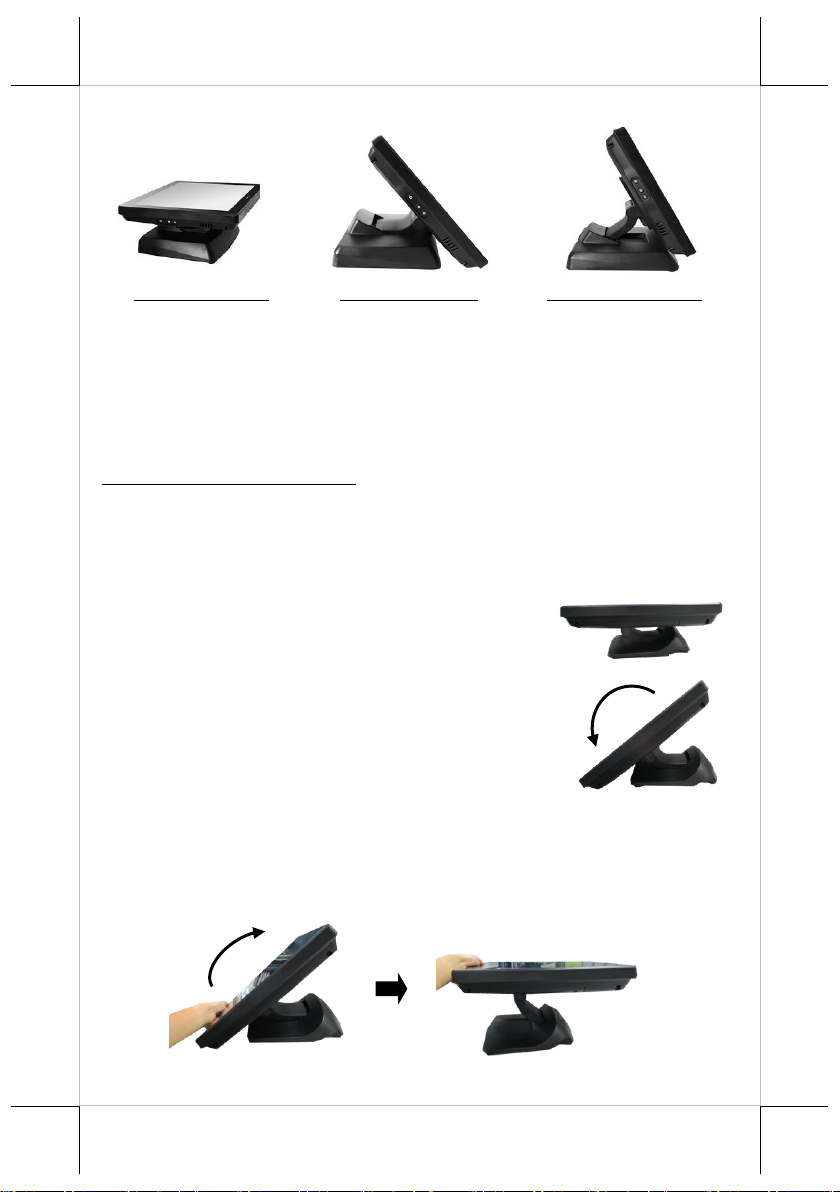

XT-3817-G2 with Gen 7E Base

Flat Folded mode

Low Profile mode

Full Extended mode

Rubber Feet with Fixing Screw

USB 2.0 Ports

DB9 COM Ports

VGA Port

CR Port

LAN Ports

12V BAT Port

DC IN Power Connector

Rubber Feet with Fixing Screw

UPS Battery

Compartment

Power Adapter

Compartment

PoweredUSB

Compartment

USB 3.0 Ports

XT-3817-G2 with Gen 8E Base

Flat Folded mode

Low Profile mode

Full Extended mode

In general, XT-3817-G2 will be set up beforehand in Flat Folded mode and

then packaged into the box for shipping. After it is unpacked, you may re-

adjust the terminal in either Low Profile mode or Full Extended mode

according to your situation. Below will provide instructions on how to adjust

the specific base connected to the POS system. As a reminder, please be

careful not to touch the LCD panel while setting up the tilt angle.

XT-3817-G2 with Gen 7E Base

Please refer to the following instructions on how to switch among different

positioning modes to find an ideal viewing angle for XT-3817-G2 with Gen 7E

base.

1. Unpack XT-3817-G2, which is supposed to

be set in flat folded mode, out of the package

box and then lay your POS system on a flat

surface.

2. Steady the base with one hand, and then tilt

the screen downwards.

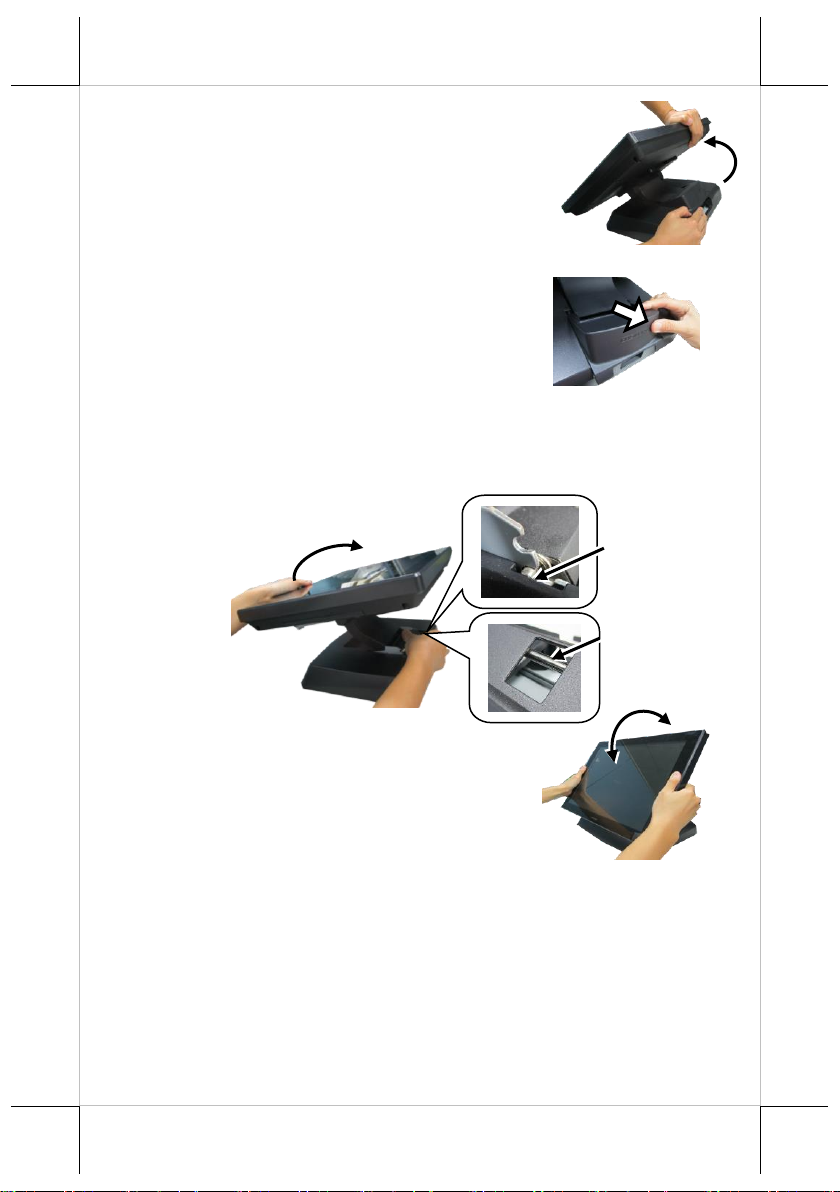

3. Position your terminal in Full Extended mode.

3.1 After grabbing the bottom edge of the screen with your hand, gently

move the screen upward until the screen is locked into place with a

click sound.

3.2 Support the screen with one hand holding onto its bottom edge.

Then, while pulling the lever backwards, move the display upwards

until the lever is snapped into the lower hook to raise the screen as

shown in the below figure.

3.3 With the screen facing toward you, tilt the

screen up or down to your desired angle.

Please do not press on the LCD panel while

setting up the tilt angle.

3.4 Remove the cable cover from the base.

3.5 Fix the base with two #6/32 screws.

Lever

Lower

hook

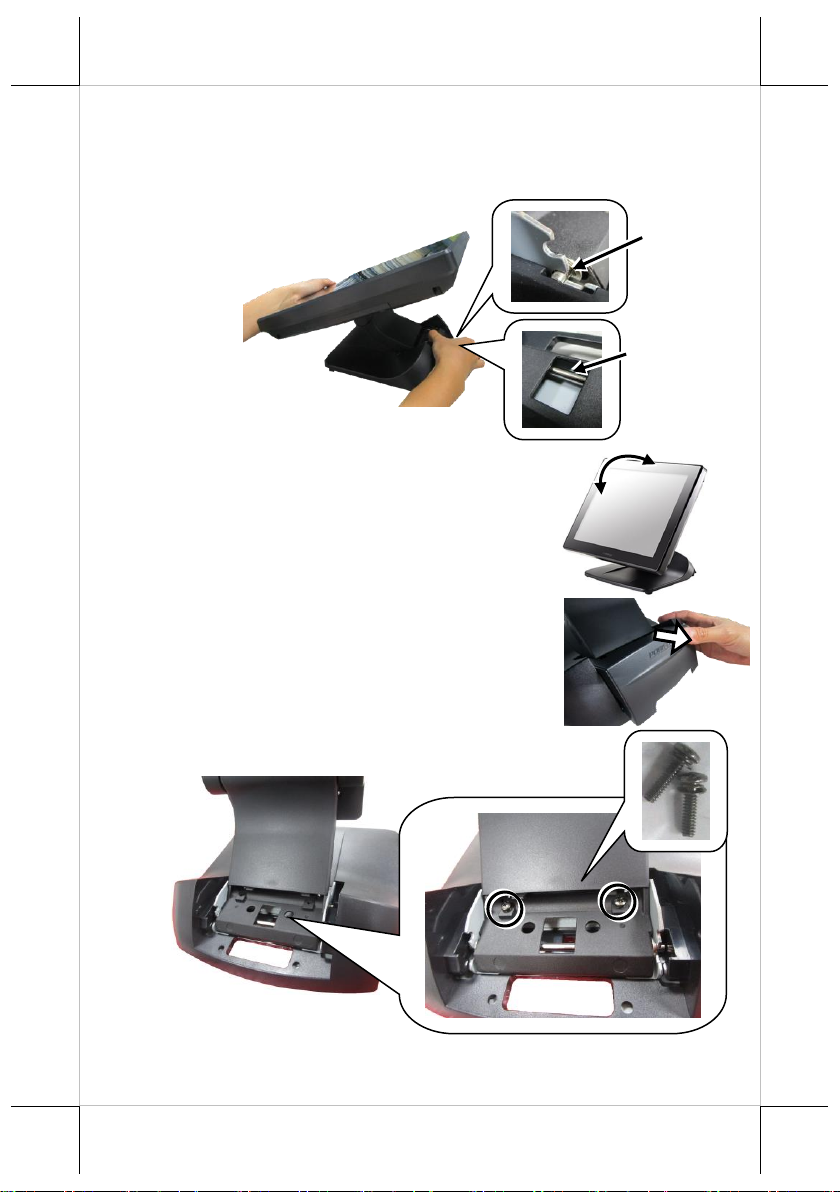

4. Return your terminal back to Flat Folded mode from Full Extended

mode.

4.1 Remove the cable cover from the base.

4.2 Remove the two screws from the base.

4.3 Tilt your screen in a horizontal position.

4.4 Support the screen with one hand holding onto its bottom edge. While

pulling the lever backwards, move the display downwards until the

lever is lifted off the hook as shown in the figure.

Remove the two screws.

Hook

Lever

4.5 Push the cable cover back.

4.6 Tilt the screen again to the horizontal

position.

5. Position the terminal in Low Profile mode.

5.1 Follow Step 4 to set up the termimal in Flat

Folded mode.

5.2 Tilt the screen all the way down

5.3 To tilt screen up or down to your desired

angle, please be advised to keep the base

steady with one hand to do so. Do NOT

press on the LCD panel while setting up the

tilt angle.

XT-3817-G2 with Gen 8E Base

Please refer to the following instructions on how to switch among different

positioning modes to find an ideal viewing angle for XT-3817-G2 with Gen 8E

base.

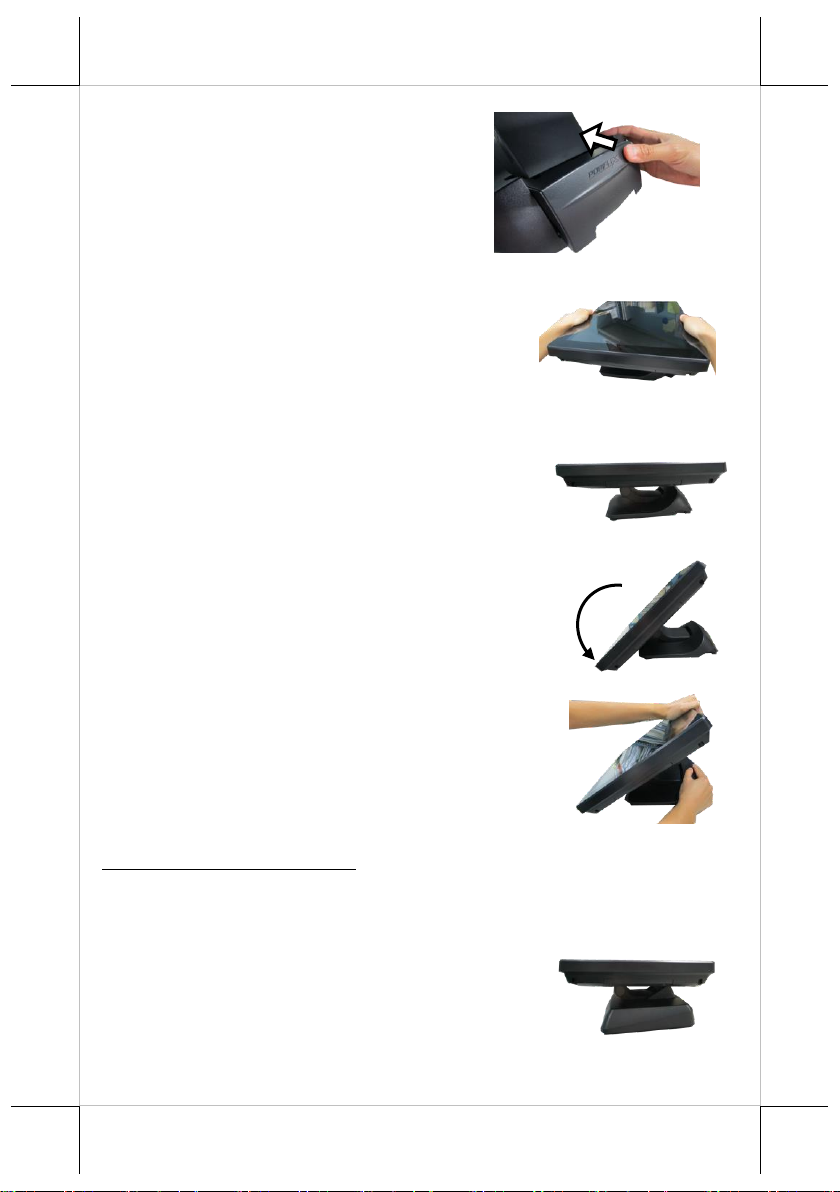

1. Unpack XT-3817-G2, which is supposed

to be set in flat folded mode, out of the

package box and then lay your POS

system on a flat surface.

2. While steadying the terminal with your

hand holding onto the base, tilt the screen

down.

3. Push the cable cover outwards to remove

it from the base.

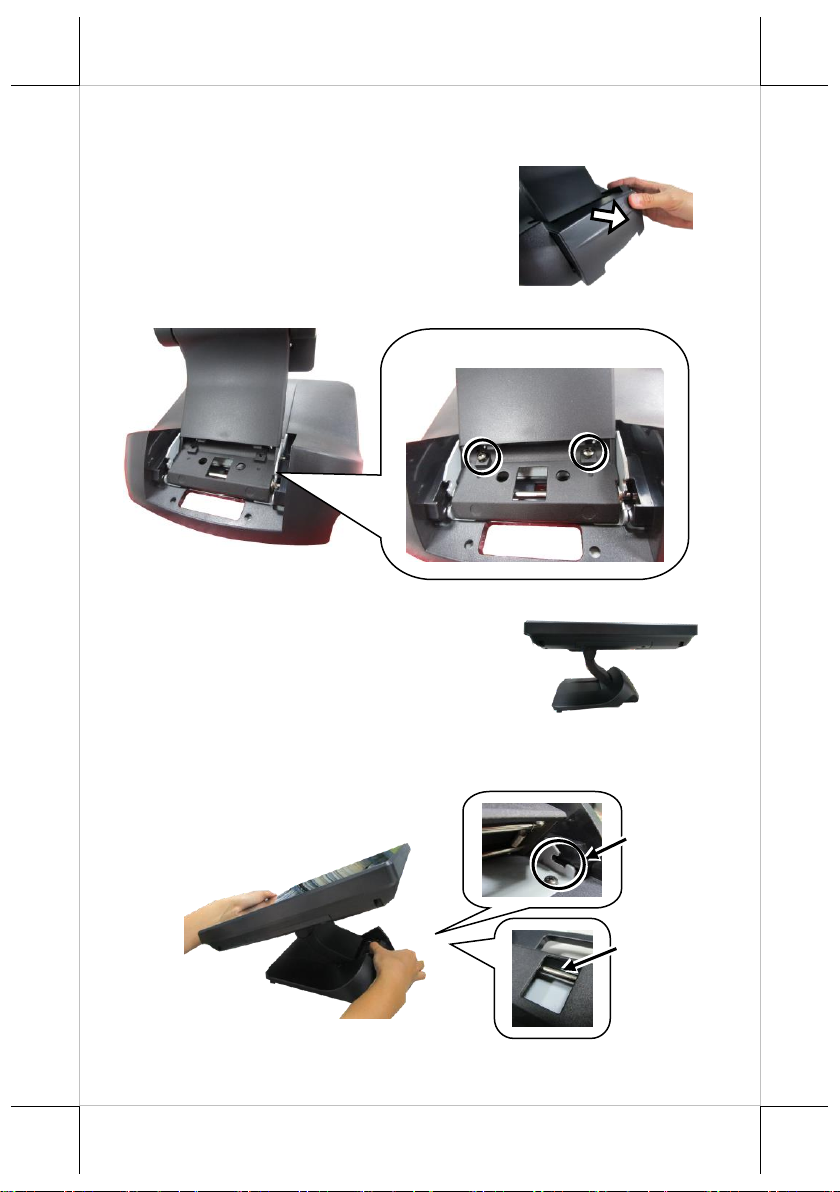

4. Position your terminal in Full Extended mode.

4.1 Support the screen with one hand holding onto its bottom edge.

Then, while pulling the lever backwards, move the display upwards

until the lever is snapped into the lower hook to raise the screen as

shown in the below figure.

4.2 Tilt the screen up or down to your

desired angle. Please do not press on

the LCD panel while setting up the tilt

angle.

Lower

hook

Lever
