Epsilon Electronics, the parent company for PowerAcoustik

Electronics was founded in January, 1981. My favorite hobbies included

music, which became my passion and my guiding inspiration for launching

Epsilon Electronics. Webster’s dictionary describes Epsilon “as arbitrari-

ly small quantity in mathematical analysis”. I should say my musical

Epsilon became and infinite love for music and ultimately the beginnings for

my career in Audio. After attending live music events I found the market

needed product that had the possibility of recreating the musical experi-

ence that made you feel like you were at a live concert.

We decided once music transitioned to hi-tech studio recordings with eso-

teric mixer boards, we needed to produce products that were capable of

sound reproduction of the most sensitive of musical instruments. We have

continued to re-invent our business model to address the needs of an ever

changing industry. Today the music has transitioned from analog to digital

and added the video component.

Few companies will be able to remain competitive due to these kinds of

technological advancements. Our company transitioned from Importer in

the early 1980’s to a company with design and engineering capabilities in

both audio and video. The last eight years have be our most productive

years with the US Patent office awarding us with two design patents (#

406,850 446,589) three full mechanical patents (#5,956,188 6,196,694 &

6,286,974) and two more mechanical patents are currently pending (#

10/216,908 & 10/281,282).

You have put your trust in us for 25 wonderful years and I want to

personally thank you for that!

Jack Rochel

President

pa-06 2006-4-17 16:23 Page 2

MOFO Series 18

FX Series 19

FUBAR Series 20

FUBR Series 21

BM Series 22

KSW Series 23

BL Series 24

Class D Series 7

Plasma Sphere 9

Gothic Series 11

Power Series 13

LT Series 15

Grills & Tweeters 25

Components 27

XP2K Series 29

PR Series 30

KP Series 31

Power Capacitors 32

Signal Processors 35

X-Overs 37

Amp Kits 38

Head Units 39

Xenon Bulbs 40

Amplifiers

Amplifiers 3

Woofers 5

Components 6

Silver Edition

Audio Prodcuts Index

Woofers Speakers Audio add-ons

Monitor/DVD 51

DVD 53

Ceiling Combos41

Ceiling Monitors 45 All 55

Monitors

Headrest Combos47

Headrest Monitors48

Sunvisor Monitors49

Rearview 50

Portable TV 50

Monitors

Video Prodcuts Index

In-Dash Accessories

pa-06 2006-4-17 16:23 Page 3

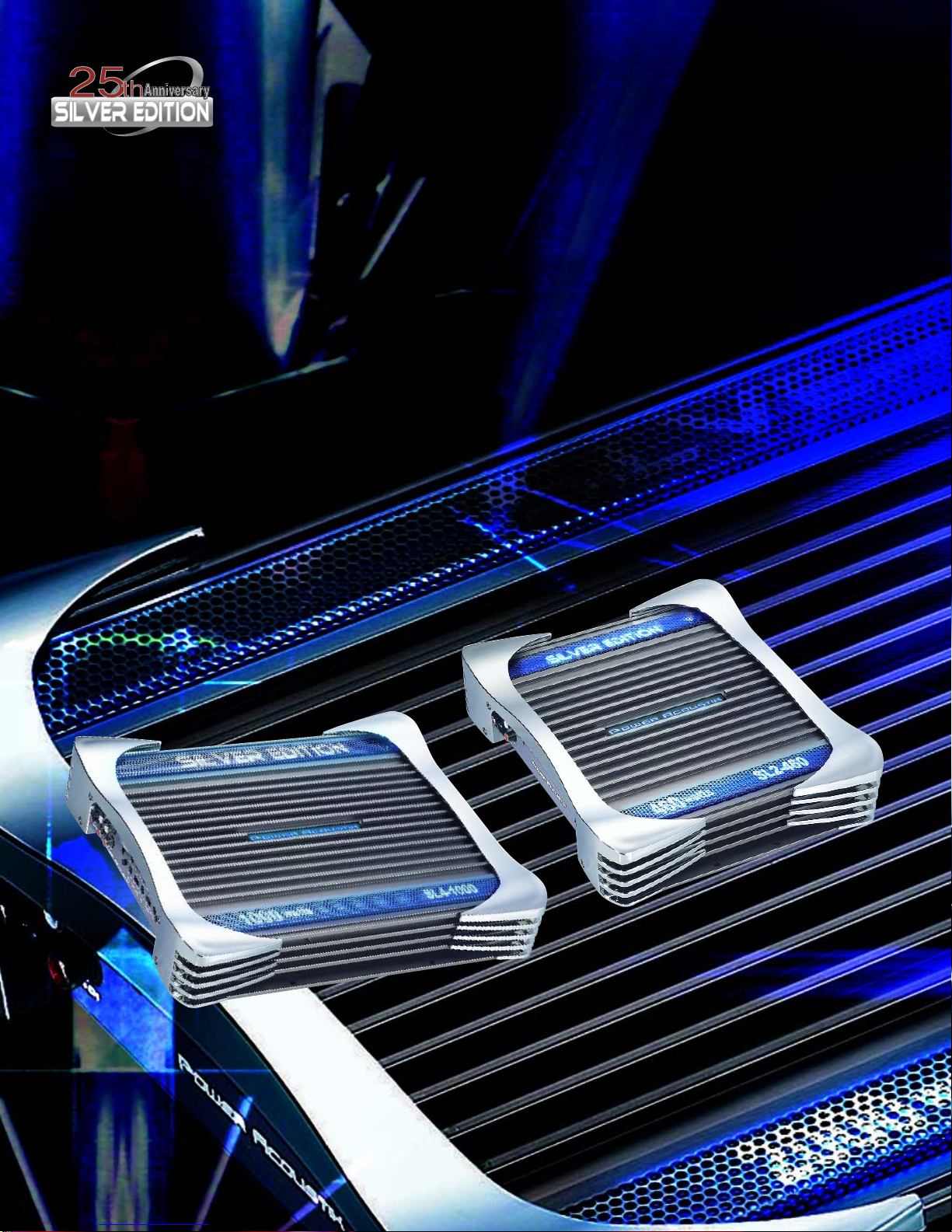

PowerAcoustik Silver Edition, sports a clean new look with cool blue reactor light bars hidden

under stylish black mesh grills and chrome end caps. Our proprietary mosfet power supply

delivers deep tight bass with rapid decay 18db. subwoofer slopes. We also include dash mounted

subwoofer controls on our 1000 watt and up 2-channel class A/B amplifiers.

Check out our new monster class “D” 5500 watt behemoth, this should loosen the welds on your

car.

Silver edition pg3

Hi Speed Digital Circuitry

Fully Regulated PWM Power Supply

Four Way Protection Circuit

1 Ohm Stable

Bridging Synchronization

Variable Low Pass 50Hz-150Hz

Variable Subsonic Filter 15Hz-40hz

Variable Subwoofer EQ @ 45Hz

Phase Switch 0-180

Remote Dash Mount Low Level Gain Control With

Cable

Frequency Response: 15Hz to 150hz

S/N Ratio: 100 db

THD: 0.5%

System Distress Indicator

Inputs Sensativity: 200mv-8v

Dual Mono Speaker Output Connectors

Platinum Plated Heavy Duty Power & Speaker Terminals

Common Features For Class D:

pa-06 2006-4-17 16:23 Page 4

http://www.poweracoustik.com

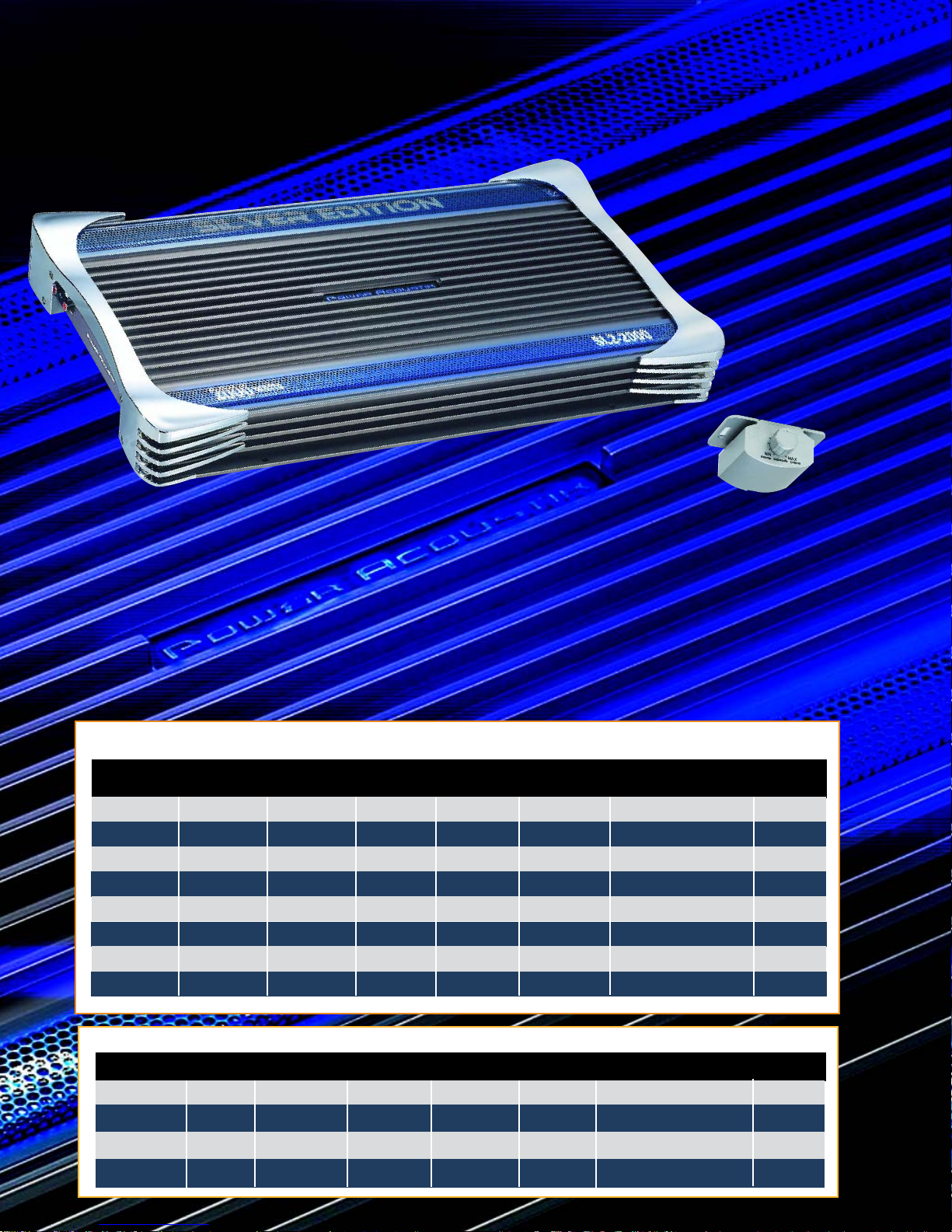

Silver edition pg4

Model 2ch/4ch 4ohm RMS 2ohm RMS Mono RMS Bridged Max Dimension W”xH”xD” Bass Knob

Sl2-340 2 80x2 95x2 190 340 8.4x2.3x11.7 No

SL2-460 2 95x2 120x2 240 460 9.7x2.3x11.7 No

SL2-620 2 150x2 180x2 360 620 12.4x2.3x11.7 No

Sl2-1000 2 220x2 280x2 560 1000 15.2x2.3x11.7 Yes

Sl2-1500 2 300x2 380x2 760 1500 19.6x2.3x11.7 Yes

Sl2-2000 2 370x2 450x2 900 2000 20.7x2.3x11.7 Yes

Sl4-680 4 80x4 95x4 190x2 680 11.25x2.3x11.7 No

SL4-1000 4 100x4 125x4 250x2 1000 13.2x2.3x11.7 No

Class D Digital Series

Model Ch 4 Ohm Rms 2 Ohm Rms 1 Ohm Rms Max Dimensions (LxWxH) Bass Knob

SL-5500D 1 2100 3600 4200 5500 21” x 11” x 2.3” Yes

SL-3400D 1 1400 2100 2600 3400 16.7” x 11.7” x 2.3” Yes

SL-2000D 1 800 1300 1600 2000 12.7” x 11.7” x 2.3” Yes

SL-2600D 1 1100 1600 2000 2600 15” x 11.7” x 2.3” Yes

Class A/B Series

Remote Dash Mount Bass

Knob Control

New Hyper Bass

Chrome End Caps

Blue Reactor Light Bars

THD: 0.02%

2 ohm Stable Stereo

System Distress Indicator

High/Low Level inputs With Floating Ground

4 Gauge Power/Ground Connection

Platinum plated RCA Connectors

Line output

V-Angled Transparent Terminals

Full Mosfet Power Supply

PWM Circuitry

Full Selectable Crossover Hi/Full/Low

Three Way Protection Circuit

Tri-Mode Capable

Variable Low Pass 40Hz-120Hz

Variable Hi Pass 150Hz-1.5Khz

18dB Bass Boost @ 40Hz.

Frequency Response: 10Hz to 30Khz

S/N Ratio:97 db

Common Features For Class A/B:

pa-06 2006-4-17 16:24 Page 5

Silver edition pg5

Common Features:

Wide UV Coated Foam Surround

Black Chrome Coated PP Cone

Stiff Poly Cotton Spider

Dual 4 ohm 2” KSV Voice Coil

Reinforced Aluminum Voice Coil Former

Integrated Tinsel Leads

Stamped Steel Basket

Steel Gasket

Black Chrome Finish

Chrome Push Terminals

Vented Pole Piece

Silver Edition

SL-10W

• 800 Watts power handling

• 400 Watts RMS

• 70 oz. magnet

• 2” BASV/Kapton Hybrid 18AWG Voice Coil

• SPL89dB

• Fs: 42 Hz

• Vas: 1.06 cu.ft.

• Qms: 4.057 • Qes: 0.667 • Qts: 0.573

• Xmax: 0.32"

• Sealed box: .95 cu..Ft.

• Ported box: 1.25 cu..Ft.

• Tuning: 38 Hz

• Port size: 3”(dia)x8”(length)

• # of ports: 1

”

SL-12W

• 1000 Watts power handling

• 500 Watts RMS

• 80 oz. magnet

• 2” BASV/Kapton Hybrid 18AWG Voice Coil

• SPL89dB

• Fs: 39 Hz

• Vas: 1.20 cu.ft.

• Qms: 2.019 • Qes: 0.674 • Qts: 0.506

• Xmax: 0.32"

• Sealed box: 1.25 cu..Ft.

• Ported box: 2 cu..Ft.

• Tuning: 38 Hz

• Port size: 4”(dia)x8.25”(length)

• # of ports: 1

”

Our collection of Silver Edition woofers and component systems are

the new technological innovations of our engineers designed both

for high power handling accurate bass reproductions, as well as

sound quality to quench the thirst of the most crtitic audio-files.

pa-06 2006-4-17 16:24 Page 6

http://www.poweracoustik.com

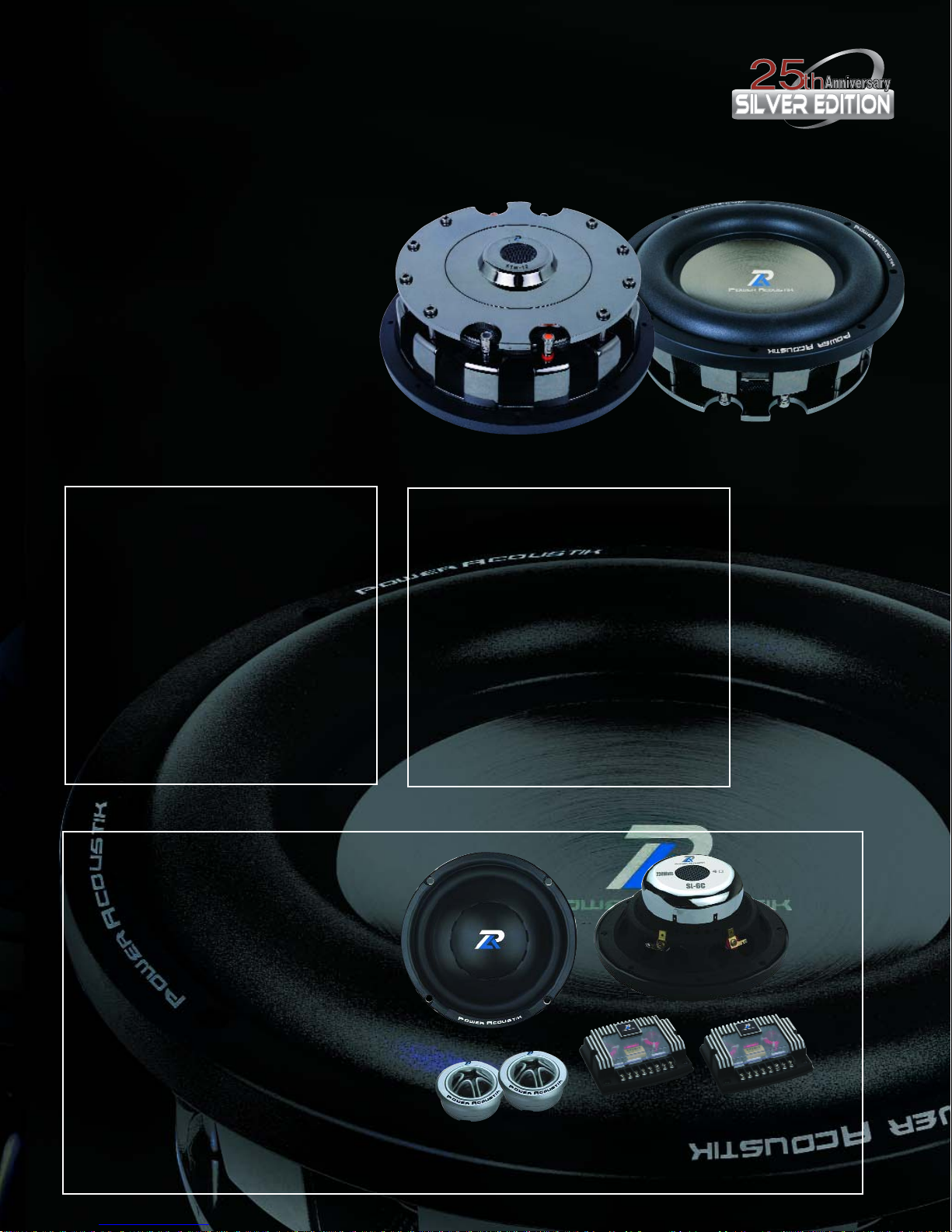

Silver edition pg6

res:

oam Surround

ed PP Cone

ider

V Voice Coil

m Voice Coil Former

eads

ket

inals

Common Features:

Wide Foam Surround

One Piece Cone/Dust Cap Assembly

Large Diameter Poly-Cotton Spider

Integrated Tinsel Leads

Dual 4 ohm BASV Voice Coils

Reinforced Aluminum Voice Coil Former

Die Cast Aluminum Basket

1-Piece Rubber Gasket

Black Chrome Finish

Chrome Push Terminals

Vented Pole Piece

STW-10W

• 800 Watts power handling

• 400 Watts RMS

• 100 oz. magnet

• 2” BASV/Kapton Hybrid 18AWG Voice Coil

• SPL88dB

• Fs: 35 Hz

• Vas: 0.08 cu.ft.

• Qms: 8.133 • Qes: 0.4778 • Qts: 0.458

• Xmax: 0.3"

• Sealed box: .7 cu..Ft.

• Ported box: 1 cu..Ft.

• Tuning: 38 Hz

• Port size: 3”(dia)x10”(length)

• # of ports: 1”

STW-12W

• 1000 Watts power handling

• 500 Watts RMS

• 120 oz. magnet

• 2.5” BASV/Kapton Hybrid 18AWG Voice Coil

• SPL89dB

• Fs: 32.8 Hz

• Vas: 1.7 cu.ft.

• Qms: 4.49 • Qes: 0.737 • Qts: 0.683

• Xmax: 0.3"

• Sealed box: 1 cu..Ft.

• Ported box: 1.5 cu..Ft.

• Tuning: 35 Hz

• Port size: 3”(dia)x7.75”(length)

• # of ports: 1”

SL-6C

• 6.5” Component system

• 3” high power handling kapton voice coil

• 250 Watts max

• High performance Neodymium magnet

• PP cone mid-bass

• Butyl rubber surround

• Chrome magnet cover

• Shallow mount 2.25”

• 2-way die-cast passive crossover

• 12db/Octave roll off

• Impedance balancing network

• Impedance: 4 ohm

• Frequency response: 45Hz-30KHz

• Sensitivity: 90dB

• 1” silk dome tweeter

• NDFEB magnet

• 80Hz/6KHz

• Flush, angle, and surface mount tweeter

• Ferro fluid cooled

Shallow Mount

3” Voice Coil & Massive Neo Mganet

For Extrem Power Handling

pa-06 2006-4-17 16:24 Page 7

Full Mosfet Power Supply

PWM Circuitry

Full Selectable Crossover Hi/Full/Low

Three Way Protection Circuit

Tri-Mode Capable

Variable Low Pass 40Hz-120Hz

Variable Hi Pass 150Hz-1.5Khz

18dB Bass Boost @ 40Hz.

Frequency Response: 10Hz to 30Khz

S/N Ratio:97 db

THD: 0.02%

2 ohm Stable Stereo

System Distress Indicator

High/Low Level inputs With Floating Ground

4 Gauge Power/Ground Connection

Gold plated RCA Connectors

Line output

Amplifiers pg7

Common Features For Class A/B:

CLASS A/B Series

Dash Mount Bass Knob

AMPLIFIERS

pa-06 2006-4-17 16:25 Page 8

Class D Digital Series

Model Ch 4 Ohm Rms 2 Ohm Rms 1 Ohm Rms Max Dimensions (LxWxH) Bass Knob

A3000DB 1 1100 1800 2300 3000 16.8” x 11” x 2.3” Yes

A2400DB 1 900 1400 1800 2400 15” x 11” x 2.3” Yes

A1000DB 1 450 800 N/A 1000 10.5” x 11” x 2.3” Yes

A1800DB 1 600 1100 1400 1800 12.6” x 11” x 2.3” Yes

Model 2ch/4ch 4ohm RMS 2ohm RMS Mono RMS Bridged Max Dimension W”xH”xD”

A520-2HP 2 125x2 150x2 300 520 11.25x11x2.3

A600-4HP 4 70x4 85x4 170x2 600 11.25x11x2.3

Amplifiers pg8

Class A/B Series

Hi Speed Digital Circuitry

Fully Regulated PWM Power Supply

Four Way Protection Circuit

1 Ohm Stable

Bridging Synchronization

Variable Low Pass 50Hz-150Hz

Variable Subsonic Filter 15Hz-40hz

Variable Subwoofer EQ @ 45Hz

Phase Switch 0-180

Remote Dash Mount Low Level Gain Control With Cable

Frequency Response: 15Hz to 150hz

S/N Ratio: 100 db

THD: 0.5%

System Distress Indicator

Inputs Sensativity: 200mv-8v

Dual Mono Speaker Output Connectors

Gold Plated Heavy Duty Power & Speaker Terminals

Common Features For Class D:

High Speed Digital Circuitry

CLASS D Series

ies

http://www.poweracoustik.com

pa-06 2006-4-17 16:25 Page 9

Synchronized Lightning Pulse Dish

Full Mosfet Power Supply

PWM Circuitry

Full Selectable Crossover Hi/Full/Low

Remote Dash Mount Bass Knob Control

Three Way Protection Circuit

2 Ohm Stable Stereo

Tri-Mode Capable

Variable Low Pass 40Hz-250Hz

Variable Hi Pass 40Hz-250Hz

Amplifiers pg9

Remote Dash Mount Bass

Knob Control

Variable 18dB Bass Boost @ 40Hz.

Frequency Response: 10Hz to 30KHz

S/N Ratio: 98 dB

THD: 0.02%

System Distress Indicator

4 Guage Power/Ground Connection

Platinum Plated RCA Connectors

Line Output

High/Low Level Inputs with Floating Ground

Common Features:

PLASMA SPHERE

AMPLIFIERS

pa-06 2006-4-17 16:25 Page 10

Inhaltsverzeichnis

Andere PowerAcoustik Auto-Videosystem Handbücher

PowerAcoustik

PowerAcoustik CPAA-70D10F Administratorhandbuch

PowerAcoustik

PowerAcoustik PTID-5800 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-7250N Bedienungsanleitung

PowerAcoustik

PowerAcoustik PT-727MSV Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-7001NT Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-3600 Bedienungsanleitung

PowerAcoustik

PowerAcoustik MDM-960CM Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-6500 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5800 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PT-92CM Bedienungsanleitung

PowerAcoustik

PowerAcoustik HD-7 Bedienungsanleitung

PowerAcoustik

PowerAcoustik HD-14KIT Bedienungsanleitung

PowerAcoustik

PowerAcoustik PD-103 Bedienungsanleitung

PowerAcoustik

PowerAcoustik CP-650 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-7001NBT Bedienungsanleitung

PowerAcoustik

PowerAcoustik PT-501MH Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-7350NRBT Bedienungsanleitung

PowerAcoustik

PowerAcoustik PT-91CM Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5850NRT Bedienungsanleitung

PowerAcoustik

PowerAcoustik PT-804 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PHAD-7 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PD-344 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PD-930 Bedienungsanleitung

PowerAcoustik

PowerAcoustik H-8BK Bedienungsanleitung

Beliebte Auto-Videosystem Handbücher anderer Marken

Stinger

Stinger HEIGH10 RB10RAM13B Bedienungsanleitung

Eonon

Eonon E1057 Bedienungsanleitung

Milion

Milion D2223 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8153 Bedienungsanleitung

Voxx Electronics

Voxx Electronics HR8MA1 Bedienungsanleitung

Axxera

Axxera AV604Bi Bedienungsanleitung

Clarion

Clarion NX706E Bedienungsanleitung

Pyle view

Pyle view PLDN74BTi Bedienungsanleitung

Clarion

Clarion NX602 Bedienungsanleitung

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Benutzerhandbuch

Lanzar

Lanzar SVDVD5 Bedienungsanleitung

Kia

Kia MTXM100YPPE Bedienungsanleitung

Eonon

Eonon E1060 Bedienungsanleitung

Macrom

Macrom M-AN900 Bedienungsanleitung

Hyundai

Hyundai BAPE-L3000N Bedienungsanleitung

r.LiNK

r.LiNK RL2-UCON8-SM Bedienungsanleitung

Blaupunkt

Blaupunkt DVP 01C Bedienungsanleitung

DP Audio Video

DP Audio Video dbd807nav Bedienungsanleitung
