PowerWasher PWH2600 Bedienungsanleitung

OPERATOR’S MANUAL

Record all information and attach sales receipt

here for future reference.

Purchase Date:

Serial Number:

Visit us at www.power-washer.us to register

your warranty, ﬁnd replacement parts, and talk

with our service representatives about your

pressure washer.

Table of Contents

Safety Guidelines / Deﬁnitions 2

Important Safety Instructions 2-7

Speciﬁcations 7

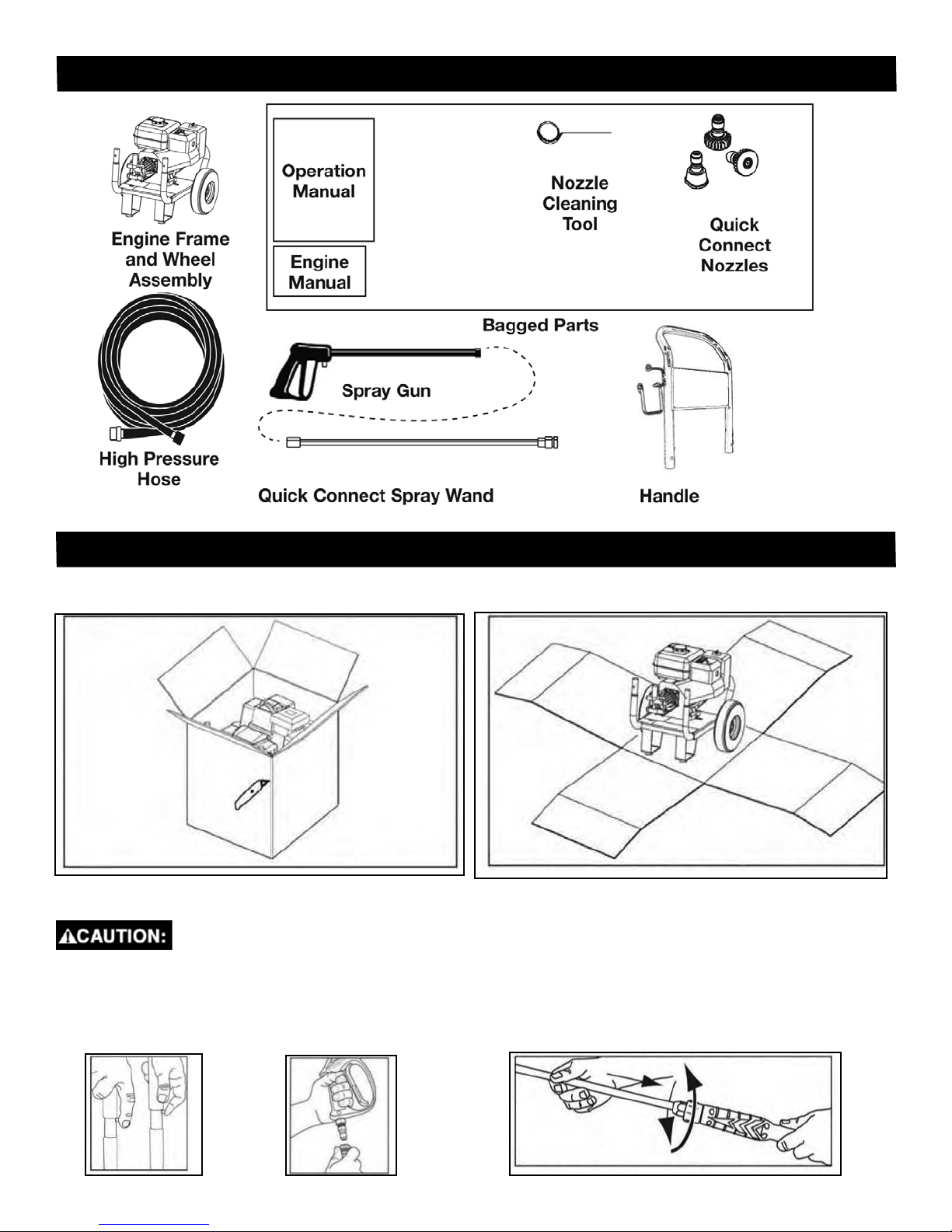

Carton Contents 8

Assembly Instructions 8-9

Operating Instructions 9-13

Maintenance 14

Storage 15

Repairs 15

Accessories 16

Trouble Shooting Guide 16-17

Warranty 18-19

IMPORTANT

Please make certain that the person who is to use this equipment carefully reads and understands

these instructions before operating. REV. 2 5/10

Pressure Washer

Model PWH2600

Indicates an potentially hazard

ous situation which, if not avoid-

ed, may result in minor or moderate injury.

Used without the safety alert

symbol indicates a potentially

hazardous situation which, if not avoided, may

result in property damage.

Indicates an potentially hazard

ous situation which, if not avoid-

ed, could result in death or serious injury.

This manual contains information that is important for you to know and understand. This informa-

tion relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you

recognize this information, we use the symbols below. Please read the manual and pay attention to

these symbols.

SAFETY GUIDELINES - DEFINITIONS

Indicates an imminently hazard-

ous situation which, if not avoid-

ed, will result in death or serious injury.

CONSUMER SAFETY INFORMATION

This product may not be equipped with a spark arresting mufﬂer. If the product is not equipped and

will be used around ﬂammable materials, or on land covered with materials such as agricultural

crops, forest, brush, grass, or other similar items, then an approved spark arrester must be installed

and is legally required in the State of California. It is a violation of California statues section 130050

and/or sections 4442 and 4443 of the California Public Resources Code, unless the engine is

equipped with a spark arrester, as deﬁned in section 4442, and maintained in effective working order.

Spark arresters are also required on some U.S. Forest Service land and may also be legally required

under other statutes and ordinances.

This product contains chemicals, known to the State of California, to cause cancer, and birth defects

or other reproductive harm. Wash hands after handling.

IMPORTANT SAFETY INSTRUCTIONS

Do not operate this unit until you have read and understand this Operators Manual and the Engine

Owners Manual for Safety, Operation, and Maintenance Instructions.

READ AND SAVE THESE INSTRUCTIONS

Spilled gasoline and its vapors can become

ignited from cigarette sparks, electrical arcing,

exhaust gases and hot engine components

such as the mufﬂer.

RISK OF EXPLOSION OR FIRE

WHAT CAN HAPPEN HOW TO PREVENT IT

Shut off engine and allow it to cool before add-

ing fuel to the tank.

Use care in ﬁlling tank to avoid spilling fuel.

Move pressure washer away from fueling area

before starting engine.

••

•

Heat will expand fuel in the tank which could

result in spillage and possible ﬁre explosion.

WHAT CAN HAPPEN HOW TO PREVENT IT

Fill tank to 1/2” (12.7mm) below bottom of ﬁller

neck to provide space for fuel expansion.

••

Operating the pressure washer in an explosive

environment could result in a ﬁre.

Operate and fuel equipment in well-ventilated

areas free from obstructions. Equip areas with

ﬁre extinguishers suitable for gasoline ﬁres.

••

Materials placed against or near the pressure

washer can interfere with its proper ventilation

features causing overheating and possible igni-

tion of the materials.

Never operate pressure washer in an area con-

taining dry brush or weeds.

••

Mufﬂer exhaust heat can damage painted sur-

faces, melt any material sensitive to heat (such

as siding, plastic, rubber, vinyl, or the high

pressure hose) and damage live plants.

Always keep pressure washer a minimum of 4’

(1.2m) away from surfaces (such as houses,

automobiles, or live plants) that could be dam-

aged from mufﬂer exhaust heat.

••

Improperly stored fuel could lead to accidental

ignition. Fuel improperly secured could get

into the hands of children or other unqualiﬁed

persons.

Store fuel in an OSHA-approved container, in a

secure location away from your work area.

••

Use of acids, toxic or corrosive chemicals,

poisons, insecticides, or any kind of ﬂammable

solvent with this product could result in serious

injury or death.

Do not spray ﬂammable liquids.

••

RISK TO BREATHING (Asphyxiation)

WHAT CAN HAPPEN HOW TO PREVENT IT

Breathing exhaust fumes will cause serious in-

jury or death! Engine exhaust contains carbon

monoxide, an odorless and deadly gas.

Operate pressure washer in a well ventilated

area. Avoid enclosed areas such as garages,

basements, etc.

Never operate unit in a location occupied by

humans or animals.

••

•

Some cleaning ﬂuids contain substances which

could cause injury to skin, eyes, or lungs.

Use only cleaning ﬂuids speciﬁcally recom-

mended for high-pressure washers. Follow

manufacturers recommendations. Do not use

chlorine bleach or any other corrosive com-

pound.

••

RISK OF FLUID INJECTION AND LACERATION

WHAT CAN HAPPEN HOW TO PREVENT IT

Your pressure washer operates at ﬂuid pres-

sures and velocities high enough to penetrate

human and animal ﬂesh, which could result

in amputation or other serious injury. Leaks

caused by loose ﬁttings or worn or damaged

hoses can result in injection injuries. DO NOT

TREAT FLUID INJECTION AS A SIMPLE

CUT! See a physician immediately.

Inspect the high-pressure hose regularly. Re-

place the hose immediately if it is damaged,

worn, has melted from contacting the engine,

or shows any signs of cracks, bubbles, pin-

holes, or other leakage. Never grasp a high-

pressure hose that is leaking or damaged.

Never touch, grasp, or attempt to cover a

pinhole or similar water leak on the high pres-

sure hose. The stream of water IS under high

pressure and WILL penetrate skin.

Never place hands in front of nozzle.

Direct spray away from self and others.

Make sure hose and ﬁttings are tightened and

in good condition. Never hold onto the hose or

ﬁttings during operation.

Do not allow the high pressure hose to contact

the mufﬂer.

Never attach or remove wand or hose ﬁttings

while system is pressurized - squeeze trigger

gun (when engine is off) to relieve pressure in

the system.

••

•

Injuries can result if system pressure is not

reduced before attempting maintenance or

disassembly.

To relieve system pressure, shut off engine,

turn off water supply and pull gun trigger until

water stops ﬂowing.

Use only hoses and accessories rated for pres-

sure higher than your pressure washer’s PSI.

••

•

RISK OF INJURY FROM SPRAY

WHAT CAN HAPPEN HOW TO PREVENT IT

High velocity ﬂuid spray can cause objects to

break, propelling particles at high speed.

Light or unsecured objects can become haz-

ardous projectiles.

Always wear ANSI-approved Z87.1 safety

glasses. Wear protective clothing to protect

against accidental spraying.

Never point wand at, or spray people or ani-

mals.

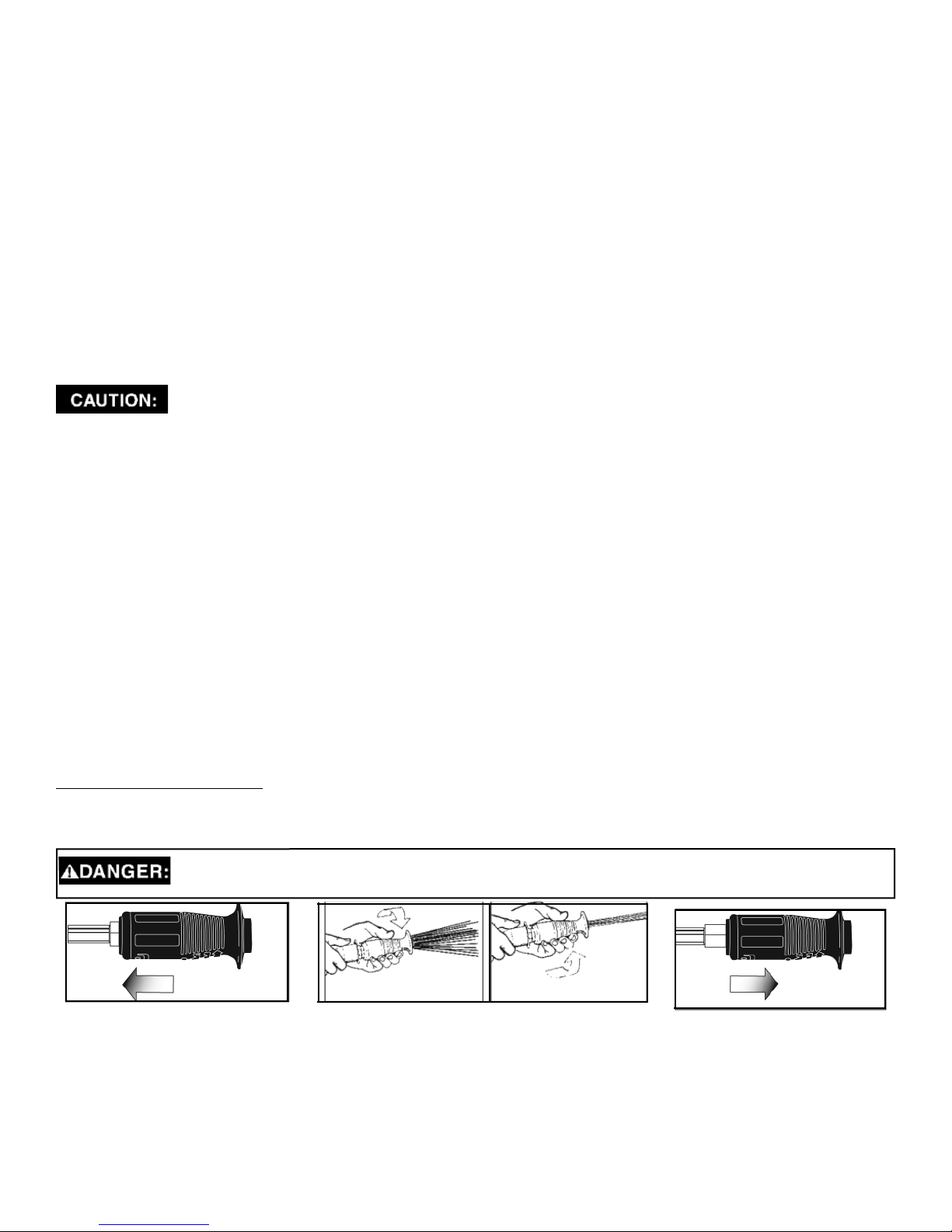

Always secure trigger lock when wand is not in

service to prevent accidental operation.

Never permanently secure trigger in pull-back

(open) position.

••

•

RISK OF UNSAFE OPERATION

WHAT CAN HAPPEN HOW TO PREVENT IT

Unsafe operation of your pressure washer

could lead to serious death to you or others.

Do not use chlorine bleach or any other corro-

sive compound.

Become familiar with the operation and con-

trols of the pressure washer.

Keep operating area clear of all persons, pets,

and obstacles.

Do not operate the product when fatigued or

under the inﬂuence of alcohol or drugs. Stay

alert at all times.

Never defeat the safety features of this product.

Do not operate machine with missing, broken,

or unauthorized parts.

Never leave wand unattended while unit is run-

ning.

••

•

If proper starting procedure is not followed,

engine can kickback causing serious hand and

arm injury.

If engine does not start after two pulls, squeeze

trigger of gun to relieve pump pressure. Pull

starter cord slowly until resistance is felt. Then

pull cord rapidly to avoid kickback and prevent

hand or arm injury.

••

The spray gun/wand is a powerful tool that

could look like a toy to a child

Keep children away from the pressure washer

at all times.

••

Reactive force of spray will cause gun/wand to

kickback, and could cause the operator to slip

and fall or misdirect the spray. Improper control

of gun/wand can result in injuries to self and

others.

Do not overreach or stand on an unstable sup-

port.

Do not use pressure washer while standing on

a ladder.

Grip gun/wand ﬁrmly with both hands. Expect

the gun to kickback when triggered

••

•

RISK OF INJURY OR PROPERTY DAMAGE WHEN

TRANSPORTING OR STORING

WHAT CAN HAPPEN HOW TO PREVENT IT

Fuel or oil can leak or spill and could result

in ﬁre or breathing hazard. Serious injury or

death can result. Fuel or oil leaks will damage

carpet, paint, or other surfaces in vehicles or

trailers.

If the pressure washer is equipped with a fuel

shut-off valve, turn the valve to the OFF posi-

tion before transporting to avoid fuel leaks. If

the pressure washer is not equipped with a

fuel shut-off valve, drain the fuel from the tank

before transporting. Only transport fuel in an

OSHA-approved container. Always place pres-

sure washer on a protective mat when trans-

porting to protect against damage to vehicle

from leaks. Remove pressure washer from

vehicle immediately upon arrival at your desti-

nation.

••

RISK OF BURSTING

WHAT CAN HAPPEN HOW TO PREVENT IT

Over inﬂation of tires could result in serious

injury and property damage.

Use a tire pressure gauge to check the tires

pressure before each use and while inﬂating

tires

See the tire sidewall for the correct tire pres-

sure.

NOTE: Air tanks, compressors, and similar

equipment used to inﬂate tires can ﬁll small

tires similar to these very rapidly. Adjust pres-

sure regulator on air supply to no more than

the rating of the tire pressure. Add air in small

increments and frequently use the tire gauge to

prevent over inﬂation.

••

RISK OF HOT SURFACES

WHAT CAN HAPPEN HOW TO PREVENT IT

Contact with hot surfaces, such as engine

exhaust components, could result in serious

injury.

During operation, touch only the control sur-

faces of the pressure washer. Keep children

away from the pressure washer at all times.

They may not be able to recognize the hazards

of this product.

••

High velocity ﬂuid spray directed at pneumatic

tire sidewalls (such as found on automobiles,

trailers, and the like) could damage the side-

wall resulting in serious injury.

On pressure washers rated above 1600 PSI

(110 Bar) use the widest fan spray (40º nozzle)

and keep spray a minimum of 8” (20cm) from

the pneumatic tire sidewall. Do not aim spray

directly at the joint between the tire and rim.

••

•

RISK OF CHEMICAL BURN

WHAT CAN HAPPEN HOW TO PREVENT IT

Use of acids, toxic or corrosive chemicals,

poisons, insecticides, or any kind of ﬂammable

solvent with the product could result in injury or

death.

Do not use acids, gasoline, kerosene, or any

other ﬂammable material in this product. Use

only household detergents, cleaners, and

degreasers recommended for use in pressure

washers.

Wear protective clothing to protect eyes and

skin from contact with sprayed materials.

••

•

RISK OF ELECTRICAL SHOCK

WHAT CAN HAPPEN HOW TO PREVENT IT

Spray directed at electrical outlets or switches,

or objects connected to an electrical circuit,

could result in a fatal electrical shock.

Unplug any electrically operated product before

attempting to clean it. Direct spray away from

electric outlets and switches.

••

RISK OF INJURY FROM LIFTING

WHAT CAN HAPPEN HOW TO PREVENT IT

Serious injury can result from attempting to lift

too heavy an object.

The pressure washer is too heavy to be lifted

by one person. Obtain assistance from others

before lifting.

••

READ AND SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Model PWH2600

Max Pressure* 2600 PSI

Max Flow* 2.3 GPM

* Water ﬂow and maximum pressure ratings determined in accordance with PWMA standard PW101.

NOTE: Photographs and line drawings used in this manual are for reference only and do not repre-

sent a speciﬁc model.

CARTON CONTENTS

ASSEMBLY INSTRUCTIONS

1) Locate and remove all loose parts from the carton.

2) Cut the four corners of the carton from top to bottom and lay the panels ﬂat.

3) Place the handle onto the frame, depress the snap buttons, and slide the handle assembly down

on the frame until snap buttons snap into place.

Risk of Personal Injury. Avoid placing hands between the handle

and frame when assembling to prevent pinching.

4) Connect Gun to Wand. Tighten Securely.

5) Attach high pressure hose to gun. Tighten securely.

6) Remove the colored quick connect nozzled from plastic bag and insert them into grommets on the

nozzle holder.

OPERATING INSTRUCTIONS

NOTE: The pump on this unit is maintenance free and requires no oil. If there is a problem with the

pump, contact our Customer Service Group on www.power-washer.us as soon as possible.

Risk of bursting. Use a tire pressure gauge to check the tire pressure before each use

and while inﬂating tires; see the tire sidewall for the correct tire pressure.

NOTE: Air tanks, compressors, and similar equipment used to inﬂate tires can ﬁll small tires similar to

these very rapidly. Adjust pressure regulator on air supply to no more than the rating of the tire pres-

sure. Add air in small increments and frequently use the tire gauge to prevent over inﬂation.

Compare the illustrations with your unit to familiarize yourself with the location of various controls and

adjustments. Save this manual for future reference.

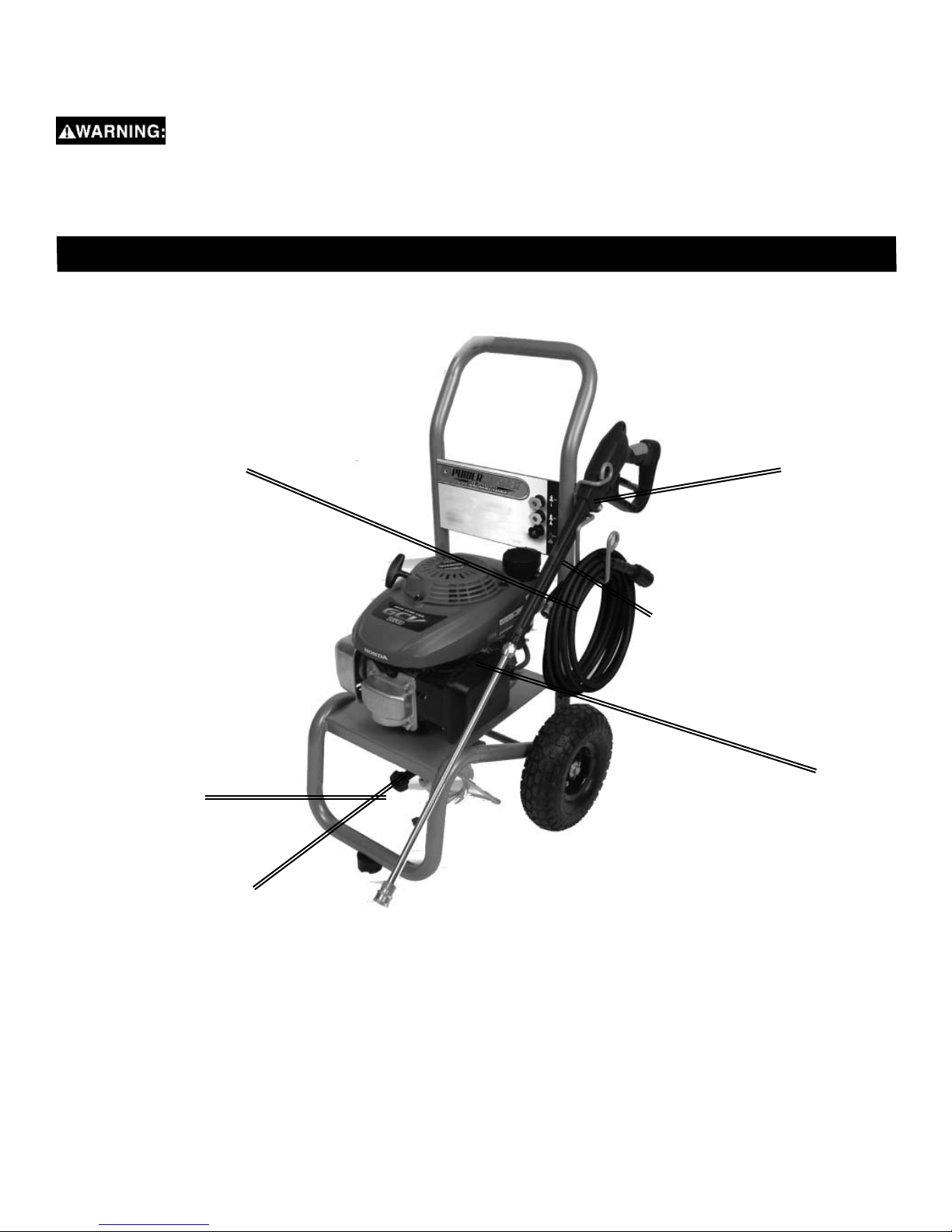

BASIC ELEMENTS OF A PRESSURE WASHER

High Pressure Pump: Increases the pressure of the water supply.

Engine: Drives the high pressure pump. Refer to the engine manual for location and operation of

engine controls

High Pressure Hose: Carries the pressurized water from the pump to the gun and spray wand.

Spray Gun: Connects the spray wand to control water ﬂow rate, direction, and pressure.

Quick Connect Spray Wand: Allows the user to quickly change the spray pattern. See next sections

for more details on your speciﬁc Spray Wand included with your machine.

Chemical Hose: Feeds cleaning agents into the pump to mix with the water. See How to Apply

Chemicals / Cleaning Solvents instructions.

High Pressure Pump

Engine

Spray Gun

High Pressure Hose

Quick Connect Spray Wand

Chemical Hose

BASIC ELEMENTS OF AN ENGINE

Refer to the engine manual for location and operation of engine controls.

Choke Control: Opens and closes carburetor choke valve.

Starter Grip: Pulling starter grip operates recoil starter to crank engine.

Engine Switch: Enables and disables ignition system.

PRESSURE WASHER TERMINOLOGY

PSI: Pounds per Square Inch. The unit of measure for water pressure. Also used for air pressure,

hydraulic pressure, etc. Sometimes noted as “Bar”, another unit of measure.

GPM: Gallons per Minute. The unit of measure for the ﬂow rate of water. Sometimes noted as L/min

(Liters per Minute).

CU: Cleaning Units. GPM multiplied by PSI equals CU.

Bypass Mode: Allows water to re-circulate within the pump when the gun trigger is not pulled. This

feature allows the operator to release the trigger gun and reposition themselves without having to turn

the engine off in between cleaning actions.

Allowing the unit to run for more than two minutes without the gun trigger being pulled

could cause overheating and damage to the pump. Do not let the pressure washer run for more than

two minutes in Bypass Mode. Turn off the engine and relieve the pressure in the gun during these

extended situations.

Thermal Relief Valve (not shown): When the temperature inside the pump rises too high, this valve

will open and release a gush of water in an effort to lower the temperature inside the pump. The valve

will then close.

Chemical Injection System: Mixes cleaners or cleaning solvents with the water to improve clean-

ing effectiveness. Depending on your machine, this could either be a Detergent Siphon Tube (which

is inserted into a container of detergent), or a Detergent Tank (which is ﬁlled with detergent and is an

integral part of the pressure washer frame).

Water Supply: All pressure washers must have a source of water. The minimum requirements for a

water supply are 20 PSI and 5 Gallons Per Minute.

PRESSURE WASHER OPERATING FEATURES - SPRAY WAND

Spray Wand: There are two types of spray wands that can be included with your pressure washer.

Check Carton Contents section of this manual to see which Wand your pressure washer uses.

1) Variable Spray Wand. This wand includes both high and low pressure settings. The high pres-

sure setting is for cleaning and rinsing, and the low pressure setting is for applying chemicals or

cleaning solutions to surfaces.

For high pressure opera-

tion, pull back the nozzle

of the multi-adjustable

spray wand as shown.

For low pressure opera-

tion and detergent appli-

cation, extend the nozzle

of the variable spray

wand as shown.

The nozzle at the end of the variable

spray wand can be rotated to change

from the high pressure spray pattern

from a 0º pencil stream to a 40º fan

spray, as shown. Markings have been

placed on the nozzle to help you select

the spray pattern.

Risk of ﬂuid injection. Do not direct discharge stream toward persons, unpro-

tected skin, eyes, or any pets or animals. Serious injury will occur.
