Premier Mounts RTM-L Bedienungsanleitung

RTM-L

9531-009-011-0X v5.2 publ. 02/08/19

Installation Guide

premiermounts.com | p. 800.368.9700 | e. [email protected]

500 W Central Ave, Suite A, Brea, CA 92821 USA

Installation Guide

RTM-L

Page 2

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS MUST BE READ AND

COMPLETELY UNDERSTOOD. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION

FOR FUTURE REFERENCE.

PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS

PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY

UNAUTHORIZED ATTACHMENTS OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS,

DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR

IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS.

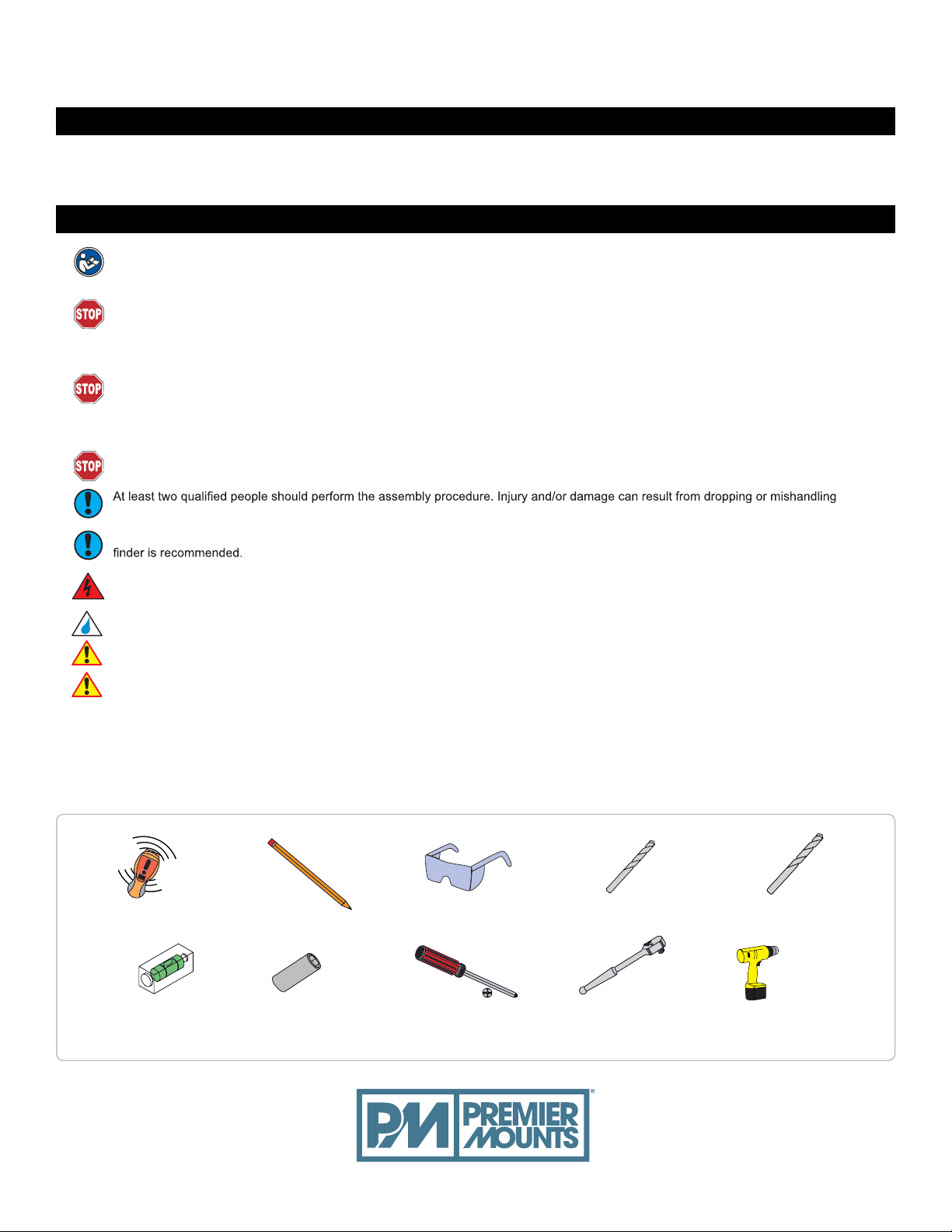

Warning Statements

Weight Limit

Maximum Flat Panel Weight: 160 lbs.

THE SURFACE MUST BE CAPABLE OF SUPPORTING AT LEAST FOUR TIMES THE WEIGHT OF THE DISPLAY. IF NOT, THE

SURFACE STRUCTURE MUST BE REINFORCED. THE MAXIMUM WEIGHT THAT CAN BE USED WITH THIS PRODUCT IS 160

LBS. PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION

INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY, OR EVEN

DEATH.

SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE PROPER

SAFETY GEAR AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.

the display.

If mounting to studs, make sure that the mounting screws are anchored into the center of the studs. Use of an edge-to-edge stud

Be aware of the mounting environment. If drilling and/or cutting into the mounting surface, always make sure that there are no electrical

wires in wall. Cutting/drilling into an electrical line may cause serious injury.

Make sure there are no water lines inside the wall where the mount is to be located. Cutting/drilling into a water line may cause severe

water damage to the mounting surface.

This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal injury.

Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of impact.

Installation Tools:

Pencil Protective Eyewear

Electronic Stud Finder M6 or 1/4” Drill Bit 3/8” Masonry Drill Bit

Portable Drill

Phillips Head Screwdriver Socket Wrench

13mm or 1/2” SocketLevel

premiermounts.com | p. 800.368.9700 | e. [email protected]

Installation Guide

RTM-L

Page 3

Included Components:

Mounting Block

(Qty.1)

M5 Security Allen

Key (Qty.1)

M6 x 30mm Screw

(Qty.4)

M8 x 16mm Screw

(Qty.4)

M8 x 25mm Screw

(Qty.4)

M8 x 30mm Screw

(Qty.4)

M4 x 25mm Screw

(Qty.4)

M4 x 30mm Screw

(Qty.4)

M6 x 16mm Screw

(Qty.4)

M6 x 25mm Screw

(Qty.4)

Universal Spacer

(Qty.8)

M6 x 12mm Button

Security (Qty.1)

M6 Lock Washer

(Qty.1)

M10 x 30mm Screw

(Qty.4)

M4 x 16mm Screw

(Qty.4)

Griplate™(Qty.4) Straw (Qty.1) 5/32" Allen Key

(Qty.1)

Cross Bar (Qty.1)

Mounting Bracket (Qty.2)

Remove the M6 Knurl Knob from the mounting

block and place it aside.

Slide the mounting block over the tubes.

Rotational Stop

(Qty:1)

M6 x 25mm

Flat Screw (Qty.3)

premiermounts.com | p. 800.368.9700 | e. [email protected]

Installation Guide

RTM-L

Page 4

Tighten the four (4) pre-installed M8 set screws

using the supplied 5/32" Allen Key.

Small Straw or Toothpick

Marking the 1/8”

Allowance

Small Straw

or Toothpick

Small Straw

or Toothpick Depth Plus 1/8” Allowance

Mark

Depth Plus 1/8” Allowance

Mark

1) Insert a small straw or toothpick into the threaded inserts found on the

2) Use a pencil to mark the depth of the threaded insert on the small straw

or toothpick.

3) Mark the straw or toothpick 1/8” above the depth of the threaded insert,

as shown in Figure 1.

4) Insert the small straw or toothpick into the remaining threaded inserts

to compare and verify their depth using the straw or toothpick’s 1/8”

allowance mark.

5) Locate the correct diameter screw for the threaded insert.

If the screw you selected is longer than the 1/8” allowance mark on

the small straw or toothpick, as shown in Figure 2 and Figure 3, do

not use this screw. The screw length must not bypass the mark.

6) Test each size of the screws provided.

The correct screws should thread easily into themounting point and

not pull out when tension is applied.

Selecting the Mounting Hardware

Loosen set screw

Tighten set screw

Flip the handle

Put the handle back

Reorientate the handle

premiermounts.com | p. 800.368.9700 | e. [email protected]

Installation Guide

RTM-L

Page 5

Slide the mounting brackets into the cross bar. Bottom

Top

Align the brackets to the display mounting holes. Use the depth measuring straw to determine the ap-

propriate hardware. Use four (4) M4, M6, or M8 screws depending on display and four (4) Griplate™

(Universal Washer). Use Universal Spacer if necessary.

M4, M6, or M8 screws

Griplate™ (Universal Washer)

Universal Spacer (Optional)

Top

Bottom

premiermounts.com | p. 800.368.9700 | e. [email protected]

Installation Guide

RTM-L

Page 6

M8 x 10mm Set Screw

Center the cross bar to the display and tighten the two (2) M8 x 10 Set Screws using the

5/32" Allen Key to secure the brackets.

1. Install the Rotational Stop with (3) M6 x 25mm Flat Head Screw.

2. Reversible in either left or right orientation.

M6 x 25mm Flat

Head

Rotational Stop

premiermounts.com | p. 800.368.9700 | e. [email protected]

Installation Guide

RTM-L

Page 7

Two persons are recommended for this step. Lift the display bar and place

the disk it into the receiver plate.

Install the M6 Knurl Knob removed from step 1 to secure the cross bar from dislodging.

premiermounts.com | p. 800.368.9700 | e. [email protected]

Installation Guide

RTM-L

Page 8

Tension

Screw

is attained.

M4 x 8mm Set

Screw

Adjust the level of the display arms by loosen/tighten (2) M4 x 8mm Set Screw.

Level

premiermounts.com | p. 800.368.9700 | e. [email protected]

Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this

document is subject to change without notice or obligation of any kind. Premier Mounts makes no representation of warranty, expressed or implied, regarding the

information contained herein. Premier Mounts assumes no responsibility for accuracy

PREMIER MOUNTS

LIMITED LIFETIME WARRANTY

What and Who is Covered by this Limited Lifetime Warranty

Premier Mounts warrants all mounting products to be free from defects in material and workmanship for the

lifetime of the original installation of the product.

What Premier Mounts Will Do

At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is

defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will

be shipped to you at no charge, but you must pay any related labor costs.

What is Not Covered: Limitations

Premier Mounts disclaims any liability for damage to mounts, adapters, displays, projectors, other property,

products.

NOTWITHSTANDING ANYTHING TO THE CONTRARY IN THIS WARRANTY, THIS WARRANTY IS

LIMITED TO FIVE YEARS FROM THE DATE OF PURCHASE IN THE EVENT THAT THE WARRANT-

ED PRODUCT IS COMMERCIALLY RENTED OUT.

electrical items, are backed by a 3-year warranty.

Premier Mounts disclaims all other warranties, express or implied, including warranties of merchantability and

including but not limited to, inability to use its products or labor costs for removing and replacing defective

products or parts. Some states do not allow the exclusion or limitation of incidental or consequential damages,

so the above limitation or exclusion may not apply to you.

What Customers Must Do for Warranty Service

If you discover a problem that you think may be covered by the warranty, you must report it in writing to the

address below within thirty (30) days. Proof of purchase (an original sales receipt) from the original consumer

purchaser must accompany all warranty claims. Warranty claims must also include a description of the problem,

the purchaser’s name, address, and telephone number. General inquiries can be addressed to Premier Mounts

Customer Service at 1-800-368-9700. Warranty claims will not be accepted over the phone or by fax.

How State Law Applies

PREMIER MOUNTS

ATTN: Warrenty Claims

500 W Central Ave, Suite A

Brea, CA 92821

PREMIER MOUNTS

500 W Central Ave, Suite A

Brea, CA 92821

USA & CANADA

Phone: 800-368-9700

Fax: 800-832-4888

e. [email protected]
