Installation Guide

TTS-BASE-L

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100

2 3

Included components

TTS-BASE-L

Installation Guide

x1 x7 x7

x1x1

x5 x2 x2

M6 x 16mm Truss

Screw

M4 Allen Key Adhesive Bumper Vinyl Feet

Aluminum Tube

Base

Top Stand Base

M5 x 30mm Flat

Screw

M8 x 10mm Set

Screw

#10 x 1 3/4” Flat

Wood Screws

(7) M6 x 16 mm Truss Screw (7) Adhesive Bumper

(2) M8 x 10 mm Soc Set

(5) M5 x 30 mm Flat Screw

(7) Vinyl Feet

(1) Top Stand Base

(1) Aluminum Tube Base

Page 2

Maximum Weight:

150 lbs.

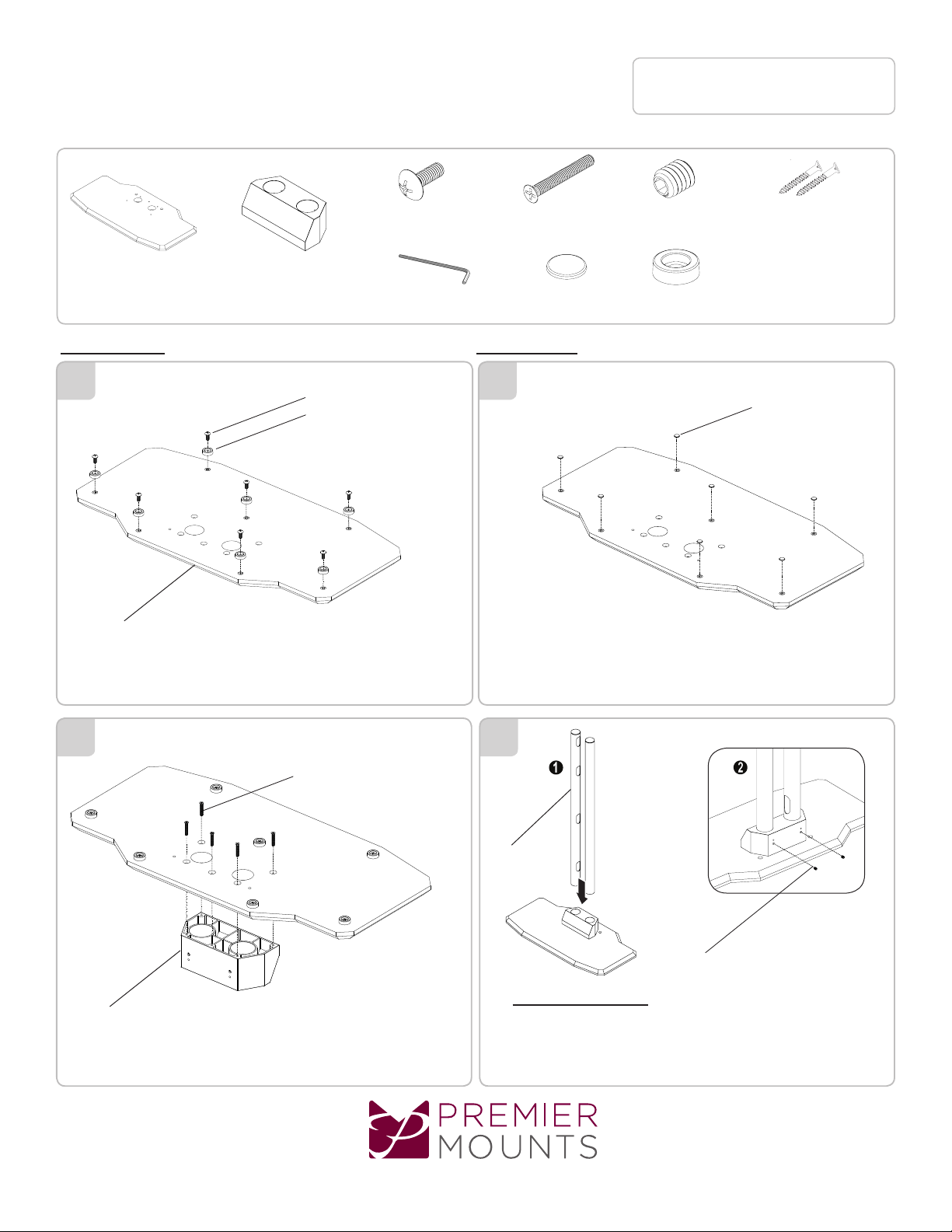

Flip the Top Stand Base over and install the seven (7) Vinyl Feet

using seven (7) M6 x 16 mm Truss screws.

Flip the Top Stand Base over and install the seven (7) Adhesive

Bumpers.

Install the Aluminum Tube Base using ve (5) M5 x 30 mm Flat Screws.

T40 Installation

1) Install the T40 (not supplied) into the Aluminum base tube.

2) Secure the T40 using the two (2) M8 x 10 mm Set Screws.

Tighten the M8 x 10 mm set screws using a 5/32 or M4 Allen

Key.

(1) T40

High Prole Low Prole

Parts list (2)

Griplates™ (4)

Thread depth

indicator (1)

Aluminumblock (1)

Mounting brackets (2)

Base (1)

Tubes (2)

Allen key (1)

M5 x 10 Phillips

screws (2)

M5 x 30 Phillips flat

head screws (5)

Socket head

Screws (6)

Tube caps (2)

Wood screws (2)

(Optional use)

Rubber vinyl (4)

Rubber feet (4)

(used on the PSD-TTS only)

M6 Phillips

screws (4)

Back cover (1)

(1) UFA

(4) M8 x 10 Set Screws

(2) #10 x 1 3/4” Wood

Screws

Wood Table

TTS-BASE-L

Installation Guide

Page 3

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100

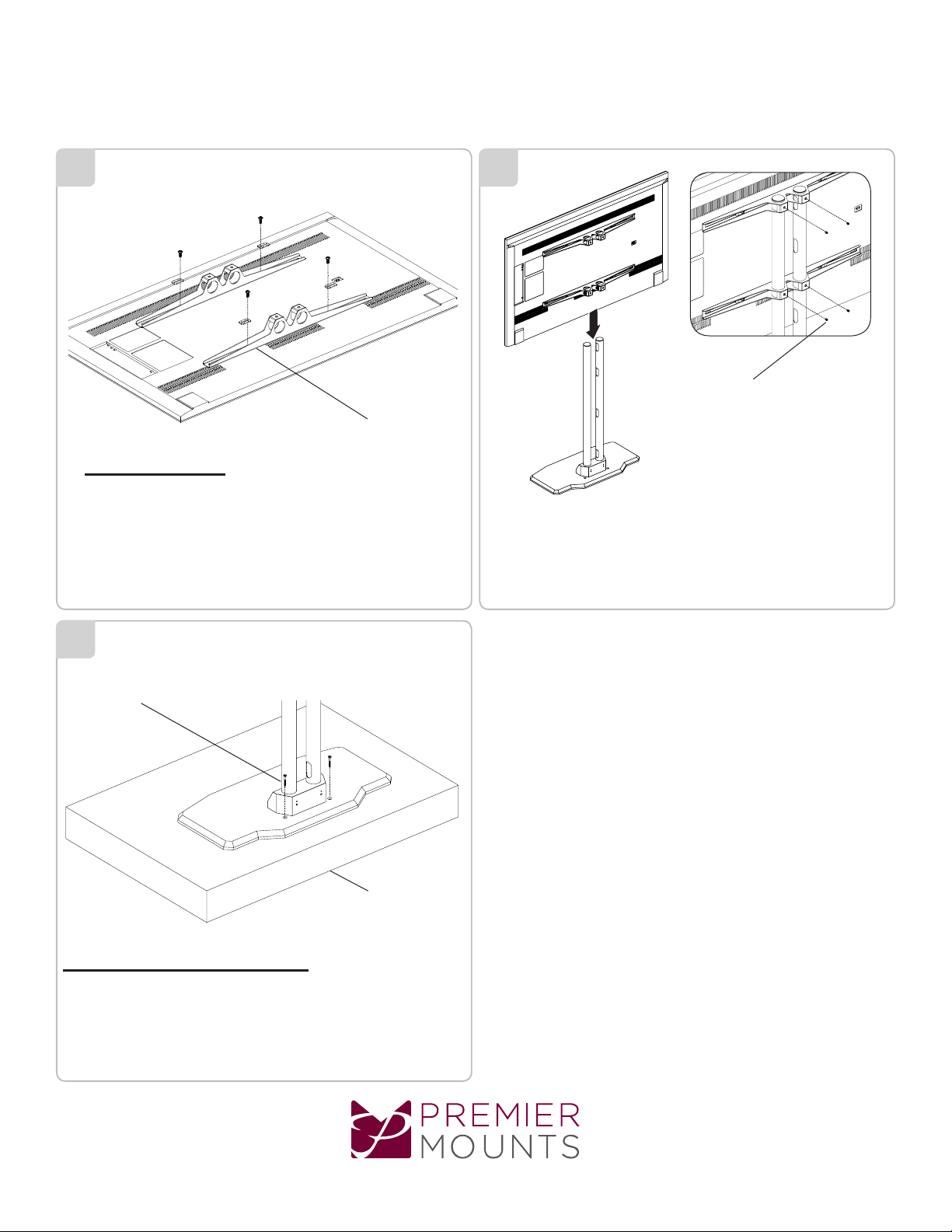

UFA Installation

1) Install the UFA (not supplied) to the Display.

2) Refer to the UFA installation to install the Brackets to the

Display. 1) Align the UFA and T40 and slide down the display to the

desired height.

2) Tighten the four (4) M8 x 10 Set Screws using a M4 or 5/32”

Allen Key. The four (4) M8 x 10 Set Screws are preinstalled

Fixed Installation (Optional)

If securing to a wood table, secure the stand with the two (2) #10 x 1 3/4"

wood screws (supplied).

NOTE: Longer or shorter wood screws and or mounting hardware

depending on your installation environment are (commercially available).

Warranty: http://www.mounts.com/warranty

Garantie, Garantía, Garanzia, Garantie, Waarborg

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100

Installation Guide

TTS-BASE-L

Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information

contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with

the installation or use of this product. The information contained in this document is subject to change without notice or obligation of

any kind. Premier Mounts makes no representation of warranty, expressed or implied, regarding the information contained herein.

Premier Mounts assumes no responsibility for accuracy, completeness or sufciency of the information contained in this document.

PREMIER MOUNTS

LIMITED LIFETIME WARRANTY

What and Who is Covered by this Limited Lifetime Warranty

Premier Mounts warrants all mounting products to be free from defects in material and workmanship

for the lifetime of the original installation of the product.

What Premier Mounts Will Do

At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product

part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement

product or part will be shipped to you at no charge, but you must pay any related labor costs.

What is Not Covered: Limitations

Premier Mounts disclaims any liability for damage to mounts, adapters, displays, projectors, other

property, or personal injury resulting, in whole or in part, from improper installation, modication, use

or misuse of its products.

NOTWITHSTANDING ANYTHING TO THE CONTRARY IN THIS WARRANTY, THIS WARRANTY

IS LIMITED TO FIVE YEARS FROM THE DATE OF PURCHASE IN THE EVENT THAT THE WAR-

RANTED PRODUCT IS COMMERCIALLY RENTED OUT.

Electrical products and components, such as ampliers, speakers, motors, switches remote controls

and related electrical items, are backed by a 3-year warranty.

Premier Mounts disclaims all other warranties, express or implied, including warranties of merchant-

ability and tness for a particular purpose. Premier Mounts is not responsible for incidental or conse-

quential damages, including but not limited to, inability to use its products or labor costs for remov-

ing and replacing defective products or parts. Some states do not allow the exclusion or limitation of

incidental or consequential damages, so the above limitation or exclusion may not apply to you.

What Customers Must Do for Warranty Service

If you discover a problem that you think may be covered by the warranty, you must report it in writ-

ing to the address below within thirty (30) days. Proof of purchase (an original sales receipt) from the

original consumer purchaser must accompany all warranty claims. Warranty claims must also include

a description of the problem, the purchaser’s name, address, and telephone number. General inqui-

ries can be addressed to Premier Mounts Customer Service at 1-800-368-9700. Warranty claims will

not be accepted over the phone or by fax.

Premier Mounts

Attn: Warranty Claim

1321 S. State College Blvd.

Fullerton, CA 92831 USA

How State Law Applies

This warranty gives you specic legal rights, and you may also have other rights which vary from

state to state.

Page 4 9500112_0
