Premier Mounts PCM-MS2 Bedienungsanleitung

Both models oer

up to 12° tilt.

Dual mounting plates

attach to studs 16",

18'' or 24" on center,

with multiple hole sets

for easy centering.

Unique dual-plate and sliding-rod

systems make the PCM universal mount

easy to install. Wall-mounting

template provided with each mount.

PCM

Add optional

PaneLock™ to help

prevent unauthorized

display removal.

Model Display Size Application Max. Wt.

PCM-MS2 37"-61" Wall

PCM-MS3 55"-63" Wall

Mounting

brackets

hook over

sliding rods.

UniversalFlat-PanelMount

The PCM wall mount oers continuously adjustable tilt for

ideal viewing and features our innovative Griplate™ System.

This exclusive system accurately supports the appropriate

mounting hardware with teeth set in detents along the

mounting bracket. The solid t keeps the display level and

in place, eliminating the need to apply excessive

torque on the mounting hardware. Open design

allows ample room for installation of junction

box or signal distribution.

•Multiple 16" and 18'' mounting slots and

one set of 24" slots

•12° continuously adjustable tilt

•Built-in lateral shift for precise placement

•Fits most at-panel displays between 37" to 63"

•PCM-MS2 ts mounting patterns up to

695 x 500mm (W x H)

•PCM-MS3 ts patterns up to 925 x 720mm (W x H)

•Unique Griplate™ System eliminates need

for excessive torque

•Set screws and security knobs for installation safety

•Optional theft-resistant PaneLock™ available

•Lifetime warranty

•Color: Black

160 lbs. (73 kgs.)

160 lbs. (73 kgs.)

PCM-MS3

PCM-MS2

800.368.9700Iwww.mounts.com

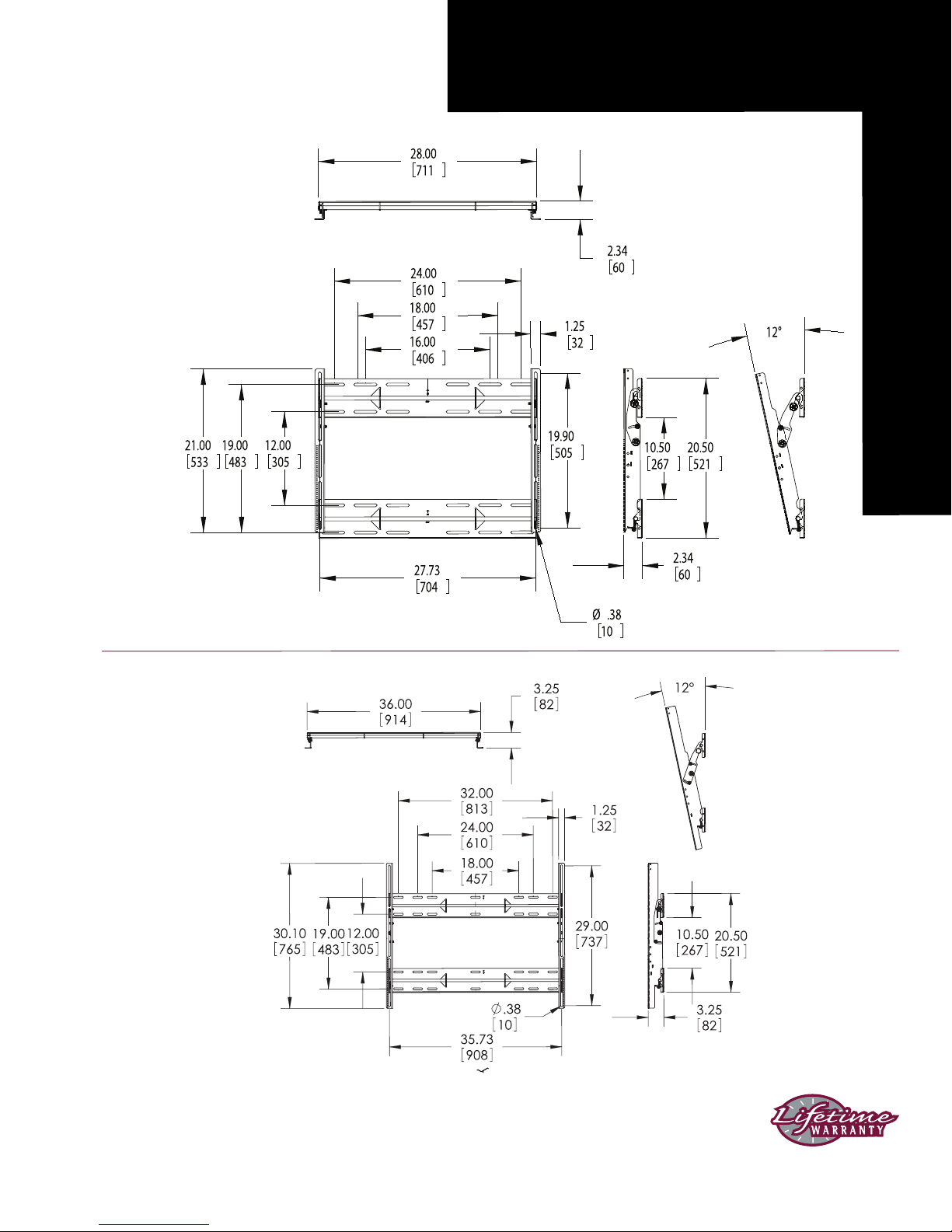

Dimensions are in inches and millimeters [mm].

Drawings are subject to change without notice.
