Installation Guide
AM300-B
Warning Statements
Weight Limit
Maximum Flat Panel Weight: 300 lbs. THE WALL STRUCTURE MUST BE CAPABLE OF SUPPORTING
AT LEAST FOUR TIMES THE WEIGHT OF THE FLAT PANEL. IF
NOT, THE WALL STRUCTURE MUST BE REINFORCED.
PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS MUST BE READ AND COMPLETELY
UNDERSTOOD. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE.
PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN MUST BE FOLLOWED, AS OUTLINED IN THESE
INSTALLATION INSTRUCTIONS. FAILURE TO DO SO COULD RESULT IN PROPERTY DAMAGE, SERIOUS PERSONAL INJURY, OR
EVEN DEATH.
SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE PROPER SAFETY
EQUIPMENT AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.
PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR
PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS OR
MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION
OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR
MODIFICATIONS.
At least two qualied people should perform the assembly procedure. Personal injury and/or property damage can result from dropping or
mishandling the at panel.
If mounting to wall studs or ceiling studs, make sure that the mounting screws are anchored into the center of the wall studs or ceiling studs.
Use of an edge-to-edge stud nder is recommended.
It is recommended that a maximum of 5/8” plaster board be used when mounting to wooden studs.
Be aware of the mounting environment. If drilling and/or cutting into the mounting surface, always make sure that there
are no electrical wires in wall. Cutting or drilling into an electrical line may cause serious personal injury.
Make sure there are no water or natural gas lines inside the wall where the mount is to be located. Cutting or drilling into a water or gas line
may cause severe property damage or personal injury.
This product is intended for indoor use only. Use of this product outdoors could lead to product failure and/or serious personal injury.
Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of impact.
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
Installation Guide
AM300-B
Page 2
M6 or 1/4"
Wood Drill bit
3/8" Masonry
Drill bit
13mm or 1/2"
Socket
Swingout Mount Universal Bracket
Bar
5/32" Allen
Wrench
14mm Socket Level
Mounting
Bracket
Griplate™
Washer
5/16" Flat
Washer
Universal
Spacers
Thread Depth
Indicator
(Supplied)
Extension
Adapter
M8 Nylon Nut
5/16" x 3"
Hex Lag
M4 x 16mm M4 x 20mm M4 x 30mm
M6 x 16mm
M8x 16mm M8 x 20mm M8 x 30mm
M10 x 30mm
M6 x 20mm M6 x 30mm
x1 x1 Pair
x8
x4
x4
x4 x4 x4
x8x4 x4 x4
x1
x1
x1 x1x4 x4 x4
x4
x4 x1
x4
x4
Finned
Anchor
Maximum Flat Panel Weight:
300 lb. / 136 kg.
Required for installation
Included Components:
Installation Guide
AM300-B
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 Page 3
Mount Orientation
Nose Piece Orientation
Left-Hand Swingout Orientation
Right-Hand Swingout Orientation
Tension Bolt Nuts
and Washers
Tension Bolt Nuts
and Washers
Tension Bolts
Tension Bolts
Nose Piece
Nose Piece
The Nose Piece consists of four parts that must stay together in the order that they were manufactured. If they become separated during
any of the Nose Piece Orientation steps, re-assemble the parts in the order shown below.
Outer Radial Bearing
Outer Radial Dish
Inner Radial Dish
Inner Radial Bearing
Proceed to the “Wood Stud Installation” section if installing on a wood stud surface. The drywall must be at least 1/2” thick.
Proceed to the “Concrete Installation” section if installing onto a concrete surface.
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
Installation Guide
AM300-B
Page 4
Left-Hand Swingout Arm Orientation Right-Hand Swingout Arm Orientation
Nose Piece
Upright Orientation

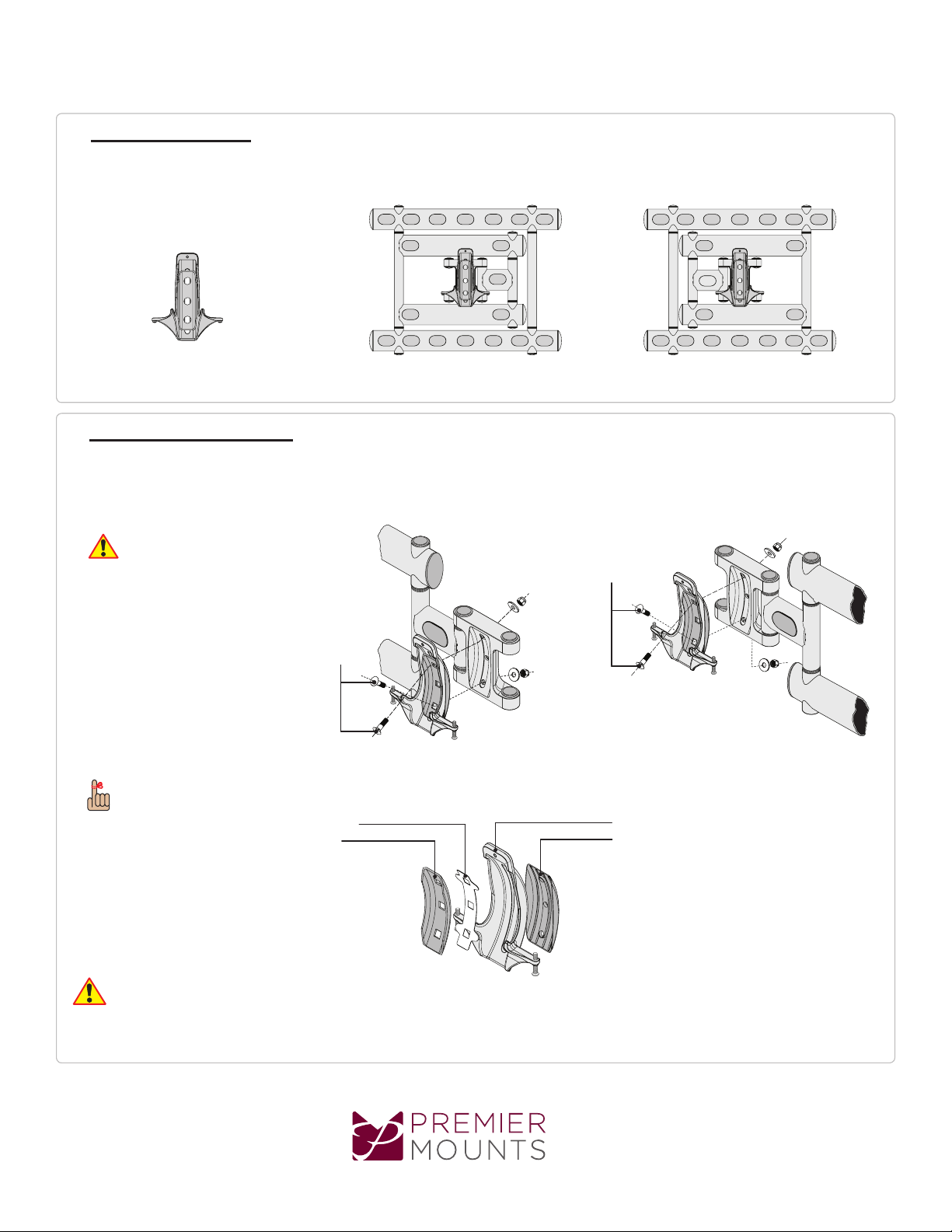

Swingout Arm can be oriented to open from either the left-hand or right-hand side. Simply invert and re-orient the Nose Piece.
Proceed to the “Nose Piece Orientation” section.
1) Remove the Nose Piece by removing the tension bolts, tension bolt nuts, and washers.
2) Detach the Nose Piece assembly, rotate it 180°, And place it back onto your Swing out Arm.
3) Slide the tension bolts back into the holes and attach the tension bolts nuts and washers from the backside of the Nose Piece Assembly.
4) Tighten the tension bolts.
Do not overtighten the tension bolts.
Secure the mount to two (2) wall studs with a minimum of four
(4) 5/16" x 3" Hex Lag into the studs.
XX
Minimum of two (2) 2x4 wood stud to be used
Do not overtighten.
Wood Installation
Two people are recommended for this step; one person to level
the Mount and another person to mark the wall stud location.
Drill a “pilot hole” in the center of the upper right mark using a 1/4" drill
bit and power drill.
Only use a 1/4" drill bit when drilling pilot holes.
XX
Install a minimum of four mounting points. Use a 5/16" washer on each hex lag.
A or B mounting points are a must. The other two can be in any C locations.
Left-Hand Swingout Arm Orientation Right-Hand Swingout Arm Orientation
Pivot
Side
Pivot
Side
A B
A B
C C
C C
B A
B A
C C
C C
C C
C C

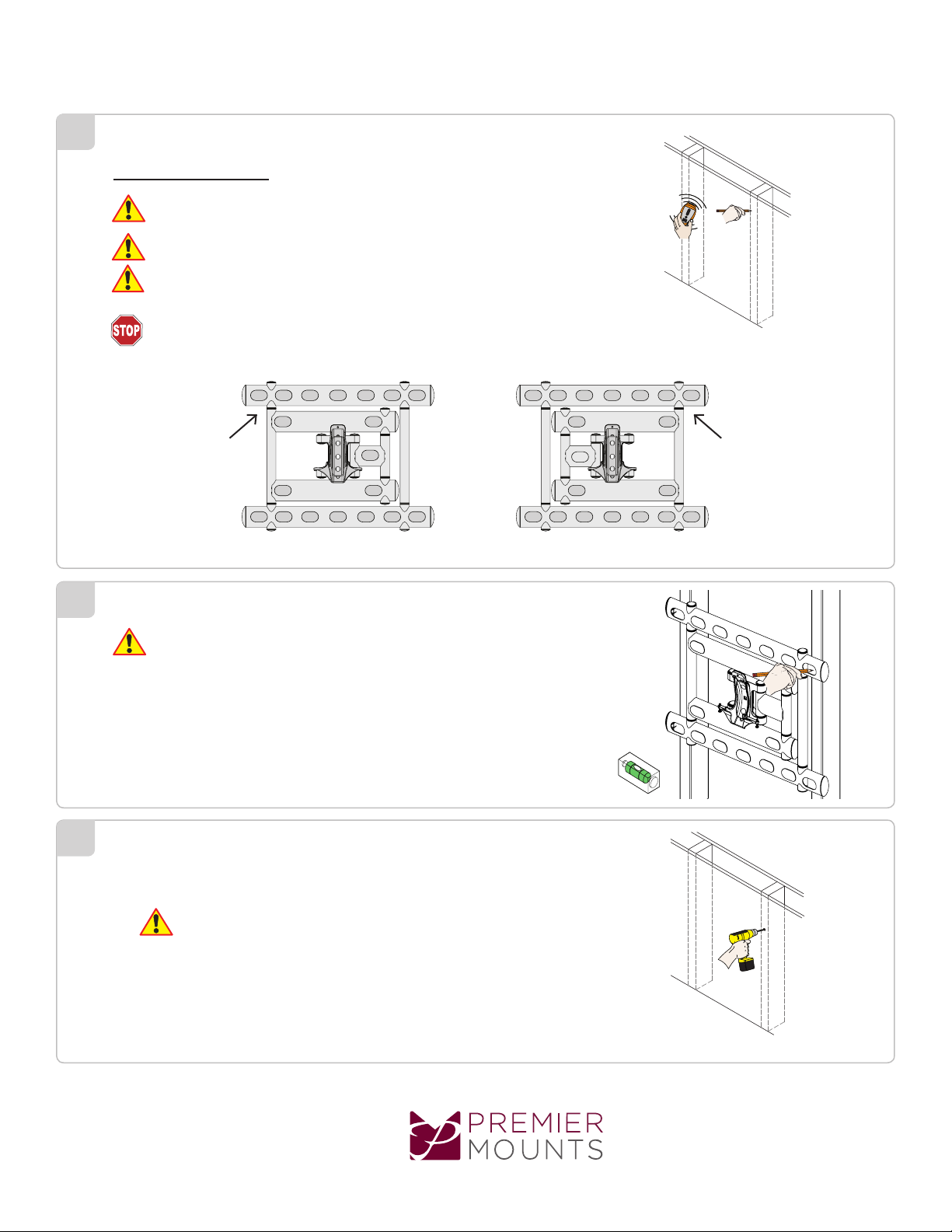

1) Place the mount against the wall in the desired viewing location.
2) Adjust the mount to align the mount slots in the wall plate with the
center of the wall studs.
3) Level the mount.
4) Use a pencil to mark the upper right mounting location along the center
of the wall stud.
Installation Guide
AM300-B
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 Page 5
1
2
3

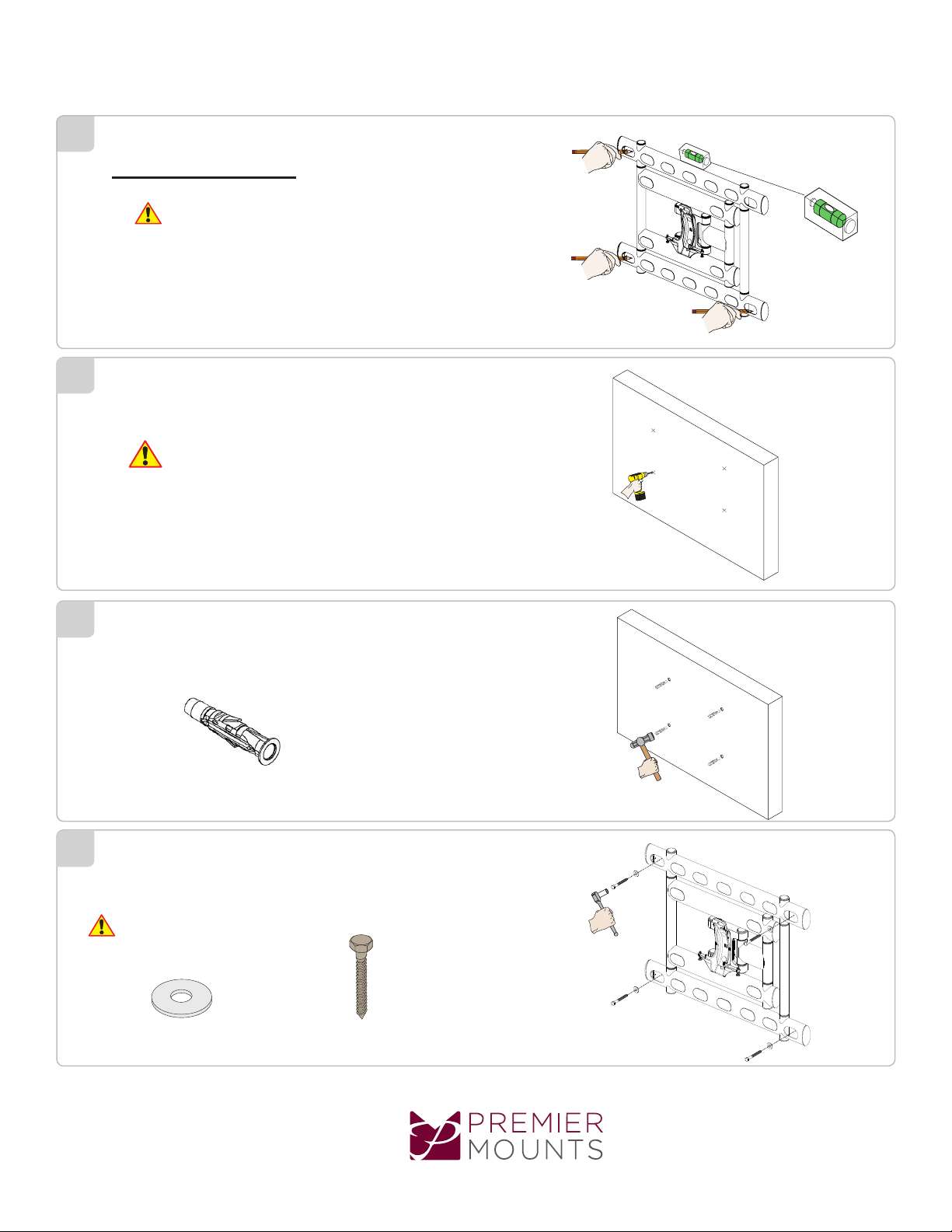

1) Place the Mount against the wall and align it with the pilot hole.
2) Insert one (1) 5/16"x 3˝ Hex lag and one (1) 5/16" washer into the
upper right pilot hole.
3) Use a socket wrench and a 1/2" socket to tighten the hex lag.
Do not overtighten the hex lag.
1) Level the wall plate.
2) Use a pencil to mark the remaining three (3) mounting locations
along the center of each wall stud.
Two people are recommended for this step; one person to level
the wall plate and another person to drill the pilot holes.
Drill a “pilot hole” in the center of each of the marks with a
power drill and a 1/4" drill bit.
Only use 1/4" drill bit when drilling the pilot holes.
1) Insert one (1) 5/16" x 3" Hex Lag and one (1) 5/16" washer into each pilot
hole
2) Tighten all hex lags using a socket wrench and 1/2" socket.
Do not overtighten the hex lag when attaching the mount to the wall.
Improper installation may result in personal injury or property damage.
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
Installation Guide
AM300-B
Page 6
4
5
6
7
Two people are recommended for this step: one
person to level the wall plate and another person to
mark the mounting locations.
Concrete Installation
5/16" Flat Washer 5/16" x 3" Hex Lag
x4 x4
Insert the hex lags and washers into the Finned anchors.
Tighten all hex lags using a socket wrench and 1/2″ socket.
Do not over tighten the hex lags.
Installation Guide
AM300-B
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 Page 7
Drill four (4) pilot holes of each mark using a drill and 3/8”
masonary drill bit. Drill 3 inches deep.
Only use a 3/8" masonary drill bit when drilling pilot holes.
Insert a Finned Anchor into each hole. Lightly tap each Finned
Anchors into place with a hammer.
Finned Anchor
x4
8
9
10
11
Small Straw
or Toothpick Depth Plus 1/8” Allowance
Mark
Depth Plus 1/8” Allowance
Mark
Small Straw or Toothpick
Marking the 1/8”
Allowance
Account for the bracket, spacer and Griplate™ Depths when
using the Thread Depth Indicator to measure the thread
depth of the at panel.
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
Installation Guide
AM300-B
Page 8
Selecting the Mounting Hardware
1) Insert a small straw or toothpick into the threaded inserts found on the
back of the at panel.
2) Use a pencil to mark the depth of the threaded insert on the small straw
or toothpick.
3) Mark the straw or toothpick 1/8" above the depth of the threaded insert,
as shown in Figure 1.
4) Insert the small straw or toothpick into the remaining threaded inserts to
compare verify their depth using the straw or toothpick's 1/8 allowance mark.
5) Locate the correct diameter screw for the threaded insert.
6) Test each size of the screws provided.
The correct screws should thread easily into the mounting point and not
pull out when tension is applied.
If the screw selected is longer than the 1/8" allowance
mark on the small straw or toothpick, as shown in Figure
2 and Figure 3, do not use this screw. The screw length
must not bypass the mark.
12
Universal Spacer Installation (Optional)
Griplate™ Washer Installation
Premier Mounts’ Griplate™ washers are designed to accommodate the
various M4, M5, M6 and M8 hole sizes required by at panels.
Do not place excessive pressure on the back of the at panel, as
this may damage your at panel.
The Griplate™ washer must be installed between the head of the
mounting screw and the mounting bracket as shown.
The dimples on the Griplate™ washers must be oriented as
follows:
- The Griplate™ Washers installed at the top of the at panel must
have the points of the dimples facing away from the at panel.
- The Griplate™ Washers installed at the bottom of the at panel must
have the points of the dimples facing towards the at panel.
- Recessed mount points?
- Uneven mounts points?
- A curved back?
- Any obstruction near the mount point?
If Yes, install the Universal Spacer. Proceed to the "Universal Spacer
installation" section.
If No, skip to the "Mounting Bracket Installation" section.
Flat Panel
Griplate™Washer
Universal Spacer
Mounting Bracket
Mount Point
Mounting Screw
M8
M6
M5
M4
Griplate™
Flat Panel
Mount Point
Bracket
Top Griplate™
Dimple Orientation
Bottom Griplate™
Dimple Orientation
1˝ ¼˝
Universal Spacers allow the user to attach the mounting bracket
to at-panels which have recessed or uneven mount points. Each
Universal Spacer adds 1/4” to the distance between the mounting
bracket and the at-panel.
The Universal Spacers must be stacked and oriented as
shown.
The Universal Spacers must only be installed between the
mounting bracket and the at-panel.
Does the at panel have:
Installation Guide
AM300-B
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 Page 9
13

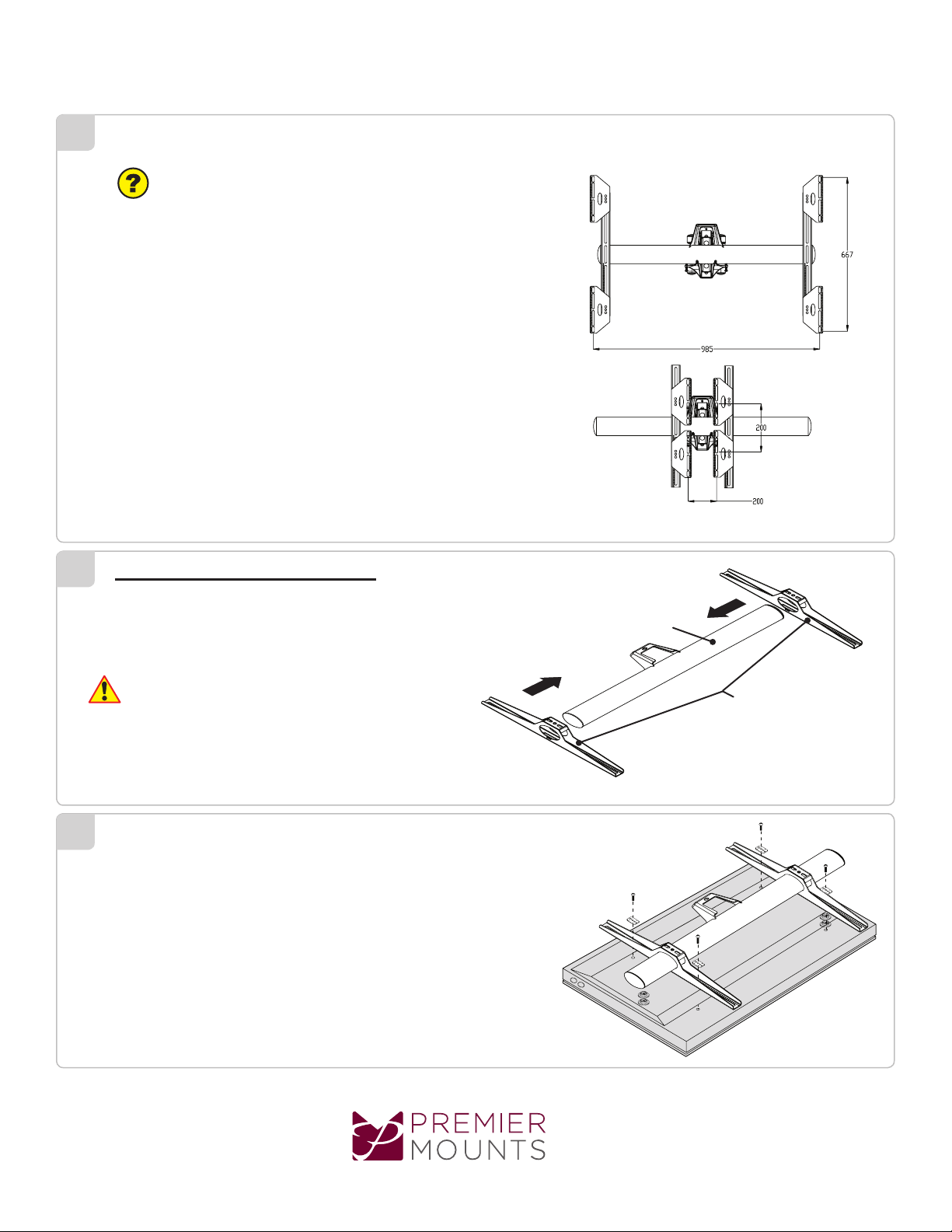

Does the at panel have a mount pattern for the mount points greater
than 506mm high x 876mm wide?
If No, proceed to the “Universal Bracket Installation” section.
If Yes, proceed to the “Adapter Plate Installation (Optional)” section.
The Adapter Plates allow the mount to accommodate varies mount patterns.
Without Adapters:
Minimum: 240mm x 120mm
Maximum: 506mm x 876mm
With Adapters:
Minimum: 200mm x 200mm
Maximum: 985mm x 667mm
Universal Bracket
Universal Brackets
Universal Bracket Installation
1) Place the Universal Bracket Bar and the Universal Brackets on a at surface.
2) Slide the Universal Brackets onto the Universal Bracket Bar with the set
screws facing up.
1) Place the at panel on a soft, at surface, face-down.
2) Place universal spacers over pointing points, as determined in the "Universal
Spacer Installation" section.
3) Place the Universal Bracket assembly on the back of the display, with the
Universal Brackets resting directly over the at panel mount points.
4) Place a Griplate™ Over each mount point and secure them using the mounting
hardware determined in the "Selecting the Mounting Hardware" section.
Do not tighten the set screws that are located on the
back of each Universal Bracket.
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
Installation Guide
AM300-B
Page 10
14
15
16
Andere Handbücher für AM300-B
1
Inhaltsverzeichnis
Andere Premier Mounts TV-Halterung Handbücher
Premier Mounts
Premier Mounts ECM-D70T Bedienungsanleitung
Premier Mounts
Premier Mounts CTM-MS4 Bedienungsanleitung
Premier Mounts
Premier Mounts Rotary series Bedienungsanleitung
Premier Mounts
Premier Mounts AM500-U Bedienungsanleitung
Premier Mounts
Premier Mounts 7170-0978 Series Bedienungsanleitung
Premier Mounts
Premier Mounts PWM-F110 Bedienungsanleitung
Premier Mounts
Premier Mounts LPFM5080 Bedienungsanleitung
Premier Mounts
Premier Mounts INW-42 Bedienungsanleitung
Premier Mounts
Premier Mounts CTM-33 Bedienungsanleitung
Premier Mounts
Premier Mounts AM250 Bedienungsanleitung
Premier Mounts
Premier Mounts PaneLock Bedienungsanleitung
Premier Mounts
Premier Mounts MM-EP15 Bedienungsanleitung
Premier Mounts
Premier Mounts PSD-TTS/B Bedienungsanleitung
Premier Mounts
Premier Mounts MVW46 Bedienungsanleitung
Premier Mounts
Premier Mounts GB-INWAVP Bedienungsanleitung
Premier Mounts
Premier Mounts CTM-200 Bedienungsanleitung
Premier Mounts
Premier Mounts PWM-503 Bedienungsanleitung
Premier Mounts
Premier Mounts PSD-BW Bedienungsanleitung
Premier Mounts
Premier Mounts XUF-1330L Bedienungsanleitung
Premier Mounts
Premier Mounts CTM-MS2 Bedienungsanleitung
