Premier Mounts CTM-MS2 Bedienungsanleitung
INSTALLATION MANUAL
CTM-MS2
Premier Mounts
3130 E. Miraloma Avenue
Anaheim, CA 92806
Phone: (800) 368-9700 Fax: (800) 832-4888
IN-CTMMS2.R2
PBL-110 Projector Mount
Page - 2 - Installation Manual
CTM-MS2
Installation Manual Page - 3 -
Table of Contents
Warning Statements ........................................................................................................................................- 4 -
Parts List ...........................................................................................................................................................- 5 -
Installation Tools ..............................................................................................................................................- 5 -
Mounting Bracket Installation .......................................................................................................................- 9 -
CTM-MS2 Installation ..................................................................................................................................- 12 -
Installing the Flat Panel Display (CTM-MS2) ............................................................................................- 14 -
Technical Specifications ................................................................................................................................- 17 -
Warranty ........................................................................................................................................................- 18 -
Contact Premier Mounts ...............................................................................................................................- 18 -
Notes ................................................................................................................................................................- 19 -
CTM-MS2
Page - 4 - Installation Manual
Warning Statements
WARNING: THE WALL STRUCTURE MUST BE CAPABLE OF SUPPORTING 160 LBS. IF NOT, THE WALL
STRUCTURE MUST BE REINFORCED. PROPER INSTALLATION PROCEDURE BY A QUALIFIED
SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUCTIONS, MUST BE
ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY, OR EVEN
DEATH.
WARNING: SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE INSTALLATION OF
THIS PRODUCT. USE PROPER SAFETY GEAR AND TOOLS FOR THE INSTALLATION
PROCEDURE TO PREVENT PERSONAL INJURY.
WARNING: PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS
SHOULD BE READ AND COMPLETELY UNDERSTOOD. THE INSTALLATION INSTRUCTIONS
MUST BE READ TO PREVENT PERSONAL INJURY AND PROPERTY DAMAGE. KEEP THESE
INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE
REFERENCE.
Indicates that the power plug is to be
disconnected from the power outlet.
Contact Premier Mounts with any
questions.
Safety precautions must be taken at all
times.
Warning and Caution statements.
Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to
do so could result in damage to the flat panel display and/or damage to the mounting surface.
Do not install near heater, fireplace, direct sunlight, air conditioning or any other source of direct
heat energy. Failure to do so may result in damage to the flat panel display and could increase the
risk of fire.
At least two qualified people should perform the installation procedure. Injury and/or damage can
result from dropping or mishandling the flat panel display.
CTM-MS2
Installation Manual Page - 5 -
Parts List
NOTE: This wall mount is shipped with all proper installation hardware and components. Make sure that
none of these parts are missing and/or damaged before beginning installation. If there are parts
missing and/or damaged, please stop the installation and contact Premier Mounts
(800-368-9700).
WM4000 Wall
Plate (Qty 1)
Mounting
Brackets
(Qty 2)
5/16” Flat
Washers
(Qty 6)
5/16” x 3” Lag
Bolts (wooden
studs only) –
(Qty 6)
M6 x 30mm
Lateral Shift
Locking Screws
(Qty 2)
Griplates™
(Qty 8)
M6 x 12mm
Safety Knobs
(Qty 2)
Thread Depth
Indicator
Installation Tools
Phillips Head Screw Driver Soft Material/ Blanket 5/16” Socket and Wrench
Pencil Tape Measure Drill Gun
Level (Supplied)
CTM-MS2
Page - 6 - Installation Manual
M4 x 25
M5 x 20
M5 x 50
M8 x 20
M6 x 30
(Qty 6)
(Qty 4)
(Qty 6)
(Qty 4)
(Qty 2)
M4 x 16 (Qty8)
(Qty 8)
M5 x 12
M5 x 16 (Qty 6)
M5 x 25 (Qty 4)
M6 x 12 (Qty8)
M8 x 25 (Qty6)
M8 x 30 (Qty 6)
M8 x 35 (Qty 4)
M6 x 20 (Qty6)
M8 x 70 (Qty 4)
CTM-MS2
Installation Manual Page - 7 -
Nylon spacers and flat washers actual size
NOTE: The nylon spacers may be stacked to achieve proper spacing.
1/4" Nylon spacers
5/16" Flat washers
(metal)
1" Nylon spacers
1/4" Nylon spacers
9/16" Nylon spacers
(large)
(small)
1/2" Nylon spacers
(large) Nylon sleeves
(Qty 6)
(Qty 12)
(Qty 6)
(Qty 6)
(Qty 6)
(Qty 6)
(Qty 4)
CTM-MS2
Page - 8 - Installation Manual
Thread Depth Indicator
1. Insert the thread depth indicator (supplied) through the thread inserts found on the back of the flat
panel to make sure the inserts measure the same full depth and mark it (Figure 1).
2. Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied).
3. If your selected screw is longer than the marking on the thread depth indicator, DO NOT USE this screw.
4. The screw length must not bypass the marking. Select another screw size (Figure 2 and 3), until you
find one that comes closest to your mark without going past.
Figure 1
Figure 2 Figure 3
Marking the depth
Thread depth
indicator
Thread insert
Inverted flat panel
display
Screw
Marking
Thread depth
indicator
Screw Thread depth
indicator
Marking
CTM-MS2
Installation Manual Page - 9 -
Mounting Bracket Installation
NOTE: Proper installation procedure by qualified personnel as outlined in the installation instructions must
be adhered to. Failure to do so could result in serious personal injury and possible damage to the
flat panel.
WARNING: INVERT THE FLAT PANEL PLACE IT ON A SOFT, FLAT SUFRACE TO PREVENT DAMAGE TO
THE FLAT PANEL. USE A BLANKET, FOAM, ETC. FAILURE TO DO SO WILL RESULT IN
DAMAGING THE FLAT PANEL. DO NOT LAY THE FLAT PANEL ON THE FLOOR WITHOUT ANY
PROTECTION TO THE GLASS. THE FLAT PANEL IS HEAVY AND FRAGILE. AT LEAST (2)
QUALIFIED PERSONNEL ARE STRONGLY RECOMMENDED FOR INSTALLATION OF THIS
PRODUCT. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE
TO THE FLAT PANEL.
1. Once the flat panel is inverted, use a measuring tape to find the center of your flat panel measuring
from outside to outside of the chassis (Figure 4).
2. Using a pencil lightly mark the center of your flat panel (Figure 5).
C
L
L
C
Figure 4 Figure 5
Top of flat panel
Measuring tape
Inverted flat panelBottom of flat panel
Inverted flat panel
Mark the center
of the flat
p
anel
CTM-MS2
Page - 10 - Installation Manual

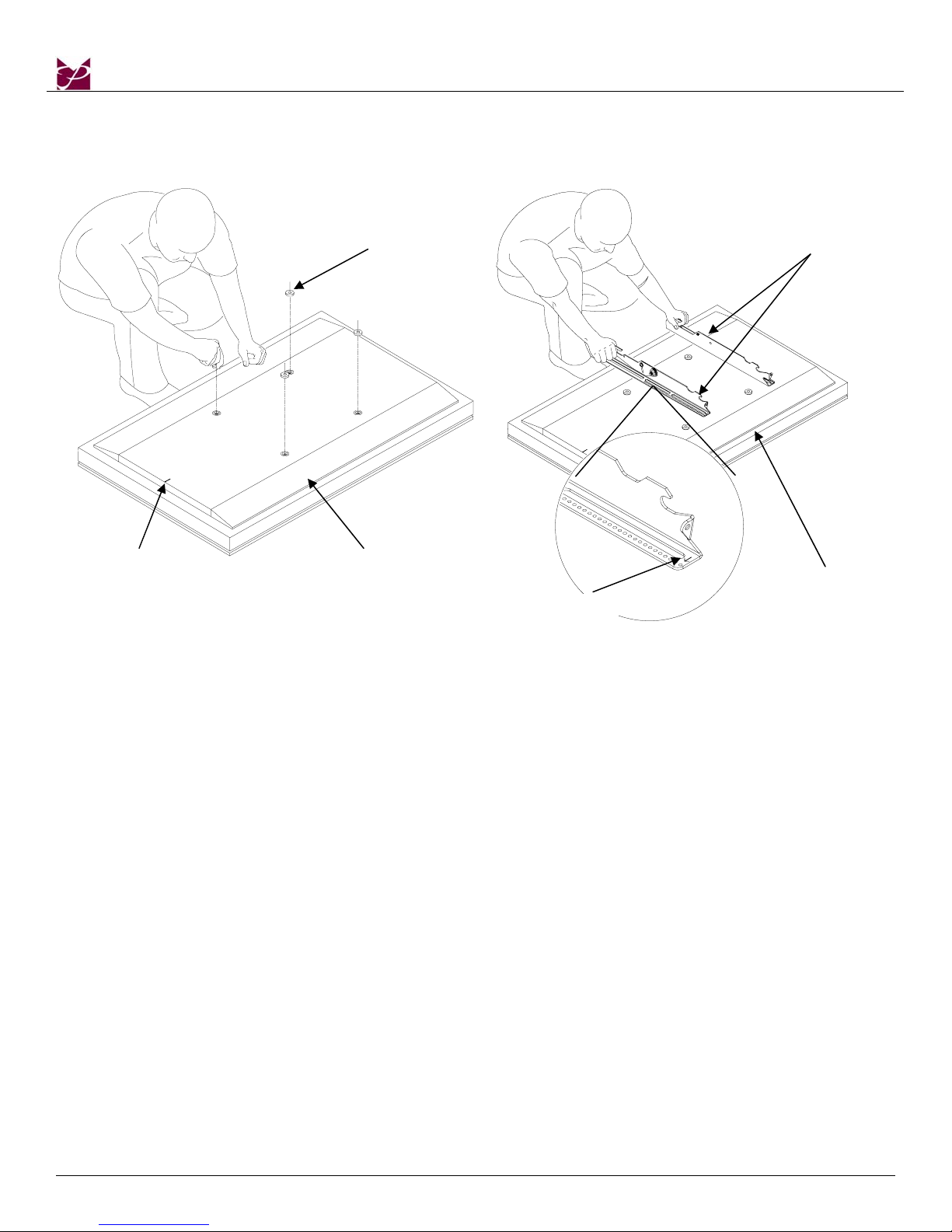

3. Install the nylon spacers (if needed) to the mounting points on the flat panel (Figure 6).
4. Lay the left and right mounting brackets (stamped arrows facing out) - (Figure 7).
Figure 6 Figure 7
5. Match the center of viewing guide with the centerline you marked in Step 1 (Figure 8).
6. The mounting brackets are designed with a center of viewing guide on the outside (Figure 9).
Nylon Spacers, If Applicable
Inverted Flat Panel
Center Mark
Mounting Brackets
Bottom of Flat Panel
Arrows Facing Out
