Pressure Wave PWH2500 Bedienungsanleitung

Part No. A12496 Rev. 0 5/25/05

IMPORTANT

Please make certain that the

person who is to use this

equipment carefully reads and

understands these instructions

before operating.

Table of Contents

Safety Guidelines/Definitions .................2

Consumer Saftey Information ................2

Important Safety Instructions ..............2-5

Carton Contents ......................................6

Assembly Instructions .............................7

Operating Instructions ...................... 8-12

Maintenance ..........................................13

Storage ..................................................14

Trouble Shooting Guide .................. 15-16

Warranty ................................................18

Español ............................................ 19-36

Français ........................................... 37-56

Record All Information and attach sales

receipt here for future reference:

Purchase Date:_______________________

Serial #: _____________________________

Operation Manual

for model PWH2500

Pressure Washer

Do Not return this product to the

retailer! Questions? 1-800-888-2468

Learn more about your pressure

washer, get answers to frequently

asked questions, and register on

line at www.devap.com

2- ENG

A12496

IMPORTANT SAFETY INSTRUCTIONS

Do not operate this unit until you have read and understand this

Operators Manual and the Engine Owners Manual for Safety,

Operation, and Maintenance Instructions.

RISK OF EXPLOSION OR FIRE

WHAT CAN HAPPEN HOW TO PREVENT IT

• Spilled gasoline and it’s vapors can

become ignited from cigarette sparks,

electrical arcing, exhaust gases, and hot

engine components such as the mufﬂer.

• Shut off engine and allow it to cool before

adding fuel to the tank.

• Use care in ﬁlling tank to avoid spilling fuel.

Move pressure washer away from fueling

area before starting engine.

• Heat will expand fuel in the tank which

could result in spillage and possible ﬁre

explosion.

• Keep maximum fuel level ½" below top of

tank to allow for expansion.

• Operating the pressure washer in an ex-

plosive environment could result in a ﬁre. • Operate and fuel equipment in well venti-

lated areas free from obstructions. Equip

areas with ﬁre extinguisher suitable for

gasoline ﬁres.

READ AND SAVE THESE INSTRUCTIONS

This product may not be equipped with a spark arresting mufﬂer.

If the product is not equipped and will be used around ﬂammable

materials, or on land covered with materials such as agricultural crops, forest, brush,

grass, or other similar items, then an approved spark arrester must be installed and

is legally required in the state of California. It is a violation of California statutes

section 130050 and/or sections 4442 and 4443 of the California Public Resources

Code, unless the engine is equipped with a spark arrester, as deﬁned in section 4442,

and maintained in effective working order. Spark arresters are also required on some

U.S. Forest Service land and may also be legally required under other statutes and

ordinances.

Engine exhaust contains chemicals known, in certain quantities, to

cause cancer, birth defects or other reproductive harm.

CONSUMER SAFETY INFORMATION

SAFETY GUIDELINES - DEFINITIONS

Indicates an imminently

hazardous situation

which, if not avoided, will result in death

or serious injury.

Indicates a potentially

hazardous situation

which, if not avoided, could result in death

or serious injury.

Indicates a potentially

hazardous situation

which, if not avoided, may result in minor

or moderate injury.

Used without the safety

alert symbol indicates a

potentially hazardous situation which, if not

avoided, may result in property damage.

This manual contains information that is important for you to know and understand.

This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT

PROBLEMS. To help you recognize this information, we use the symbols below. Please

read the manual and pay attention to these symbols.

HAZARD

3- ENG A12496

• Materials placed against or near the

pressure washer can interfere with its proper

ventilation features causing overheating and

possible ignition of the materials.

• Never operate pressure washer in an area

containing dry brush or weeds.

• Mufﬂer exhaust heat can damage painted

surfaces, melt any material sensitive to

heat (such as siding, plastic, rubber, or

vinyl), and damage live plants.

• Always keep pressure washer a minimum of

four feet away from surfaces (such as houses,

automobiles, or live plants) that could be

damaged from muffler exhaust heat.

• Improperly stored fuel could lead to

accidental ignition. Fuel improperly

secured could get into the hands of

children or other unqualiﬁed persons.

• Store fuel in an OSHA approved container,

in a secure location away from work area.

• Use of acids, toxic or corrosive chemicals,

poisons, insecticides, or any kind of

ﬂammable solvent with this product could

result in serious injury or death.

• Do not spray ﬂammable liquids.

• Breathing exhaust fumes will cause

serious injury or death! Engine exhaust

contains carbon monoxide, an odorless

and deadly gas.

• Operate pressure washer in a well

ventilated area. Avoid enclosed areas such

as garages, basements, etc.

• Never operate unit in a location occupied

by humans or animals.

• Some cleaning fluids contain substances

which could cause injury to skin, eyes, or

lungs.

• Use only cleaning ﬂuids speciﬁcally recom-

mended for high pressure washers. Follow

manufacturers recommendations. Do not

use chlorine bleach or any other corrosive

compound.

RISK TO BREATHING

WHAT CAN HAPPEN HOW TO PREVENT IT

RISK OF EXPLOSION OR FIRE (continued)

HAZARD

WHAT CAN HAPPEN HOW TO PREVENT IT

• Your washer operates at ﬂuid pressures

and velocities high enough to penetrate

human and animal ﬂesh, which could

result in amputation or other serious injury.

Leaks caused by loose ﬁttings or worn

or damaged hoses can result in injection

injuries. DO NOT TREAT FLUID INJECTION

AS A SIMPLE CUT! See a physician

immediately!

• Never place hands in front of nozzle.

• Direct spray away from self and others.

• Make sure hose and ﬁttings are tightened

and in good condition. Never hold onto the

hose or ﬁttings during operation.

• Do not allow hose to contact mufﬂer.

• Never attach or remove wand or hose

ﬁttings while system is pressurized.

RISK TO FLUID INJECTION

HAZARD

WHAT CAN HAPPEN HOW TO PREVENT IT

• Injuries can result if system pressure is not

reduced before attempting maintenance or

disassembly.

• To relieve system pressure, shut off

engine, turn off water supply, and pull gun

trigger until water stops ﬂowing.

• Use only hoses and accessories rated

for pressure higher than your pressure

washer's PSI.

HAZARD

4- ENG

A12496

• Contact with hot surfaces, such as

engines exhaust components, could

result in serious burn.

• During operation, touch only the control

surfaces of the pressure washer. Keep

children away from the pressure washer

at all times. They may not be able to

recognize the hazards of this product.

• Spray directed at electrical outlets or

switches, or objects connected to an

electrical circuit, could result in a fatal

electrical shock.

• Unplug any electrically operated product

before attempting to clean it. Direct spray

away from electric outlets and switches.

RISK OF

ELECTRICAL SHOCK

HAZARD

WHAT CAN HAPPEN HOW TO PREVENT IT

RISK OF

ELECTRICAL SHOCK

RISK OF

ELECTRICAL SHOCK

RISK OF HOT

SURFACES

HAZARD

WHAT CAN HAPPEN HOW TO PREVENT IT

• Do not use acids, gasoline, kerosene,

or any other ﬂammable materials in this

product. Use only household detergents,

cleaners and degreasers recommended

for use in pressure washers.

• Wear protective clothing to protect eyes

and skin from contact with sprayed

materials.

• Use of acids, toxic or corrosive chemicals,

poisons, insecticides, or any kind of

ﬂammable solvent with this product could

result in serious injury or death.

RISK OF

CHEMICAL

BURN

HAZARD

WHAT CAN HAPPEN HOW TO PREVENT IT

• Fuel or oil can leak or spill and could

result in ﬁre or breathing hazard, serious

injury or death can result. Fuel or oil

leaks will damage carpet, paint or other

surfaces in vehicles or trailers.

• If pressure washer is equipped with a

fuel shut-off valve, turn the valve to the

off position before transporting to avoid

fuel leaks. If pressure washer is not

equipped with a fuel shut-off valve, drain

the fuel from tank before transporting.

Only transport fuel in an OSHA approved

container. Always place pressure washer

on a protective mat when transporting to

protect against damage to vehicle from

leaks. Remove pressure washer from

vehicle immediately upon arrival at your

destination.

RISK OF INJURY OR PROPERTY DAMAGE

WHEN TRANSPORTING OR STORING

HAZARD

WHAT CAN HAPPEN HOW TO PREVENT IT

5- ENG A12496

• Reactive force of spray will cause gun/

wand to kickback, and could cause the op-

erator to slip or fall, or misdirect the spray.

Improper control of gun/wand can result in

injuries to self and others.

• Do not overreach or stand on an unstable

support.

• Do not use pressure washer while

standing on a ladder.

• Grip gun/wand ﬁrmly with both hands.

Expect the gun to kickback when

triggered.

• If proper starting procedure is not

followed, engine can kickback causing

serious hand and arm injury.

• If engine does not start after two pulls,

squeeze trigger of gun to relieve pump

pressure. Pull starter cord slowly until

resistance is felt. Then pull cord rapidly

to avoid kickback and prevent hand or

arm injury.

• The spray gun/wand is a powerful clean-

ing tool that could look like a toy to a

child.

• Keep children away from the pressure

washer at all times.

RISK OF UNSAFE OPERATION

HAZARD

WHAT CAN HAPPEN HOW TO PREVENT IT

• Unsafe operation of your pressure washer

could lead to serious injury or death to

you or others.

• Do not use chlorine bleach or any other

corrosive compound.

• Become familiar with the operation and

controls of the pressure washer.

• Keep operating area clear of all persons,

pets, and obstacles.

• Do not operate the product when

fatigued or under the inﬂuence of alcohol

or drugs. Stay alert at all times.

• Never defeat the safety features of this

product.

• Do not operate machine with missing,

broken, or unauthorized parts.

• Never leave wand unattended while unit

is running.

RISK OF INJURY FROM SPRAY

HAZARD

WHAT CAN HAPPEN HOW TO PREVENT IT

• High velocity ﬂuid spray can cause

objects to break, propelling particles at

high speed.

• Light or unsecured objects can become

hazardous projectiles.

• Always wear ANSI approved Z87 safety

glasses.Wear protective clothing to protect

against accidental spraying.

• Never point wand at, or spray people or

animals.

• Always secure trigger lock when wand

is not in service to prevent accidental

operation.

• Never permanently secure trigger in pull

back (open) position.

6- ENG

A12496

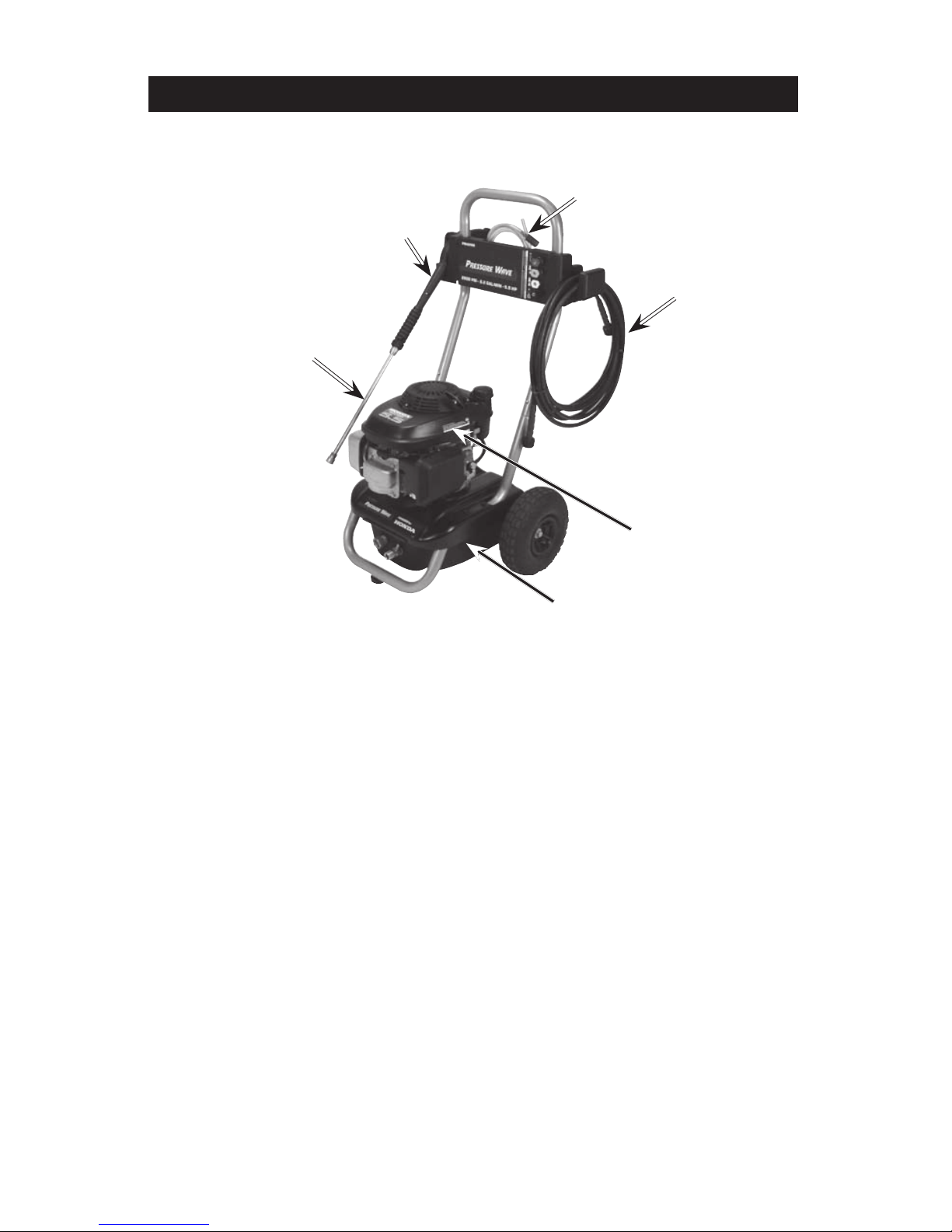

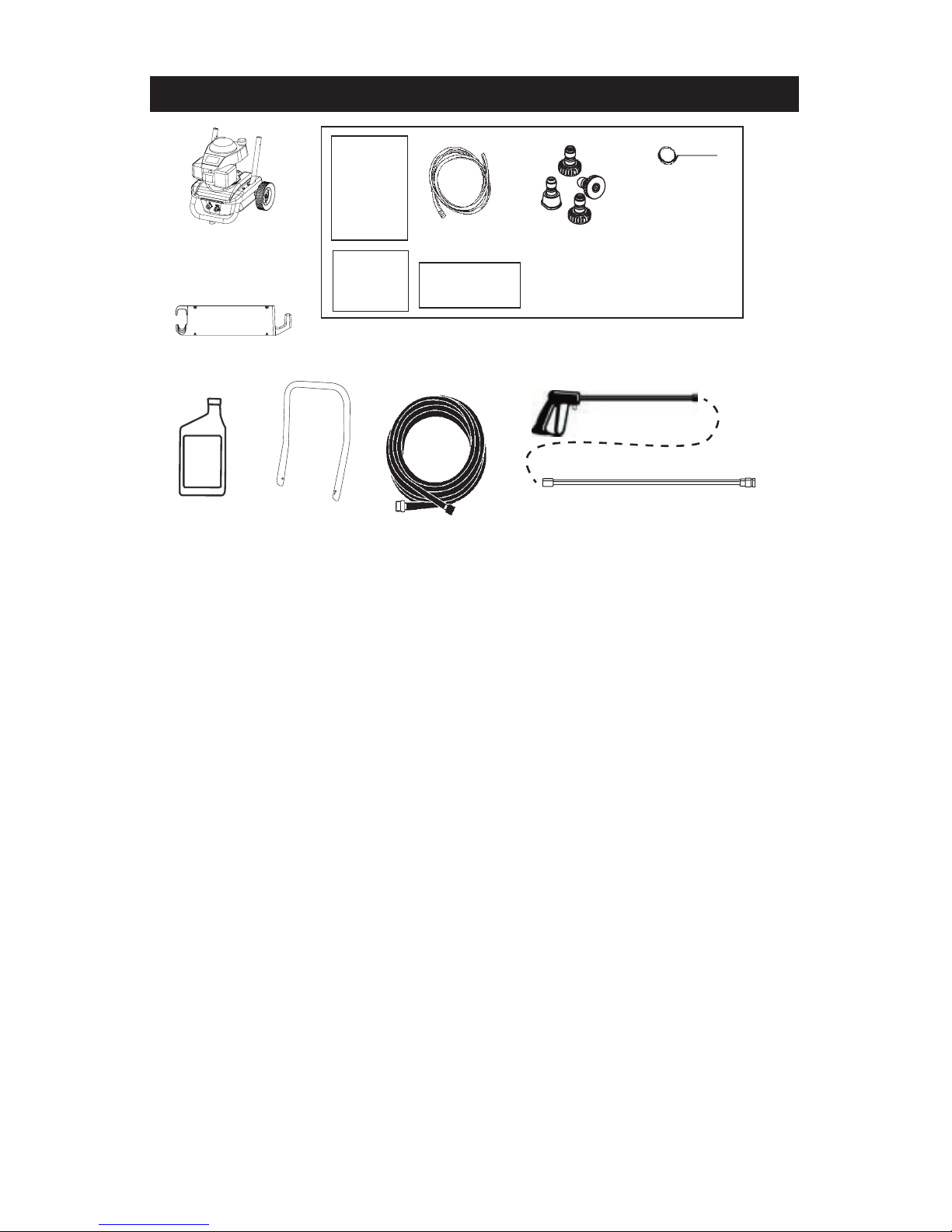

Handle

Bagged Parts

Engine Frame and

Wheel Assembly

High Pressure

Hose

Chemical

Hose

Engine

Oil

Spray Gun

Engine

Manual

Accessories Panel

Operation

Manual

CARTON CONTENTS

Grommet Kit

with Quick

Connect Nozzles

Quick Connect Spray Wand

Registration

card

Nozzle

Cleaning

Tool

7- ENG A12496

6. To Assemble Accessories

Panel

a. Remove top screws on

handle assembly.

b. Loosen bottom screws on

handle assembly.

c. Place grooves in accessories

panel assembly onto screws

and slide panel assembly

into place.

d. Place screws (removed

earlier) into the top holes and

secure accessories panel

assembly to handles. Do not

overtighten.

4. Connect wand to gun. Tighten

securely.

5. Attach high pressure hose to

gun. Tighten securely.

Loosen

Remove

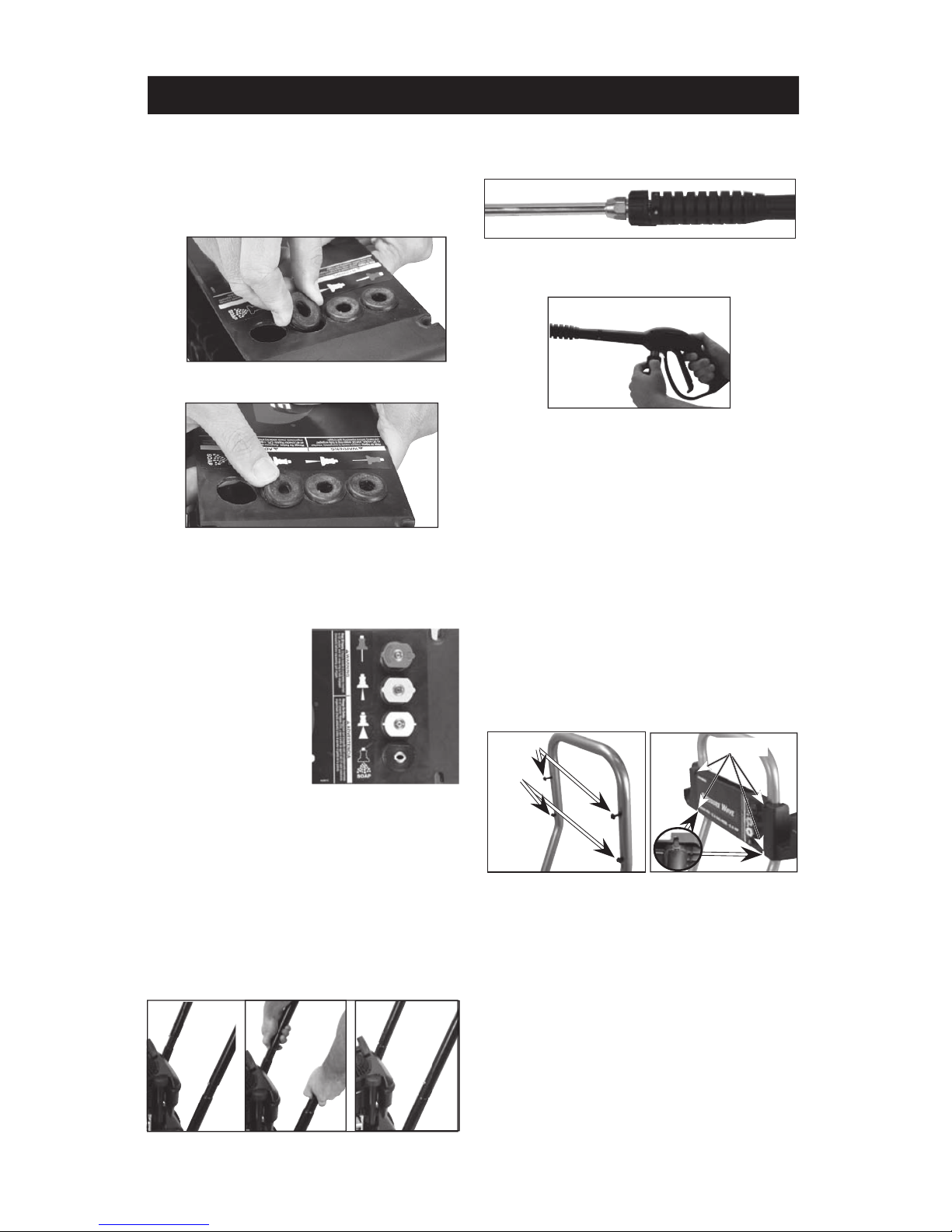

ASSEMBLY INSTRUCTIONS

Screws

1. To Assemble Quick Connect

Grommets:

a. Squeeze grommet and place

into hole, fitting groove to

rim.

b. Push grommet into place.

c. Repeat steps until all

grommets are assembled.

2. To Assemble Quick Connect

Nozzles:

a. Remove

five

colored

quick

connect

nozzles

from

plastic bag

and insert

them into correct grommet.

NOTE: Nozzles are color

coded to match colored

nozzles on panel. 7. Add engine oil (supplied)

to engine. Refer to Engine

Owners Manual supplied by

engine manufacturer for correct

procedure.

NOTE: There will be a slight amount

of oil in the engine from factory

testing.

3. Place handle assembly onto

frame, depress the snap buttons,

and slide the handle assembly

onto the frame until snap buttons

snap into place.

NOTE: The pump on this unit is

maintenance free and requires no oil,

if there is a problem with the pump

contact an Authorized Service Center.

8- ENG

A12496

OPERATING INSTRUCTIONS

BASIC ELEMENTS OF A

PRESSURE WASHER

High Pressure Pump (located inside

the shroud): Increases the pressure

of the water supply.

Engine: Drives the high pressure

pump.

High Pressure Hose: Carries the

pressurized water from the pump to

the gun and spray wand.

Spray Gun: Connects with spray

wand to control water flow rate,

direction, and pressure.

Quick Connect Spray Wand: Allows

the user to quickly change out high-

pressure nozzles. See How To Use

Spray Wand instructions in this section.

Chemical Hose: Feeds cleaning

agents into the pump to mix with the

water. See How To Apply Chemicals/

Cleaning Solvents instructions in this

section.

Compare the illustrations with your unit to familiarize yourself with the location

of various controls and adjustments. Save this manual for future reference.

Engine

High

Pressure

Hose

Spray Gun

Quick

Connect

Spray Wand

High Pressure Pump

(located inside the shroud)

BASIC ELEMENTS OF AN

ENGINE

Refer to the engine manual for

location and operation of engine

controls.

Choke Control: Opens and closes

carburetor choke valve.

Starter Grip: Pulling starter grip

operates recoil starter to crank

engine.

Fuel Valve Lever: Opens/closes

connection between fuel tank and

carburetor.

Engine Switch: Enables and disables

ignition system.

PRESSURE WASHER

TERMINOLOGY

PSI: Pounds per Square Inch. The

unit of measure for water pressure.

Also used for air pressure, hydraulic

pressure, etc.

GPM: Gallons Per Minute. The unit of

measure for the ﬂow rate of water.

Chemical

Hose

9- ENG A12496

READ AND UNDERSTAND ALL WARNINGS BEFORE STARTING UNIT

When using the high pressure setting, DO NOT allow the high

pressure spray to come in contact with unprotected skin, eyes,

or with any pets or animals. Serious injury can occur.

Your washer operates at ﬂuid pressures and velocities high enough to penetrate

human and animal ﬂesh, which could result in amputation or other serious injury.

Leaks caused by loose ﬁttings or worn or damaged hoses can result in injection

injuries. DO NOT TREAT FLUID INJECTION AS A SIMPLE CUT! See a physician

immediately!

NEVER ﬁll fuel tank when engine is running or hot. Do not

smoke when ﬁlling fuel tank.

NEVER ﬁll fuel tank completely. Fill tank to 1/2" below bottom of ﬁller neck

to provide space for fuel expansion. Wipe any fuel spillage from engine and

equipment before starting engine.

NEVER run engine indoors or in enclosed, poorly ventilated areas. Engine exhaust

contains carbon monoxide, an odorless and deadly gas.

DO NOT let hoses come in contact with very hot engine mufﬂer during or

immediately after use of your pressure washer. Damage to hoses from contact with

hot engine surfaces will NOT be covered by warranty.

NEVER pull water supply hose to move pressure washer. This

could damage hose and/or pump inlet.

DO NOT use hot water, use cold water only.

NEVER turn water supply off while pressure washer engine is running or damage to

pump will result.

DO NOT stop spraying water for more than two minutes at a time. Pump operates

in bypass mode when spray gun trigger is not pressed. If pump is left in bypass

mode for more than two minutes internal components of the pump can be

damaged.

If you do not understand these precautions, please call 1-800-888-2468 to

speak to a service representative for further instructions.

PRESSURE WASHER

OPERATING FEATURES

PRESSURE ADJUSTMENTS

The pressure setting is preset at the

factory to achieve optimum pressure

and cleaning. If you need to lower the

pressure, it can be accomplished by

these methods.

1. Back away from the surface

to be cleaned. The further away

you are, the less the pressure will

be on the surface to be cleaned.

2. Change to the 40º nozzle -

(white) this nozzle delivers a less

powerful stream of water and a

wider spray pattern.

DO NOT attempt

to increase pump

pressure. A higher pressure setting

than the factory set pressure may

damage pump.

CU: Cleaning Units. GPM multiplied by

PSI. GPM x PSI = CU

Bypass Mode: Allows water to

re-circulate within pump when the gun

trigger is not pulled.

Allowing the unit to

run for more than

two minutes without the gun trigger

pulled could cause overheating and

damage to the pump.

Chemical Injection System: Mixes

cleaners or cleaning solvents with

the water to improve cleaning

effectiveness.

Water Supply: All pressure washers

must have a source of water. The

minimum requirements for a water

supply are 20 PSI and 5 gallons per

minute.

10- ENG

A12496

Risk of Flying

Object could cause

risk of serious injury. Ensure nozzle

is completely inserted in QC socket,

and QC snap ring is fully engaged

(forward) before squeezing gun

trigger.

Risk of injection or

injury to person.

Do not direct discharge stream

toward persons, unprotected

skin, eyes, or any pets or animals.

Serious injury can occur.

The high pressure spray from your pressure washer is

capable of causing damage to surfaces such as wood,

glass, automobile paint, auto striping and trim, and delicate objects such as

ﬂowers and shrubs. Before spraying, check the item to be cleaned to assure

yourself that it is strong enough to resist damage from the force of the spray.

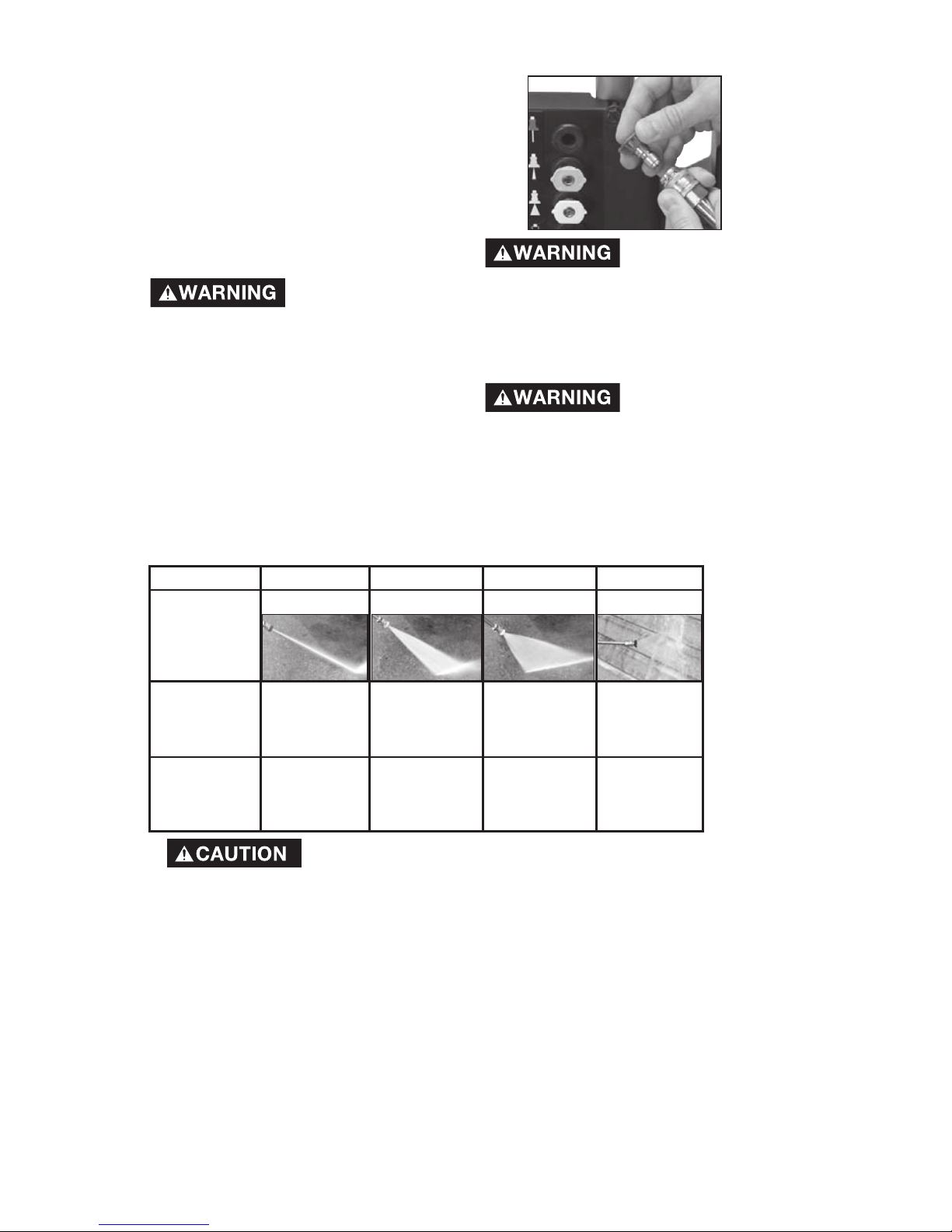

TO USE SPRAY WAND

The nozzles for the spray wand are

stored in nozzle holder on the panel

assembly. Colors on the panel identify

nozzle location and spray pattern. See

chart to choose the correct nozzle for

the job to be performed.

CHANGING NOZZLES ON SPRAY

WAND

Risk of Flying

Object could

cause risk of serious injury. DO

NOT attempt to change nozzles

while pressure washer is running.

Turn engine off before changing

nozzles.

1. Pull quick connect coupler back

and insert nozzle.

2. Release quick connect coupler

and twist nozzle to make sure it

is secure in coupler.

Nozzle Color Red Yellow White Black

Spray Pattern

0º 15º 40º low pressure

Uses

powerful

pinpoint for

very intense

cleaning

intense

cleaning of

small areas

covers wide

areas of

cleaning

applies

cleaning

solutions

Surfaces *

Metal or

concrete

DO NOT use

on wood

metal,

concrete, or

wood

metal,

concrete,

wood, or vinyl

metal,

concrete,

wood, or vinyl

Inhaltsverzeichnis

Sprachen:

Andere Pressure Wave Hochdruckreiniger Handbücher

Pressure Wave

Pressure Wave Pressure Wave A12495 Bedienungsanleitung

Beliebte Hochdruckreiniger Handbücher anderer Marken

Shark

Shark RG-232637 Bedienungsanleitung

Shakti Technology

Shakti Technology S3 Bedienungsanleitung

Kärcher

Kärcher K 4 Pure Bedienungsanleitung

Porter-Cable

Porter-Cable D25806-025-2 Bedienungsanleitung

REM POWER

REM POWER HDEm 662 Bedienungsanleitung

Landa

Landa HS-3000 Bedienungsanleitung

Craftsman

Craftsman 580.752270 Bedienungsanleitung

HIKOKI

HIKOKI AW 100 Bedienungsanleitung

Delco

Delco DC 1302 Bedienungsanleitung

Kärcher

Kärcher K 3 Full Control Bedienungsanleitung

BIEMMEDUE

BIEMMEDUE 120/10 - 170/13 Bedienungsanleitung

ARKSEN

ARKSEN 014-HG-14141-HR Bedienungsanleitung

Black & Decker

Black & Decker PW1700SPX Bedienungsanleitung

Kärcher

Kärcher 595 - SPARE Leitfaden

Kranzle

Kranzle B 10 200 Bedienungsanleitung

Stihl

Stihl RE 90 Bedienungsanleitung

Husky

Husky HU80911 Bedienungsanleitung

PowR-Quip

PowR-Quip PQ-2600 Bedienungsanleitung
