1
Introduction
Welcome to the Primare R20 MM-MC Amplifier! This chapter introduces you to
its key features, and explains how you can use it to get the best out of your
vinyl record collection.
WELCOME TO THE R20 MM-MC AMPLIFIER
If you have a precious collection of recordings on vinyl records, and your
system includes a high-quality turntable, tone arm, and pick-up cartridge, the
R20 MM-MC Amplifier provides the ideal interface between the low-level
output provided by the cartridge and the line-level inputs provided by a
modern sound system.
Moving-magnet or moving-coil cartridges
The R20 accepts either moving-magnet or moving-coil type cartridges, and the
gain and impedance can be adjusted for the optimum match between the
cartridge and preamplifier.
An additional increase in gain can be achieved by fitting an internal jumper
inside the unit, for use with a very low output moving-magnet cartridge.
USING THE R20 WITH OTHER PRIMARE PRODUCTS
Although the R20 is configured to match line-level inputs of any high-quality
preamplifier, it is ideal for use with the Primare A20 or A30.1 Integrated
Preamplifiers.
TECHNICAL SPECIFICATION
Gain MM: 35.5dB, 41.5dB with jumper
MC: 54dB
Output impedance 100Ω
RJAA accuracy ±0.2dB, 50Hz – 20kHz
Signal-to-noise MM: -80dB
MC: -75dB
Power consumption 9W
Dimensions (WxDxH) 215 x 275 x 75mm
Weight 4kg
§1 Introduction 17/4/02, 3:21 pm1
>Introduction
2
§1 Introduction 17/4/02, 3:21 pm2
>
3
Connecting the R20 MM-MC Amplifier
This chapter explains how to connect the R20 to the other components in your
system, using the connections on the back panel.
POWER CONNECTION
Warning: Before connecting power check that the required supply voltage,
indicated on the back panel, corresponds to your local AC supply. If a
different voltage is stated on the type plate do not connect the amplifier to the
mains power, and seek advice from your dealer.
Connect the mains power using the enclosed mains cable.
Note: Always disconnect the mains power before connecting or
disconnecting any of the cables.
OUTPUTS
Connect the R20 to the preamplifier or processor using the left and right phono
outputs using high-quality stereo phono leads.
INPUTS
Connect the left and right phono inputs to the cartridge outputs from your
turntable. Connect the ground terminal to the ground connection from your
turntable.

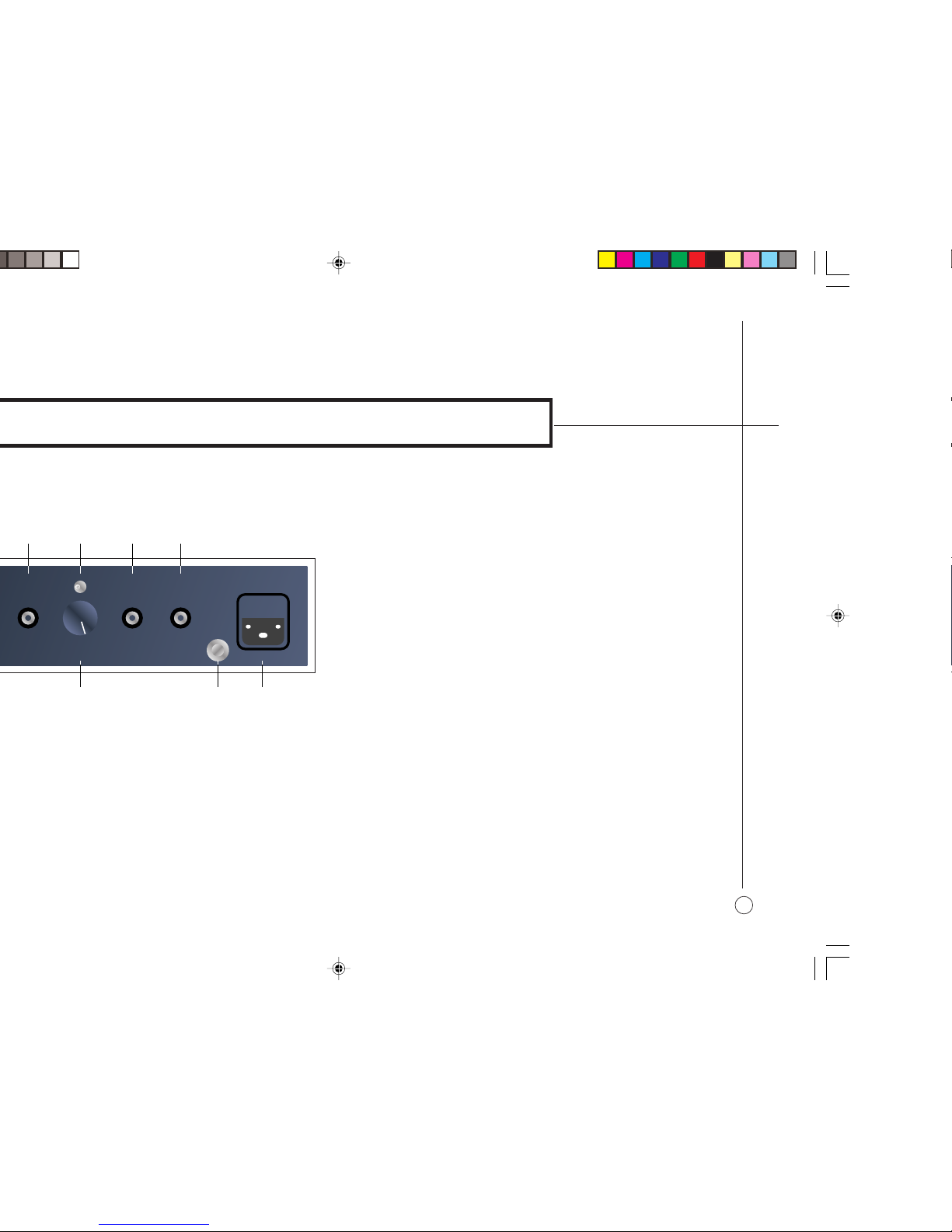

]A Right output.
]B Right input.
]C Moving-magnet or moving-coil
selection.
]D Left output.
RIGHT
INPUT IMPEDANCE
OUT IN
10 •
20 •
50 • • 100
• 200
• 47k
LEFT
OUT
MM MC
GND
IN
]F ]G ]H
]C ]D ]E]A ]B
]E Left input.
]F Input impedance selection.
]G Ground terminal.
]H Mains power input and fuse.
BACK PANEL CONNECTIONS
§2 Connecting 17/4/02, 3:21 pm3
>Connecting the R20 MM-MC Amplifier
4
SETTING UP
To set the input impedance
•Set the INPUT IMPEDANCE switch to the appropriate value; check the
specification of your cartridge for the correct setting.
To set the gain
•Set the switch on the back of the panel to MM or MC as appropriate.
With high-output moving-coil cartridges use the MM position.
Jumpers can be fitted internally to increase the gain in MM mode as described
below.
SWITCHING ON AND OFF
To switch on
•Use the switch under the left-hand edge of the front panel.
]A ]B
INCREASING THE GAIN IN MM MODE

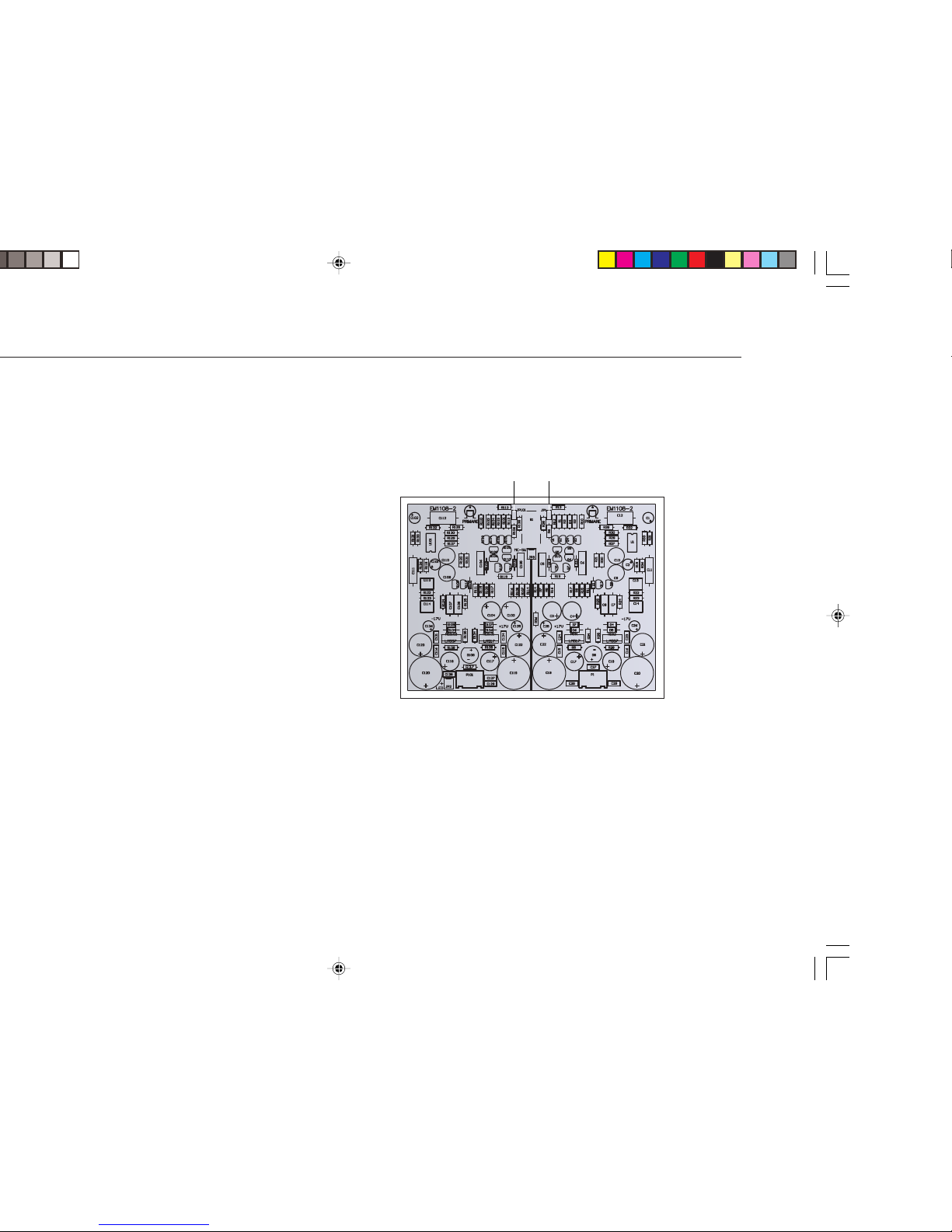

• Fit shorting links in positions ]A and ]B on the circuit board:
We recommend that your dealer carry out this operation.
