What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Assembly Manua l

Cam Tower Stand w/ Counterbalance

Accessory Tray

Plaorm Secon-2 with Locking Pivot Wheels

Plaorm Secon -1 with

Locking Pivot Wheel

Camera Support Plaorm

Cam Tower Stand w Counterbalance

(P-CTST-01)

2 x Screws 1x Spanner (Size:-17mm) 2x Allen Keys T-Type

(Size:-3/16”& 4mm)

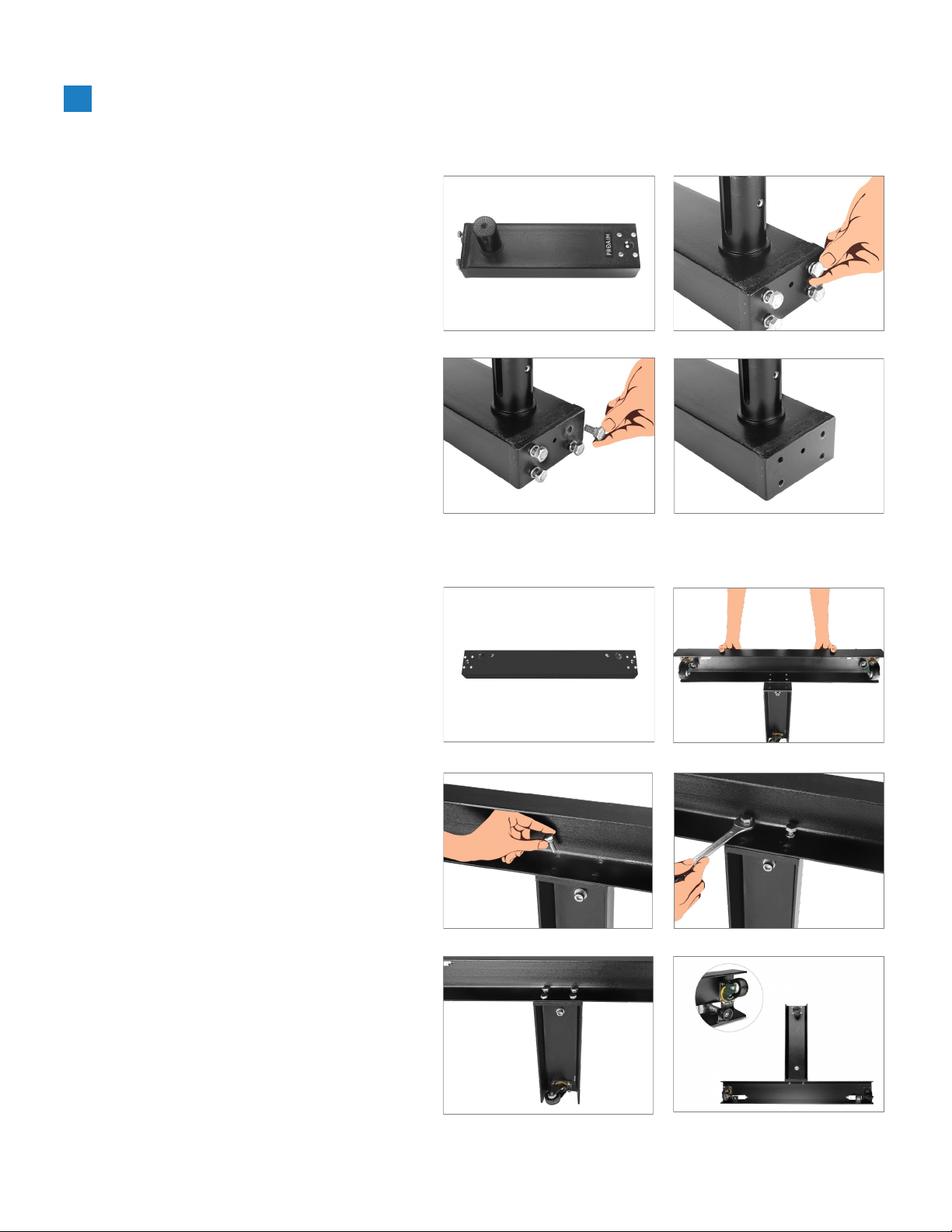

• Loose all the screws of platform selection-1

as shown in image.

Cam Tower Stand Setup

• Now all screw has been removed as you can

see in the image.

• Use removed screw to secure the platforms

together and tighten it by spanner.

• Now attach platform selection-with platform

selection-1.

Plaorm Secon-2 with Locking Pivot Wheels

Plaorm Secon -1 with Locking Pivot Wheel

• Now stand the platform on its wheel.

• Now mount tower stand on platform rod.

Cam Tower Stand w Counterbalance

• Secure the tower stand with the help of

provided Allen key (Size:3/16”).

• Aach supporter plaorm to counter

balanced column of cam tower stand.

• Screw it with the help of Allen key (Size:4mm).

• Remove screws from the boom of counter

balanced column.

Camera Support Plaorm

• Now place Accessory Tray with counter

balanced column as shown in image.

• Add screws to Accessory tray by the help of

Allen key (Size:4mm) to secure.

• The tray is properly aached.

Feature: It features a horizontal geared column

equipped with a camera head at one end & is

counterbalanced by weights on the other end; it

can easily be adjusted in height and reach to

achieve a desired shoong posion.

• Attach camera (Not included) to supporter

platform and secure it by rotating knob.

• Now open the crank lever from supporter

platform.

• You can rotate crank to the rod of supporter

platform.

Accessory Tray

Camera Support Plaorm

• Open the knob of counter balanced knob to

adjust height of supporter plaorm and

secure it by closing knob back again.

YOUR PROAIM CAM TOWER STAND W COUNTERBALANCE

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

support and care unl you use our product.
