PROAIM QR-ELMG-01 Bedienungsanleitung

Electro Magnet Quick Release Mitchel

Mount (QR-ELMG-01 )

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Assembly Manua l

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

What’s In The Box

Mounng Plate

(Top Mount & Boom Mount)

Wrench D-Type Cable Baery Plate with

Clamp (Front Side

& Back Side)

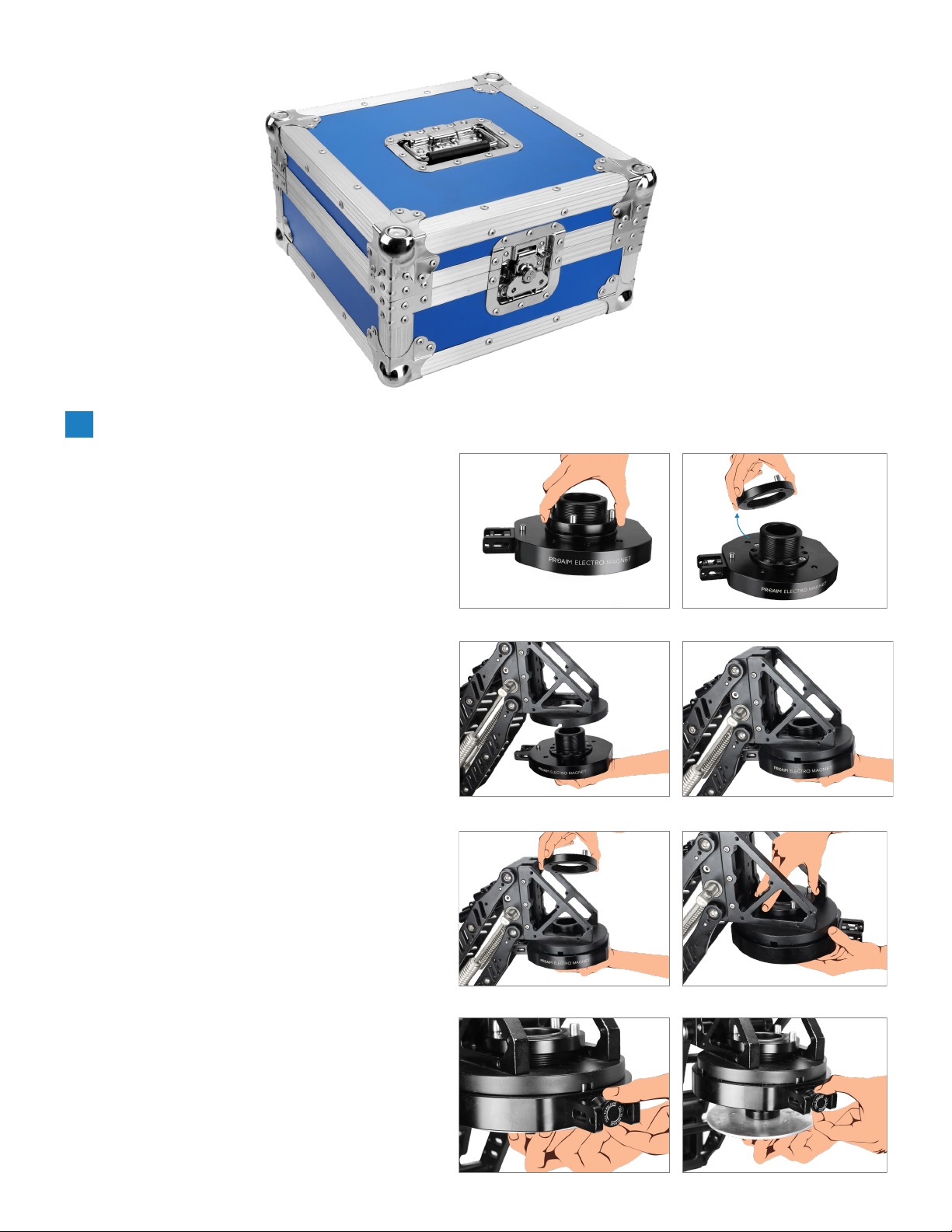

Electro Magnet Setup

• Loosen castle nut from the top mount.

• Remove the bottom mounting plate by

pulling the button off the mounting plate.

Hard Case

• Secure it by tightening the castle nut.

• Now attach it to the airwave (Not Included).

• Mount the Gimbal connector (Not Included)

on the bottom mounting plate.

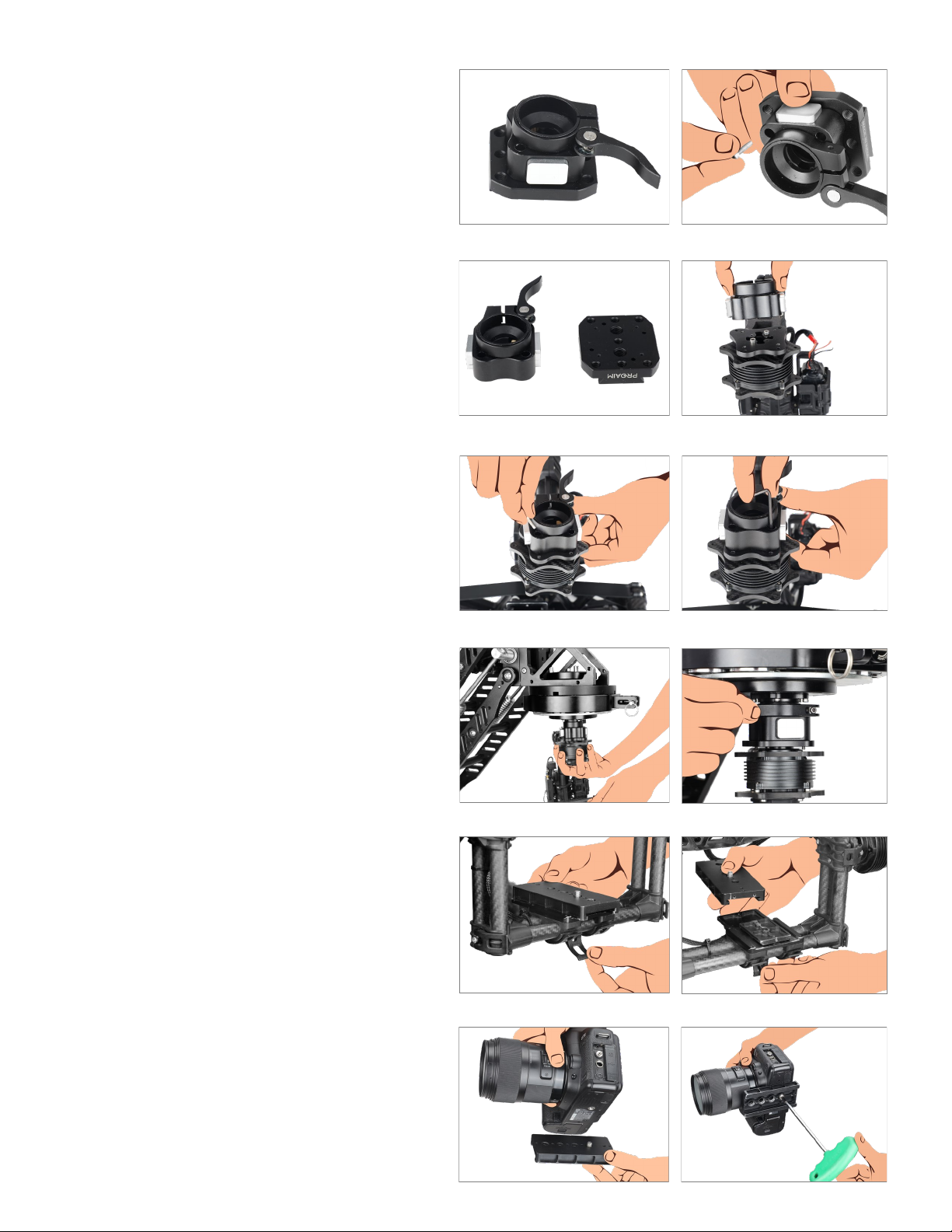

• Unlock the connector holder (Not Included)

and press the button on the gimbal connector

(Not Included).

• After unlocking, the gimbal connector

(Not Included) and connector holder

(Not Included) will look like this.

• Now secure it using a screw and Allen Key.

• Pull the button to attach the bottom

mounting plate after flipping it to the top

mounting plate.

• Use the provided pin to secure the release

button.

NOTE: so that whenever your rigs are

positioned beneath the magnet, nobody can

touch the button release, making it highly

secure keeps the gadget in place even when the

batteries run out or lose power.

• Now Mount the connector holder

(Not Included) on the gimbal (Not Included).

• Screw it using the Allen Key.

• Release the quick-release plate from

Gimbal (Not Included) by unlocking the knob.

• Now, secure the gimbal (Not Included) to the

mounting plate by pushing the connection

holder's buttons and closing the knob.

• Unscrew the connector holder (Not Included)

to detach the quick-release plate

(Not Included).

• Attach the quick-release plate to the camera

(Not Included) and secure it with an Allen key

(Not Included).

• Slide the camera (Not Included) with

the plate onto the gimbal (Not Included) and

then close the knob.

• The Gimbal (Not Included) is now attached.

• Mount the battery plate on the airwave

(Not Included) and tighten the clamp to

secure it.

• Now loosen the lever lock to open the clamp

of the battery plate.

• Connect the D-Type Cable to the battery plate

at one end.

• Attach the other end of the D-type cable to

the mounting plate.

• Slide the battery (Not Included) onto the

battery plate.

• Turn on the switch on the side of the baery

plate.

YOUR PROAIM AIRWAVE ULTRA VIBRATION ISOLATOR ARM

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon and

evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

support and care unl you use our product.
