PROAIM Fusion Bedienungsanleitung

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Assembly Manual

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

What’s In The Box

3 x Junior Pin

Adapters

2 x End Feet

Fusion Video/Film Camera Dolly Slider with Track Ends (DL-FUSN-01)

4 x Adjustable Leveling Legs

2 x Safety Wheels

Camera Dolly with

100mm bowl

Mitchell Base

Support Bracket

150mm Bowl 3 x T-Type Allen Key

(Size : 3mm, 4mm, 5 x 16”)

75mm Conversion Ring

4 x Elasc

Stoppers

 Insert the adjustable leveling legs into the

end feet adapter and ghten the knob to

secure it.

 Loosen the knobs of the end feet & insert the

track rails (Not Included) into it, and then

ghten the knobs ghtly to secure it.

 Mount the camera Dolly on the track

(Not Included), as shown.

NOTE: Always mount dolly on rigid tracks.

Aaching the Track

Aaching the Levelling Legs Setup

Assembling the Dolly Setup

 Remove the side knobs of the Dolly and

aach the safety wheels on either side.

Secure them by ghtening the knobs.

 Now aach the elasc stoppers on both the

rails to prevent the Dolly from geng

dislocated. These can also be used as wheel

brakes.

 By default, a standard 100mm bowl

receptacle is axed to the Dolly.

NOTE: Fusion Dolly accommodates 4 Camera

Mounng Heads. 75mm Bowl / 100mm Bowl /

150mm Bowl / Mitchell Base.

 You can also mount a 150mm conversion ring

to use 100mm bowl head.

 You can mount a 75mm conversion ring to

use 75mm bowl head.

 Loosen the side knobs of the Dolly in order to

lt the camera plaorm that can incline up to

52°. Adjust and lock it to your desired angle

by locking the knobs.

 Remove the 100mm bowl receptacle from the

plaorm & aach the Mitchell plate on it.

Tighten the assembly with the help of

provided tools.

 Now you can mount your camera setup as

desired.

 Now, remove the hook from the junior pin

adapter, and insert it into the support

bracket, as shown in the image.

 Then loosen the knob of the junior pin

adapter and mount the track system

(Not Included) on a stand (Not Included) via

the adapter. Tighten the knob to secure it.

 Remove the hook from the junior pin adapter

and insert it into the end feet.

 Tighten the assembly by twisng the adapter.

Aaching the Supports

 Place this support bracket below the track

(Not Included) system, and then mount your

camera setup, as shown in the image.

 Aach the 100mm bowl receptacle to the

boom of the Dolly and ghten it with the

help of the Allen key.

 You can mount your camera in an underslung

orientaon.

To Use Dolly As Underslung

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon and

evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

utmost support and care unl you use our product.

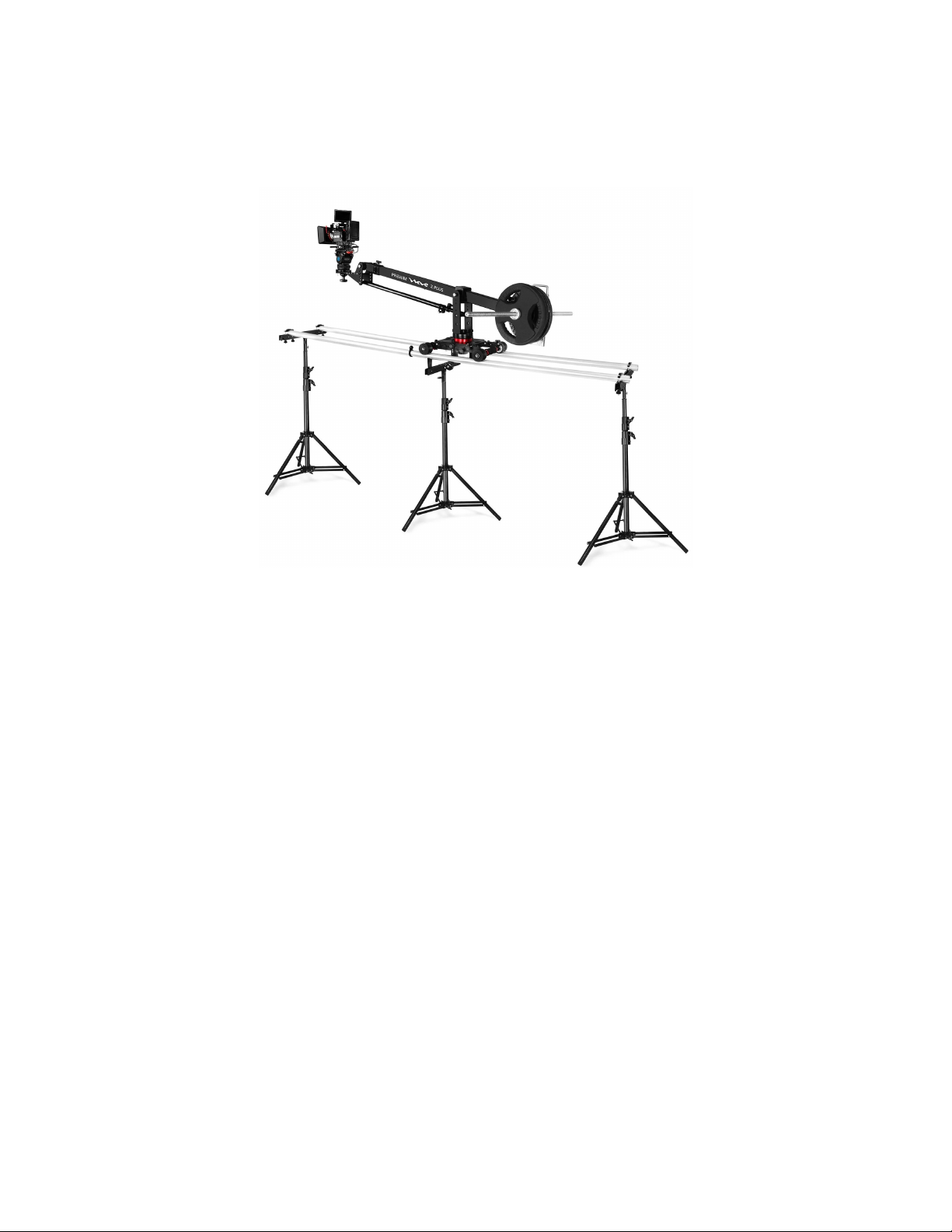

YOUR PROAIM FUSION VIDEO/FILM CAMERA DOLLY SLIDER WITH TRACK ENDS

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)
