PROAIM CINEMA TP-BIPT-01 Bedienungsanleitung

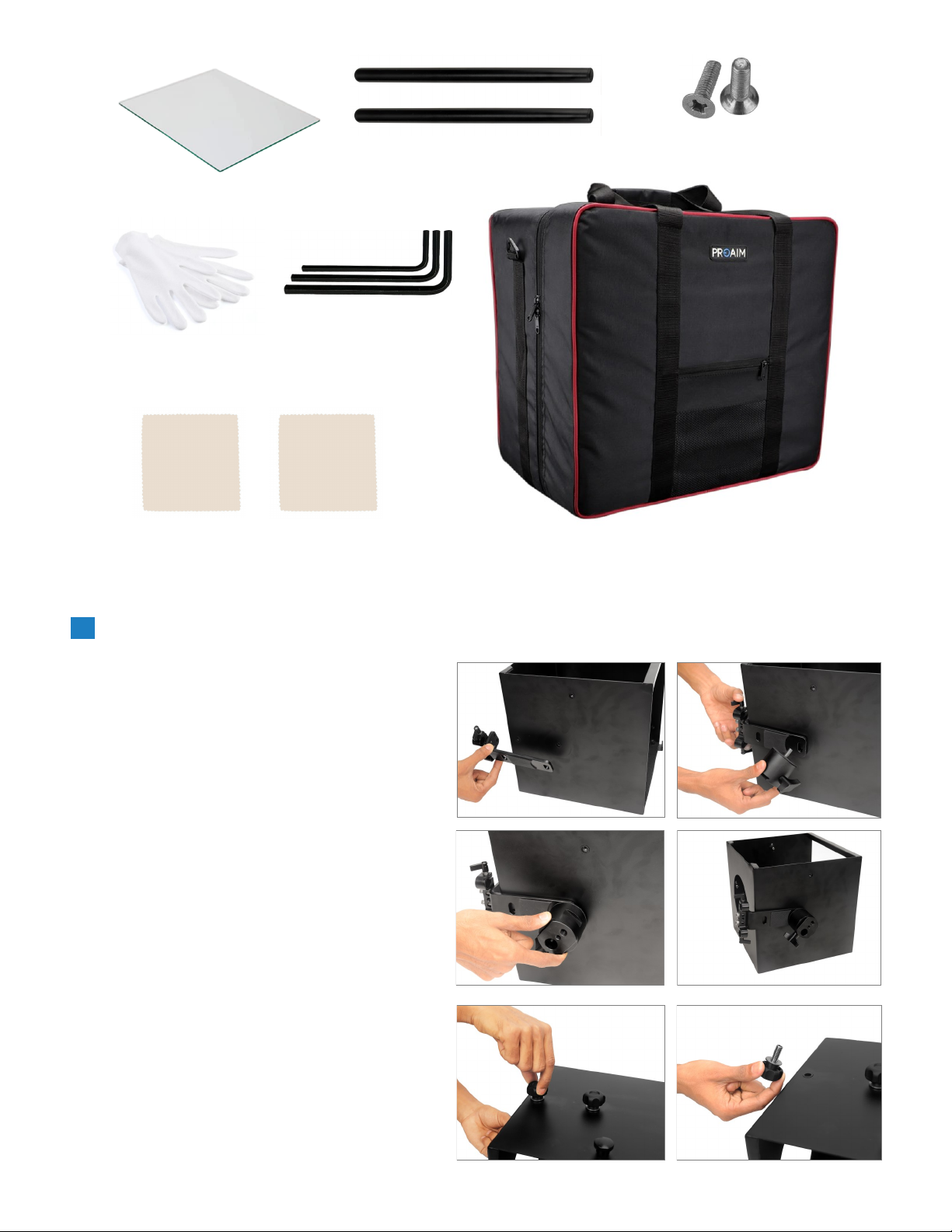

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Assembly Manua l

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Universal Bi-Prompter Teleprompter Kit (TP-BIPT-01)

Bi-Prompter Teleprompter Kit Teleprompter Glass Camera Mounng Base

Rod Adapter

Ring Clamp

(150-100mm)

(OD-ID)

Ring Clamp

(150-75mm)

(OD-ID)

Ring Clamp

(150-65mm)

(OD-ID)

Ring Clamp

(150-50mm)

(OD-ID)

Ring Clamp

(150mm)

(OD) Tablet Holder

C-Stand Adapter

• Insert the rod adapter into the Bi-Prompter

teleprompter and then insert the c-stand

adapter.

Bi-prompter Teleprompter kit Setup

• Properly ghten the c-stand adapter, as

shown in the image.

• Remove the knob by loosening it.

Hand Gloves

Bag Packing

2 x 300mm Rods

3 x Allen Keys

(Sizes: 3mm, 4mm&

5/16”mm)

2 x Cleaning Clothes

Teleprompter Glass

2 x LN CSK Bolts (Sizes: 3x8”)

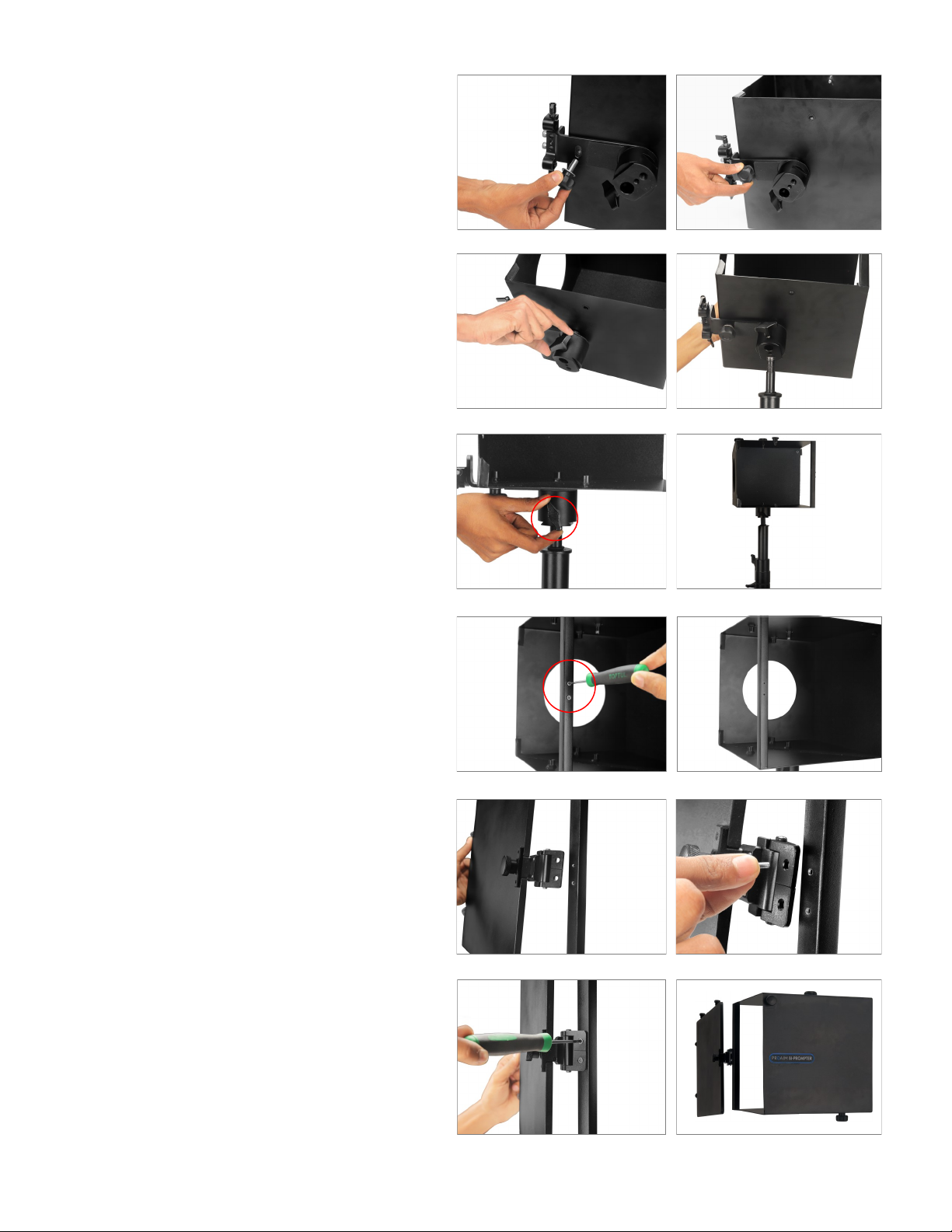

• Insert the knob into the Rod Adapter and

then ghten it properly.

• Place the teleprompter glass and insert the

3x8” CSK bolts.

• Loosen the knob of the c-stand and mount

the Bi-prompter to the stand (Not Included).

• Properly ghten it with the knob.

NOTE: The kit includes mulple receivers

16mm, 1/4"-20, and 3/8"-16, allowing you to

mount on a regular C-stand .

• Remove the CSK bolts, as shown in the image.

• Tighten the bolts using a screw driver.

• Remove the knob aer loosening it, as shown

in the image.

• Properly ghten the knob, as shown in the

image.

• Insert the tablet holder and then insert the

knob.

• Properly ghten the knob, as shown in the

image.

• Loosen the knob and insert the teleprompter

glass.

Inserng Teleprompter Glass In Bi-Prompter

NOTE: Tablet holder is made with High-Grade

Plasc, High-Grade Mild steel & Aluminum &

ued to mount Tablet (Standard or Large Size).

NOTE: The Bi-prompter is built around a

standard rod system which easily ts the

camera.

NOTE: Camera Mounng Base provides Height

adjustment feature.

• Loosen both the knobs of the camera

mounng base and insert the rods.

• Loosen both the knobs and insert the 300mm

rod.

• Insert an another 300mm rod and ghten the

knobs properly.

Camera Mounng Base Setup

NOTE: Bi-prompter is a mirror box posioned in

front of the camera lens that lets lmmakers

shoot down-the-lens interviews while keeping

the interviewer and subject in eye contact .

• Press the push pin and slide the quick release

plate.

• Loosen the lever lock by moving it in forward

direcon.

• Remove the camera support using the Allen

key.

NOTE: It comes with an adjustable quick

release camera plaorm to lock the camera in

its desired posion.

• Remove the quick release plate.

NOTE: The quick-release oers you easy

swapping of camera gimbals & protects your

gimbal from twisng & scratching.

• Insert the camera support to the opposite

direcon and ghten it properly.

• Tighten both the knobs, as shown in the

image.

NOTE: It also includes 5 Donut Rings

(Sizes: 50mm, 65mm, 75mm, 100mm ) in

dierent sizes to lter out your shots' excess

light.

• Slide the camera (Not Included) on the

camera plate and insert the Ring clamp.

NOTE: Quick Release is a compact plate that

quickly mounts handheld gimbals such as

3S, DJI Ronin S & RS 2 etc.

• Properly ghten it using the 3/16” Allen key

and the knob.

NOTE: The kit includes mulple receivers

16mm, 1/4"-20, and 3/8"-16, allowing you to

mount on a regular C-stand.

• Properly lock the lever, as shown in the

image.

NOTE: Bi-prompter is a mirror box posioned in

front of the camera lens that lets lmmakers

shoot down-the-lens interviews while keeping

the interviewer and subject in eye contact.

• Properly match the camera (Not Included)

with the quick release threads and ghten it

with the screw driver.

NOTE: Quick Release constructed of High

-Grade CNC Aluminum & features both 3/8"-16

and 1/4"-20 screws for mounng.

YOUR PROAIM UNIVERSAL BI-PROMPTER TELEPROMPTER KIT

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

3-Dierent Modes of Bi– Prompter Teleprompter Kit

NOTE: Mode1: Interview Mode

In this, the Interviewer & subject will sit at

45° angle & reect each other on the mirror.

Mode2: Interview mode (Mirror version)

In this, You see each other’s expression

through mirror.

Mode3: Teleprompng mode

In this, you mount any tablet to read while

looking straight into the lens.

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

support and care unl you use our product.
