A s s e m b l y M a n u a l

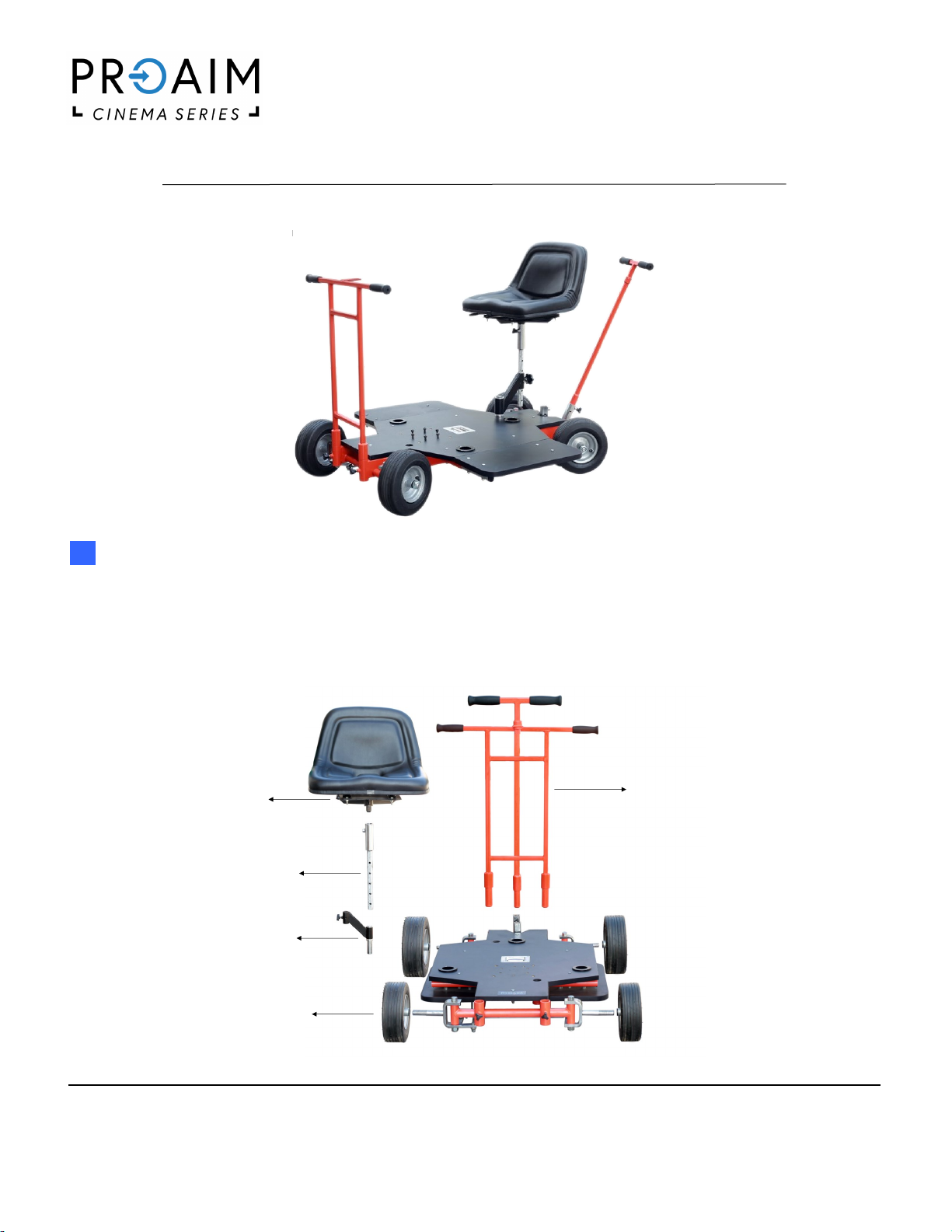

Quad-4 Pro Cinema Doorway Dolly (DL-QDFW)

NOTE: If you have purchased (DL-QDFW-00) kit, you will receive the following:

Quad-4 Dolly with Side Boards

Chair

Z-bracket

4 x Pneumac

Wheels

Steering Push/Pull

Bar

Seat Rod

NOTE: If you have purchased (DL-QDFW-01) kit, you will receive the following:

Quad-4 Dolly with Side Boards

Chair

Z-bracket

4 x Pneumac

Wheels

Steering

Push/Pull Bar

Euro Adapter

Telescopic

Bazooka

100mm Bowl

camera Riser

Seat Rod

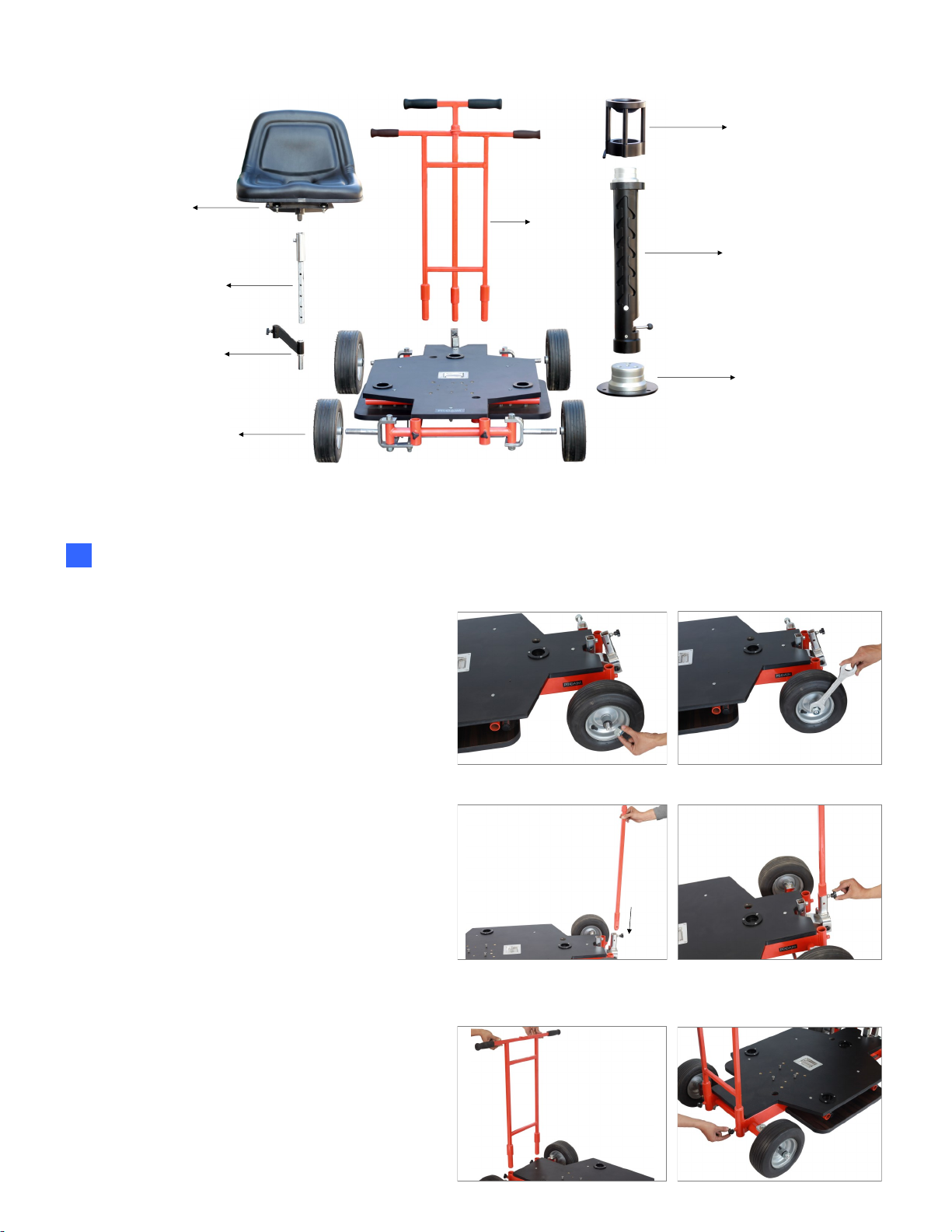

 Firstly, insert 4 Pneumac Wheels to wheel

rod of the Dolly. Tighten nuts properly with

help of provided tool to secure it.

 Posion single Steering Push/Pull Bar

centrally on the steering rod mount located

on rear axle of dolly. Connect them properly

by locking with provided knob.

Doorway Dolly Setup

 Posion dual Steering Push/Pull Bar on the

steering rod mount located on rear axle of

dolly. Connect them properly by locking with

provided knob.

NOTE: By correctly using Steering Push/Pull

Bars, it is possible to maneuver Quad Dolly with

extreme precision.

NOTE: You can use both the Steering Bars

together for heavier setups.

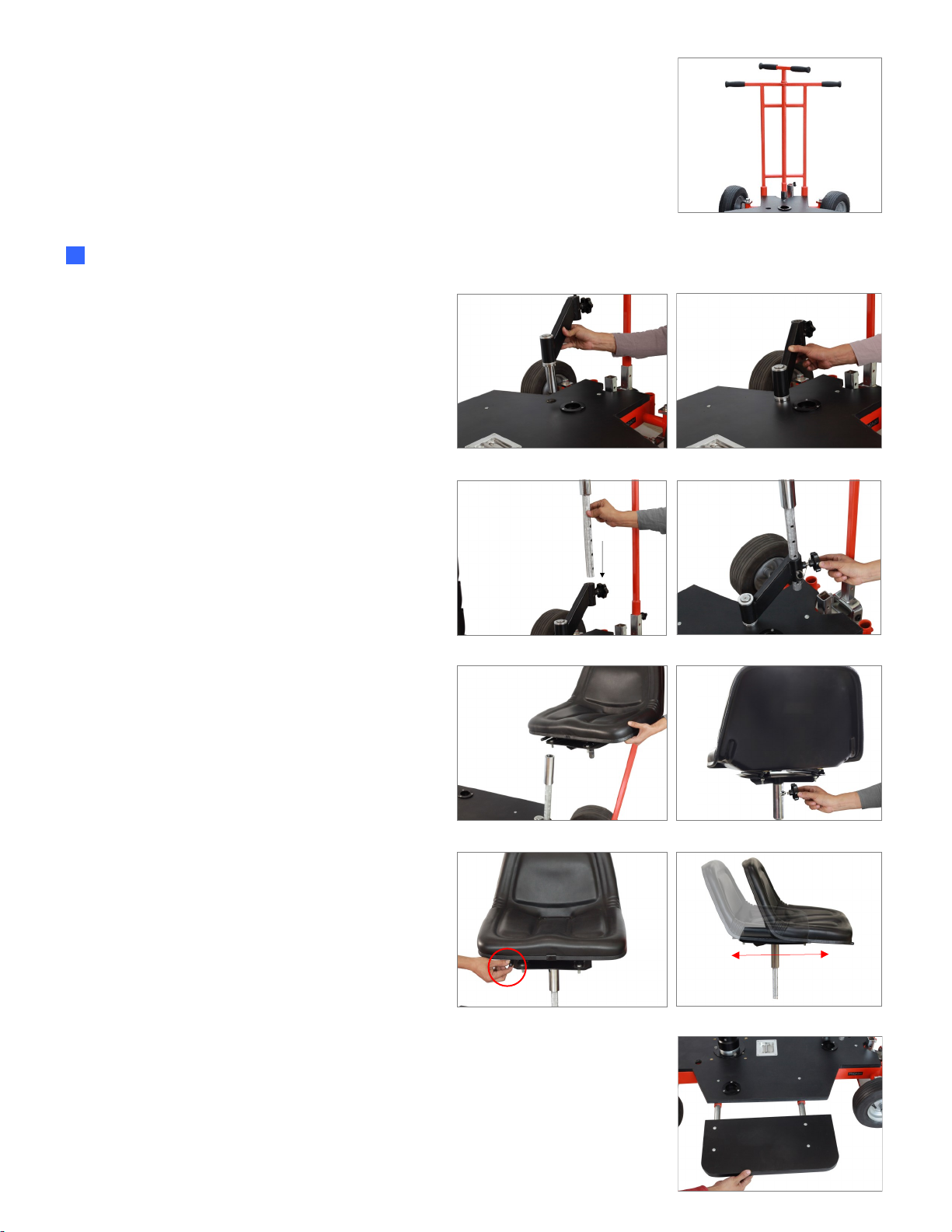

 To mount the Chair, you need to connect Z-

Bracket onto dolly base.

 Now aach the Chair with Z-Bracket and

ghten the provided knob to x it accurately.

 Insert Seat Rod into Z-Bracket and lock it

securely with locking knob.

Chair Setup

NOTE: Chair is adjustable and moves in

forward/backward posion, to provide more

comfort to the operator.

NOTE: Addional Side Plaorms can be used

to extend the size of Quad-4 Pro Dolly.

 Finally, insert 2 Side Boards into 2 connecon

rods found on each side of Main Dolly

Plaorm and secure them appropriately.

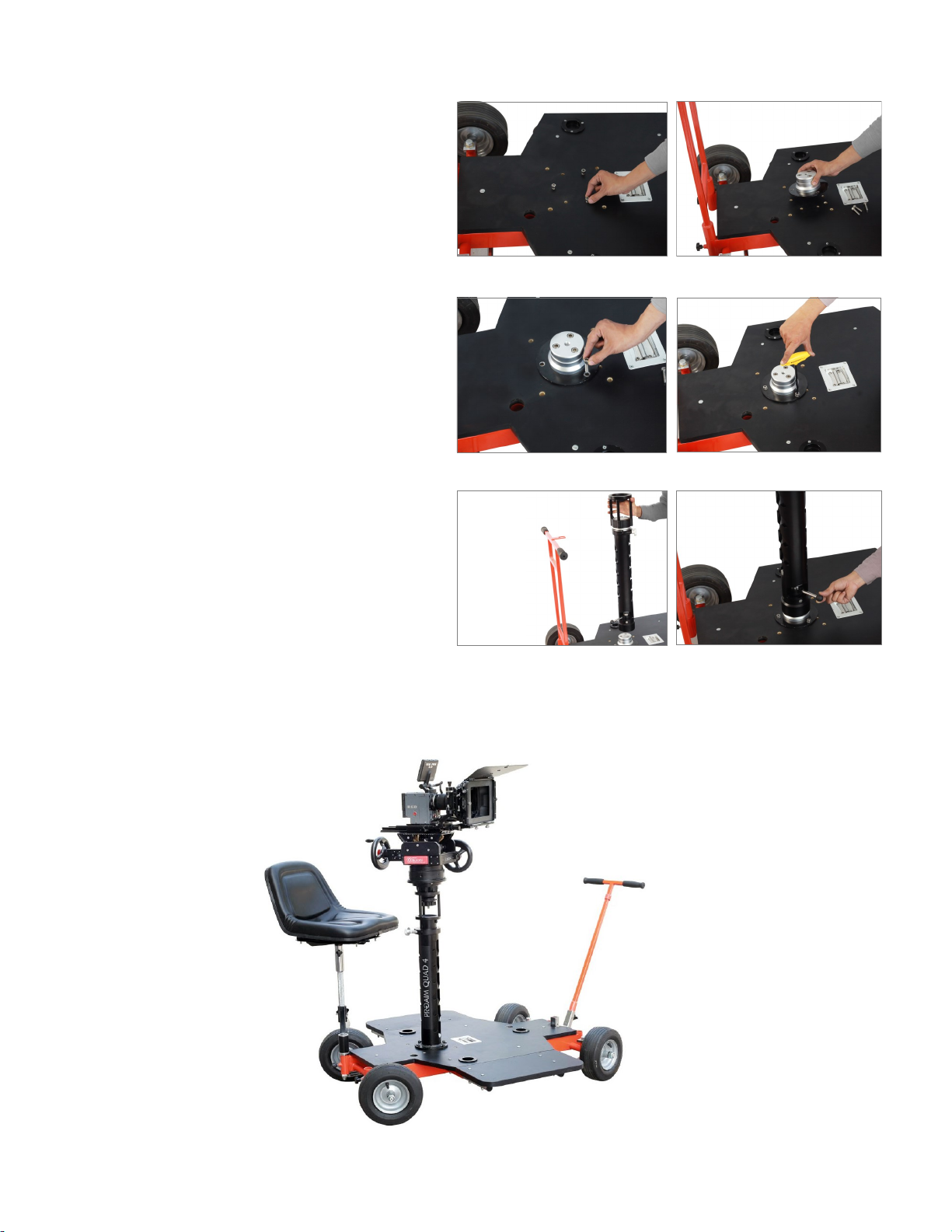

 Take out the allen bolts from dolly base to

aach Euro Adapter.

 Mount Telescopic Bazooka along with

100mm Bowl Camera Riser on Euro Adapter,

for instant height adjustment of your setup.

Tighten it with integrated Quick Lock Lever.

 Place the Euro Adapter by carefully aligning

the holes on dolly. Then ghten the allen

bolts back to secure it properly on the base.

NOTE: If you have purchased (DL-QDFW-01) kit, please consider the following steps.

NOTE: Mounng of Euro Adapter enables

ng of various camera mounng accessories

such as Bazooka, Risers, and other Adapters

etc.

YOUR PROAIM QUAD-4 PRO CAMERA DOORWAY DOLLY

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

utmost support and care unl you use our product.
