PROAIM P-HN-DMC Bedienungsanleitung

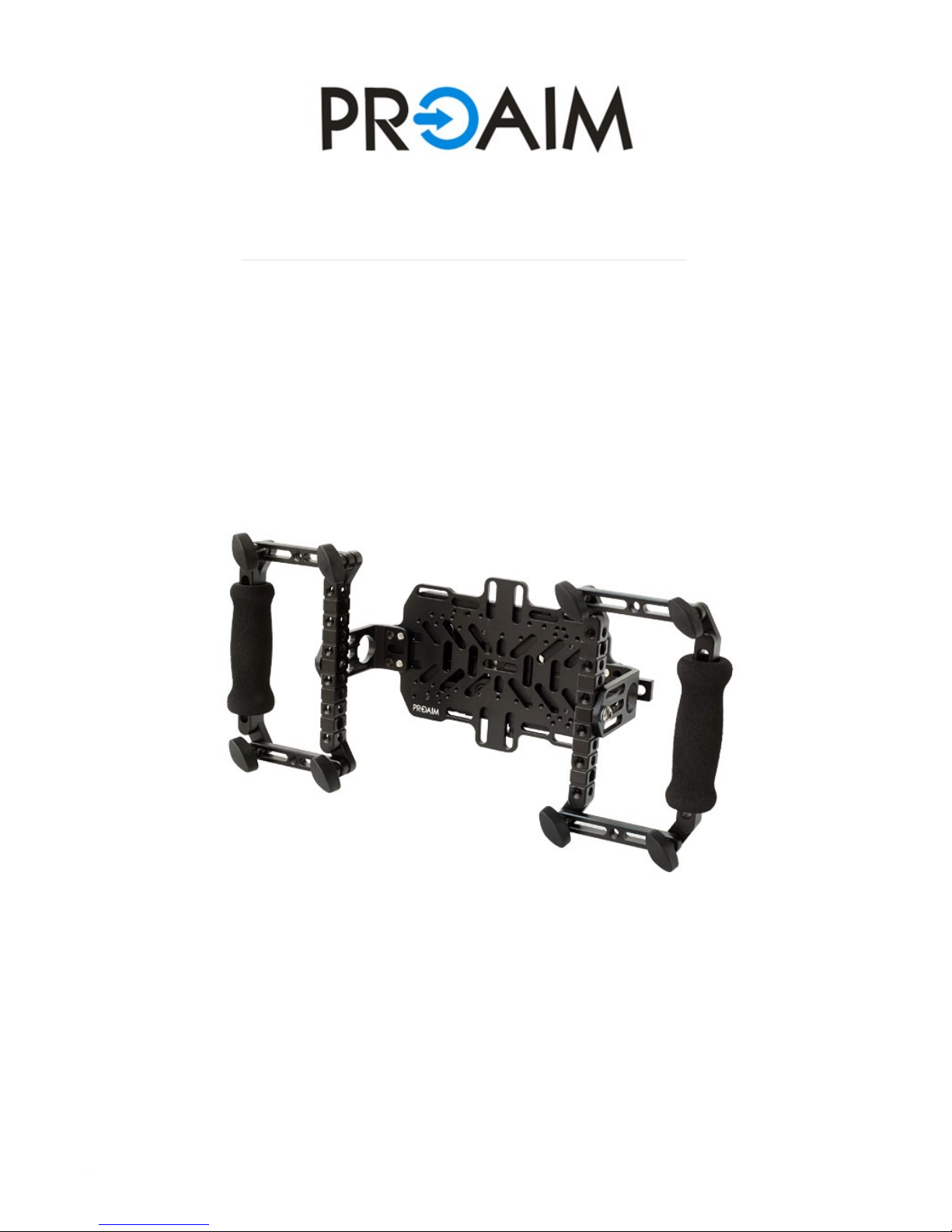

Handy Director Monitor Cage
(P-HN-DMC)
I N S T R UC T I O N M A NU AL
All rights reserved
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by
the applicable copyright statutes or in writing by the Publisher.
Proaim Handy Director Monitor Cage 2
INTRODUCTION
The Proaim Handy Director Monitor Cage enables you to be on the go while keeping your moni-
tor safe with an adjustability to t most 5-8” monitors. In addion to holding your monitor, the
cage allows for the mounng of a separately available V-mount plate for baery power, and it
also leaves plenty of room for wireless equipment, so you can remain untethered on set. Com-
fortable foam handgrips aach to the sides of the cage, great for carrying around and checking
shot composion from anywhere. The front of the monitor is unimpeded, so you can mount sun
hoods or other accessories. The two adapters make it compable with Convergent Design Odys-
sey 7, Odyssey 7Q+ (LCD).
CONTENTS OF SHIPPING BOX:
WHAT’S IN THE BOX
Please inspect the contents of your shipped package to ensure you have received all that is pic-
tured and listed below.
(1/4” x 3/8”) SS Buon Head - 6pcs
(1/4” x 5/8”) SS Buon Head - 4pcs
4mm Allen Key - 1pc
(5mm x 20mm) Knob - 10pcs
(6 x 12 x 2mm) Plasc Black Washer - 25pcs
(5 x 10 x 2mm) Plasc Black Washer - 25pcs
(6 x 10 x 1mm) SS Washer - 5pcs
2 x Main
Bracket
Base with V-Mount
Baery PlateStrap
2 x Side
Handle
2 x Oset
Bracket
4 x Side
Bracket
2 x Height
Adjuster
Proaim Handy Director Monitor Cage 3
ASSEMBLING OF PROAIM HANDY DIRECTOR MONITOR CAGE
There are two ways to assemble the Proaim handy director monitor cage.
I: Vercal Mounng
II: Horizontal Mounng
STEPS FOR VERTICAL MOUNTING
Horizontal mounng is required if in case the LCD dimension varies or your LCD has the top mounng or
boom mounng.
Aach the oset bracket to V-Mount baery plate base and select the (1/4” x 3/8”) SS Buon
Head for ghtening the oset bracket.
Now aach the main bracket to oset bracket and select the (1/4” x 5/8”) SS Buon Head to
ghten the main bracket with the help of provided allen key.
Select the four side brackets, align to 1/4”-20 holes of main bracket as shown below, select
(5mm x 20mm) knobs and ghten to main bracket.
Aach the side handles to side brackets as shown below. Now aach LCD to the cage with the
help (1/4” x 5/8”) SS Buon Head and ghten the help of provided allen key.
Proaim Handy Director Monitor Cage 4
For horizontal mounng, rstly remove
the baery plate by loosening the screw
with the help of screw driver.
STEPS FOR HORIZONTAL MOUNTING
Vercal mounng is required when your LCD has le mounng and right mounng).
Aach the oset bracket to V-Mount baery plate base and select the (1/4” x 3/8”) SS Buon
Head for ghtening the oset bracket.
Now aach the main bracket to oset bracket and select the (1/4” x 5/8”) SS Buon Head to
ghten the main bracket with the help of provided allen key.
Slide the baery plate for horizontal mounng from 1 slot to 2 slot.
1
2
Proaim Handy Director Monitor Cage 5
Aach the side handles to side brackets as shown below. Now aach LCD to the cage with the
help (1/4” x 5/8”) SS Buon Head and ghten the help of provided allen key.
YOUR HANDY DIRECTOR MONITOR CAGE SET UP AND READY TO GO
Select the four side brackets, align to 1/4”-20 holes of main bracket as shown below, select
(5mm x 20mm) knobs and ghten to main bracket.
VERTICAL MOUNTING HORIZONTAL MOUNTING
Proaim Handy Director Monitor Cage 6
WARRANTY
We oer a limited me warranty for our products. For Mechanical products we provide a 6
month warranty & for electronic products we provide a 3 month warranty from the date of
purchase.
We will repair or replace your product, free of charge, in the event of a defect in materials or
crasmanship obtained during normal use or handling based on the user manual. Please note
that we will not cover any shipping costs for returning the product to us. If any VAT or import
dues are applied to the return, we will also charge these costs to the customer.
The warranty does not include , by the way of example , damage caused by products that we
donot supply or from mishandling in transit, accident, misuse, neglect, lack of care of the prod-
uct , or service by anyone other than our company.
We are not liable for incidental or consequenal damages resulng from the use of the unit or
occurring due to any breach of this warranty.
Replacement parts of the product will be provided at nominal cost (covering the cost price of the
replacement parts only) to the customers aer the Warranty Period has expired. We will cover
the complete cost of sending replacement parts within the warranty period. Aer that, Nominal
cost of the product & Actual shipping cost will be charged.
Do not send the unit to us without rst geng a response and geng the approval to send back
the item.
In case of any kind of dissasfacon, we urge you to Contact us immediately and we shall do our
best to help you out.
For any other assistance you can reach us via email.
