Promise E610f Bedienungsanleitung

VTRAK

E-Class

E610f, E610s, E310f, and E310s

QUICK START GUIDE

Kurzanleitung

Guide de démarrage rapide

Guida Introduttiva

Guía de inicio rápido

Руководство по быстрому началу

работы

クイックスタートガイド

快速安裝手冊

快速安装手册

빠른 시작 안내서

Version 2.1

VTrak E-Class Quick Start Guide

Contents

English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Deutsch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Italiano . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .134

Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177

Pусский язык . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .220

日本語 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .263

繁體中文 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .304

简体中文 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .347

한국어 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .389

Step 1: Unpacking the VTrak

VTrak E-Class Task List

Step 1: Unpacking the VTrak (below)

Step 2: Mounting VTrak in a Rack

• E610f/s (page 7)

• E310f/s (page 9)

Step 3: Installing Disk Drives (page 12)

Step 4: Making Management and Data Connections

• Fibre Channel (page 16)

• Serial Attached SCSI (page 21)

Step 5: Setting Up Serial Cable Connections (page 27)

Step 6: Connecting the Power (page 28)

Step 7: Setting the IP Address (page 29)

Step 8: Creating Disk Arrays with WebPAM PROe (page 35)

For complete information about your VTrak E610f/s or E310f/s subsystem, see

the

VTrak E-Class Product Manual

on the CD.

Step 1: Unpacking the VTrak

The VTrak box contains the following items:

•VTrakUnit

• Quick Start Guide

• Front bezel and key

(E310f and E310s only)

• Left and right center-mount

brackets

• Left and right mounting rails

• RJ11-to-DB9 serial data cable

• Screws for disk drives

(E610f/s: 70, including 6 spares)

(E310f/s: 50, including 2 spares)

• 1.5m (4.9 ft) Power cords (2)

• CD with SNMP files,

Product

Manual

and

Quick Start Guide

Warning

The electronic components within the VTrak disk array are

sensitive to damage from Electro-Static Discharge (ESD).

Observe appropriate precautions at all times when handling the

VTrak or its subassemblies.

VTrak E-Class Quick Start Guide

Figure 1. VTrak E610f/s front view

Figure 2. VTrak E310f/s front view with bezel removed

A defective drive may be replaced without interruption of data availability to the

host computer. If so configured, a hot spare drive will automatically replace a

failed drive, securing the fault-tolerant integrity of the logical drive. The self-

contained hardware-based RAID logical drive provides maximum performance in

a compact external chassis.

Important

Use the following categories of network cables with VTrak:

• Cat 6, preferred

• Cat 5E, minimum

Drive Carrier LEDs

Drive Carriers Power and Status LEDs

Drive Carrier LEDs

Drive Carriers Power and Status LEDs

Step 1: Unpacking the VTrak

Figure 3. VTrak E610f rear view

Figure 4. VTrak E610s rear view

Mgmt UPS

115200

8 N 1

FC 1 FC 2

Gb/s

Mgmt UPS

115200

8 N 1

FC 1 FC 2

Gb/s

RAID Controller 1

Power Supply 1 Power Supply 2Cooling Unit 1

with Battery Cooling Unit 2

with Battery

RAID Controller 2

Mgmt UPS

115200

8 N 1

Mgmt UPS

115200

8 N 1

RAID Controller 1

Power Supply 1 Power Supply 2Cooling Unit 1

with Battery Cooling Unit 2

with Battery

RAID Controller 2

VTrak E-Class Quick Start Guide

Figure 5. VTrak E310f rear view

Figure 6. VTrak E310s rear view

Mgmt UPS

115200

8 N 1

FC 1 FC 2

Gb/s

Mgmt UPS

115200

8 N 1

FC 1 FC 2

Gb/s

RAID Controller 1

Power Supply 1 Power Supply 2Cooling Unit 1

with Battery Cooling Unit 2

with Battery

RAID Controller 2

Mgmt UPS

115200

8 N 1

Mgmt UPS

115200

8 N 1

RAID Controller 1

Power Supply 1 Power Supply 2Cooling Unit 1

with Battery Cooling Unit 2

with Battery

RAID Controller 2

Step 2: Mounting VTrak in a Rack

E610f/s

The E610f/s subsystem installs to the rack using the supplied mounting rails. You

can also use your existing rails.

Figure 1. VTrak E610f/s mounted in a rack with the supplied rails

To install the E610f/s subsystem into a rack with the supplied mounting rails:

1. Check the fit of the mounting rails in your rack system. See Figure 2.

2. Adjust the length of the mounting rails as needed.

Cautions

• At least two persons are required to safely lift, place, and

attach the VTrak subsystem into a rack system.

• Do not lift or move the VTrak subsystem by the handles,

power supplies or the controller units. Hold the subsystem

itself.

• Do not install the VTrak subsystem into a rack without rails to

support the subsystem.

• Only a qualified electrician who is familiar with the installation

procedure should mount and install the VTrak subsystem.

• Be sure all switches are OFF before installing the VTrak

subsystem or exchanging components.

Vertical Rack Post VTrak E610f/s

Mounting rails (included)

mount outside the rack post

Handles mount

outside the rack post

VTrak E-Class Quick Start Guide

3. Attach the mounting rail assemblies to the outside of the rack posts, using

the attaching screws from your rack system.

Be sure the support is on the bottom facing inward.

4. Square the rail assemblies in the rack.

5. Tighten the adjustment screws and the attaching screws.

6. Place the VTrak subsystem onto the rails.

7. Secure the VTrak subsystem to the rack through each handle, using the

attaching screws from your rack system.

Figure 2. Rack mount assembly diagram

Inside of post

Rack front post

Rail attaching screw

(not included)

Rail adjustment screw

Flange

Rail attaching screw

(not included)

Inside of post

Rack back post

Front rail

Rail adjustment screw

Rear rail

Support

Step 2: Mounting VTrak in a Rack

E310f/s

The E-Class subsytems installs to the rack using the supplied mounting rails. You

can also use your existing rails.

Figure 3. VTrak E310f/s mounted in a rack with the supplied rails

To install the VTrak subsystem into a rack with the supplied mounting rails:

1. Check the fit of the mounting rails in your rack system. See Figure 5.

2. Slide the plates out of the mounting rails.

3. Attach one plate to each side of the VTrak subsystem.

Line-up the six holes in the plate with the corresponding holes in the

subsystem. Attach each plate with six screws (included). See Figure 4.

4. Slide one of the rails over the plate on one side of the enclosure.

Cautions

• At least two persons are required to safely lift, place, and

attach the VTrak subsystem into a rack system.

• Do not lift or move the VTrak subsystem by the handles,

power supplies or the controller units. Hold the subsystem

itself.

• Do not install the VTrak subsystem into a rack without rails to

support the subsystem.

• Only a qualified electrician who is familiar with the installation

procedure should mount and install the VTrak subsystem.

• Be sure all switches are OFF before installing the VTrak

subsystem or exchanging components.

Vertical Rack Post VTrak E310f/s

Mounting rails (included)

mount outside the rack post

Handles mount

outside the rack post

VTrak E-Class Quick Start Guide

The rail is designed to slide freely over the plate.

5. Attach a flange to each end of the rail, with the rail on the opposite side of the

flange from the two-hole bracket.

6. Install the rail adjustment screws (included) through the flange into the rail.

There are four screws for each flange. See Figure 5.

7. Place the subsystem with mounting rails into your rack system.

8. Attach the mounting rail assemblies to the outside of the rack posts, using

the attaching screws from your rack system.

9. Square the rail assemblies in the rack.

10. Tighten the adjustment screws and the attaching screws.

11. Place the VTrak subsystem onto the rails.

12. Secure the VTrak subsystem to the rack through each handle, using the

attaching screws from your rack system.

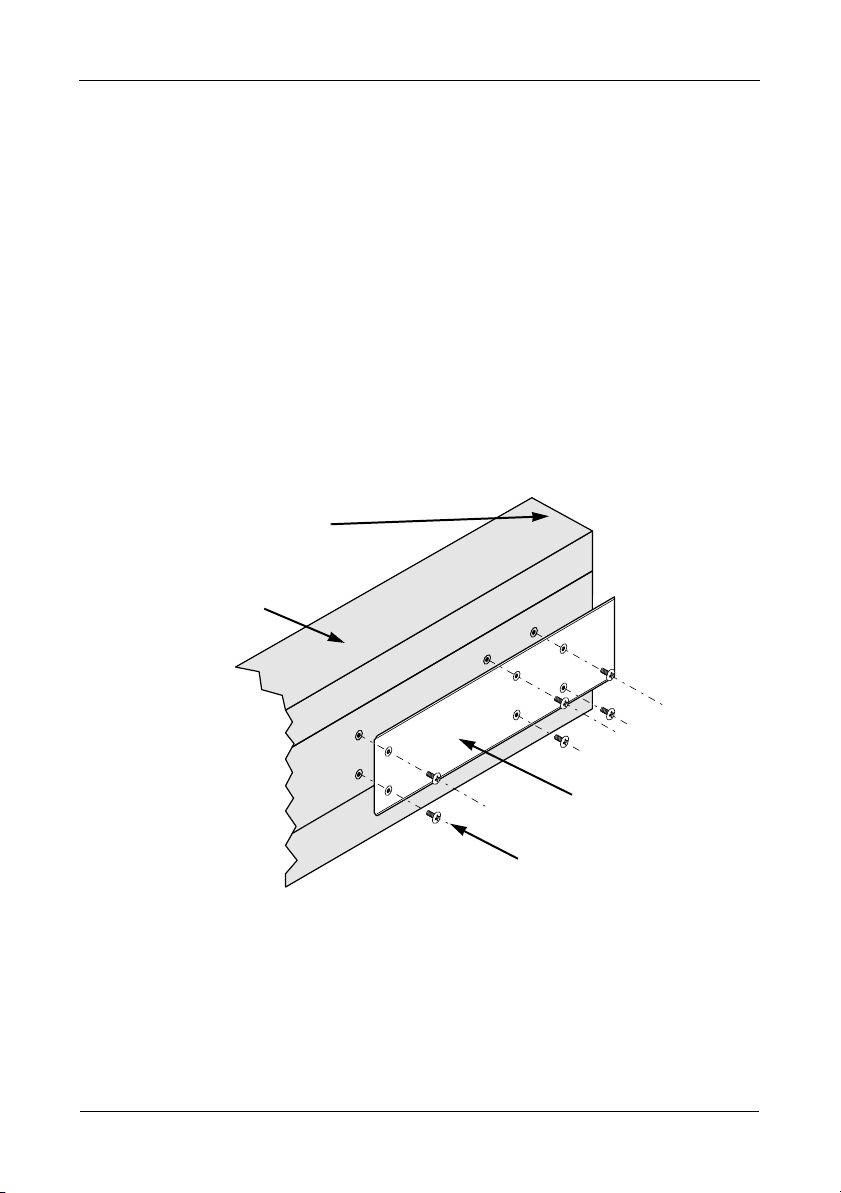

Figure 4. Sliding flange installation

Sliding plate

VTrak E310f/s

Screws (6 each side)

Rear (connector end)

of the subsystem
