ProRacing TS2 PRO Bedienungsanleitung
User Manual
TS2 PRO
Read before installation
Turbo petrol engines
2
1 Application and Photo montage
..........................................................................................................................
3
2 Proracing overview ............................................................................................................................ 4
4 Petrol Engines Assembly ............................................................................................................................. 7
5 First start-up .................................................................................................................................................. 11
6 Adjustment
.............................................................................................................................
............................................................................................................................. 12
7 Troubleshooting ............................................................................................................................... 14
7 Contact details .............................................................................................................................................. 18
Index
Overview and explanation of the symbols used
Warnings on dangers with important information on use. Please read!
General information on assembly and use.
Tips for easier assembly and use.
1 Applicazione per smartphone (optional)
Android APP iOS APP
Scarica l’app Proracing sul tuo Smartphone e scopri il nuovo piacere di guida.
Normalmente dopo l’acquisto, inviamo tramite mail le foto speciche per il tuo
motore per un montaggio semplice, controlla la mail.
Scansiona con la fotocamera del tuo smarthphone e verrai indirizzato automaticamente
all’app store.
3
4
A
B
C

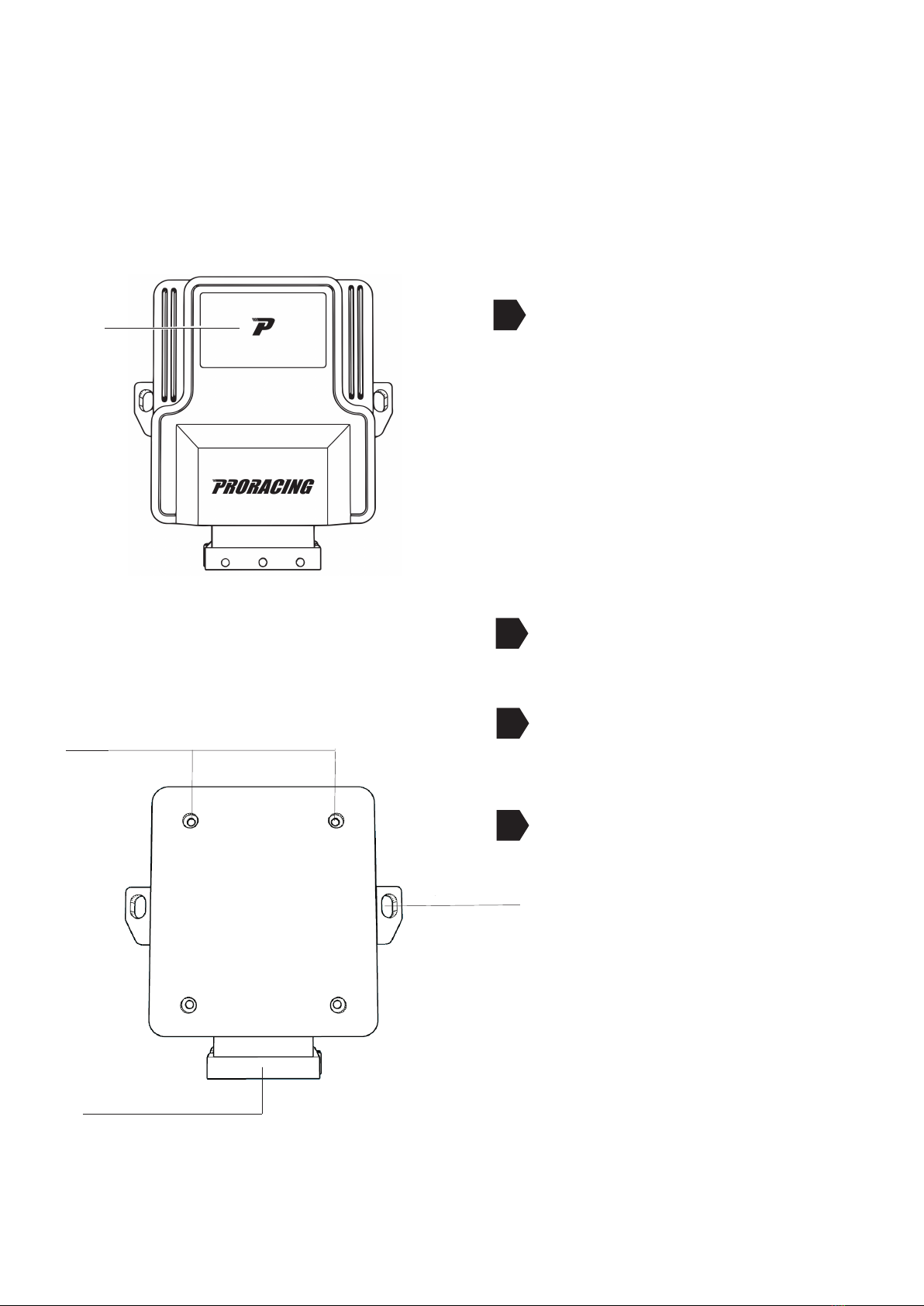

2 Panoramica di Proracing TS2 PRO
Luminous program interface
ECO: Blue color
SPORT: Green color
RACE: Red color
FCI socket connection for xing
of the Proracing TS2 PRO harness
Holes for closing the box opening (TORX)
D Holes for xing with cable ties.
A
D
C
B
5
3 Installation
Phase 1 of 6 - preparing the installation
Wait about 10 minutes before acting, in this way all the electrical equipment will be
deactivated.
•
•
•
•
•
1
2
Let the engine cool down before installing the Proracing ECU, you could burn yourself.
Open the bonnet and keep the doors locked.
Normally, no special tools are required for installation, a wire cutter is sucient to remove
the remains of the clamps. In some cases a torx key to open the control unit and change
to Bosch or Siemens / delphi.
With, Keyless Go or electronic key, be careful to keep the car key at a distance
about 10 meters from the car to be out of radio coverage.
In the event of an anti-theft device, it must be deactivated before starting the installation.
In some rare cases it is possible that the car with the hood open keeps the sensors
active, therefore it is advisable to disconnect the battery positive to avoid generating
an error.
If you have any questions or problems during installation, you can nd answers on
Error removal.
Our customer support is also available - You can open a Ticket
on our website.
6
A
B
3 Installation

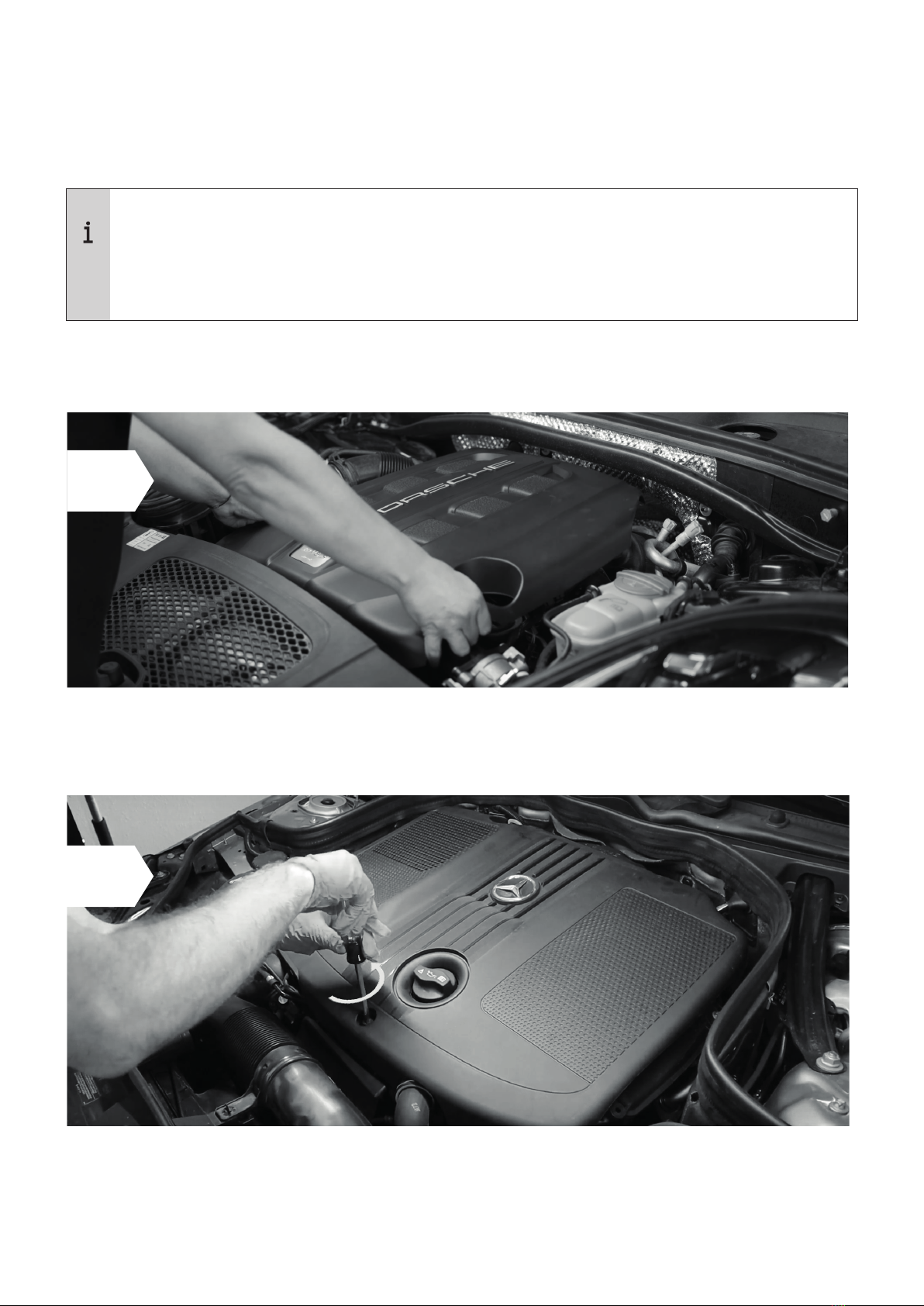

Step 2 of 6 - Remove the engine cover
•
•
•
Normally after purchase, we send specic photos for yours by email
engine for easy editing, then check your mail.
In the following images there will be sample photos. Your car may dier,
However, the installation is very similar.
Normally your engine cover is interlocked with rubber clips (A) or
with one or more screws (B).
Remove the engine cover and set it aside, simply lift upwards by doing
more strength in one side at a time.
In some cases, in order to remove the plastic cover of the motor, it is necessary to unscrew one or
more screws.
If you do not have any engine coverage go directly to Stage 3 for Diesel Engines.
•
A
4 Turbo Petrol Installation

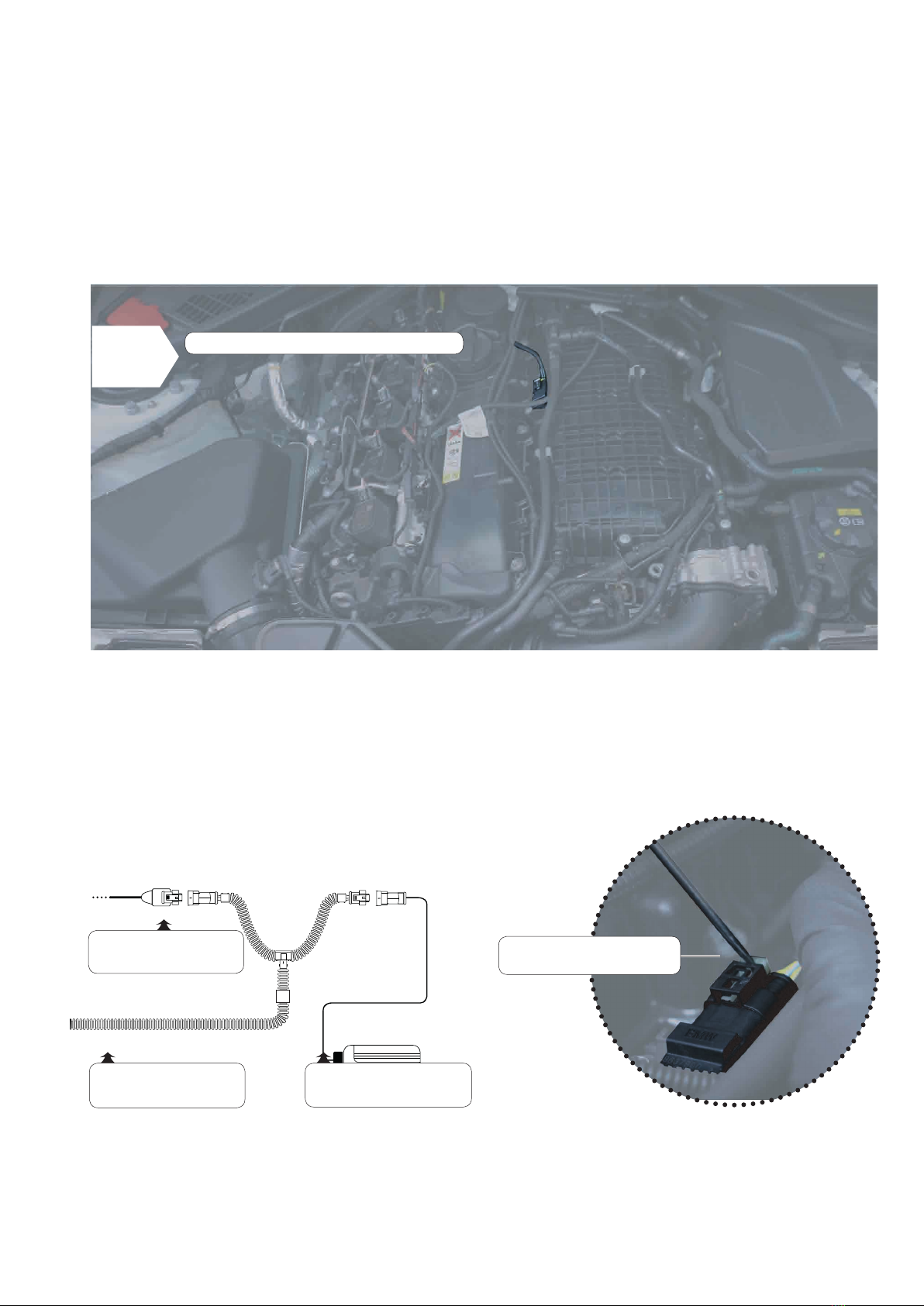

Step 4 of 6 - Connect to Supply Pressure
Pressure connection
power supply
Schematic representation:
Cable coming from
ProRacing
Cable with connector
standard o
Pressure connection
power supply
7
First locate the sensors where to connect the wiring, supply pressure sensor and
turbo pressure sensor. Usually the feed sensor is placed on the suction ange,
after the turbo, the second turbo pressure sensor is usually after the throttle on the
intake manifold.
1Supply pressure connection
4 Assembly of turbo petrol engines
•
•

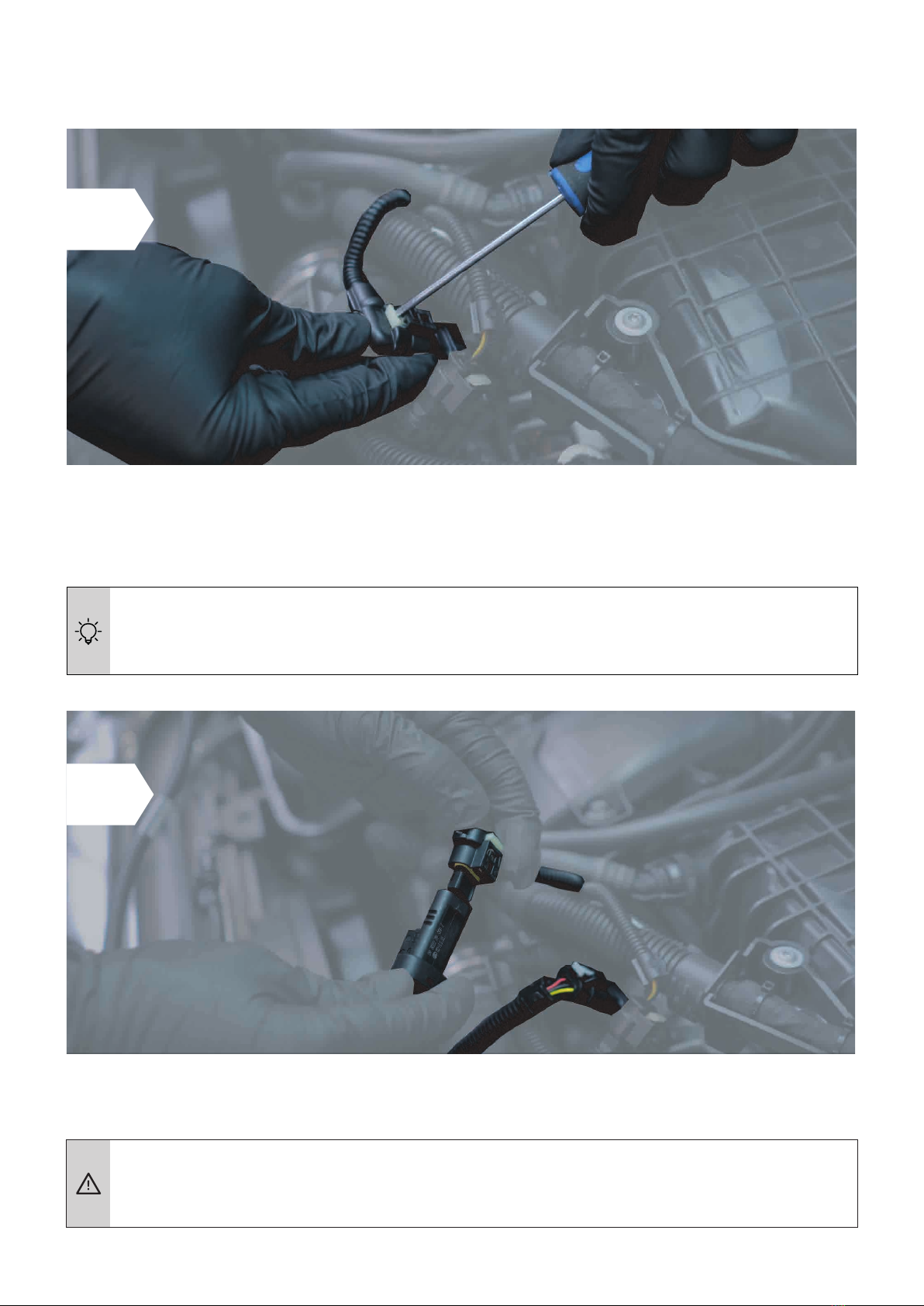

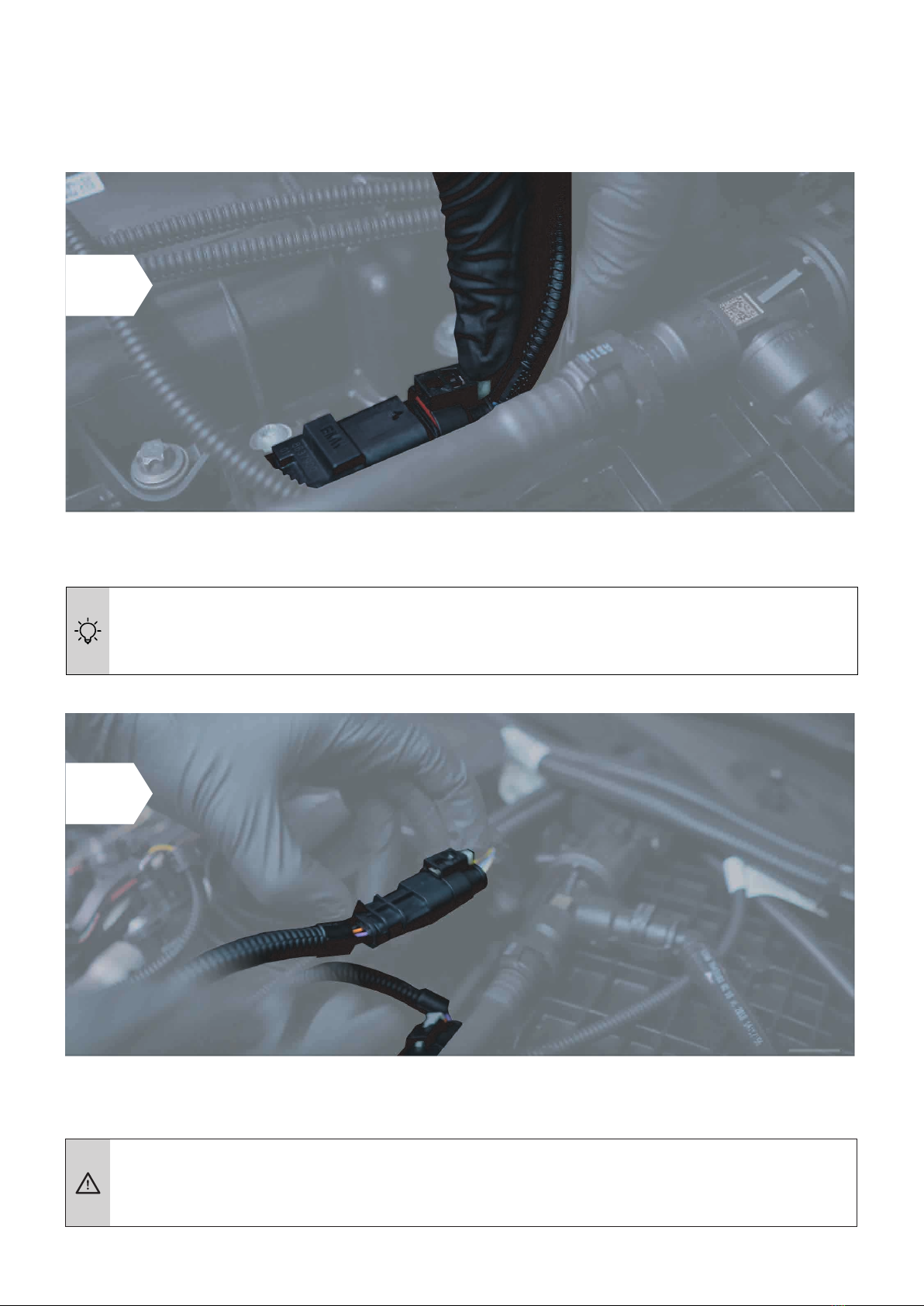

• Make sure the connector's safety clip clicks back into place:
you can hear it by CLICK.
8
To disconnect the connectors from the sensors it is necessary to press not too hard in order to raise the
release clip or move the safety catch.
We normally have 90% of the photos in the catalog of all engines, check your inbox
registration, at the time of purchase we send the specic photos in our possession.
It intercepts the suction pressure sensor located on the suction ange, releases the connectors and
connect as shown in the gure by interposing the wiring between the car sensor and the engine
wiring.
2
3
4 Assembly of turbo petrol engines

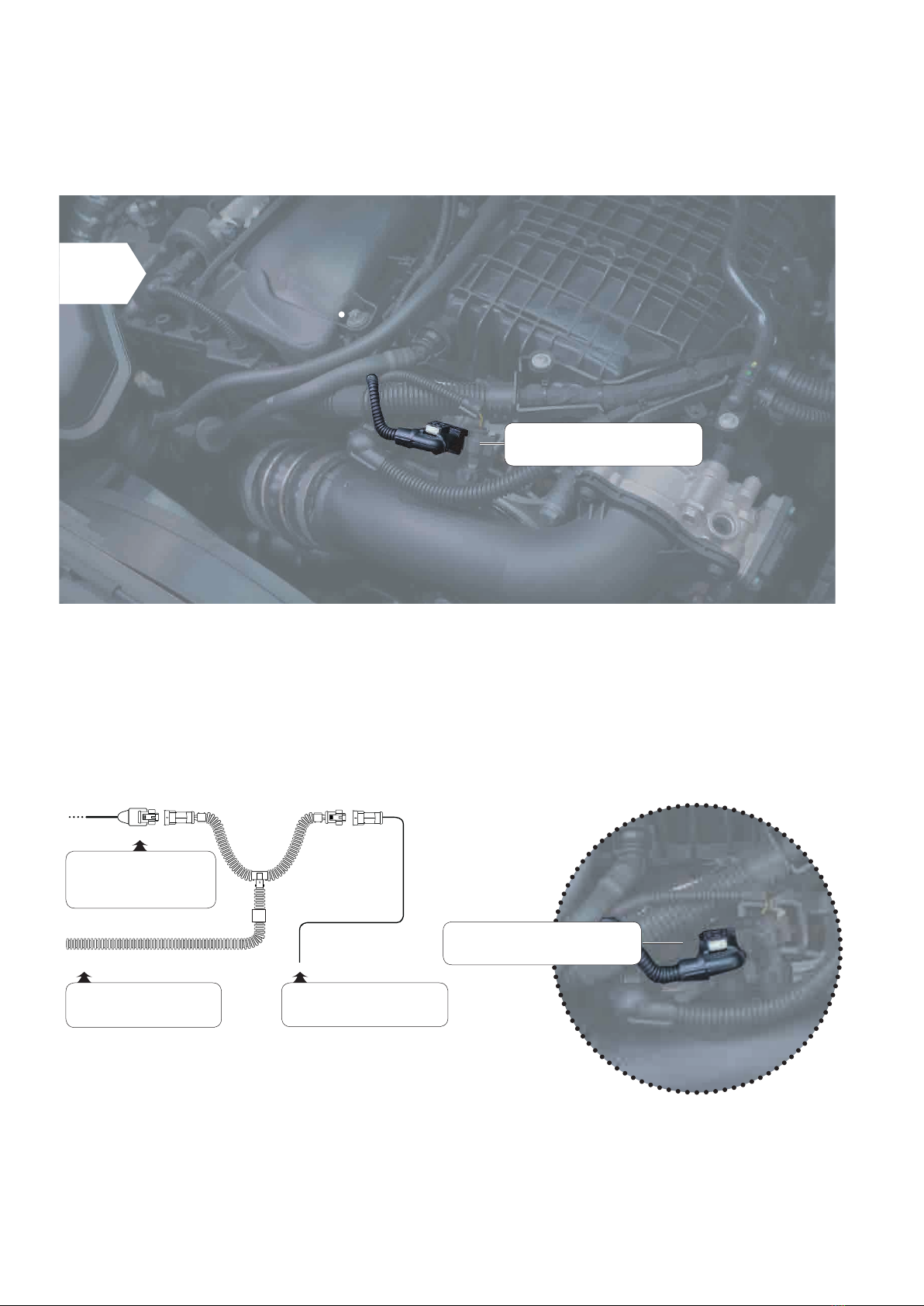

Step 4 of 6 - Connect the suction hose pressure
•
Schematic representation:
Cable coming from
Proracing
Cable with connector
series o
B
Link to
tube pressure
suction
9
Locate the turbo pressure sensor usually located after the throttle body on the
intake manifold, disconnect the connectors and interpose the wiring as shown in the gure
schematized.
1
Pressure connection
of the suction pipe
Pressure connection
of the suction pipe
10
4 Assembly
•
•
• Make sure the connector's safety clip clicks back into place:
you can hear it by CLICK.
To disconnect the connectors from the sensors it is sometimes necessary to raise the safety and then
press the release clip using not too much force and remove the connector.
It intercepts the suction pressure sensor located on the suction ange, releases the connectors and
connect as shown in the gure by interposing the wiring between the car sensor and the engine wiring.
2
3
Instructions for disconnecting the suction hose pressure connector are available on the
enclosed sheet. Disconnect the connector correctly.
