PUIG 8909 Bedienungsanleitung

MOTOPLASTIC, S.A.

Pg. de la Ribera, 29

[email protected]

www.puig.tv

Tel. +34 93 849 06 33

- 08403 Granollers (Barcelona) SPAIN

[email protected]

www.puigusa.com

PIEZA / PARTDESCRIP.

ID. PIEZA/PART QTY.

Created by: www.ciandisseny.com

Ref.: 8909

Ref.: 8910

CÚPULA ADAPTABLE A - SCREEN FOR - WINDSCHUTZSCHEIBE FÜR

HONDA NC 750 X - ‘16 -

(Mod. SPORT)

(Mod. TOURING)

10 min

1 persona

1 person

Nº 3

Nº 5

ALLEN

Fácil - Easy

Med

diat

Dif

íci

-D

ifﬁ

ﬁ

Mod. TOURING

Mod. SPORT

Cúpula SPORT

SPORT screen (Ref. 8909)

Arandela de goma M5x4

M5x4

rubber washer

Tornillo Allen M5 x 30 ISO 7380

M5 x 30 ISO 7380 Allen screw

Cúpula TOURING

TOURING screen (Ref. 8910)

Pg. 1/2

Created by: www.ciandisseny.com

INSTRUCCIONES DE MONTAJE - MOUNTING INSTRUCTIONS - MONTAGEANLEITUNG

MOTOPLASTIC, S.A.

Pg. de la Ribera, 29

[email protected]

www.puig.tv

Tel. +34 93 849 06 33

- 08403 Granollers (Barcelona) SPAIN

[email protected]

www.puigusa.com

1 2

CÚPULA ADAPTABLE A - SCREEN FOR - WINDSCHUTZSCHEIBE FÜR

HONDA NC 750 X - ‘16 -

DESMONTAJE

DISASSEMBLY

MONTAJE

ASSEMBLY

Pg. 2/2

Cúpula SPORT

SPORT screen

Cúpula TOURING

TOURING screen

Arandelas originales

Originals washer

Arandelas originales

Originals washer

Arandelas originales

Originals washer

Created by: www.ciandisseny.com

DESCRIPCIÓN DESCRIPTION

ID. PIEZA / PART QTY.

MOTOPLASTIC, S.A.

Pg. de la Ribera, 29

[email protected]

www.puig.tv

Tel. +34 93 849 06 33

- 08403 Granollers (Barcelona) SPAIN

[email protected]

www.puigusa.com

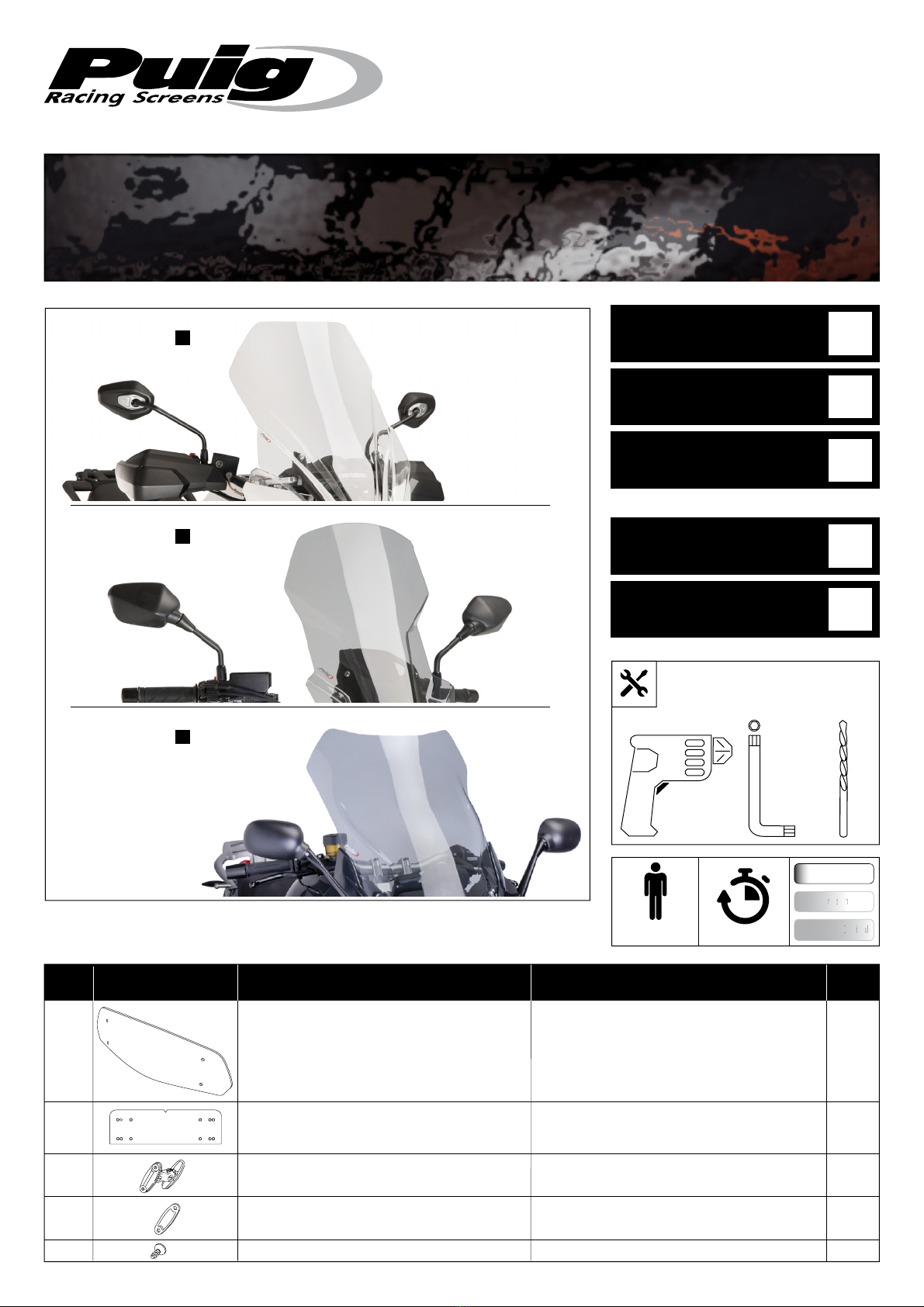

VISERA MULTIREGULABLE

MULTI-ADJUSTABLE VISOR

15 min

1 persona

1 person

Fácil - Easy

Med

iat

ifﬁ

ﬁ

CÚPULA TIPO

TYPE WINDSCREEN

CÚPULA TIPO

TYPE WINDSCREEN

CÚPULA TIPO

TYPE WINDSCREEN

Nota/Note:

Si la visera se suministra con la cúpula Puig, no será necesario realizar los agujeros por que ya vienen incorporados.

If the visor is supplied along with the windscreen, the windscreen will come factory-drilled so no drilling is necessary.

Pg. 1/4

Tornillo rosca plástico M6x12

Visera

Plantilla

Mecanismo multiregulable

Tapeta

Plastic thread fastener M6x12

Visor

Template

Multi-adjustable mechanism

Cap

Ref.: 6007

Ref.: 5852

Ref.: 5853

Ahumado/Smoke

Transparente/Clear

Nº 4 Ø7

ALLEN

Created by: www.ciandisseny.com

INSTRUCCIONES DE MONTAJE - MOUNTING INSTRUCTIONS - MONTAGEANLEITUNG

MOTOPLASTIC, S.A.

Pg. de la Ribera, 29

[email protected]

www.puig.tv

Tel. +34 93 849 06 33

- 08403 Granollers (Barcelona) SPAIN

[email protected]

www.puigusa.com

VISERA MULTIREGULABLE

MULTI-ADJUSTABLE VISOR

6007

5852

5853

TIPO/TYPE A- TIPO/TYPE A - TIPO/TYPE A

Utilizar broca de Ø 7mm, especial para plástico.

Use Ø 7mm drill for plastic.

Utilizar un taco de madera en la parte posterior.

Use a wood block on the other side.

Chaﬂanar los 4 agujeros por ambos lados.

Chamfer the four holes on both sides.

Pg. 2/4

Ø7

ZONA DE CONTACTO CON LA CÚPULA

CONTACT SECTION WITH THE WINDSCREEN

Created by: www.ciandisseny.com

INSTRUCCIONES DE MONTAJE - MOUNTING INSTRUCTIONS - MONTAGEANLEITUNG

MOTOPLASTIC, S.A.

Pg. de la Ribera, 29

[email protected]

www.puig.tv

Tel. +34 93 849 06 33

- 08403 Granollers (Barcelona) SPAIN

[email protected]

www.puigusa.com

VISERA MULTIREGULABLE

MULTI-ADJUSTABLE VISOR

TIPO/TYPE B- TIPO/TYPE B - TIPO/TYPE B

6007

5852

5853

Pg. 3/4

Utilizar broca de Ø 7mm, especial para plástico.

Use Ø 7mm drill for plastic.

Utilizar un taco de madera en la parte posterior.

Use a wood block on the other side.

Chaﬂanar los 4 agujeros por ambos lados.

Chamfer the four holes on both sides.

Ø7

ZONA DE CONTACTO CON LA CÚPULA

CONTACT SECTION WITH THE WINDSCREEN

Created by: www.ciandisseny.com

INSTRUCCIONES DE MONTAJE - MOUNTING INSTRUCTIONS - MONTAGEANLEITUNG

MOTOPLASTIC, S.A.

Pg. de la Ribera, 29

[email protected]

www.puig.tv

Tel. +34 93 849 06 33

- 08403 Granollers (Barcelona) SPAIN

[email protected]

www.puigusa.com

VISERA MULTIREGULABLE

MULTI-ADJUSTABLE VISOR

TIPO/TYPE C- TIPO/TYPE C - TIPO/TYPE C

6007

5852

5853

Pg. 4/4

Utilizar broca de Ø 7mm, especial para plástico.

Use Ø 7mm drill for plastic.

Utilizar un taco de madera en la parte posterior.

Use a wood block on the other side.

Chaﬂanar los 4 agujeros por ambos lados.

Chamfer the four holes on both sides.

Ø7

ZONA DE CONTACTO CON LA CÚPULA

CONTACT SECTION WITH THE WINDSCREEN
