PUSR USR-G816 Bedienungsanleitung

USR-G816 User Manual

pusr.com

Industrial 5G Router

(Cost effective)

Be Honest & Do Best

Your Trustworthy Smart Industrial IoT Partner

User Manual

USR-G816

V2.0

USR-G816 User Manual

pusr.com
1
- 2 -
Content
Introduction ...............................................................................................................................................- 5 -
1. Features............................................................................................................................................- 5 -
2. Parameters table...............................................................................................................................- 6 -
3. Indicator introduction........................................................................................................................- 7 -

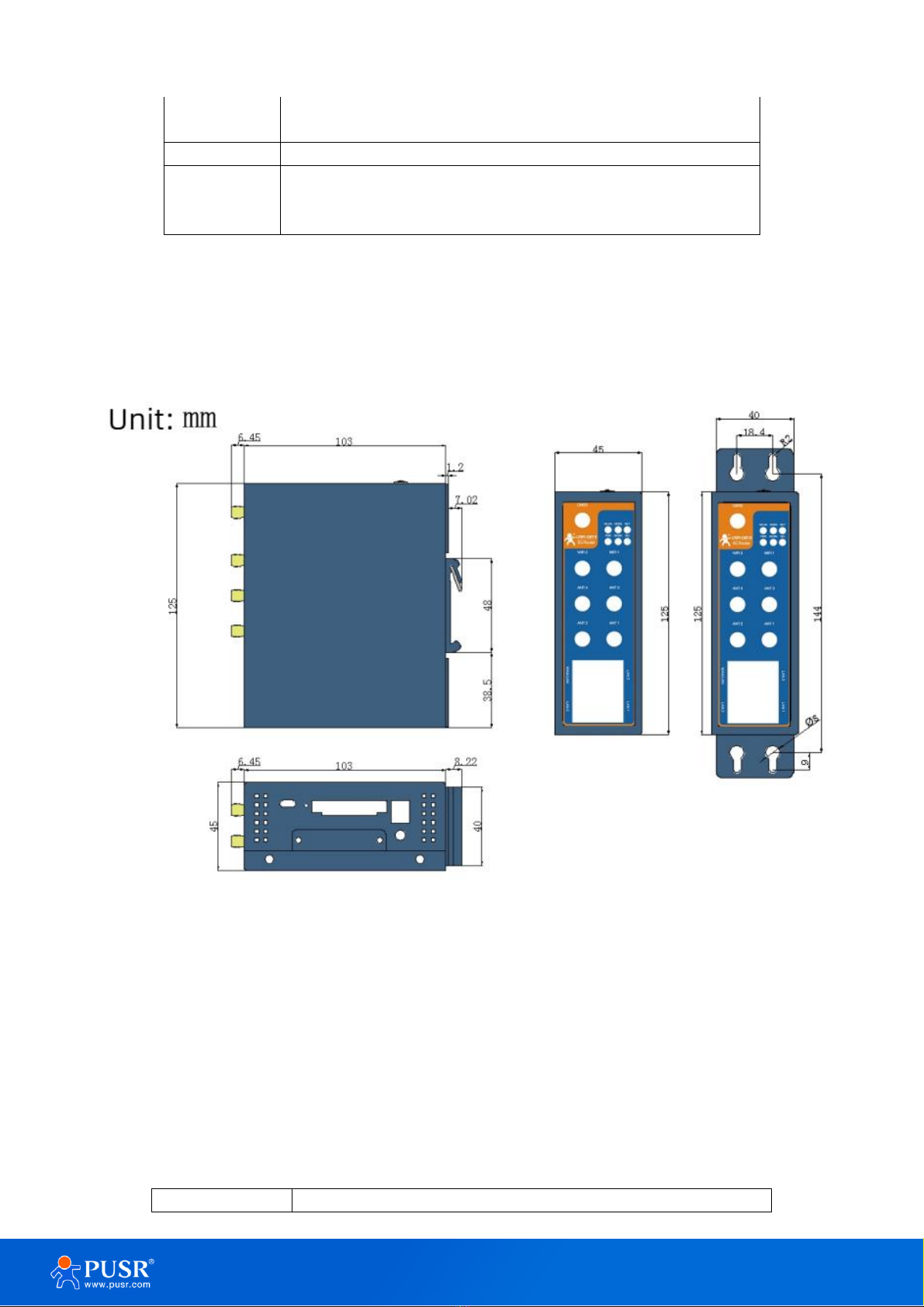

4. Dimension ........................................................................................................................................- 8 -
Get Started.................................................................................................................................................- 8 -
1. Login router ......................................................................................................................................- 8 -
2. Brief introduction of the webpage .....................................................................................................- 9 -
Status & System........................................................................................................................................- 10 -
1. Status .............................................................................................................................................- 10 -
2. System (Hostname) .........................................................................................................................- 10 -
3. Administration password ................................................................................................................- 11 -
4. Reboot timer (Timed restart function) .............................................................................................. - 12 -
5. NTP service .....................................................................................................................................- 12 -
6. HTTP port ........................................................................................................................................ - 13 -
7. System log......................................................................................................................................- 14 -
8. Backup/Upgrade.............................................................................................................................- 15 -
9. Reboot............................................................................................................................................- 16 -
Network introduction................................................................................................................................ - 17 -
1. WAN interface.................................................................................................................................- 17 -
1.1. WAN_5G interface ..................................................................................................................- 17 -
1.2. WAN_WIRED interface.............................................................................................................- 17 -
2. LAN interface ..................................................................................................................................- 20 -
3. Cellular network.............................................................................................................................. - 21 -
3.1. Configuration.........................................................................................................................- 21 -
3.2. SIM1/SIM2 configuration ........................................................................................................- 22 -
3.3. Module information ............................................................................................................... - 24 -
4. Network switch ...............................................................................................................................- 24 -
5. Wireless (Wi-Fi) ............................................................................................................................... - 25 -
5.1. Wi-Fi settings of 2.4 & 5.8G .....................................................................................................- 25 -
5.2. Client information ..................................................................................................................- 26 -

USR-G816 User Manual

pusr.com
1
- 3 -
6. WWAN(STA).....................................................................................................................................- 27 -
6.1. Basic settings.........................................................................................................................- 27 -
6.2. 2.4G / 5.8G settings................................................................................................................ - 27 -
6.3. AP information....................................................................................................................... - 29 -
7. DHCP introduction...........................................................................................................................- 30 -
8. Static routes.................................................................................................................................... - 30 -
8.1. Static routing adding.............................................................................................................. - 30 -
8.2. Router table...........................................................................................................................- 31 -
9. WAN/LAN port switching ................................................................................................................. - 32 -
10. Network diagnostics...................................................................................................................... - 33 -
VPN..........................................................................................................................................................- 33 -
1. PPTP Client......................................................................................................................................- 33 -
2. L2TP Client ......................................................................................................................................- 35 -
3. OpenVPN ........................................................................................................................................ - 36 -
3.1. OpenVPN client ......................................................................................................................- 37 -
3.2. OpenVPN server.....................................................................................................................- 39 -
Firewall.................................................................................................................................................... - 39 -
1. General Settings.............................................................................................................................. - 39 -
2. Port forward....................................................................................................................................- 40 -
2.1. Port forward .......................................................................................................................... - 40 -
2.2. DMZ function ......................................................................................................................... - 41 -
3. Traffic rules.....................................................................................................................................- 42 -
3.1. Open ports on router.............................................................................................................. - 43 -
3.2. Add new forward rule ............................................................................................................- 44 -
3.3. Source NAT ............................................................................................................................ - 45 -
4. Access restrictions...........................................................................................................................- 47 -
DTU Function............................................................................................................................................- 50 -
1. General settings..............................................................................................................................- 51 -
1.1. Protocol selection ..................................................................................................................- 51 -
1.2. Heartbeat packet ...................................................................................................................- 52 -
1.3. Registration packet ................................................................................................................- 52 -
1.4. Advanced settings(AT command password) ........................................................................... - 54 -
2. Serial port settings ..........................................................................................................................- 54 -

USR-G816 User Manual

pusr.com

- 4 -

7.2.1. Parameter description............................................................................................................- 54 -

7.2.2. Packeting mechanism ............................................................................................................- 55 -

7.3. SOCKET ........................................................................................................................................... - 56 -

7.4. HTTP Client......................................................................................................................................- 58 -

7.5. Modbus gateway setting and test....................................................................................................- 59 -

7.6. Transparent data communication.................................................................................................... - 61 -

8. Additional services...................................................................................................................................- 63 -

8.1. PUSR Cloud .....................................................................................................................................- 63 -

8.1.1. Add USR-G816 on PUSR Cloud ................................................................................................- 63 -

8.1.2. Gateway Information .............................................................................................................- 65 -

8.1.3. Remote access.......................................................................................................................- 66 -

8.1.4. Firmware upgrade .................................................................................................................- 67 -

8.1.5. Alarm settings........................................................................................................................- 68 -

8.2. DDNS ..............................................................................................................................................- 70 -

9. Contact Us................................................................................................................................................ - 73 -

10. Disclaimer.............................................................................................................................................. - 73 -

USR-G816 User Manual

pusr.com

- 5 -

1. Introduction

1.1. Features

Stable and reliable

◆Industrial grade design for harsh environments, IP30 mental housing.

◆Support DIN rail mounting, wall mounting and flat surface placement.

◆Wide input voltage range 9~36VDC, reverse polarity protection.

◆Multiple EMC protection: Surge, EFT and ESD protection

◆Built-in hardware watchdog, fault self-detection and self-repair, to ensure system stability.

Flexible networking

◆Dual sim cards, single standby.

◆Supports 5G SA/NSA network, compatible with 4G/3G network.

◆Equipped with gigabit Ethernet ports: 1*WAN/LAN (Switchable), 3*LAN.

◆Equipped with 1*RS232/RS485 serial port which can be directly connected to sensors and other serial

acquisition devices for data transmission.

◆Optional GNSS function, realize precise positioning of assets.

◆Supports dual band Wi-Fi, adopting Qualcomm chip.

Powerful function

◆Supports 5G APN/VPDN sim cards.

◆Supports worldwide main frequency band with 4G network backup.

◆Support Modbus TCP/RTU protocol conversion，transparent TCP/UDP/HTTP data communication.

◆Built-in ICMP keep-alive detection, heartbeat packet detection and other functions to ensure the

stable operation of the device.

◆Supports firewall, NAT, DMZ, port forwarding, access restriction, etc. to ensure data security.

◆Cooperating with PUSR service, it can realize centralized management of remote equipment and

improve operation and maintenance efficiency.

◆Supports mainstream VPN: PPTP, L2TP and enhanced OpenVPN.

USR-G816 User Manual

pusr.com

- 6 -

1.2. Parameters table

Table 1. Parameters of USR-G816

USR-G816 specifications

Cellular

Interface

Frequency

5G NR sub-6 GHz (3GPP Rel-16)

Band(NA/NSA):

n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/ 79;

4G LTE (CAT 19 DL / CAT 18 UL)

LTE-FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71;

LTE-TDD: B34/38/39/40/41/42/43/48;

LAA: B46;

3G WCDMA: B1/2/4/5/8/19

Maximum Transmission

Data Rate

5G SA Sub-6: Max. 2.4Gbps (DL)/Max. 900Mbps (UL);

5G NSA Sub-6: Max. 3.4Gbps (DL)/Max. 550Mbps (UL)

LTE-FDD: Max. 1.6Gbps (DL)/Max. 200Mbps (UL)

WCDMA: Max. 42 (DL)/Max. 5.76 (UL)

Antennas

4 × SMA-K Connectors (Center PIN: SMA Female)

SIM Slot

2 x (3 V/1.8 V) mini-SIM(2FF) Push-push type slot (SIM Card 2 can be configured with built-in

eSIM)

Ethernet Interface

WAN

1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3,

IEEE 802.3u, supports auto MDI/MDIX crossover, Ethernet Isolation 1.5 KV RMS

LAN

3 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover, Ethernet Isolation 1.5

KV RMS

Indicators

PWR

red, always on after powered on

WORK

green, blinking every 1second when the router is ready and working properly

NET

Mobile network type LEDs

NET lights on after device is connected to the network. Green stands for 5G, green and red

for 4G, and red for 3G

SIG

Mobile signal strength indication LED

Green represents excellent signal, two-color light represents good signal, red represents

poor signal

WLAN

always solid on when WiFi is enabled and working properly

WAN

LED blinking When Connection established and data is being transferred over this port.

LAN

LED blinking When Connection established and data is being transferred over this port.

Wi-Fi Interface

Antennas

2 × SMA-K Connectors (Center PIN: SMA Female)

MIMO

2×2

Standards

Concurrent dual-band 802.11a/n/ac (5.8GHz) and 802.11b/g/n (2.4GHz)

Modes

AP/AP+STA/AP+WDS repeater

Data speed

Up to 1733Mbps wireless operation rate at 5.8GHz

Security

Wi-Fi security with WPA-PSK, WPA2-PSK, Mixed WPA/WPA2-PSK, WPA2-PSK+CCMP

Transmission distance

200 meters by line of sight. Actual transmission distance depends on environment of the

site.

GNSS(Optional)

Antenna

1 × SMA-K Connector (Center PIN: SMA Female)

Technology

GPS, GLONASS, BeiDou, Galileo

Protocol

NMEA 0183

Power Supply

Adapter

DC 12V/2A

Connector

DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or industrial terminal

block(V+,V-),reverse polarity protection

USR-G816 User Manual

pusr.com

- 7 -

1.3. Indicator introduction

USR-G816 provides 6 indicators in total, the specific description is as follows.

Table 2. LED indicator

Name

Description

PWR

Steady on: power supply is normal.

Off: No power supply or abnormal power supply.

WORK

Blinking: The system works normally.

SIG

Green: Signal strength 25-31 (signal strong)

Orange: Signal strength 15-24 (signal strength is basically normal,

and equipment can be used under normal conditions)

Red: Signal strength 1-14 (Signal strength is weak, please check

antenna and the signal strength of current location)

Input voltage range

DC9-36V

Power consumption

Average current 630mA@12V and the maximum current 1.6A@12V

Serial Interface

Numbers

1 × RS485/RS232

Connector

Terminal block

Baud Rate(bps)

1200,2400,4800,9600,19200,38400,57600,115200,230400,460800(only 485)

Signal definition

RS232: TXD, RXD, GND RS485: A, B, GND

Data bits

7,8

Stop bits

1,2

Parity

NONE, ODD, EVEN

Physical

Characteristics

Casing material

Metal shell, ingress protection IP30

Dimensions

125.0*103.0*45.0mm (L*W*H, antenna pedestal, terminal block and DIN Rail are not

included)

Installation

Desktop, wall mounting and DIN-rail mounting

EMC

Static IEC61000-4-2, level 3

Pulsed Electric Field IEC61000-4-4, level 3

Surge IEC61000-4-5, level 3

Operating Temperature

-35℃~ +75℃

Storage Temperature

-40℃～+125℃(Non-condensing)

Relative Humidity 0

5%~95% (Non-condensing)

Others

Reload button

1 × Reload

TBD

Debug interface (TTL Level)

Ground protection

Screw

Built-in

Watchdog

Software

Network Protocols

PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, ARP, NTP, Telnet, SSH, DDNS, etc.

VPN

LT2P, PPTP

Security

Access Control, DMZ, Port Forwarding, SYN-Flood Protection, Filtering (IP& MAC & Domain)

Management

Web UI, PUSR cloud

Reliability

WAN Failover, Dual SIM Backup

Serial port

Transparent (TCP Client/Server, UDP), Modbus Gateway (Modbus RTU to Modbus TCP)

Certificate

In progress

CE, *FCC, *WEEE, RoHS, *RCM, *WPC

USR-G816 User Manual

pusr.com

- 8 -

WLAN

On: Enable WLAN

Off: Enable WLAN

GNSS

Used for GNSS version

NET

Green: 5G network

Orange: 4G network

Red: 3G network

1.4. Dimension

➢Sheet metal housing, DIN-Rail mounting and wall mounting supported.

➢125.0*103.0*45.0mm (L*W*H, accessories not included)

Figure 1. Dimension of USR-G816

2. Get Started

2.1. Login router

Power on the G816 router, connect PC to USR-G816 via LAN port or via Wi-Fi, users can login router via

Chrome or the other browser. The default network parameters are shown in the following table:

Table 3. Default network parameters

Parameter

Default value

USR-G816 User Manual

pusr.com

- 9 -

SSID

USR-G816-xxxx

LAN IP

192.168.1.1

Username

root

Password

root

Wi-Fi password

www.pusr.com

Open the browser, enter 192.168.1.1 in the URL blank, and press Enter, it will navigate to the following webpage.

After entering the login password, clicking login, the web page will show configuration page of USR-G816.

Figure 2. Login webpage

2.2. Brief introduction of the webpage

There are several tabs on the left side of the webpage, users can set parameters of USR-G816 on the tab

pages.

➢Status：Mainly display device name, firmware version, running status, and routes etc.

➢Service: Mainly some additional functions, including dynamic DNS, GPS (GPS version), PUSR cloud.

➢VPN: Configuration of VPN, such as PPTP, L2TP and OpenVPN.

➢Network: In this interface, there are many categories related to network connection. Users can set

parameters such as WAN port, LAN port and cellular network.

➢Firewall: User can set firewall rule on this page such as inbound and outbound rules, port forwarding,

blacklist, whitelist, and other information.

➢DTU: Configure parameters related to DTU such as serial port and SOCKET.

➢System: Mainly some basic functions, including restart, restore factory settings, firmware upgrade,

USR-G816 User Manual

pusr.com

- 10 -

log checking, etc.

Figure 3. Status webpage

3. Status & System

3.1. Status

Users can get the basic information of USR-G816, such as firmware version, running time, IPv4 WAN status,

routes list, and information about DHCP client.

3.2. System (Hostname)

In this page, users can modify the hostname, the default is USR-G816. After changing, click “Apply”, the

changed value will take effect.

Inhaltsverzeichnis

Andere PUSR Netzwerk-Hardware Handbücher

PUSR

PUSR ST508E Bedienungsanleitung

Beliebte Netzwerk-Hardware Handbücher anderer Marken

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Bedienungsanleitung

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Bedienungsanleitung

Yudor

Yudor YDS-16 Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-320L Bedienungsanleitung

Samsung

Samsung ES1642dc Gebrauchsanweisung

Honeywell Home

Honeywell Home LTEM-PV Montageanleitung

evertz

evertz 7700 Series Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-343 Bedienungsanleitung

Asante

Asante AsanteBridge 1012 Bedienungsanleitung

FireBrick

FireBrick FB2700 Bedienungsanleitung

Audiovox Electronics

Audiovox Electronics ARWH2T Bedienungsanleitung

ADC

ADC DSX-1 Handbuch

NetComm

NetComm NF2 Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 5620 Bedienungsanleitung

Dell EMC

Dell EMC XC6420 Series Bedienungsanleitung

Lanner

Lanner NCA-1020A Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TN121-A Bedienungsanleitung

Arista

Arista CCA-ETM-Q12 Bedienungsanleitung
