PUTCO MOLLE PANELS Bedienungsanleitung

`DESCRIPTION QTY

Molle Front Side Plate 1

Molle Rear Side Plate 1

M6 Bolts 10

Brackets 3

Rubber Feet (8FT Bed Only) 2

Jam Nuts (8FT Bed Only) 2

Congratulations on your purchase of a high quality PUTCO®product. Should

you need any application or technical assistance, feel free to call us at:

Monday-Friday 8:00am - 5:00pm (Central Standard Time)

Contact your PUTCO®dealer for other quality accessories.

1951XXI-SP

1-800-247-3974

PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLATION

AND CHECK TO SEE THAT ALL PARTS ARE INCLUDED

CONTENT LIST

REQUIRED TOOLS

INSTRUCTION GUIDE

FORD F-SERIES

10MM WRENCH T30 TORX DRIVE

SIDE PANELS

MOLLE Panels Instruction Guide

1

2

Unscrew and remove the 4 tie-down plates using a T30 Torx driver. Place the side mounting

brackets behind the tie down plates, then fasten to the bed re-using factory hardware. (NOTE: for

the 6.5ft Super Duty molle the front side plate bracket is larger than the one for the rear).

Unscrew and remove the 2 rear tie-down hooks using a T30 Torx driver. Place the rear brackets

behind the rear tie-down hooks, then fasten to the bed re-using factory hardware.

INSTALLATION INSTRUCTIONS

1951XXI-SP

3

4

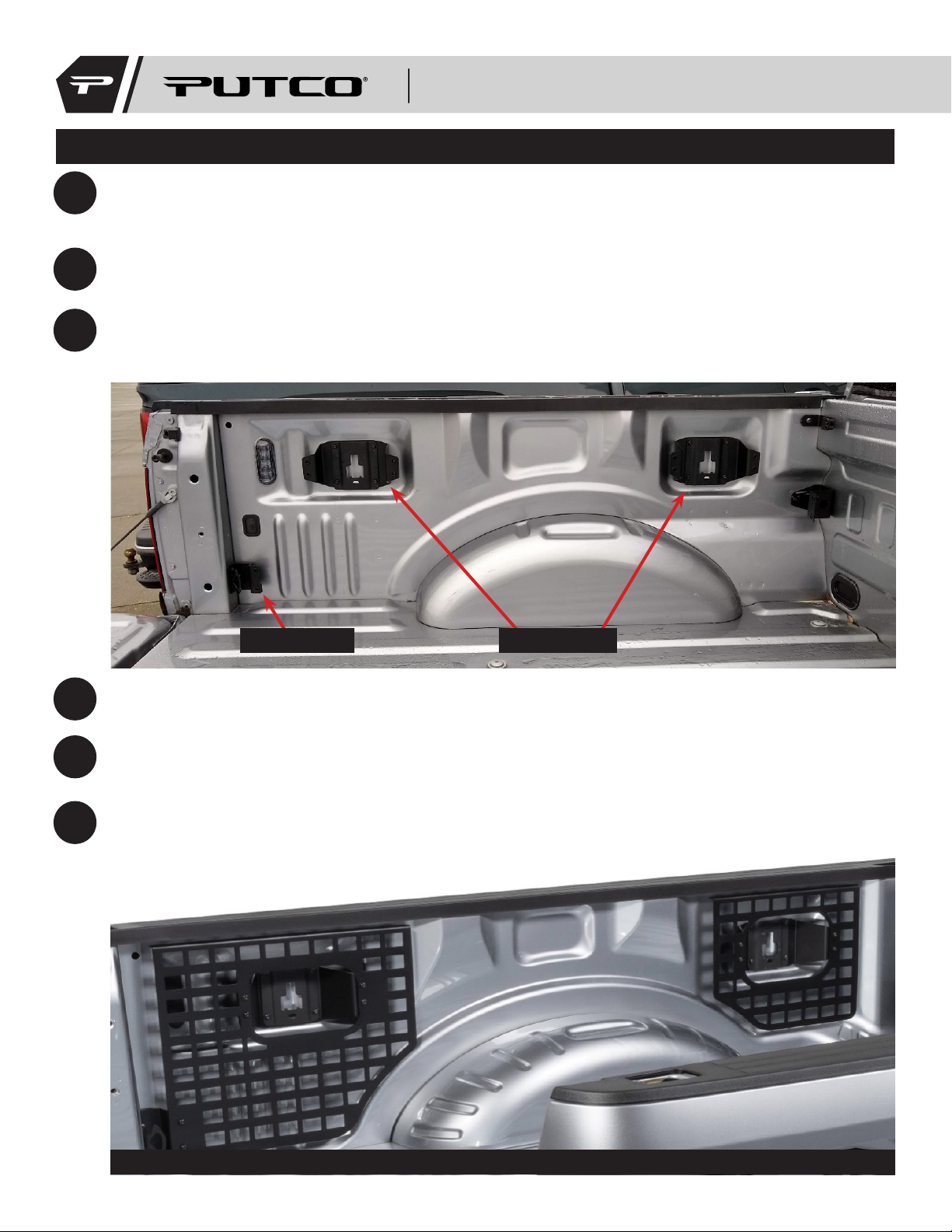

For F-150 8-ft beds, prepare the front side plate by loosely threading a jam nut onto each of the

rubber feet, then loosely screw the feet into the riv-nuts on the bottom ﬂange of the front side

plate.

Fasten the side plates to their brackets using the supplied M6 bolts and a T30 Torx driver.

Rear Bracket Side Brackets

Side Plate Assembly

5Once all the plates are installed in the vehicle, ensure all fasteners are tightened until snug, but

do not overtighten.

6For F-150 8-ft beds, screw down the rubber feet on the front side plate until they are snug against

the ﬂoor of the bed, then secure in place by fastening the jam nut against the riv-nut using a

10mm wrench.
