DVD/VCD/CD/MP3 PLAYER WITH

MANUALLY TUNED SYNTHESIZER STEREO RADIO

ENTER

SETUP

+10

F.BWD

F.FWD NEXT

PREV.

ANGLE

PLAY/PAUSE

SUBTITLE

ZOOM TITLE

AUDIO

DISPLAY

EJECT

GOTO

STOP

REPEAT A-B

SLOW

AUX

MUTE

DISC-RPT

FLAT

ROCK

CLAS

POP

LOUD LOC

TRACK

MUTE

RND INT SW

PWR

EQ CLK MON BND MOD SEL

REL

TUNE

LOC

OWNER'S MANUAL

Mobile Video System

OWNER'S MANUAL

Mobile Video System

PLDVD168

Safety Information ........................................................................................3

Disc Notes ....................................................................................................4

Installation.....................................................................................................5

Electric Connection ......................................................................................8

Remote Control.............................................................................................9

Preparing the Remote Control......................................................................10

Basic Operation ............................................................................................11

On-Screen Display Function.........................................................................15

Muti-audio Language Function.....................................................................15

Menu Function..............................................................................................16

Title Menu Function (For DVD only) ..............................................................16

Multi-subtitle Language Function (For DVD only).........................................16

Multi-angle Function (For DVD only).............................................................16

MP3 Disc Play...............................................................................................16

Setup ............................................................................................................17

Initial Setup ...................................................................................................17

General Setup...............................................................................................17

Speaker Setup ..............................................................................................19

Audio Setup ..................................................................................................19

Preferences Setup ........................................................................................20

Defaults Table ...............................................................................................22

Specifications ...............................................................................................23

Trouble Shooting...........................................................................................24

CONTENTS

CAUTION:

THIS DVD PLAYER IS A CLASS I LASER

PRODUCT. HOWEVER THIS DVD

PLAYER USES A VISIBLE/INVISIBLE

LASER BEAM WHICH COULD CAUSE

HAZARDOUS RADIATION EXPOSURE IF

DIRECTED. BE SURE TO OPERATE THE

DVD PLAYER CORRECTLY AS

INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS

OR PERFORMANCE OF PROCEDURES

OTHER THAN THOSE SPECIFIED

HEREIN MAY RESULT IN HAZARDOUS

RADIATION EXPOSURE. DO NOT OPEN

COVERS AND - DO NOT REPAIR

YOURSELF. REFER SERVICINGTO

QUALIFIED PERSONNEL.

WARNING:

•TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR

MOISTURE.

•TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE

RECOMMENDED ACCESSORIES.

•THIS DEVICE IS INTENDED FOR

CONTINUOUS OPERATION.

This product incorporates copyright

protection technology that is protected by

method claims of certain U.S. patents and

other intellectual property rights owned

by Macrovision Corporation and other

rights owners. Use of this copyright

protection technology must be authorized

by Macrovision Corporation, and is

intended for home and other limited

viewing uses only unless otherwise

authorized by Macrovision Corporation.

Reverse engineering ordisassembly is

prohibited.

Region Management InformationRegion

Management Information:

This DVD Player is designed and

manufactured to respond to the Region

Management Information that is

recordedon a DVD disc. If the Region

number described on the DVD disc does

not correspond to the Region number of

this DVD Player, this DVD Player cannot

play this disc.

SAFETY INFORMATION

Disc formats supported by this player

DVD

12 cm disc

(Single-sided disc only)

Video CD

12 cm disc

MP3

12 cm disc

Discs which cannot be played with this

player

•DVD-ROM

•DVD-R/DVD-RAM

•CDV

•CD-G

Handling and Cleaning

•Dirt, dust, scratches and warping disc

will cause misoperation.

•Do not place stickers or make

scratches on discs.

•Do not warp discs.

•A disc should always be kept in its

case when not in use to prevent from

damaging.

•Do not place discs in the following

places:

1. Direct sunlight

2. Dirty, dusty and damp areas

3. Near car heaters

4. On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Note:

A disc may become somewhat scratched

(although not enough to make it

unusable) depending on your handle it

and conditions in the usage environment.

Note these scratches are not an

indication of any problem with the player.

Preparing New Discs with Rough

Spots

A new disc may have rough edges on its

inside and outside edges. If a disc with

rough edges is used, the proper setting

will not be performed and the player will

not play the disc. Therefore, remove the

rough edges in advance by using a ball

point pen or pencil as shown on the right.

To remove the rough edges, press the

side of the pen or pencil against the

inside and outside edges of the disc.

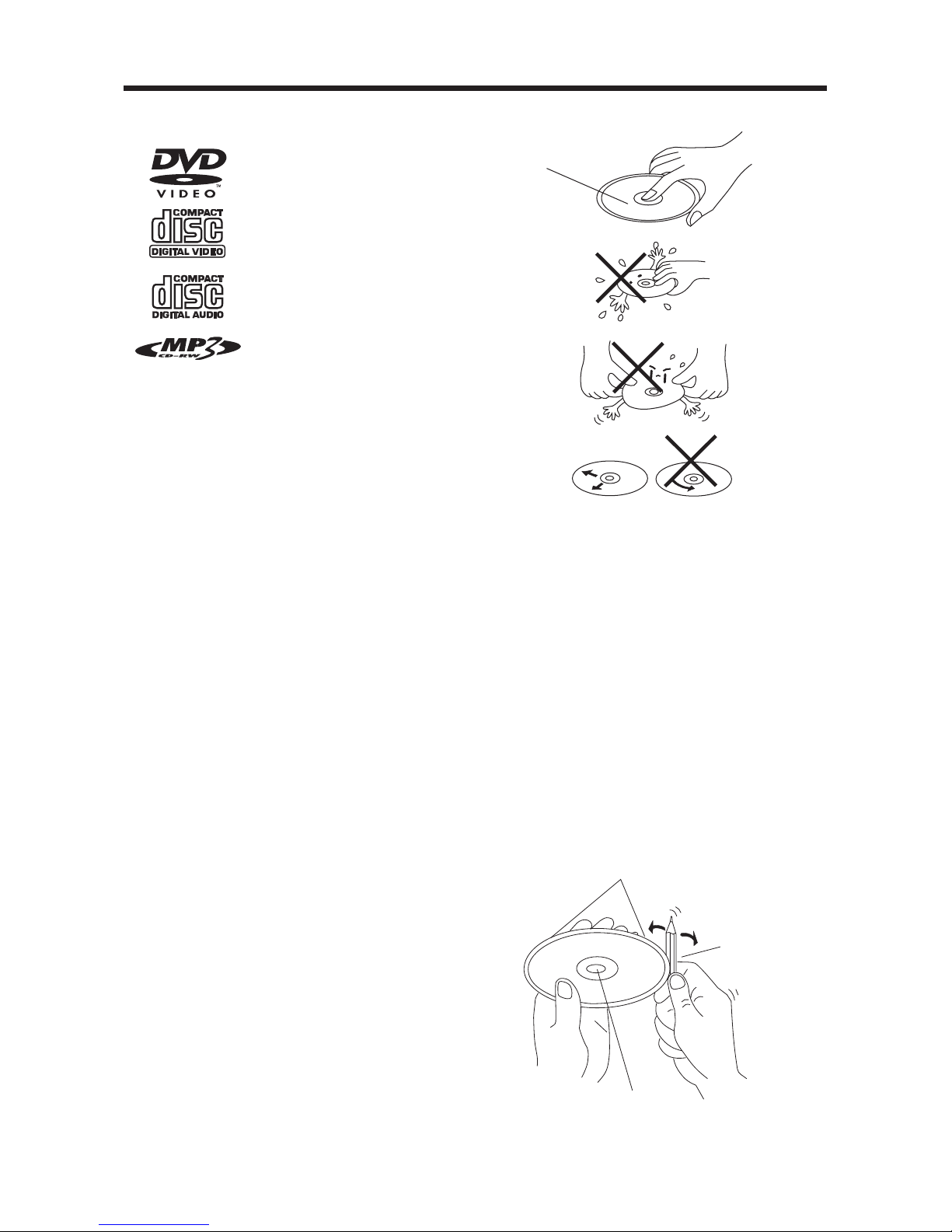

DISC NOTES

Rough spots

on inside edge

Ball point pen

or pencil

Rough spots on

outside edge

Label side up

Do not touch

the underside

of the disc

Do not bend

Wipe the disc from center

toward the outside edge

INSTALLATION

Notes:

•Choose the mounting location where the unit will not interfere with the normal

driving function of the driver.

•Before finally installing the unit, connect the wiring temporarily and make sure it is

all connected up properly and the unit and the system work properly.

•Use only the parts included with the unit to ensure proper installation. The use of

unauthorized parts can cause malfunctions.

•Consult with your nearest dealer if installation requires the drilling of holes or other

modifications of the vehicle.

•Install the unit where it does not get in the driver’s way and cannot injure the

passenger if there is a sudden stop, like an emergency stop.

•If installation angle exceeds 30˚from horizontal, the unit might not give its optimum

performance.

•Avoid installing the unit where it would be subject to high temperature, such as from

direct sunlight, or from hot air, from the heater, or where it would be subject to dust,

dirt or excessive vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from “Front”(conventional DIN Front-mount)

or “Rear”(DIN Rear-mount installation, utilizing threaded screw holes at the sides of the

unit chassis). For details, refer to the following illustrated installation methods.

30˚

INSTALLATION

PLAIN WASHER

HEX BOLT

METAL MOUNTING STRAP

DASH BOARD

CONSOLE

SLIDE BRACKET HOUSING

HEXNUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

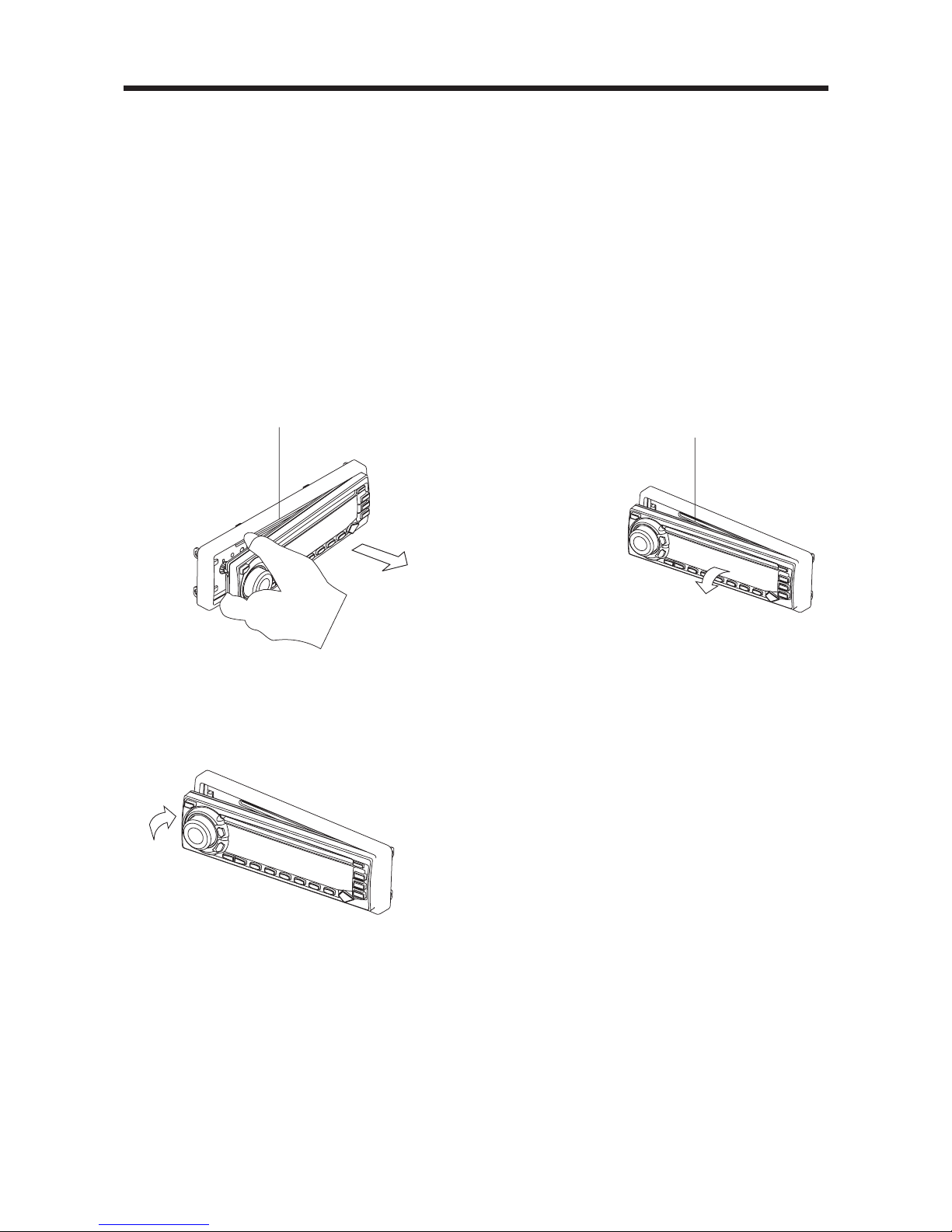

HOW TO REMOVE AND INSTALL THE FRONT PANEL

1. Press the release button and pull-off the front panel.

Keep the front panel into the case.

2. To install the front panel, insert the panel into the housing and make sure the panel

is properly installed, otherwise, abnormalities occurs on the display or some keys

will not function properly.

REMOVING THE FRONT PANEL

INSTALLING THE FRONT PANEL

INSTALLATION

FRONT PANEL RELEASE BUTTON

VIOLET/BLACK

GREY

MEMORY

BACK-UP (B+)

POWER

ANTENNA

GROUND (B-)

RED

YELLOW

BLACK

BLUE

FRONT

Lch SPK.

REAR

Lch SPK.

GREY/BLACK

VIOLET

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

CHOKE BOX

ANTENNA CONNECTOR

RCA CABLE

FRONT RCA OUTPUTCABLE

FRONT

Rch SPK.

REAR

Rch SPK.

MAIN UNIT

ELECTRIC CONNECTION

VIDEO IN YELLOW

RCH IN RED

LCH IN WHITE

VIDEO OUT 1 YELLOW

VIDEO OUT 2 YELLOW

COAXIAL OUT BROWN

RCH RED

LCH WHITE

RCH RED

GREY SUB WOOFER

LCH WHITE

(FOR

RCA

LINE

OUT

VERSION

ONLY)

REAR RCA OUTPUT CABLE (OPTIONAL)

WIRING CONNECTION FOR 4x7W SYSTEM

AUX

IGNITION

SWITCH

REMOTE CONTROL

ENTER

SETUP

+10

PBC

F.BWD

F.FWD NEXT

PREV.

ANGLE

PLAY/PAUSE

SUBTITLE

ZOOM TITLE

AUDIO

DISPLAY

EJECT

GOTO

STOP

REPEAT A-B

SLOW

AUX

MUTE

F.FWD NEXT

PREV.

ANGLE

PLAY/PAUSE

SUBTITLE AUDIO

DISPLAY

EJECT

GOTO

STOP

SLOW

AUX

MUTE

1. GOTO Disc search button, cooperatively used with numeric buttons.

2. DISPLAY Display statistical disc information during playback.

3. EJECT Press it to eject the disc. (Eject is enable in Disc Mode only)

4. SUBTITLE Changing of the SUBTITLE language on multi-subtitle

language DVD disc.

5. AUDIO Changing of the AUDIO soundtrack on multi-audio soundtrack

DVD disc. Changing of the sound mode of the VCD/CD disc.

6. ZOOM Press it to zoom the picture in scale x1.5

7. TITLE Display the TITLE menu that is stored in DVD disc changing

between PBC ON and PBC OFF on the VCD disc.

8. / Press to start forward rapidly & to reverse rapidly.

9. / / / Cursor buttons in MENU mode.

10. SETUP Display the SETUP menu.

11. Press it to stop playback.

12. Press once to pause a play, press again to resume playback.

13. AUX Press AUX to switch to external A/V input.

(AUX is enabled in Disc Mode only)

14. MUTE Press it to elimate the sound immediate.

15. SLOW Changing for slow forward/reverse playback motion.

16. ANGLE Changing of the view angle on multi-angle DVD disc.

17. A-B Press it to repeat between two selected sports on DVD or VCD disc.

18. REPEAT Switch the Repeat mode of DVD/VCD/CD disc.

19 / Press to skip to the next track & press to skip back one track.

20. ENTER Confirm the Track/Chapter selected with the number key or

selected with the cursor buttons on TV screen.

21. 0 - 9 Numeric buttons

22. +10 Press it to select 10th digits.

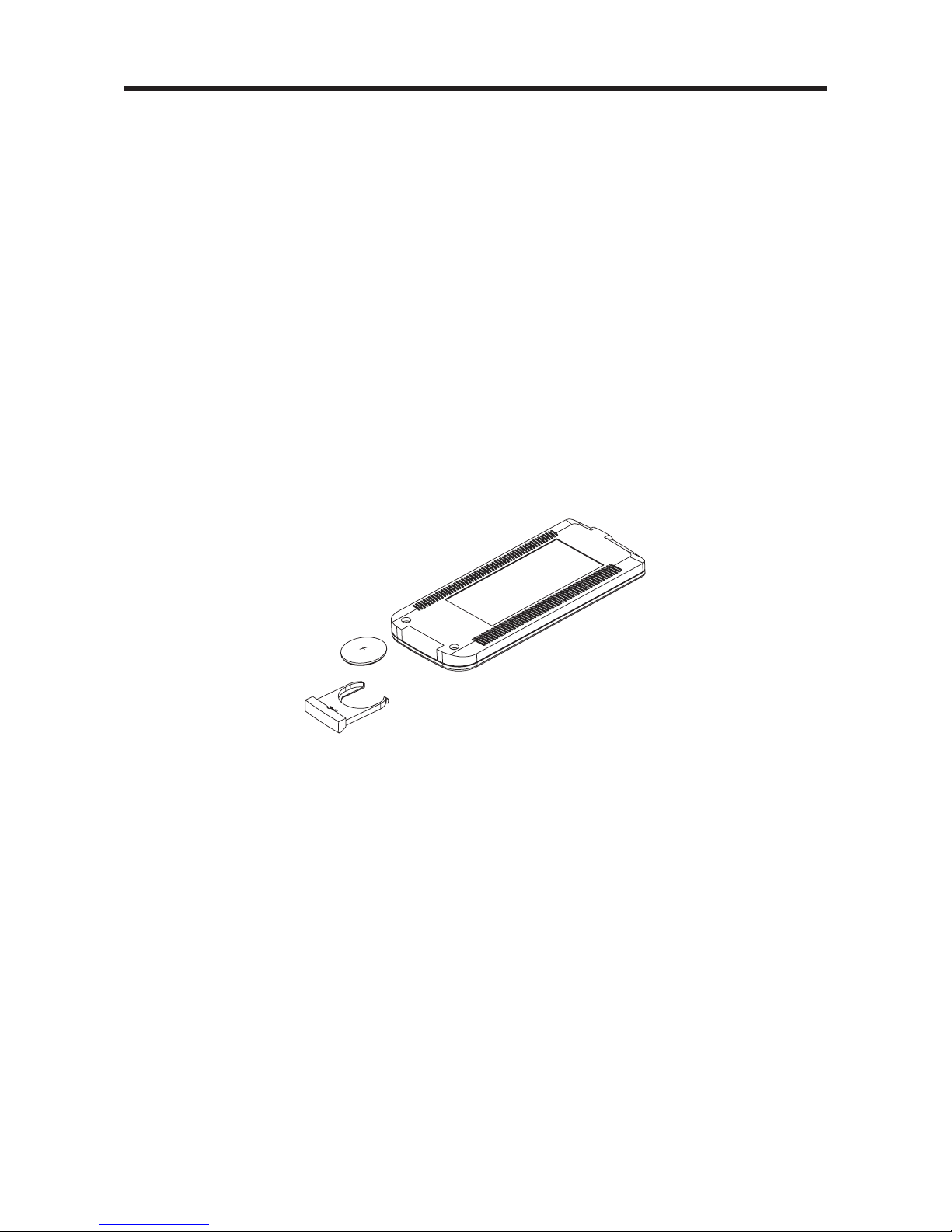

Preparing the Remote Control

Inserting the Batteries

1. Open the battery compartment cover.

2. Insert the new batteries. Make sure that the positive and negative terminals of the

batteries are oriented indicated.

3. Close the cover.

Using the Remote Control

Face the remote control towards the player front face IR mark (remote control signal

receiver).

Operation angle: About ±30 degree in each the direction of the front of the IR mark.

To prevent damage to the unit, be sure to follow the connection diagram (page 8).

REMOTE CONTROL

Inhaltsverzeichnis

Andere Pyle Auto-Videosystem Handbücher

Pyle

Pyle PLD7HB Bedienungsanleitung

Pyle

Pyle PLHR78W Bedienungsanleitung

Pyle

Pyle PLRD125 Bedienungsanleitung

Pyle

Pyle PLDVD115 Bedienungsanleitung

Pyle

Pyle PLTVRD10 Bedienungsanleitung

Pyle

Pyle PLDVSL7 Bedienungsanleitung

Pyle

Pyle PLRD106 Bedienungsanleitung

Pyle

Pyle PLTVD7P Bedienungsanleitung

Pyle

Pyle PL71PHB Bedienungsanleitung

Pyle

Pyle PYLE View Series PLHR4M Bedienungsanleitung

Pyle

Pyle PLDVD-150 Bedienungsanleitung

Pyle

Pyle PLVW1410IR Bedienungsanleitung

Pyle

Pyle PYLE PL7PHRB Bedienungsanleitung

Pyle

Pyle PL1SN104 Bedienungsanleitung

Pyle

Pyle PLDINTV7 Bedienungsanleitung

Pyle

Pyle Chopper PLBASS2.8 Bedienungsanleitung

Pyle

Pyle PYLE View Series PLVSR7IR Bedienungsanleitung

Pyle

Pyle PYLE View Series PLVW1345R Bedienungsanleitung

Pyle

Pyle PLDN63BT Bedienungsanleitung

Pyle

Pyle PLRTD175 Bedienungsanleitung

Pyle

Pyle PLVHR75 Bedienungsanleitung

Pyle

Pyle PLDNANDVR695 Bedienungsanleitung

Pyle

Pyle PYLE View Series PLVRL6400 Bedienungsanleitung

Pyle

Pyle PLRD143F Bedienungsanleitung

Beliebte Auto-Videosystem Handbücher anderer Marken

Stinger

Stinger HEIGH10 RB10RAM13B Bedienungsanleitung

Eonon

Eonon E1057 Bedienungsanleitung

Milion

Milion D2223 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8153 Bedienungsanleitung

Voxx Electronics

Voxx Electronics HR8MA1 Bedienungsanleitung

Axxera

Axxera AV604Bi Bedienungsanleitung

Clarion

Clarion NX706E Bedienungsanleitung

Pyle view

Pyle view PLDN74BTi Bedienungsanleitung

Clarion

Clarion NX602 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5850N Bedienungsanleitung

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Benutzerhandbuch

Lanzar

Lanzar SVDVD5 Bedienungsanleitung

Kia

Kia MTXM100YPPE Bedienungsanleitung

Eonon

Eonon E1060 Bedienungsanleitung

Macrom

Macrom M-AN900 Bedienungsanleitung

Hyundai

Hyundai BAPE-L3000N Bedienungsanleitung

r.LiNK

r.LiNK RL2-UCON8-SM Bedienungsanleitung

Blaupunkt

Blaupunkt DVP 01C Bedienungsanleitung
