TABLE OF CONTENT

1. INSTALLATION GUIDE

2. FUNCTION KEYS

2.1 FUNCT IONS OF FRONT PANEL

2.2 FUNCT IONS OF REMOT E CONT ROL

3. TROUBLE SHOOTING

3.1 NO POWER

3.2 NO FUNCT ION OF REMOT E CONT ROL

3.3 NO DISPLAY OR NOT CLEAR

4. ACCESSORIES

5. SPECIFICATIONS

1. INSTALLATION GUIDE

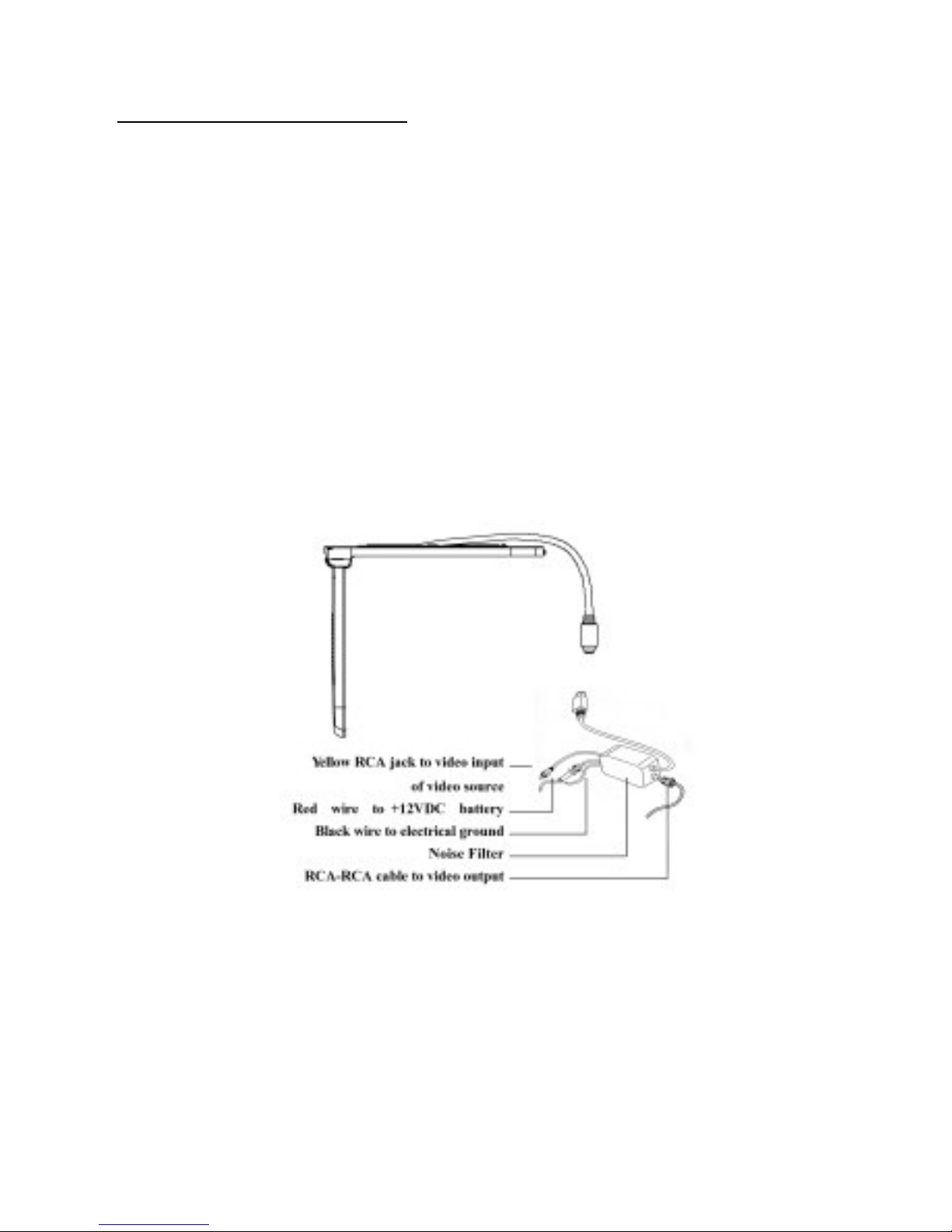

1. On a towel or soft cloth, gently place the monitor unit "facedown" on a

stable work surface.

2. Locate the pigtail with the DIN connector.

3. Connect the DIN connector to the interface cable provided.

4. Connect the RED wire th the positive (+) battery terminal.

5. Connect the Black wire to a chassis electrical ground point.

6. Connect the cable with YELLOW RCA jack to Video Input sources for

your Video Program material.

7. In case of Video Output, connect an RCA-RCA cableon the interfacecable

box.

2. FUNCTION KEYS

2.1 FRONT PANEL OF FUNCTIONS

2.2 FUNCTIONS OF REMOTE CONTROL

POWER Press the POWER button once

it will be power ON.

Press it again, the will be power OFF.

MENU See OSD controls

Up/Dn , ,Inc/Dec Pressorto adjust

Using On-Screen Display (OSD) Controls

You can adjust the display settings using the on-screen display (OSD) program.

Navigating the Menu

Press the Menu button on the front panel of the monitor to launch the OSD program.

The OSD program contains four menus:

 Colour

 Picture

 Function

 OSD Menu

 Miscellaneous

 Exit

Keep on pressing the Menu button to switch between the four menus

While in a menu, press the Select button to highlight and select an option.

When an option is selected, press the button or button to adjust the value.

When you complete your settings, the OSD menu will automatically disappear after

15 seconds, and any changes you have made will be saved. Described below are the

functions you can select and adjust in the OSD menu.

Auto Adjust If set to YES, the values of the

following items in this menu will be

automatically adjusted to the most optimal

settings. If set to NO, auto adjust will not

execute.

Auto Position If set to YES, it will adjust the

display area to an adequate position and fitting

the full screen. If set to YES, auto position will

execute.

Auto Phase adjusts the ADC sampling clock phase relatively to the source video

Hsync signal. This is for minimizing video distortion or jitter. If set to YES; auto

phase will execute.

Auto Clock adjusts the number of pixels from the source video. The correct value is

equal to the horizontal total of the source video. This is for minimizing any vertical

bars or stripes visible on the screen background. If set to YES; auto clock will

execute.

Auto Colour auto adjust the RGB colours and balancing the colours to the preset

mode. If set to YES; auto colour will execute.

Picture Adjustment

H. Position moves the image rightward (with

the + button) or leftward (with the - button). The

values range from 0 to 157, and the default

setting is 29.

V. Position moves the image upward (with the +

button) or downward (with the -button). The

values range from 0 to 23, and the default

setting is 9.

Sharpness moves the image upward (with the + button) or downward (with the

-button). The values range from 1 to 5, and the default setting is 3.

Phase moves the image upward (with the + button) or downward (with the

-button). The values range from 0 to 31, and the default setting is 31.

Clock moves the image upward (with the + button) or downward (with the

-button). The values range from 1 to 200, and the default setting is 100.

Colour Adjustment

Contrast adjusts the image”s contrast. The

values range from 0 to 100, and the default

setting is 50.

Brightness adjusts the image”s brightness. The

values range from 0 to 100, and the default

setting is 50.

Gamma Correct adjusts the image”s brightness.

The values range from 0 to 3, and the default

setting is 0.

Colour Adjust you can adjust Red, Green, Blue colour respectively to set your

preferred colour temperature. The values range from 0 to 100, and the default settings

are 50.

Miscellaneous

Signal Source basically Input source D-sub is

for PC. Additional some model video / TV

inputs for optional usage. Moves the menu

rightward (with the + button) or leftward (with

the - button).

Mode Select there are two select modes. The

default mode is 720 x 400

Reset cancels all settings you have changed and

restores the default settings of the OSD menu.

Volume Moves the menu rightward (with the + button) or leftward (with the

- button) to adjust the volume of the computer.

OSD Menu

Language allows you to choose the desired

language in the pop-up submenu. Use the +

button or - button to choose: English, German,

French, Italian, Spanish, Chinese traditional,

Chinese simple and Japanese. The default is

English.

OSD H. Position moves the menu rightward

(with the + button) or leftward(with the -

button).

OSD V. Position moves the menu upward(with

the + button) or downward(with the - button).

OSD Timer the default setting is YES; if no button pressed, OSD menu will fall away

after 20 seconds later. If setting is No; OSD will remain on the screen.

Translucent default is Yes; means that OSD menu is translucent, can see through

slightly.

3. TROUBLE SHOOTING

3.1 NO POWER

1. Make sure the power cable has been pluged in.

2. Make sure the plug has 12V~14V, may use another electrical appliance to test it.

3.2 NO FUNCTION OF REMOTE CONTROL

1. Make sure the batteries are in good condition and installed properly.

2. Make sure the remote control is aiming at the receiver, and there are no

obstacles in between.

3. Perhaps, it is too far away from the receiver. Normal distance is within 7 meters.

3.2 NO DISPLAY OR NOT CLEAR

1. Check the video signal wires if they are connected properly.

2. Check the antenna or adjust it.

3. Make sure the TV/Video being in proper position.

04. ACCESSORIES

PS2/CAR CABLE USER MANUAL

INSTALLAT ION BRACKET

SCREW PACK REMOT E CONT ROL

5. SPECIFICATIONS

ITEM DESCRIPTION

LCD Panel: 15.0” TFT, 0.297mm, TTL

ViewingAngle -60~60 degree (H), -55~45 degree (V)

Resolution:

1024 x 768 (XGA)

800 x 600 (SVGA)

640 x 480 (VGA)

Display Colors: 16.7 M (8 bits/color)

Pixel Pitch (mm): 0.297 (H) x 0.297 (V)

Backlight Unit 2 Edge-light CCFL, Replaceable.

Contrast Ratio: 350:1

Brightness (cd/m2): 250

Display Area (mm): 304.1 (H) x 228.1 (V)

Power Supply: DC 12Vl

Power management: Power on mode:Current less than 2A

User’s Control: Power on/off, OSD control

System 1.Auto detection between NTSC/PAL.

2.SCEAM is available.

Dimension (mm): 390(L) x 365 (W) x 45 (D)

Weight 3.8 Kg

Safety certifications UL, FCC, CE, TUV,

Environmental Condition:

Operation Temp.: 0~50 degree C

StoStorage Temp.: -20~60 degree C

Humidity: 10~90%

• Recommend for use with PYLE'S PLVWH1 wireless headphones.
