PSLSW4 - PSLSW6
Multi-Zone Speaker Selector
www.PyleUSA.com
2
PSLSW4 - PSLSW6 lets you connect up to four (PSLSW4) or six ( PSLSW6) separate
pairs of speakers to your stereo receiver/amplier. The control center is especially
convenient if you have speaker sets in dierent rooms and want to turn them on
and o independently. You can enjoy the convenience and exibility of listening
to multiple speaker pairs simultaneously.
The control center lets you use one to four (PSLSW4) or six (PSLSW6) sets of
speakers at a time, and is designed to operate with a stereo receiver/amplier
that has a maximum of 100 watts per channel, and with speaker systems that
have a minimum impedance of 8 ohms (see “Impedance Chart” on page 6)
PREPARATIONS
•
Use the PYLE Speaker Selectors only with ampliers rated at 100 watts per
channel or less.
•
Your PYLE Speaker Selector is designed to accept any size cable up to 14 gauge
non-terminated speaker wire. If you're using non-terminated speaker wire, do
not use any speaker wire that is larger than 14 gauge. The lower the gauge
number, the larger the cable (e. g: 12 gauge is larger in actual physical size
than 14 gauge).
•
Do not hook the outputs of one selector into the inputs of another speaker
selector together.
•
Before you connect the AC power source, make sure you set ALL speakers ON/
OFF to OFF.
•
Left and right "commons" are isolated to work with all types of ampliers.
•
Auto transformer impedance protection.

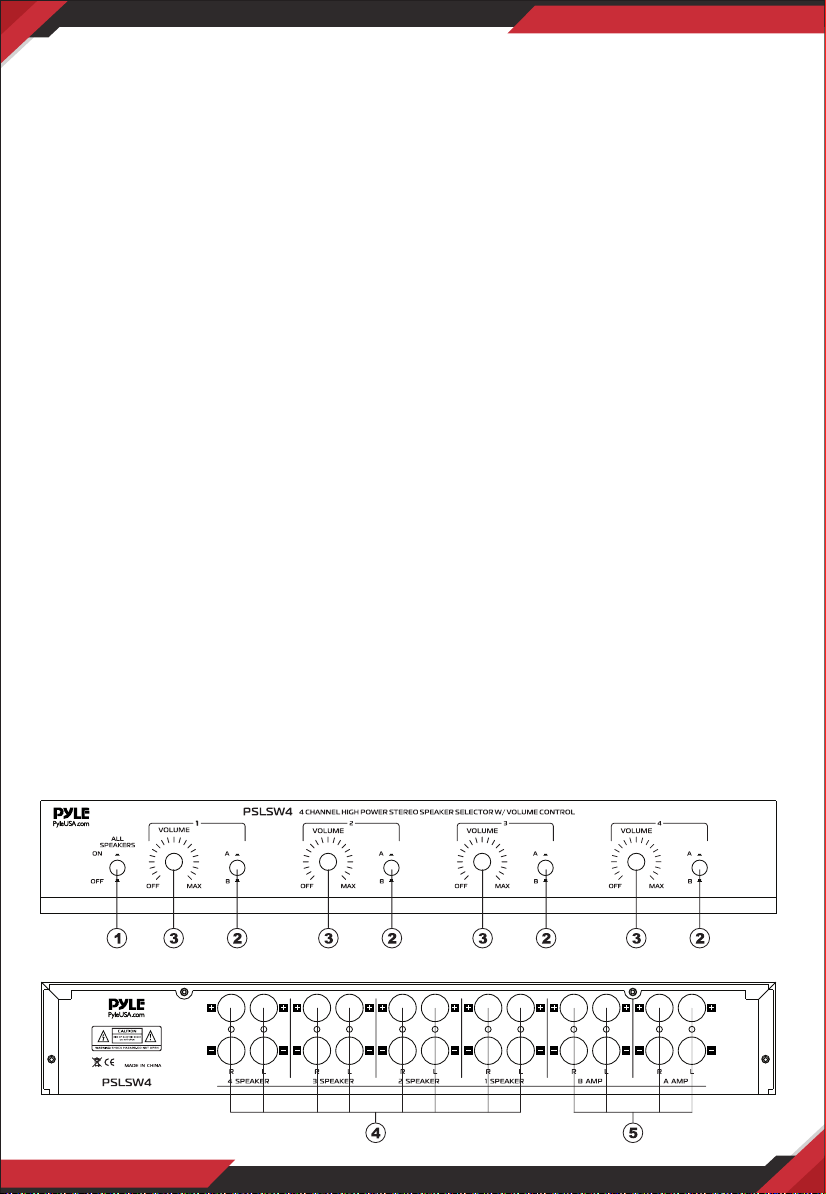

PSLSW4 Front and Back Panels
www.PyleUSA.com
3
PSLSW6 Front and Back Panels
OPERATION
1. Speakers ON/OFF Button
Press button to turn ON all speaker pairs. Press again button out to turn o.
2. Amplier A/B Selector Button
Press button to select amplier A and B
3. Volume Controls
Turn the control knob clockwise to increase the volume and counter-clockwise
to decrease or o.
4. Speaker Connections
The control center divides the power from your receiver/amplier dierently to
its speaker terminals. (This is especially noticeable when you connect only one
pair of speakers. If you connect more than one pair of speakers, see “Impedance
Chart" on page 6 to selector the best terminals to connect. ) For the best
performance, make the connections based on how frequently you use each
set of speakers.
Cautions: To avoid damaging your speakers or receiver/amplier:
•
Be sure your receiver/amplier's power is turned o before you make the
connections.
•
Never let the speaker wire's bare ends touch each other or adjacent terminals
on the control center.
•
Do not connect more than one pair of speaker to each set of terminals.
www.PyleUSA.com
4
5. Amplier Connections
Connect the speaker output of your receiver or amplier (100 watts max. ).
If you are using a second amplier, connect it to the B amp terminal
Maximum Amplier input
•
100W RMS
•
150W AVG
Maximum Output per Speaker
•
18W RMS
•
50W AVG
Insert the speakers’positive (+) wires in the positive terminals, and negative
(-) wires into the negative terminals, according to the respective L (left) and R
(right) terminals.
PSLSW4
PSLSW6
•
100W PEAK
•
4 or 16 OHM LOAD
www.PyleUSA.com
5
Insert your receiver / amplier’s positive (+) wires into the positive terminals, and
negative (-) wires in the negative terminals.
NOTES:
•
If your receiver / amplier has more than one set of speaker Terminal (A and B),
connect only one or the other to the Control center.
•
For the best results, we recommend 14-gauge, two conductor speaker wire
(not supplied) for most connections. If you plan to locate the speakers further
than 80 feet from the control center, use a heavier gauge of wire.
IMPEDANCE CHART
Impedance is a measurement of the load placed on your receiver/amplier
by the speakers. The load placed on your receiver/amplier from the
control center will vary depending on how many pairs of speakers you
turn on at one time, and on which speakers you turn on. The chart below
shows the impedance for all possible combinations of 8-ohm speakers.
PSLSW4
PSLSW6
Speaker Sets On Impedance ()
A, B, C or D 8
A+B, A+C, A+D
B+C, B+D, C+D 4
A+B+C, A+B+D
A+C+D, B+C+D 3. 1
A+B+C+D 2. 4
Speaker Sets On Impedance ()
A, B, C, D, E or F 8
A+B, A+C, A+D
A+E, A+F, B+C
B+D, B+E, B+F
C+D, C+E, C+F, E+F
4
www.PyleUSA.com
6
PSLSW4 PSLSW6
Multi-Zone Speaker Selector
4 Channel (PSLSW4) 6 Channel (PSLSW6)
Audio Speaker Receiver System
Features:
• Convenient Audio Control for Up to 4 Pairs of Speakers (PSLSW4)
or 6 Pairs of Speakers (PSLSW6)
• Home Theater Stereo Amplier System Support
• Independent Audio Source Channel Volume Controls
• Input/Output: Screw Type Connector Terminals
• Compact Desktop / Tabletop Receiver Design
• Front Panel Button Control Center
• Master Power Switch
• Built-in Electronic Overload Protection Circuitry
A+B+C, A+B+D, A+B+E
A+B+F, A+C+D, A+C+E
A+C+F, A+D+E, A+D+F
A+E+F, B+C+D, B+C+E
B+C+F, B+D+E, B+D+F
C+D+E, C+D+F, D+E+F
3.1
A+B+C+D, A+B+C+E
A+B+C+F, A+C+D+E
A+C+D+F, A+D+E+F
B+C+D+E, B+C+D+F
C+D+E+F
2.4
A+B+C+D+F 1.7
Speaker Sets On Impedance ()
www.PyleUSA.com
7
What's in the Box:
• Speaker Selector
Technical Specs:
• Power Handling: 100 Watt MAX Per Audio/Speaker Channel
• Speaker Selector Type: 4-Channel
• Speaker Cable Wire Support: Up to 14-Gauge (14 AWG)
• Minimum Impedance: <8 Ohm
• Frequency Response: 20Hz-20kHz
• Dimensions (L x W x D): 16.9'' x 6.3’’ x 3.0'' -inches
• Sold as: 1
• PSLSW4 Weight: 9.78 lbs.
• PSLSW6 Weight: 9.55 lbs.
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: suppor[email protected]
This product can expose you to a chemical or group of checmicals, which
may include ”Nickel Carbonate” which is known in the state of California to
cause cancer, birth defects, or other reproductive harm. For more info, go to
https://www.p65warnings.ca.gov/.
