Pyle PCS2X4 Bedienungsanleitung

with Dual 4-Inch Wooden Woofer and Silk Dome Tweeter

PCS2X4

CenterChannelSpeaker

www.PyleUSA.com

To ensure you will be completely satised with this product, read and

understand this manual carefully before use. Keep the manual in a safe place.

The Operating Manual must be passed on to all subsequent users.

Safety Instructions

1. Please read the instructions carefully before installation and use.

Keep the manual safe for future reference.

2. To prevent re or electricalshock, do not expose the speakers to rain or water.

3. To prevent the endosure from warping or discoloring, do not place the

speakers where they will be exposed to direct sunlight or excessive humidity.

4. Damage to the woofer and tweeter may occur if the speaker is dropped or hit

resulting in no sound or distorted sound.

5. Use only approved and certied wiring in your installation, do not stretch or

place the wire in contact with sharp objects.

6. Make no modications to the speakers or accessories. Unauthorized alterations

may compromise safety, regulatory compliance,and system performance.

7. This product must be used indoors. It is neither designed nor tested for use

outdoors.

Packing List

Ensure that you have received all parts according to the component checklist

prior to installation. If any parts are missing or faulty, contact your place of

purchase for a replacement.

Speaker and Speaker Cable

User Manual

www.PyleUSA.com 3

Technical Specs:

• MAX Power: 100W

• RMS Power: 40W

• Impedance: 8 Ω

• Sensitivity(1M/1W): 84dB

• Frequency Response: 60Hz-20kHz

• Woofer Type: 2x4" Polypropylene cone with rubber edge

• Tweeter Type: 0.75"(20mm) Silk dome tweeter

• Crossover Slope: 12dB/Octave

• Cabinet Material: MDF with Vinyl Finish

• Overall Dimensions: 6.3X 15.7 X 8.6-inches

Placement Guidelines

This speaker can be used mutlifunctionally as a bookshelf speaker, surround

speaker (satellite) or center speaker. Please refer to the pictures below for

individual set-up options:

Main Left and Right Channels

Position the speakers on both sides of the TV.

Surround Left and Right Channels

When using the speaker as rear channel

speakers in a home theater application, they

should be placed to the side and slightly

behind the listening position.

Center Channel

When using the speaker as a center channel

speaker in a home theater application, locate

the speaker as close to the center of your TV

or monitor as possible

www.PyleUSA.com

Connections

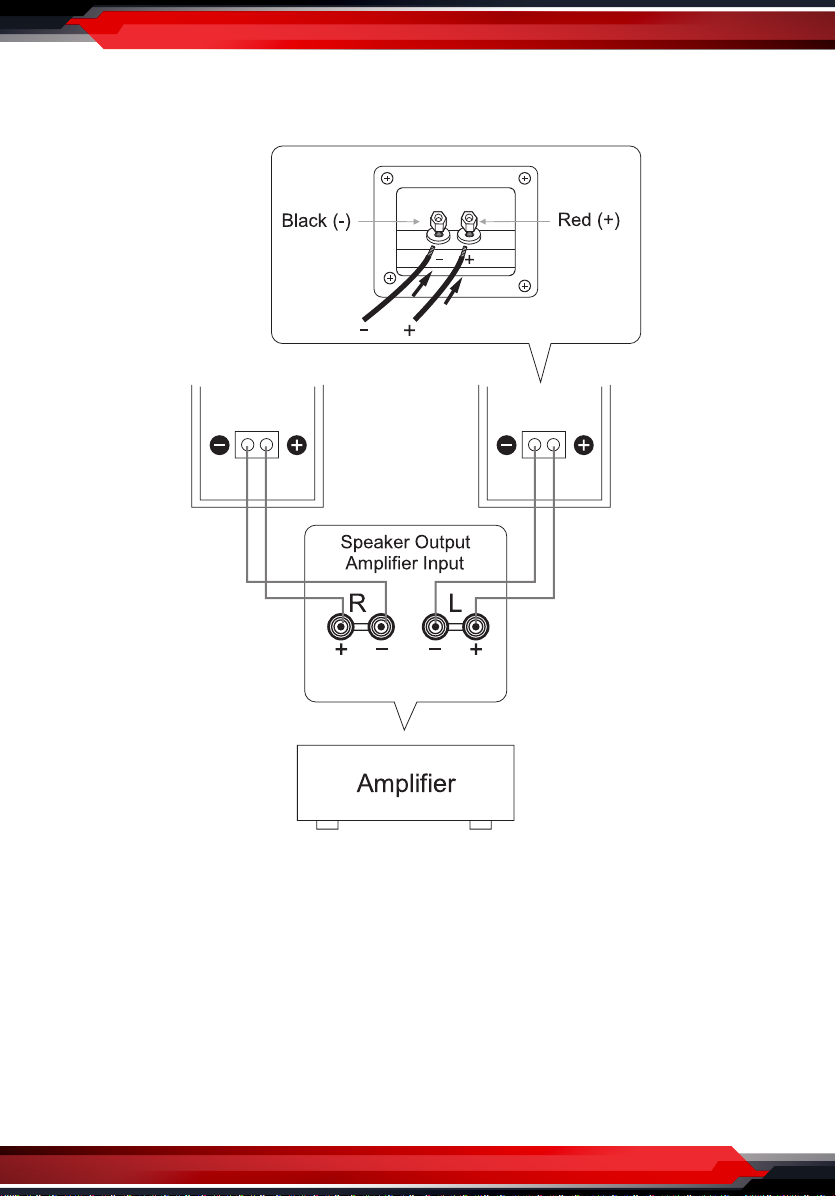

Always check to ensure polarity is correct.

Note:

1. When using an amplier with a rated output power higher than the nominal

input power of the speakers, care should be taken never to exceed the

speakers' maximum input. This speaker is compatible with 4- or 8-0hm audio

ampliers.

2. Anytime you note distortion, reduce the volume controlon your amplier to a

lower setting. Never allow your amplier to be driven into "clipping".

Otherwise the speakers may be damaged.

www.PyleUSA.com 5

Care and Maintenance

1. Disconnect the wiring to the speaker when unused for long periods of time.

2. Ensure all equipment is tumed o prior to cleaning.

3. Front cover requires only occasional dusting.

The front cover is fastened to the enclosure at four points.

To remove the cover, grasp both sides and slowly pull straight away from the

speaker.

To reattach, line up the four pegs on the inside surface of the cover with the

four corresponding holes on the speaker and push gently.

Tips:

When the cover is removed, take care not to touch the speaker drivers with your

hands or to exert excessive force with tools.

Do not attempt to clean the speakers with chemical solvents as this might

damage the nish. Always clean using a dry cloth.
