Pyle PSWLE07 Bedienungsanleitung

TV Size Range: 23 ~46

Maximum Weight Capacity: 40kg/88lbs

VESA: 100x100-400x400

-4-

Thank you for choosing our productThank you for choosing our product

This product contains small items that could be a choking hazard if swallowed. Keep

these items away from young children

1.Make sure these instructions are read and completely understood before attempting

installation. If you are unsure of any part of this installation, contact a professional

installer for assistance.

2.The wall or mounting surface must be capable of supporting the combined weight of

the mount and the display; otherwise the structure must be reinforced

3.Safety gear and proper tools must be used. A minimum of two people are required

for this installation. Failure to use safety gear can result in property damage, serious

injury or death.

Warning

This product was designed to be installed on wood stud walls and solid concrete walls.

Before installing make sure the supporting surface will support the combined load of the

equipment and hardware. Never exceed the Maximum Load Capacity. This product is

intended for indoor use only. Use of this product outdoors could lead to product failure or

personal injury.

CAUTION

Part 3-

NOTE:

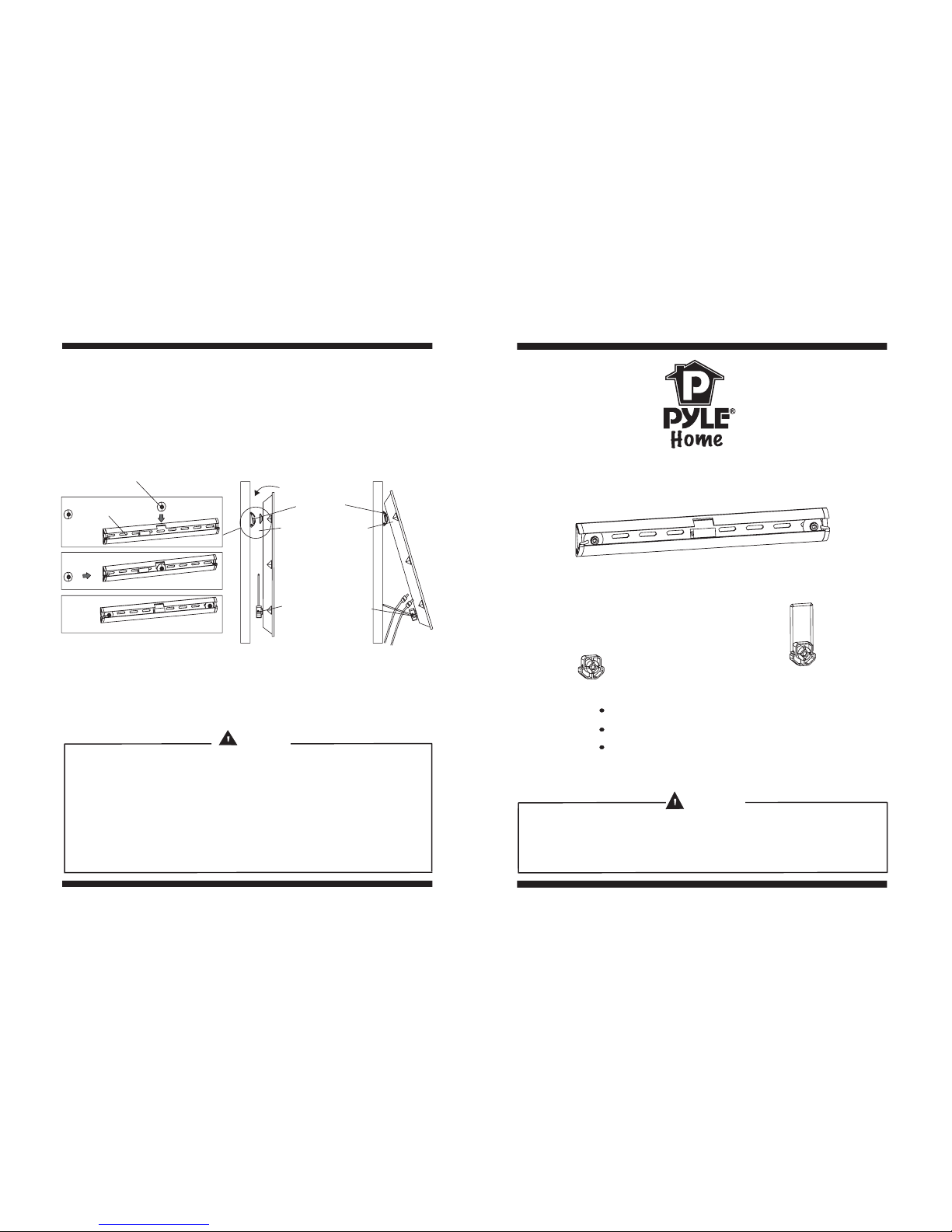

Hang the screen

Hook the screen onto the wall plate. Then swing the screen down. Once the screen is

settled, pull down the Supportable lever, so that you can insert the cable.

Always use an assistant or mechanical lifting equipment to safely lift and

position heavy equipment.

Part 3-

NOTE:

Hang the screen

Supportable block

TV connection block

Wall plate

TV connection block

Wall plate

Item No.:PSWLE07Item No.:PSWLE07

INSTALLATION GUIDE

www pyleaudio com..

Pyle Audio

1600 63rd st , Brooklyn, NY, 11204

(718)236-8000

-3-

-2-

Hardware Kit:

Wood stud

Part 1a-Wood Stud Mounting

Use wall plate as a template, make sure it is level, and mark two mounting holes

along the center lines of the wood studs. Drill two 3/16

)

)..

””(5mm)dia holes 2 (50mm)

deep. Level wall plate and attach to wall with two long bolts(1 and two washers

(2 by box wrench(4). Tighten screws firmly Do not overtighten

Part 1a-Wood Stud Mounting

Φ3/16 (5mm)”

2 50mm)

”(

2 (50mm)”

Φ3/8 (10mm)”

Part 2-Attaching To ScreenSupportable block and TV connection block

First, select the small(A,B), medium(C,D,E,F) or large(G,H) screws. To attach

supportable block by using selected screws(A,C,E,G) and washers(I), and then

attach TV connection block to screen by using selected screws(B,D,F,H) and washers

(J). Tighten screws firmly but do not overtighten. WARING screws(A,B,C,D)need

washer, screws(E,F,G,H) don’t need washer.

Part 2-Attaching To ScreenSupportable block and TV connection block

Part 1b-Concrete wall mounting

Level wall plate and use wall as a template to mark two holes. Drill two 3/10 (8mm)

dia. holes 2 (50mm) deep. Insert two anchors(3) into holes and secure wall plate

with two long bolts(1) and two washers(2) by box wrench(4).Tighten screws firmly.

Do not overtighten

”

Part 1b-Concrete wall mounting

134A,C,E,G IJ

B,D,F,H

M6× mm15 bolt

M6×16mm bolt

M8 mm×16 bolt

M8× mm20 bolt

ID Description

Qty

M5 taper washer

M5 washer

M5 mm×15 bolt

M5× mm16 bolt

M4× mm15 bolt

M4×16mm bolt

Long bolt

Wall anchor

Long bolt washer

Box wrench

E,G

F, H

IA,C

B,D

TV connection block

Wall plate

Supportable block

Supportable lever

Bubble level

406mm(16 )

406mm(16 )"
