Pyle PSW128ST Bedienungsanleitung
Item No.:PSW128STItem No.:PSW128ST
This product was designed to be installed on wood stud walls and solid concrete walls.
Before installing make sure the supporting surface will support the combined load of the
equipment and hardware. Never exceed the Maximum Load Capacity. This product is
intended for indoor use only. Use of this product outdoors could lead to product failure or
personal injury.
CAUTION
INSTALLATION GUIDE
-8-
Thank you for choosing our productThank you for choosing our product
This product contains small items that could be a choking hazard if swallowed. Keep
these items away from young children
1.Make sure these instructions are read and completely understood before attempting
installation. If you are unsure of any part of this installation, contact a professional
installer for assistance.
2.The wall or mounting surface must be capable of supporting the combined weight of
the mount and the display; otherwise the structure must be reinforced
3.Safety gear and proper tools must be used. A minimum of two people are required
for this installation. Failure to use safety gear can result in property damage, serious
injury or death.
!
.
Warning
UP
UP
TV Size Range: 23 ~37
Maximum Weight Capacity: 35kg/77lbs
Adjustable angle: 0 5
Locked by locking bar on the bottom
""
～°°
www pyleaudio com..
MADE IN CHINA
Pyle Audio
1600 63rd st , Brooklyn, NY, 11204
(718)236-8000
UP
UP

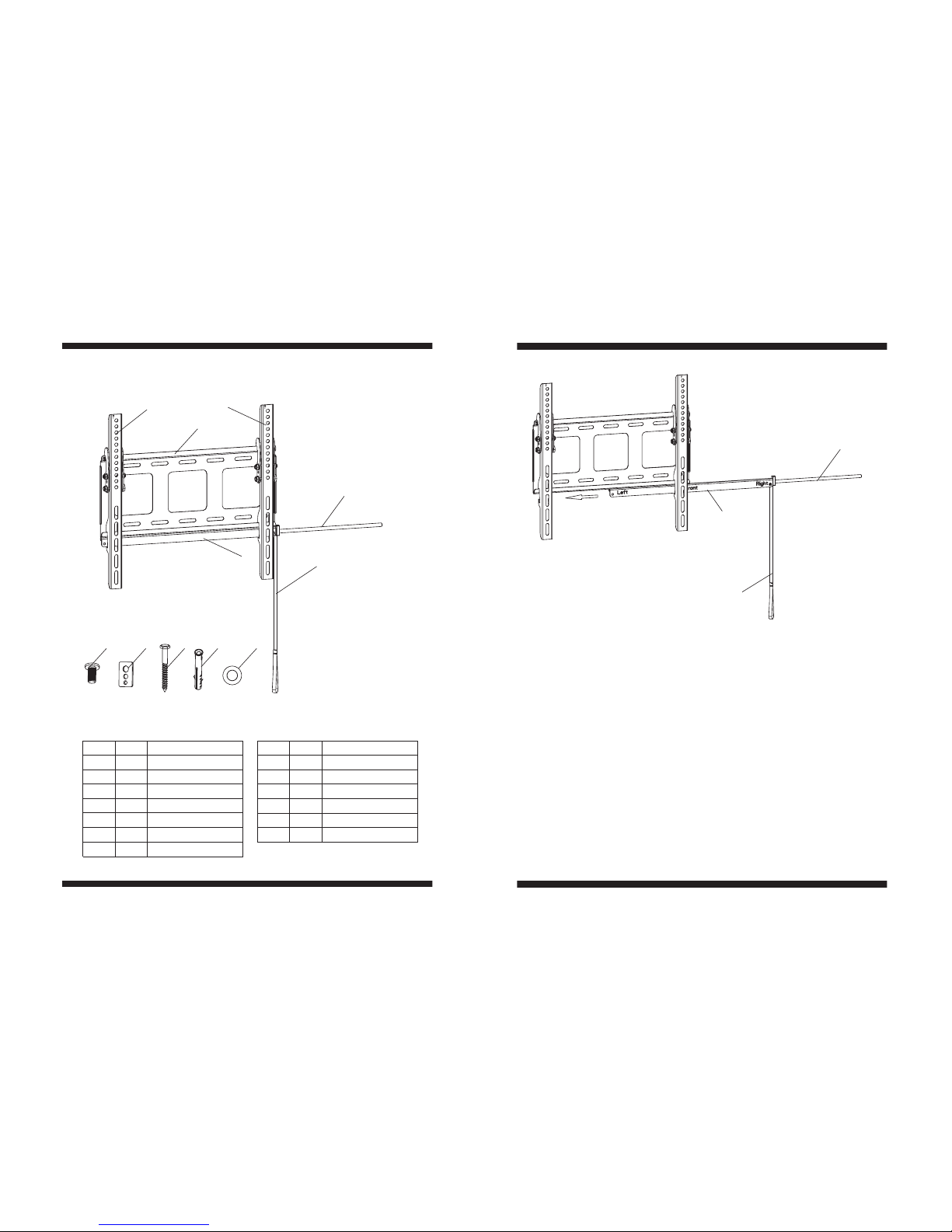

ID Description
1
2
A
3
B
1
2
4
1
4
Wall plate
Bracket
M4 mm×12 bolt
M4 mm×16 bolt
Qty
Locking bar
-2- -7-
1
3
22
Description
Square washer
Long bolt
Wall anchor
Long bolt washer
M6×16mm bolt
M5× mm16 bolt
41Rotating rod
ID Qty
4
4
F
G
H4
D4
4
E
C4
4
51
Ribbon
5
Hardware Kit:
Hardware Kit:
A-D H
EG
F
3
4
5
If you think the ribbon is too long,You could hide it at the back of the
televesion, once you want to uninstall the TV, it could help you to take
out the locking bar .
(5)
(3)
UP
UP
-6- -3-
Wood stud
F
H
Part 1a-Wood Stud Mounting
.
Usewallplate(1)asatemplate,makesureitislevel,andmarkfour
mounting holes along the center lines of the wood studs. Drill four 3/16
)) .
.
”
”(5mm)dia holes 2 (50mm) deep. Level wall plate(1) and attach to wall
with four long bolts(F and four washers(H . Tighten screws firmly Do not
overtighten
Part 1a-Wood Stud Mounting
2 50mm)”(
Φ3/16 (5mm)”
Part 3-Mounting the flat panel screen
NOTE:
Hook the top of brackets onto the top flange
of wall plate(1). Then swing the screen down.
(2)
Always use an assistant or mechanical
lifting equipment to safely lift and position
heavy equipment.
Part 3-Mounting the flat panel screen
NOTE:
Use the Locking bar(3) to prevent the TV from being removed or
accidentally knocked off of the wall plate. When the locking bar half
insertes into the wall plate , you can use the rotating rod(4) to make it
fully inserted.
3
UP
UP
5
Stud finder
2
1
-4-
-5-
Part 1b-Concrete Wall Mounting
.
Level wall plate(1) and use it as a template to mark four holes. Drill four 3/8
(10mm) dia. holes 2 (50mm) deep. Insert four anchors(G) into holes and
secure wall plate with four long bolts(F) and four washers(H).Tighten screws
firmly. Do not overtighten
”
”
Part 1b-Concrete Wall Mounting
Concrete Wall
2(”50mm)
Φ3/8 (10mm)”
.
Part 2-Attaching Brackets To Screen
Center brackets vertically on back of screen. Select the small(A or B)
medium(C ). Attach brackets to screen using four selected screws and
four square washers(E) at the top and bottom of each bracket.
or
or D
Tighten screws
firmly. Do not overtighten
Part 2-Attaching Brackets To Screen
F
H
G
Square washer(E)
Small hole for
M4 screws
Medium hole for
M5andM6screws
E
A-D
UP
UP
