Qazqa Cage Rack FL Bedienungsanleitung

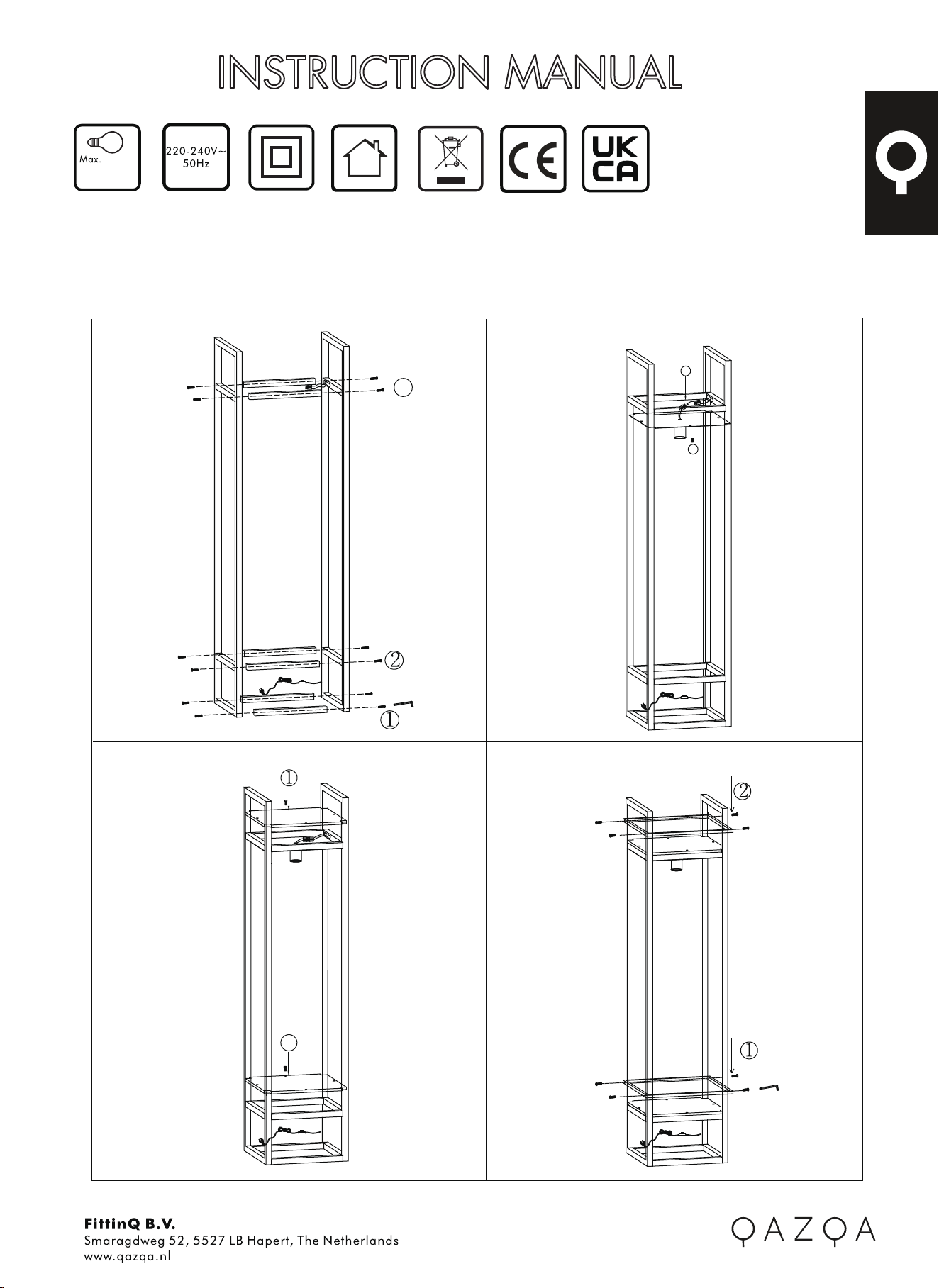

INSTRUCTION MANUAL

Cage Rack FL Black Wood

105764

100mm

E27

1xMax.60W

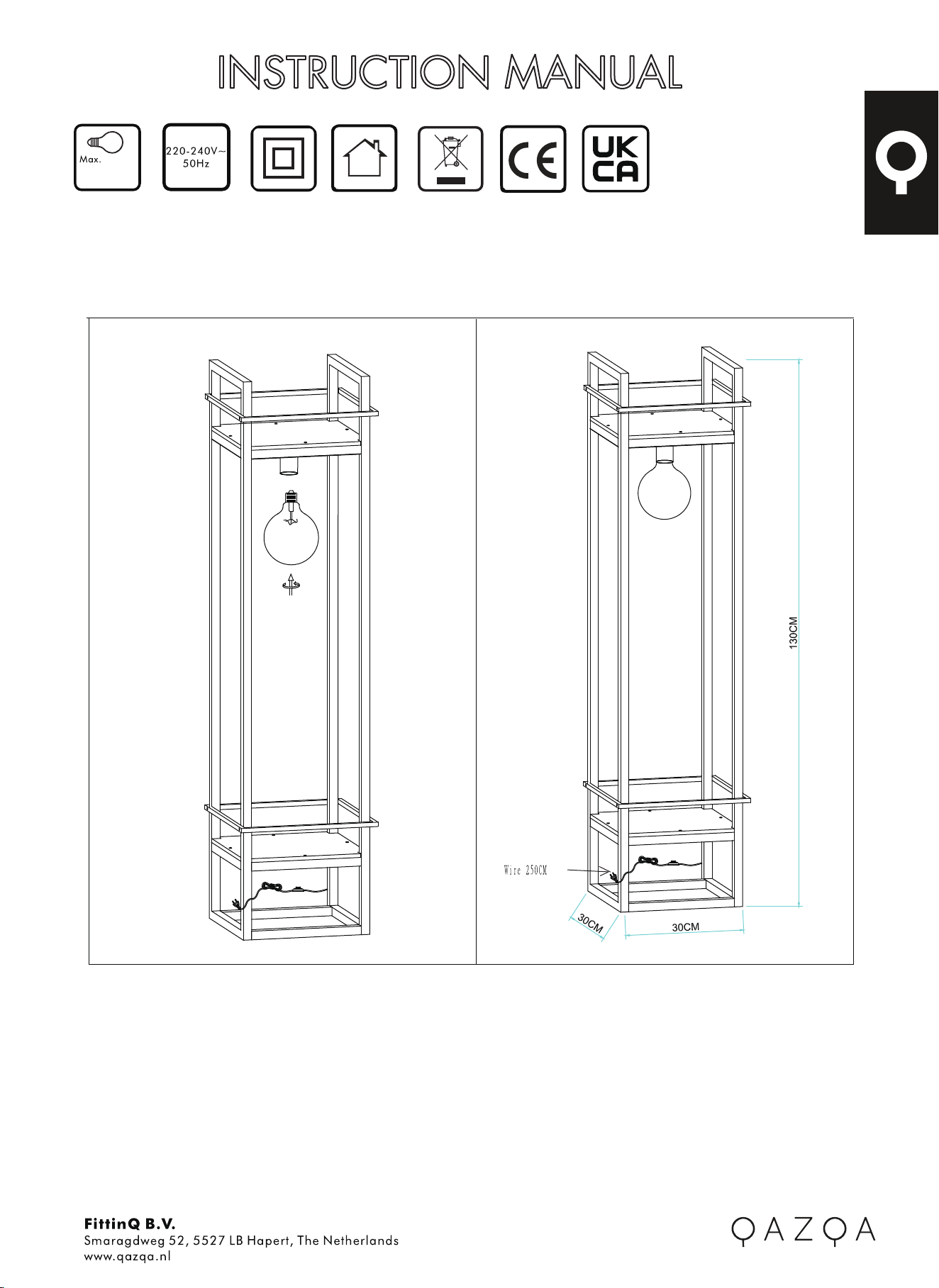

INSTRUCTION MANUAL

Cage Rack FL Black Wood

105764

100mm

E27

1xMax.60W

FittinQ B.V.

Smaragdweg 52, 5527 LB Hapert, The Netherlands

www.qazqa.nl

Please study the instruction manual and below information carefully before installing or using this product.

Please keep this user manual for further reference

1. The luminaires may only be installed by authorized and qualified technicians according the valid

regulations for electrical installation.

2. Maintenance of the luminaires is limited to their surfaces. During maintenance no moisture can come

into contact with any areas of the terminal connections or voltage control parts.

3. The electrical supply must be switched off at the outset, preferably by means of a switch in the distribution

box, before any installation, maintenance or repair work is undertaken.

4. Exterior lighting must not be installed during rain.

5. Take account of the minimal separation distance from other objects and the room required around the fitting.

6. If in any doubt, consult a professional, taking local installation requirements into account. Some countries

stipulate that lighting may be installed only by registered installers.

7. Clamping screws in electrical connections must be adequately tightened. This is particularly the case with 12V

low voltage conductors.

8. Clean with a clean, dry cloth or brush, use no solvents or abrasives. Avoid dampness on all electrical

components

9. Take account of all available technical information.

10.Meaning of symbols:

SAFETY INSTRUCTION

III

220-240V~

50Hz

Max.ø50mm

GU10

2Max.50W

IPXX

Light Angle

35cm ²

55º

0.5m

For indoor use only, where direct contact with water is impossible

Protection Class I: the fitting must be earthed

Protection Class II: the fitting is doubled insulated and does not require earthing

Protection Class III: the fitting is low voltage

Minimum distance from lighted objects (meters)

The type of lamp and maximum size and wattage indicated in each lighting unit must not

be exceed; different items require different kind of light sources with different bulb icons

The armature is designed to work only with the indicated voltage. Different items require

different working voltage.

The luminaire can be used in combination with a dimmer

The reference light angle and light space of the luminaire

This luminaire cannot be disposed together with normal domestic waste in standard rubbish

can, but you have to bring it to a staging area for electrical waste

This icon indicates the level of water-proof and dust-proof

11.Take note of the symbols when connecting wires:
