Qlight QMCL60 Bedienungsanleitung

Multiple Color LED Steady Signal Light

QMCL

QMCL60 QMCL80 QMCL100 QMCL125

• Protection rating : IP65

• Ambient operating temperature : -30°C to +50°C

• Buzzer layer current

Model

number Voltage Current

Certicate

Weight Color

QMCL60

DC12V 0.120A 0.12kg

7Color

DC24V 0.060A

QMCL80

DC12V 0.120A 0.17kg

DC24V 0.060A

QMCL100

DC12V 0.240A 0.24kg

DC24V 0.120A

QMCL125

DC12V 0.240A 0.31kg

DC24V 0.120A

Model number Voltage

AC/DC12V AC/DC24V

QMCL60

QMCL80

Signal line current

0.120A 0.060A

Buzzer layer current

0.020A 0.020A

QMCL100

QMCL125

Signal line current

0.240A 0.120A

Buzzer layer current

0.020A 0.020A

QMCL80

[Model number] [Buzzer] [Voltage]

| | |

•

QMCL60

•

QMCL80

•

QMCL100

•

QMCL125

• (Blank)

- No buzzer type

• BZ

- Built-in buzzer type

•

-DC12V

•

-DC24V

5030

80d

Please scan the QR code for more detailed product information.

www.qlight.com

Ordering Specications Product Specications

Thank you for purchasing Qlight’s products. Please read this user manual carefully

prior to installation and operation to ensure safe and correct use.

Precautions for Safety

Failure to follow the instructions below may cause a loss of life or serious physical injury.

1. Please remove any objects that can interrupt ventilation around the product.

2. Please turn o󰘯 the power of the product immediately if it fails to operate properly.

3. Carefully wire the product according to each product’s speci󰘰cation.

4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.

5. Do not apply excessive force/impact to the product.

6. Failure to follow any of the instructions above may cause malfunction or damage to the product, 󰘰re, and electric shock.

Precautions for Correct Use

Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the

product that would void the warranty.

1. During wiring or maintenance, please completely turn o󰘯 the power of the product. (Failure to follow this may lead to an electric shock.)

2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection

ratings indicated for each product. (Failure to follow these instructions may cause a 󰘰re to the product, electric shock, physical injury,

malfunction or damage to the product.)

3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to

follow these instructions may lead to 󰘰re, electric shock, or product damage.)

4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to 󰘰re, electric shock, or product damage.)

5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to

follow this may cause damage to property, 󰘰re, electric shock and loss of life.)

All manuals and user guides at all-guides.com

all-guides.com

•

QMCL Series can be wired with either external contact or transistor.

•

When using a transistor, please choose between the NPN transistor or PNP transistor which best matches the voltage and product type,

then connect them correctly according to the wiring diagram below.

• DC type cable specication : External power/ signal line standard - UL1007 AWG22(0.3sq) 400mm

• DC type products can be wired regardless of polarity.

• Wiring Conguration for Signal Color

Ø9 CABLE ENTRY

360°/ 3-M4 BOLT

PCD38 Ø9 CABLE ENTRY

360°/ 3-M4 BOLT

PCD50 Ø9 CABLE ENTRY

360°/ 3-M5 BOLT

PCD85

Ø9 CABLE ENTRY

360°/ 3-M4 BOLT

PCD60

QMCL60 QMCL80 QMCL100 QMCL125

Ø69 Ø83

29 51

14 80

25 60

14 85

Ø97

29 66

14 95

Ø116

33 77

14 110

Red

Green

Blue

Brown

Black

1(Red)

2(Green)

1(Blue)

Buzzer

External Contact

Power

Fuse

Red

Green

Blue

Brown

Black

1(Red)

2(Green)

1(Blue)

Buzzer

EXTERNAL TRANSISTOR-NPN

Power

Fuse

Steady

Red

Green

Blue

Brown

Black

1(Red)

2(Green)

1(Blue)

Buzzer

EXTERNAL TRANSISTOR-PNP

PowerFuse

Steady

No. Signal color Wiring conguration

1RED 1(RED)

2GREEN 2(GREEN)

3BLUE 3(BLUE)

4AMBER 1(RED)+2(GREEN)

5CYAN 2(GREEN)+3(BLUE)

6PURPLE 1(RED)+3(BLUE)

7WHITE 1(RED)+2(GREEN)+3(BLUE)

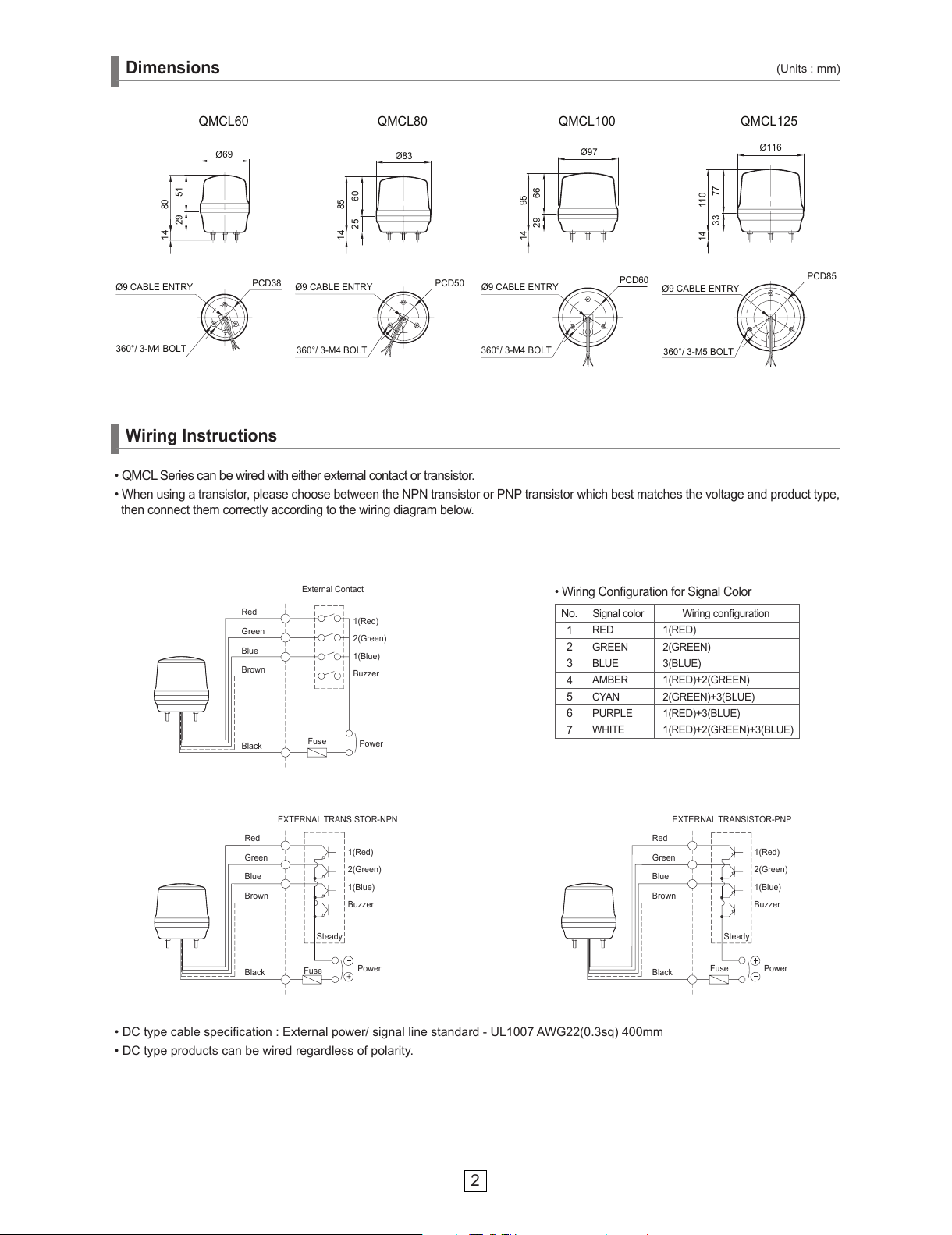

Dimensions

(Units : mm)

Wiring Instructions

All manuals and user guides at all-guides.com

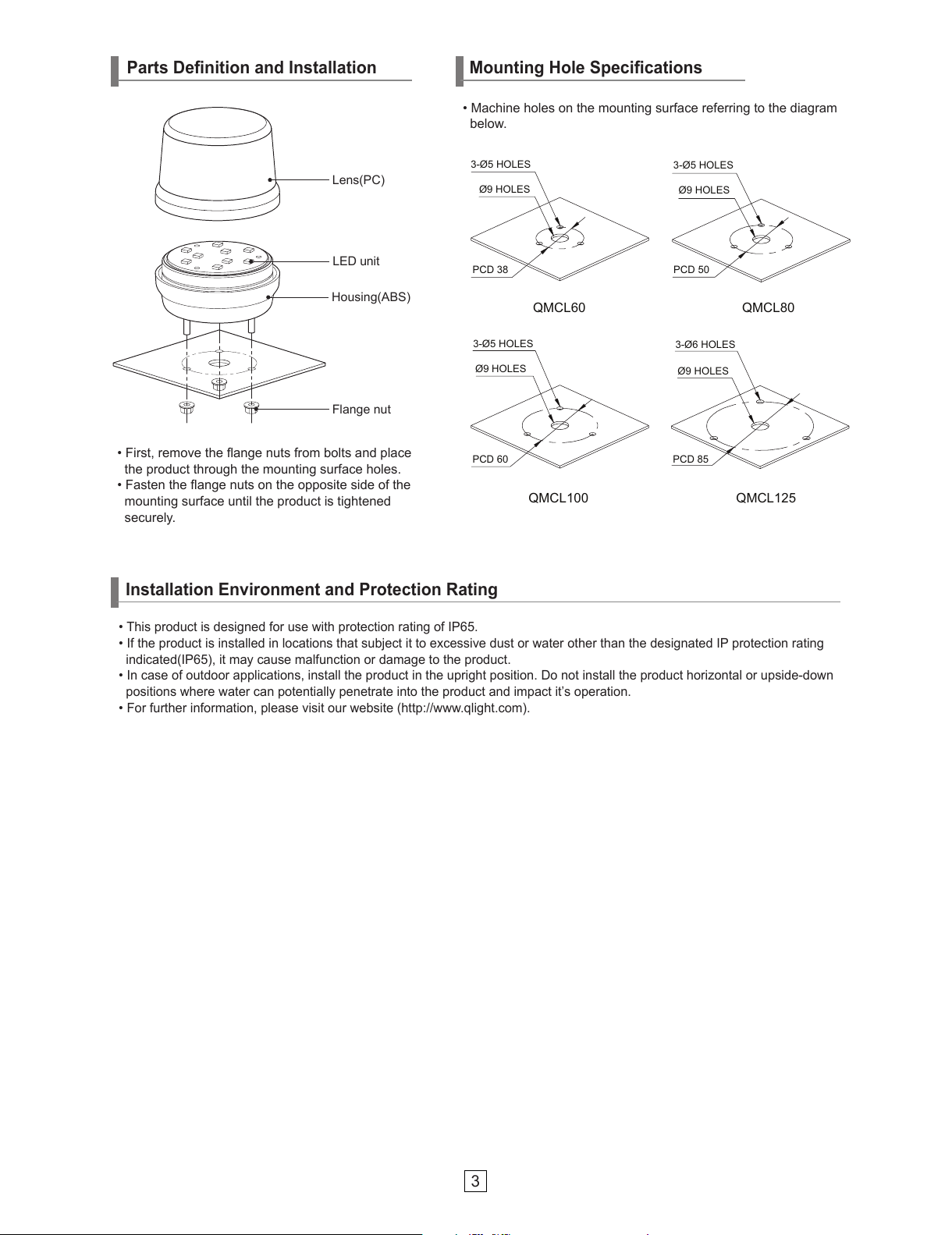

Parts Denition and Installation Mounting Hole Specications

• First, remove the ange nuts from bolts and place

the product through the mounting surface holes.

• Fasten the ange nuts on the opposite side of the

mounting surface until the product is tightened

securely.

Lens(PC)

LED unit

Housing(ABS)

Flange nut

• Machine holes on the mounting surface referring to the diagram

below.

Installation Environment and Protection Rating

• This product is designed for use with protection rating of IP65.

• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating

indicated(IP65), it may cause malfunction or damage to the product.

• In case of outdoor applications, install the product in the upright position. Do not install the product horizontal or upside-down

positions where water can potentially penetrate into the product and impact it’s operation.

• For further information, please visit our website (http://www.qlight.com).

QMCL60 QMCL80

QMCL100 QMCL125

3-Ø5 HOLES

Ø9 HOLES

PCD 60

3-Ø6 HOLES

Ø9 HOLES

PCD 85

3-Ø5 HOLES

Ø9 HOLES

PCD 38

3-Ø5 HOLES

Ø9 HOLES

PCD 50

All manuals and user guides at all-guides.com

Dimensions

QMCL60

TWS45 TWA45

QMCL80

TWS80 TWA80

QMCL100

QMCL125

SWP125 SWM125

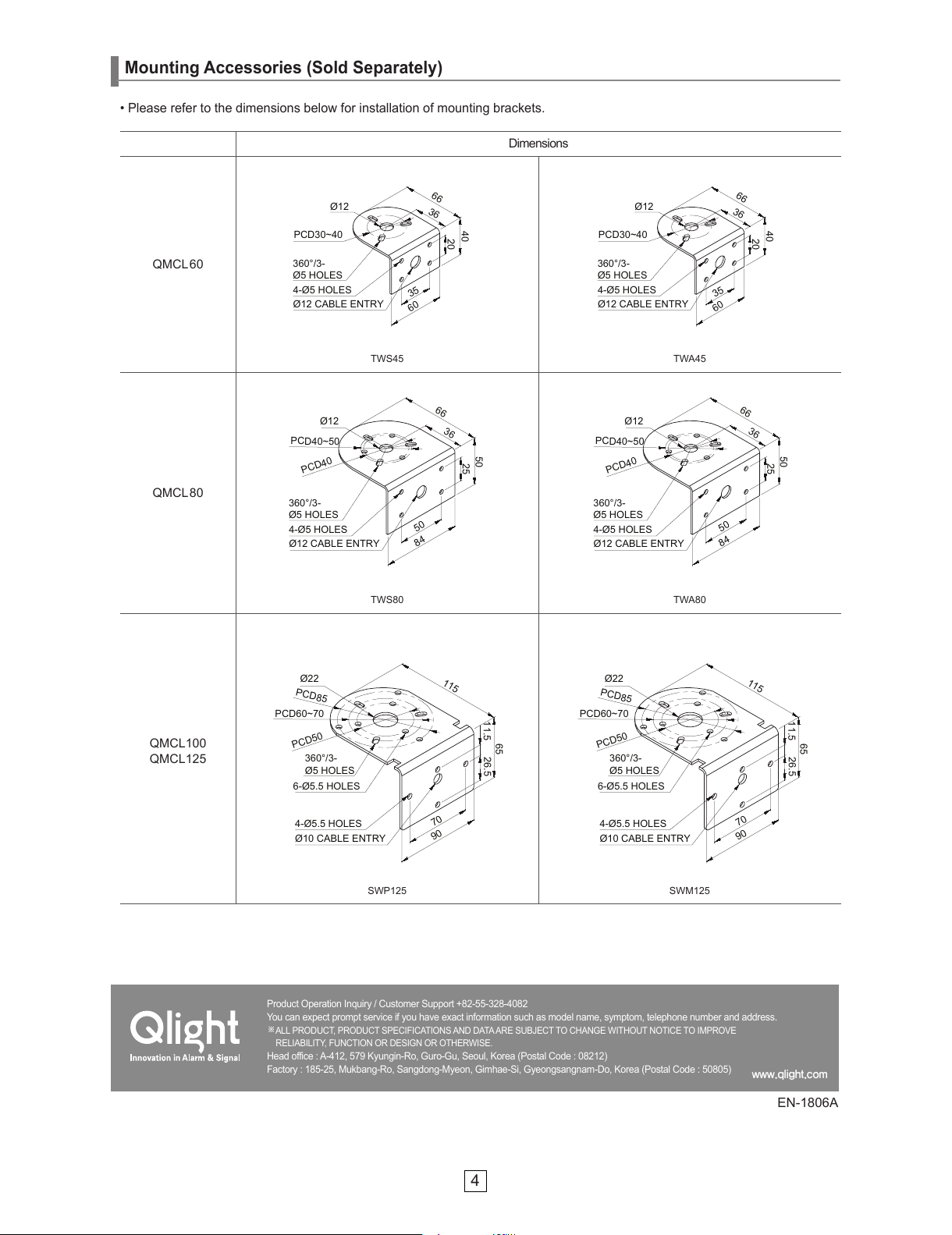

Mounting Accessories (Sold Separately)

11.5 26.5

117

PCD60~70

115

11.5 26.5

PCD50

PCD85

PCD60~70

4-Ø5 HOLES

Ø12

360°/3-

Ø5 HOLES

Ø12 CABLE ENTRY

PCD40

PCD40~50

PCD30~40

4-Ø5 HOLES

360°/3-

Ø5 HOLES

4-Ø5 HOLES

360°/3-

Ø5 HOLES

PCD40~50

4-Ø5 HOLES

360°/3-

Ø5 HOLES

Ø12 CABLE ENTRY

Ø12

Ø22

6-Ø5.5 HOLES

4-Ø5.5 HOLES

360°/3-

Ø5 HOLES

Ø10 CABLE ENTRY

Ø22

6-Ø5.5 HOLES

4-Ø5.5 HOLES

360°/3-

Ø5 HOLES

Ø10 CABLE ENTRY

PCD50

PCD85

11.5 26.5

117

PCD60~70

115

11.5 26.5

PCD50

PCD85

PCD60~70

4-Ø5 HOLES

Ø12

360°/3-

Ø5 HOLES

Ø12 CABLE ENTRY

PCD40

PCD40~50

PCD30~40

4-Ø5 HOLES

360°/3-

Ø5 HOLES

4-Ø5 HOLES

360°/3-

Ø5 HOLES

PCD40~50

4-Ø5 HOLES

360°/3-

Ø5 HOLES

Ø12 CABLE ENTRY

Ø12

Ø22

6-Ø5.5 HOLES

4-Ø5.5 HOLES

360°/3-

Ø5 HOLES

Ø10 CABLE ENTRY

Ø22

6-Ø5.5 HOLES

4-Ø5.5 HOLES

360°/3-

Ø5 HOLES

Ø10 CABLE ENTRY

PCD50

PCD85

• Please refer to the dimensions below for installation of mounting brackets.

Product Operation Inquiry / Customer Support +82-55-328-4082

You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.

※ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Head office : A-412, 579 Kyungin-Ro, Guro-Gu, Seoul, Korea (Postal Code : 08212)

Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea (Postal Code : 50805) www.qlight.com

EN-1806A
