Qlight STA25SLM Series Bedienungsanleitung

STA25

SLM

SERIES

Thank you for purchasing Q.Light product. Please read this

manual carefully before installing this product for safe and long

use.

▪Direct mounting types with 25mm diameter.

▪Elegant design product by aluminum body.

▪High visibility by employing LED chip with high luminance and

special dispersing lens.

▪Adjustable aluminum body in length(custom-made)

▪LED Steady type (supporting flashing type by external control)

▪Protection Class : IP44

1) STA25SLM

▪General Specification

Model

Layer

Voltage

Current

Weight

Color

STA25SLM

AC/DC12V

0.080A

0.15Kg

Red-R

AC/DC24V

0.040A

0.15Kg

AC110V

0.020A

0.15Kg

AC220V

0.020A

0.15Kg

AC/DC12V

0.160A

0.20Kg

Red-R

Green-G

AC/DC24V

0.080A

0.20Kg

AC110V

0.040A

0.20Kg

AC220V

0.040A

0.20Kg

AC/DC12V

0.240A

0.25Kg

Red-R

Amber-A

Green-G

AC/DC24V

0.120A

0.25Kg

AC110V

0.060A

0.25Kg

AC220V

0.060A

0.25Kg

AC/DC12V

0.320A

0.30Kg

Red-R

Amber-A

Green-G

Blue-B

AC/DC24V

0.160A

0.30Kg

AC110V

0.080A

0.30Kg

AC220V

0.080A

0.30Kg

AC/DC12V

0.400A

0.35Kg

Red-R

Amber-A

Green-G

Blue-B

White-w

AC/DC24V

0.200A

0.35Kg

AC110V

0.100A

0.35Kg

AC220V

0.100A

0.35Kg

* Current and contact capacity (by 1 layer)

VLOTAGE

Current

(Signal)

Inrush current

External contact

AC/DC12V

0.080A

Abt.4.80A

Over 5A

AC/DC24V

0.040A

Abt.2.40A

Over 3A

AC110V

0.020A

Abt.0.60A

Over 1A

AC220V

0.020A

Abt.0.40A

Over 1A

■Outline drawing of STA35SL Series

30 10

328

LAYER L

1단 368

2단 398

3단 428

458

5단 488

4단

①TOP COVER:ABS ②GLOBE:AS ③BODY:AL④WASHER:SUS

⑤BOLT : SUS

OPERATING MANUAL

LED Steady Tower Lamp

STA25SLM

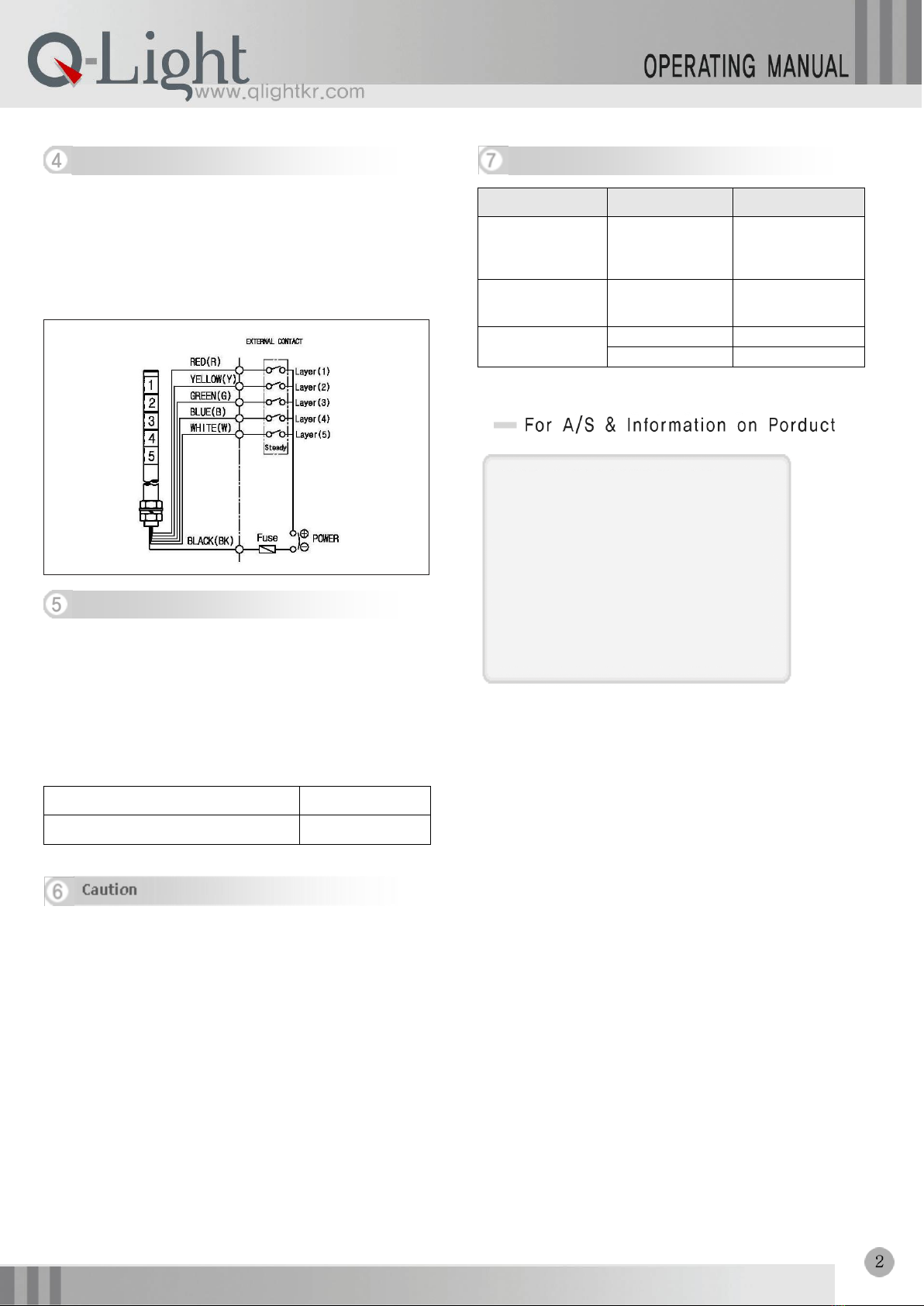

This product has separate power and signal cable. Please make

sure to connect each cable in accordance with below connection

diagram.

■AC, DC steady type

▪Signal cable(Power cable) : UL1007-NO.22(0.3sq) 400mm

▸AC / DC Steady type

▪This product is designed for indoor use. Do not use them

outdoor.

▪Mount them vertical and upright where there is low vibration

and shock if possible.

▪Drill the suitable holes at place where you want to install in

reference with below table.

▪Fix the product by using nuts(exclusive use) on bottom of the

product.

Model

Hole size

STA25SLM Series

Ø23.5

▪Make sure end of any unused wires are insulated by tape. A

short circuit of signal line can cause a trouble.

▪If using voltage is seriously higher or lower than rated voltage,

it can reduce the self-life of the product or can cause a

problem on product operating. Make sure the using voltage

does not exceed +/-5% of the rated voltage.

▪If lens or body of the product is contaminated by chemicals

such as thinner, benzene, the product can be damaged,

discolored or deformed. Please be careful.

▪Do not make any impact onto product. It causes short curicut

or trouble.

▪Do not strongly pull the wire out from the product. It can

cause a disorder.

Situation

Main reason

Solution

Non- Lighting Partly

LED is partly damaged,

supplying higher

voltage than rated

voltage.

Check the working

Voltage

Feeble Lighting

Supplying Voltage

Lower Than Rated

Voltage

Check the working

Voltage

No light

No Wiring

Check the wiring.

No power source

Check the power supply

Cable connection

Installation

Trouble Shooting

Q-LIGHT CO., LTD.

http://www.qlightkr.com

E-mail : qlightk[email protected]

Overseas Marketing Team /Plant

Tel) 055-328-4082Fax)055-328-4083

178-1 Woogye-Ri, Sangdong-Myun, Kimhae-Si,

KyungNam, Korea
