Qlight S80S Bedienungsanleitung

S80S / S80AS

Thank you for purchasing Q.Light product.

Please read this manual carefully before installing this system

for safe and long use of the product.

▪ A product radiating strong strobe signal by xenon lamp and it is

suitable for a bright place and for the transmission of signal from

a distance.

▪ Lamp of connector type whose replacement is easy and simple.

▪ Material : Lens-AS, Body-ABS

▪ Flashes : 65-95/Min.

▪ Protection Class : S80S-IP23, S80AS-IP44

S80S

▪ General Specification

Model Rated

Voltage Current Weight Flashes Color

DC12V 0.550A 0.22Kg

DC24V 0.480A 0.22Kg

AC110V 0.065A 0.20Kg

S80S

AC220V 0.056A 0.20Kg

60-80/Min.

Red-R

Amber-A

Green-G

Amber-B

▪ External View Drawing

S80S

S80AS

▪ General Specification

Model Rated

Voltage Current Weight Flashes Color

DC12V 0.550A 0.49Kg

DC24V 0.480A 0.49Kg

AC110V 0.065A 0.68Kg

S80AS

AC220V 0.056A 0.68Kg

60-80/Min.

Red-R

Amber-A

Green-G

Blue-B

▪ External View Drawing

Power line UL1015-NO.16(1.25sq) x 2C 400mm comes out from

the product.

▪ In case of product using AC voltage, connect the line without

polarity(wire color).

▪ In case of product using DC voltage, black line is negative(-).

▪ If mounting is completed,power is supplied to body③ through

terminal plate② on mounting bracket①.

▪ This product was manufactured with the structure for indoor use.

Installing in any direction is okay for indoor use.

▪ Outdoor use is limited at a place where no water or very little

water percolates. Mounting also should be done only with

vertical standing shape.

indoor

outdoor

OPERATING MANUAL

Xenon Lamp Strobe Light

▪ This product was manufactured with the structure for indoor use.

Installing in any direction is okay for indoor use.

▪ Outdoor use is limited at a place where no water or very little

water percolates. Mounting also should be done only with

vertical standing shape.

▪ Mount at the place where exists low vibration, low impact, low

moisture and low dust as long as possible.

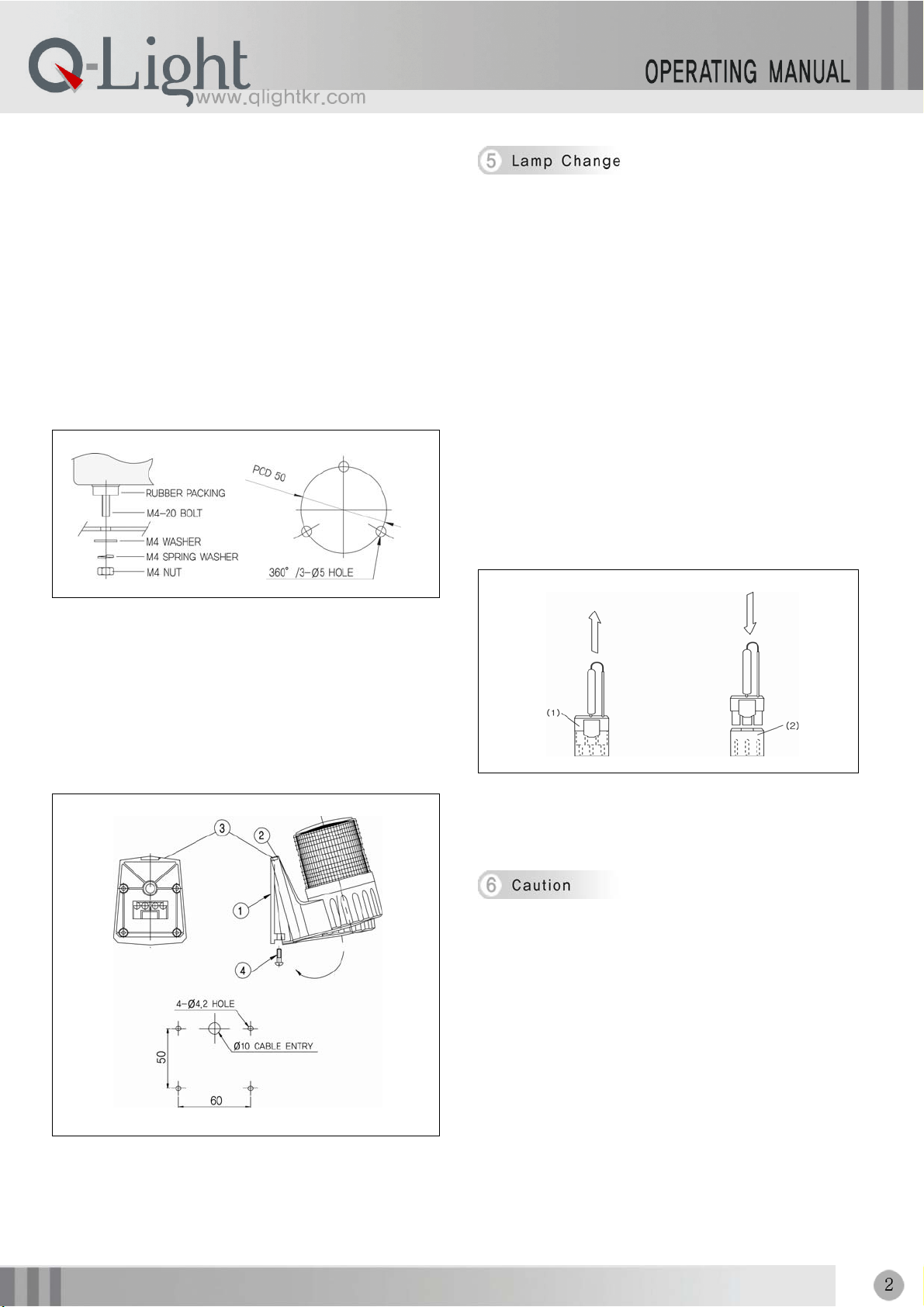

▪ Refer to below information and drill necessary mounting holes on

profitable part of the product.

(Make sure PCD from external view drawing.)

1) S80S

▪ Fix the product by using nuts(M4-3EA) originally equipped on

mounting bolt on bottom of the product.

2) S80AS

▪ Stick the bracket① by using another extra bolt(M4-4EA).

▪ Refer to wiring instruction and connect power line.

▪ Hang the upper projecting part② of mounting surface of the

product on the groove③ of the bracket. Then, push it until

“click” is heard.

▪ Lock the bracket by fastening bolt④(M4 1EA) at the element’s

base of the body.

1) Warning ! Turn off Power

Must turn off power supply and change the bulb after at least

1 minute.

▪ Xenon lamp emits superheat while it is operating. Do not touch

the lamp until it gets fully cool. Earlier touch can cause burns on

hand or body. Be careful !

▪ Xenon lamp is operating with high voltage. Do not touch lamp or

assembling board without turning off power. It can cause an

electrical shock.

2) Lens Removal

Remove lens by turning it counterclockwise and make sure lamp

and flashing selection switch on assembling board.

3) Lamp Change

▪ Xenon lamp is a connector type. Pull up the lamp for removal.

▪ Insert the connector pin correctly into the groove for

assembling by referring following drawing.

Bulb Removing Bulb Fitting

4) Lens Assembling

Assemble the product in reverse order of separating.

▪ If using voltage is seriously higher or lower than rated voltage, it

can reduce the self-life of the product or can cause a problem

on product operating. Make sure the using voltage does not

exceed +/- 5% of the rated voltage.

▪ If lens or body of the product is contaminated by chemicals such

as thinner, benzene, the product can be damaged, discolored

or deformed. Please be careful.

▪ Do not give strong impact to the product. It can be a reason of

wire disconnection or short circuit.

▪ Do not strongly pull the wire out from the product. It can cause a

disorder.

Situation Main Cause Solution

Damage on Lamp Change Lamp

Untied Lamp Connector Re-join Lamp Connector

Non Lighting

No Power Supply Make Sure Power Supply

Irregular Strobe

Operating

Supplying Voltage Lower

than Rated Voltage Make Sure Using Voltage

Q-LIGHT CO., LTD.

http://www.qlightkr.com

E-mail : [email protected]

Seoul Office (Domestic Sales & A/S)

Tel) 02-2679-6152

Ansung BD A-312, 410-13 Sindorim-Dong, Guro-Gu, Seoul

Overseas Marketing Team / Plant

Tel) 055-328-4082 Fax) 055-328-4083

Plant #1 : 178-1 Woogye-Ri, Sangdong-Myun, Kimhae-Si,

KyungNam, Korea

Plant #2 : 417-1 Geumsa-Dong, Geumjung-Gu, Busan
