Quick Set-Up Instructions:

1.- Plug a IEC power cable from a wall power outlet, to the PAJ-12A.

2.- Plug a Microphone into the “MIC” input (1a, 1b) with a 6.35mm or

XLR connector.

3.- Plug an auxiliary system (CD, DJ Mixer, MP3, DVD, etc) into the

“LINE IN” input.

4.- Turn on the speaker amplifier on by flicking the “Power” switch (9). A

green LED will light up to indicate that is on.

5.- Set the volume of the MIC and LINE IN inputs to “12 o’clock”.

6.- Gradually increase the “MASTER” volume (3) until the desired

loudness is reached.

7.- Set TREBLE and BASS controls to equalise the sound.

8.- A red LED will light up on the front of the speaker if the system

detects an overload, or peak signal. In this case you must reduce the

volume level of the MIC or LINE inputs, and /or the MASTER volume.

Before using your new PAJ-12A powered speaker, please read this

instruction manual to prevent any damage or personal injury. Keep

it away in a safe place for future reference.

NOTE: Before connecting the speaker to a power outlet, make sure the

speaker amplifier is off and the controls are on the minimum level. Otherwise

the speaker may be damaged when power is turned on.

Caution

Do not point a microphone towards the speaker, it can cause

feedback to occur which can damage both the speaker and

human ears.

Used wisely, your new powered speaker will provide many years of

reliable sound reinforcement. Though note that hearing damage can

be caused by loud noise is often undetectable until it is too late.

We recommend that you avoid prolonged exposure to excessive

noise. This list of sound levels is included for your protection.

The following sound levels can be dangerous under constant exposure:

Level (Decibels) Example

30 40 50 60 70 80 Quiet library, soft whispers Living room, refrigerator,

bedroom Light traffic, normal conversation, quiet office

Air conditioner at 20ft, sewing machine Vacuum cleaner,

hair dryer, noisy restaurant Average city traffic, alarm

clock at two feet

90 Subway, motorcycle, lawn mower

100 Pneumatic drill, garbage truck

120 Rock band concert in front of speakers, thunderclap

140 Gunshot blast, jet plane

180 Rocket launching pad

Balanced 6.35mm and XLR connectors marked as LINE OUT can supply

a line level signal to another or PAJ-12A. The bottom of the speaker has

a standard s

eaker stand hole.

• Polarized IEC input to connect to a wall power outlet.

• Microphone Inputs: (balanced) XLR and (unbalanced) 6.35mm

• Line Level Inputs: Dual (stereo) RCA and (stereo) XLR

• Line Outputs: (balanced) 6.35mm and (balanced) XLR

• LEDS to indicate power on (green) and overload power (red)

• On and off switch

• Auxiliary and microphone volume controls

• Master volume control

• Bass and treble controls

• Protective fuse

• Store in a dry environment

• Do not use it in places with high humidity or in wet weather

• Do not hold drinks on it

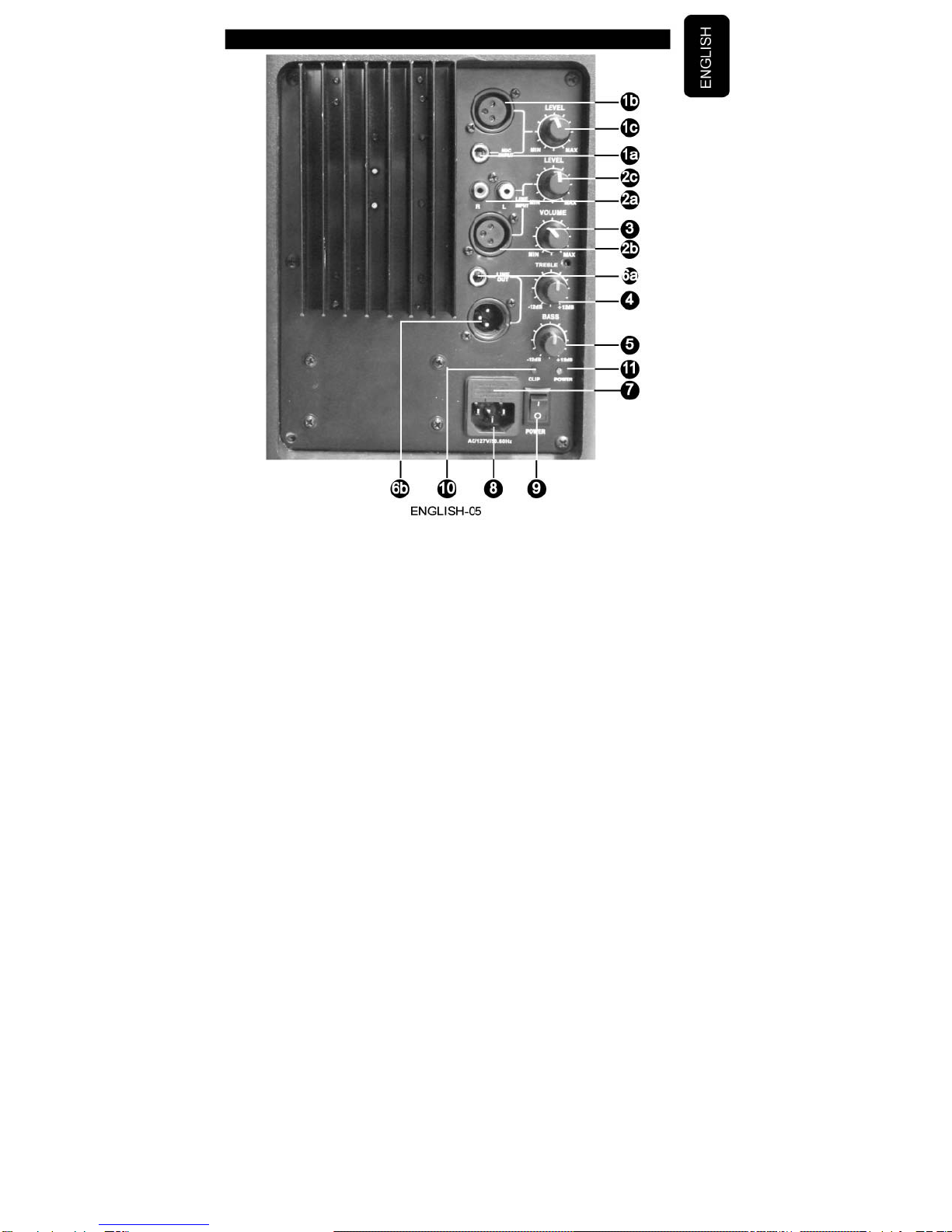

1a) Microphone input (balanced)

llows you to connect an unbalanced microphone with a 6.35mm

connector.

1b) Microphone input (balanced)

llows you to connect a balanced microphone with a XLR

connector.

1c) Microphone volume control

Use this control to set the volume level of the microphone 1 (6,3mm or

balanced)

2a) RCA Line-In

llows you to connect an external audio device with RCA connectors (CD,

Mixer, DVD, etc.), outputting a Line Level signal.

2b) XLR Line-In (stereo)

llows you to connect an external audio device (CD, Mixer, DVD, etc.),

outputting a Line Level signal. Note, this is not a “balanced” XLR input.

2c) Line input Control

Use this control to set the volume level of the Line-In signal

3) Master Volume control

Set the volume level

4) Treble

Use it to adjust the level of treble frequencies

5) Bass

Use it to adjust the level of bass frequencies

6a) Balanced Line Level 6.35mm Link output

Use this 6.35mm output to link the signal to another amplifier or PAJ-12A.

6b) Balanced Line Level XLR Link output

Use this 6.35mm output to link the signal to another amplifier or PAJ-12A.

7) Fuse

8) AC power

Use an IEC (kettle) cable to connect the amplifier to a wall power

outlet

9) On / Off Power Switch

Press to power on / off the speaker box

10) Overload / Peak Indicator

11) Power Indicator

Amplifier

Input Power

Input Sensitivity

Dimensions Weight

Woofer

Impedance Sensitivity

Frequency response

Power output

Diameter

Coil diameter

Magnet

Tweeter

Impedance Sensitivity

Frequency response

Power output

Diameter

Coil diameter

Magnet

PAJ-12A

240V~ 50-60Hz

Line: 80mv Mic: 5mV

580x375x370mm 18.96kg

4 ohms

102 dB/m/w

50Hz - 3.5kHz

120W RMS / 220W MAX

12"

2 5".

1.400kg

8 ohms

106dB/m/w

3kHz a 20kHz

30W RMS / 50W MAX

4,5"

1.3"

0.368kg

Product design and specifications are subject to change without

notice.
