Qtx QR8A Bedienungsanleitung

QR active speaker cabinets

User Manual

178.202, 178.203, 178.204, 178.205

Features:

Lightweight, compact design

Efficient power into 4Ω driver

Integral 35mm pole-mount

Line input - 6.3mm jack or XLRF

Volume, Bass and Treble controls

Introduction:

Thank you for choosing the QR series active speaker cabinet. Please read this manual prior to use.

The QR active speaker range has been designed to serve many varied applications, delivering clear, powerful sound reinforcement wherever

it is needed. Please note: your QR active speaker cabinet may be supplied with more than 1 IEC or Fig.8 mains lead. Be sure to use the

correct lead, taking note of the outlet voltage and rating.

Warning:

To prevent the risk of fire or electric shock, do not expose this appliance to rain or moisture. To prevent electric shock do not remove the

cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

Safety

Prior to connecting mains, ensure that the supply voltage is correct and the mains lead is in good condition.

Avoid ingress of water or particles into the enclosure.

If the mains fuse blows, refer the unit to qualified service personnel

Placement

Keep the unit out of direct sunlight and away from heat sources.

Keep the unit away from moisture or dusty environments.

Cleaning

Use a soft cloth with a neutral detergent to clean the cabinet, panel and controls.

To avoid damage, do not use solvents to clean this equipment.

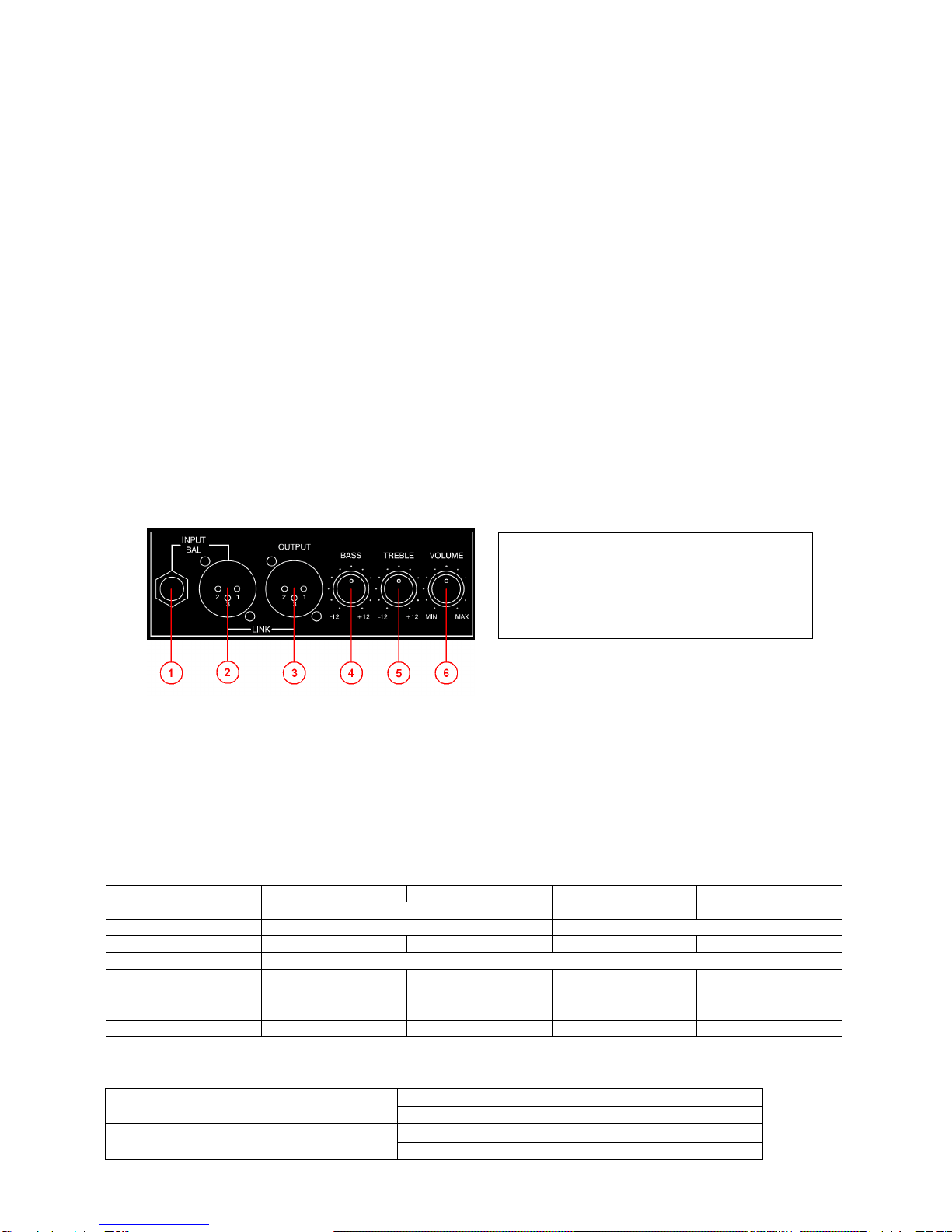

Control Panel

Operation

With VOLUME turned down and power switch off, connect the IEC or Fig.8 lead to an appropriate mains outlet.

Connect output of mixer or any line level signal to the INPUT via 6.3mm jack or XLR.

If the signal is to continue to further active speakers, connect these from the OUTPUT line level XLR.

BASS and TREBLE controls should remain pointing vertically (12-o-clock position).

Press the power switch on and gradually increase the VOLUME until the input signal is heard through the speaker.

Your QR active speaker should now be ready to operate.

SPECIFICATIONS

QR8A

QR10A

QR12A

QR15A

Power supply

220-240Vac 50/60Hz (Fig.8

220-240Vac 50/60Hz (IEC)

Main driver

20cm (8”) 4Ω

25cm (10”) 4Ω

30cm (12”) 4Ω

38cm (15”) 4Ω

HF unit

2.5cm (1”) titanium compression driver

Output power (max)

200W

300W

400W

500W

Output power (RMS)

100W

150W

200W

250W

Dimensions

400 x 290 x 220mm

470 x 320 x 260mm

570 x 350 x 300mm

680 x 430 x 360mm

Weight

6.5kg

7.5kg

11.2kg

15.8kg

Troubleshooting

No output and no LEDs lit

Check POWER switch is on

Check mains lead is connected and fuse hasn’t blown

Power LED lit but no sound from external inputs

Check leads are OK and connected properly

Check VOLUME control is not fully down

1) INPUT–6.3mm TRS jack line input

2) INPUT–XLR line input

3) OUTPUT link –Balanced XLR signal out

4) BASS –Low frequency 12dB cut/boost

5) TREBLE –High frequency 12dB cut/boost

6) VOLUME –Output level control
