Quadratec iVault Bedienungsanleitung
iVault Radio Locker
Part# 14026.2311 I-VAULT 97-02 TJ
Assembly instructions
Included: Qty. Sheet metal screws 4
Front door 1 Felt pads 2
Body front 1
Body rear 1
Sliding Tray 1
R
STEP 1
Cord Management
NOTE: Insert the desired cord as
shown to keep it from falling out of
t h e d r a w e r a n d b e c o m i n g
unreachable inside the vehicle
dash.
Sliding Tray
A) Begin by instalingl the two strips of felt on the
underside of the head unit as protection for the items
carried in the tray when on rough terrain.
B) Install any cords as desired into the sliding tray and insert
it into the assembly. (Fig 1) See “Cord Management” for
details.
C) Install the front body section onto the rear body section
then insert the head unit and use the 4 sheet metal screws to
hold the assembly together loosely. NOTE: Be sure the
bottoms of the front and rear sections are flush.
D) Now adjust the final position of the radio into the
assembly and tighten the screws on the sides. Position so it
is far enough forward to be easily accessible but not
interfere with the face when installed.
Page 1 rev 1 8/11
Please read all instructions before beginning assembly
Body rear sect.
Body front sect.
Head unit
Fig. 1
Fig. 2
Fig.3
Head unit
Rear sect. body
Front sect. body
Complete assembly
STEP 2
STEP 3
Towel
Screw driver
Carefully insert screw driver under edge of
dash panel as shown using a towel to protect
the surfaces from damage. Pry up the clips
across the top of the dash and move the panel
out of the way to access the screws for the top
of the radio surround.
Use a Philips screw driver to remove the two
screws under the dash panel holding the top of
the radio surround.
Philips screw driver
Installation
Page 2 rev 1 8/11

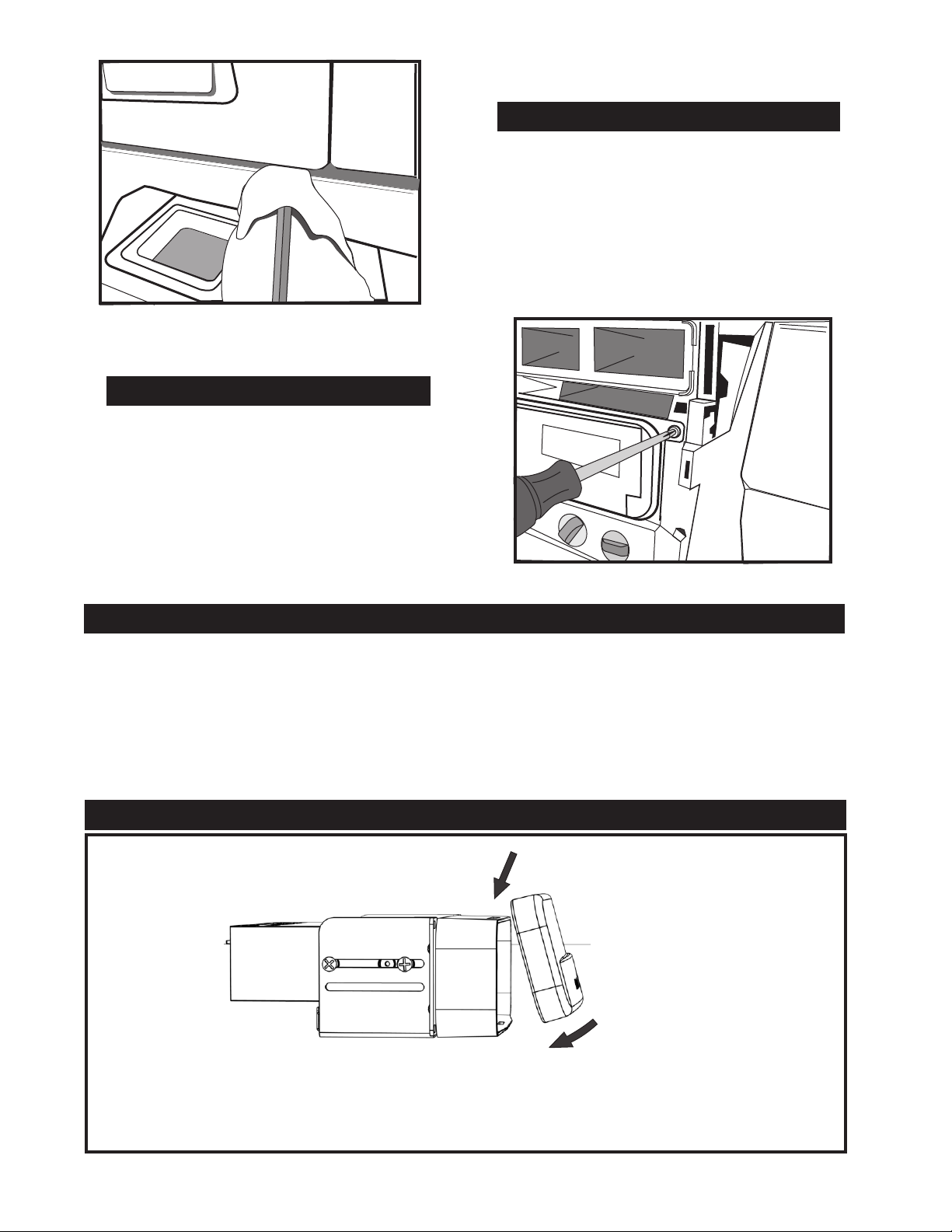

Step 5
Step 6
Step 4
Use a flat head screw driver to pry the base of
the radio surround loose and remove it. Wrap
the screw driver in a towel to protect the
surround.
Remove the four screws holding the factory
radio in place and remove it. Be careful not
to damage the wiring when unplugging the
harness.
A) Install the completed radio assembly into the dash using the factory mounting locations and hardware.
NOTE: Follow the radio manufacturers instructions for wiring requirements.
B) Re-install the radio surround by pressing the clips into the locations on the dash.
C) Re-install the dash top by pressing the clips into the locations on the dash.
OPERATION
Insert into top slot first
Close bottom second
and then lock
Once face is installed use key to lock in place. Be sure lock is in open position before installing,
do not force face assembly in place. If not properly alligned the face may become difficult to
lock or remove.
Page 3 rev 1 8/11
Quadratec, Inc. (the Company) warrants to the original purchaser of this product that should the product or
any part thereof, under normal use and conditions, be proven to be defective in material or workmanship
within 6 MONTHS from the original date of purchase, such defect (s) will be repaired or replaced or credited
at the Companies sole option.
To obtain repair or replacement within the terms of this Warranty, this product is to be delivered with proof of
warranty coverage (e.g. Dated bill of sale), specification of defect (s) to the place of purchase or, with prior
approval from the Company (Return Authorization is required), freight pre-paid to the Company address
listed below.
This warranty does not apply to any product or part thereof which, in the opinion of the Company, has
suffered or been damaged through alteration, improper installation, miss-handling, misuse, neglect,
accident, or by acts of nature. THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY
IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE
COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all express warranties or liabilities. ANY IMPLIED WARRANTIES, SHALL BE
LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF
WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE
BROUGHT WITHIN THE PERIOD OF 6 MONTHS FROM DATE OF ORIGINAL PURCHASE.
IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL
DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED,
WHATSOEVER. No person or representative is authorized to assume for the Company any liability other
than expressed herein in connection with the sale of this product.
Some States do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of
incidental or consequential damage, so the above limitations may not apply to you. This warranty gives you
specific legal rights and you may also have other rights, which vary from state to state.
Quadratec, Inc.
1028 Saunders Lane
West Chester PA 19380
Warranty information
