ASSEMBLY PREPARING TO MOW

Fill the petrol tank with 0.8l of normal 95 Octane petrol

(standard unleaded) using a funnel and measuring jug.

When starting a cold

engine, press down the

primer fully 3~5 times.

When starting a warm

engine, the primer

does not need to be

used.

To start the engine slowly

pull the start cord out

until resistance is felt

(approx 10-15cm) then

start the engine with a

sharp vigorous pull.

In cold weather it may be necessary to repeat the cold engine starting

process.

To stop the mower release the stop/start

When the engine is ticking over ensure the throttle

is in the rabbit position. ALL mowing must be done in

the rabbit position.

bar.

IMPORTANT INFORMATION!

Always read the instruction manual thoroughly

before starting the lawnmower.

Never allow the starter cord to snap back.

Check the oil level before every use.

Unpack the lawn mower ensuring all parts are present

(see parts list overleaf) before discarding the packaging.

Set the height adjustment to

lowest position; fix the lower

handle onto deck firmly with

supplied wrench using

the handle fixing bolts.

Make sure the rope guide is

on right hand side

when you stand behind

the mower.

Firstly attach the grass bag to

the frame by fixing all

plastic hooks.

Raise the safety flap, and

hook the collection bag onto

the mower.

Release the safety flap.

Pull the lever towards

the wheel, then move it

forward or backward to

adjust the cutting height.

Return lever into securing

plate.

Slowly pull out starter

cord & hook it through

the eye of rope guide.

You should ALWAYS

start your mower

from this position.

Using the cable

clamp provided,

secure the cables to

the handle without

trapping them.

Lift the upper handle, align it with

the lower handle, making sure

the cables are not twisted, and

fasten the two handles together

by using the bolts and handle

tension knobs.

Follow these steps to ensure quick and easy set up

every time.

5The engine does not

come with oil. Add a

minimum of 0.6 litres of

oil.

CHECK THE OIL

BEFORE EVERY USE.

Hold the stop/start bar

firmly to the handle to

disengage the motor

brake and automatic

cut out.If you have any difficulties please contact the

helpline on 0845 034 2279

email [email protected]

or visit www.gardenservicecentre.co.uk

MOWING THE LAWN

Add Full

Engine stop

Engine start

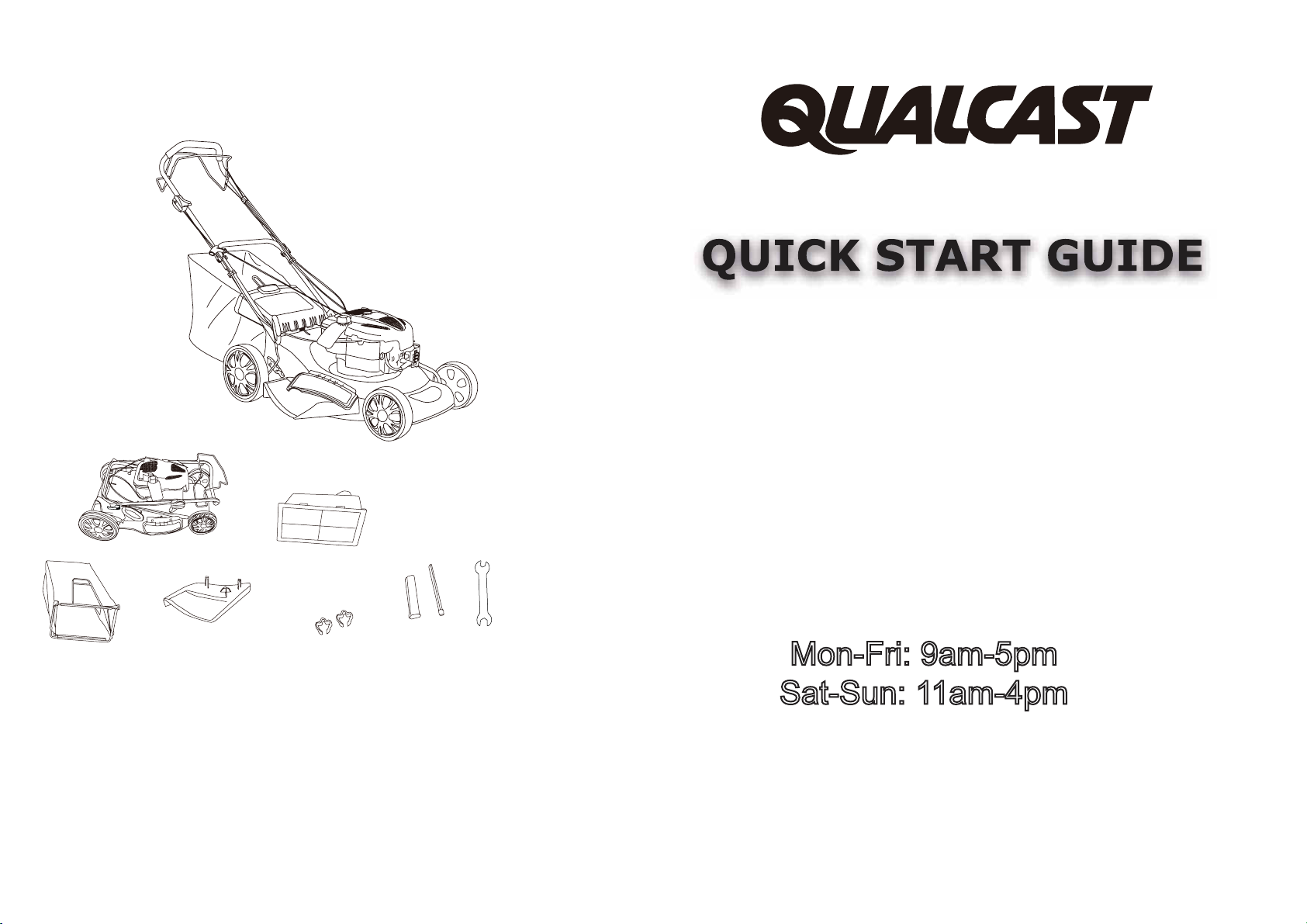

1. Main mower deck (with upper and lower handle)

2. Grass collecting bag 1pc

3. Side discharge chute 1pc

4. Plastic mulching plug 1pc (inside the mower)

5. Cable clip 2pcs

6. Socket spanner for spark plug 1pc

7. Wrench 1pc

2 3 5

ALWAYS READ THE

INSTRUCTION MANUAL AND

SAFETY WARNINGS THOROUGHLY

BEFORE USE.

For technical advice, spare parts and service

support 7 days a week please call:

Mon-Fri: 9am-5pm

Sat-Sun: 11am-4pm

Email: [email protected]

Website: www.gardenservicecentre.co.uk

0845 034 2279

56cm Petrol Self Propelled Lawn Mower
