Scalar i40 and Scalar i80:

Power Supply Filler Plate

Replacement

To maintain proper library cooling, filler plates are required on all empty power

supply slots in the rear of the Scalar®i40 or Scalar i80 library.

To remove a power supply filler plate or to replace the power supply with a filler

plate, refer to the following sections:

•Removing a Power Supply Filler Plate on page 1

•Replacing a Power Supply Filler Plate on page 2

Removing a Power Supply Filler Plate

1Unscrew the two captive thumbscrews (see Figure 1 on page 2).

2Pull out on the thumbscrews so the filler plate is at a slight angle, and the

bottom of the filler plate is still attached in the slot.

3Lift the filler plate up to disengage the catch at the bottom, and pull the

filler plate out of the slot.

Quantum Scalar i40 and Scalar i80: Power Supply Filler Plate Replacement

6-68063-01 Rev A

February 2014

2Replacing a Power Supply Filler Plate

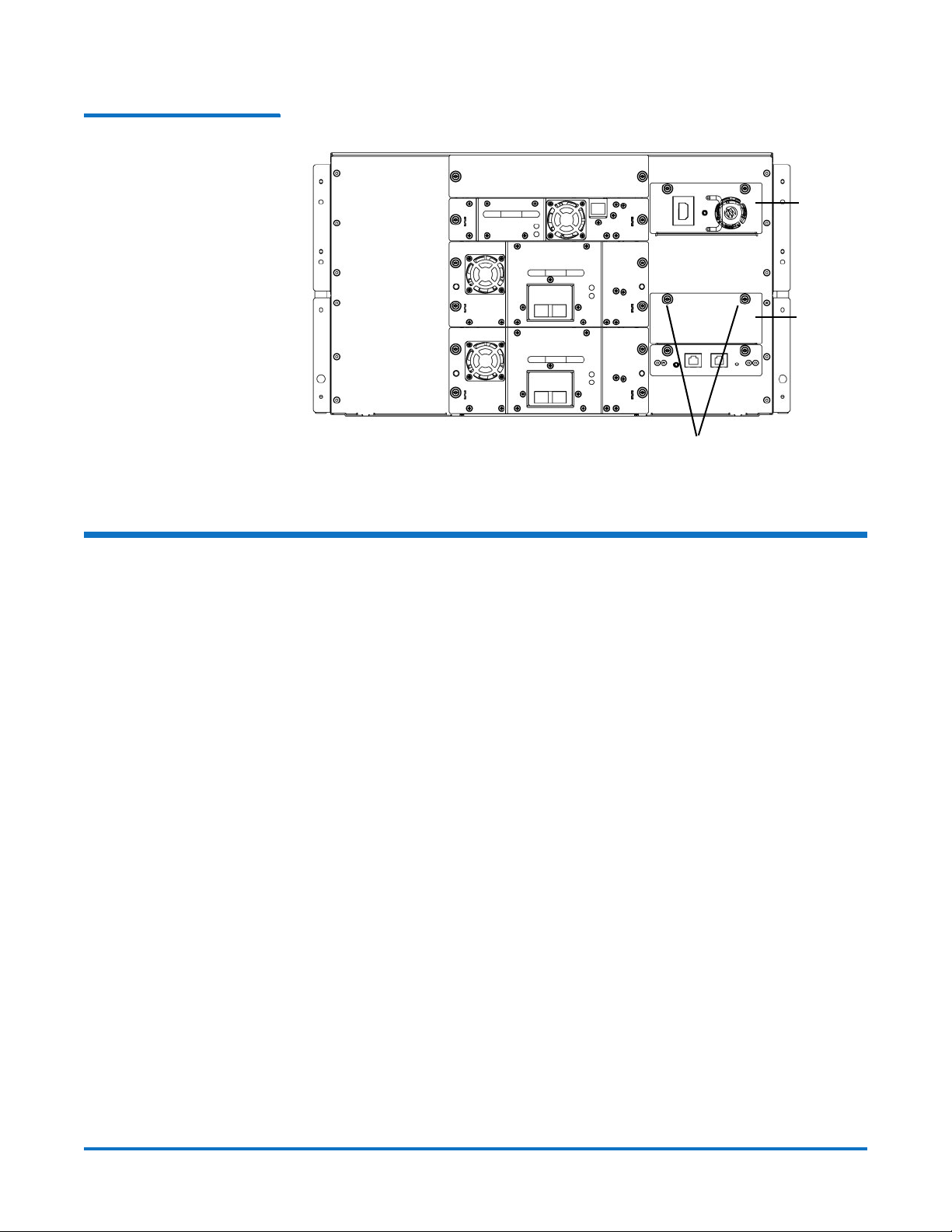

Figure 1 Power Supply Filler

Plates

Replacing a Power Supply Filler Plate

1Hold the filler plate with the thumbscrews at the top.

2Insert the bottom edge of the filler plate into the slot, engaging the bottom

edge of the filler plate in the bottom of the slot.

3Pivot the filler plate up to fit securely in the hole.

4Tighten the thumbscrews.

Single

power

supply

installed

in top slot

Power

supply

filler plate

Captive thumbscrews
