Scalar i40 and Scalar i80:

System Control Board

Replacement

These instructions explain how to remove a System Control Board (SCB) from

your Scalar®i40 or Scalar i80 library, and replace it with a new one.

The SCB contains library firmware, tape drive firmware, all configurable settings,

license keys, and SKM TLS certificates. After you replace the SCB, you must

either restore a previously saved configuration, or reinstall the license keys and

manually reconfigure the settings.

Note: When you replace the SCB you will permanently lose all data previously

collected for logs and reports.

To replace the SCB, refer to the following sections:

•Taking ESD Precautions on page 1

•Removing the System Control Board on page 2

•Replacing the System Control Board on page 4

•Installing Library Firmware on page 4

•Configuring the Library on page 5

Taking ESD Precautions

To avoid damaging static-sensitive parts while performing this procedure,

observe the following precautions:

• Use an antistatic wrist strap. If you do not have one, touch the outside of

the library on the sheet metal before touching any components, to

discharge static from your body.

Quantum Scalar i40 and Scalar i80: System Control Board Replacement

6-66556-04 Rev B

February 2014

2Removing the System Control Board

• Keep static-sensitive parts in their original shipping containers until ready

for installation. Look for the ESD sticker to identify static-sensitive parts.

• Avoid touching connectors and board components.

Note: Dry climates and cold-weather heating environments have lower

relative humidity and are more likely to produce static electricity.

Removing the System Control Board

These instructions explain how to power down and remove the system control

board from the Scalar i40 and the Scalar i80 library.

Caution: You must completely remove power from the library before

removing and replacing the system control board.

1If the library is still operational, save the library configuration.

aFrom the Web client, select Tools > Save/Restore Configuration.

bSelect Save System Configuration, and click Apply.

2If the library is still operational, and you want to save log and report

information for historical purposes, access the logs and reports you want

using the Web client and save them to a known location.

3If possible, save a library snapshot for future troubleshooting.

aFrom the Web client, select Tools > Capture Snapshot.

bFollow the on-screen instructions.

4Prepare host applications by following the vendor instructions for stopping

all commands to the library.

5If the library is still operational, shut down the library:

aFrom the Operator panel, select Actions > Shutdown.

bSelect Shutdown Library and Yes to confirm.

cWhen prompted on the screen, press the OFF button on the front panel

and wait for the Operator screen to turn off, and for all the LEDs on the

SCB to turn off.

Quantum Scalar i40 and Scalar i80: System Control Board Replacement

6-66556-04 Rev B

February 2014

Removing the System Control Board 3

6Disconnect the power cords from the power supplies on the back of the

library.

The Scalar i40 has one power supply. The Scalar i80 may have one or two

power supplies. Make sure you disconnect all power cords from the power

supplies.

7Remove the Ethernet cable from the SCB (see Figure 1).

8Loosen the two captive thumbscrews on the SCB.

9Grip the thumbscrews and pull outward to slide the SCB out of the library.

10 Remove the new SCB from its packaging, and wrap the old SCB in the

antistatic bag that the replacement SCB was wrapped in.

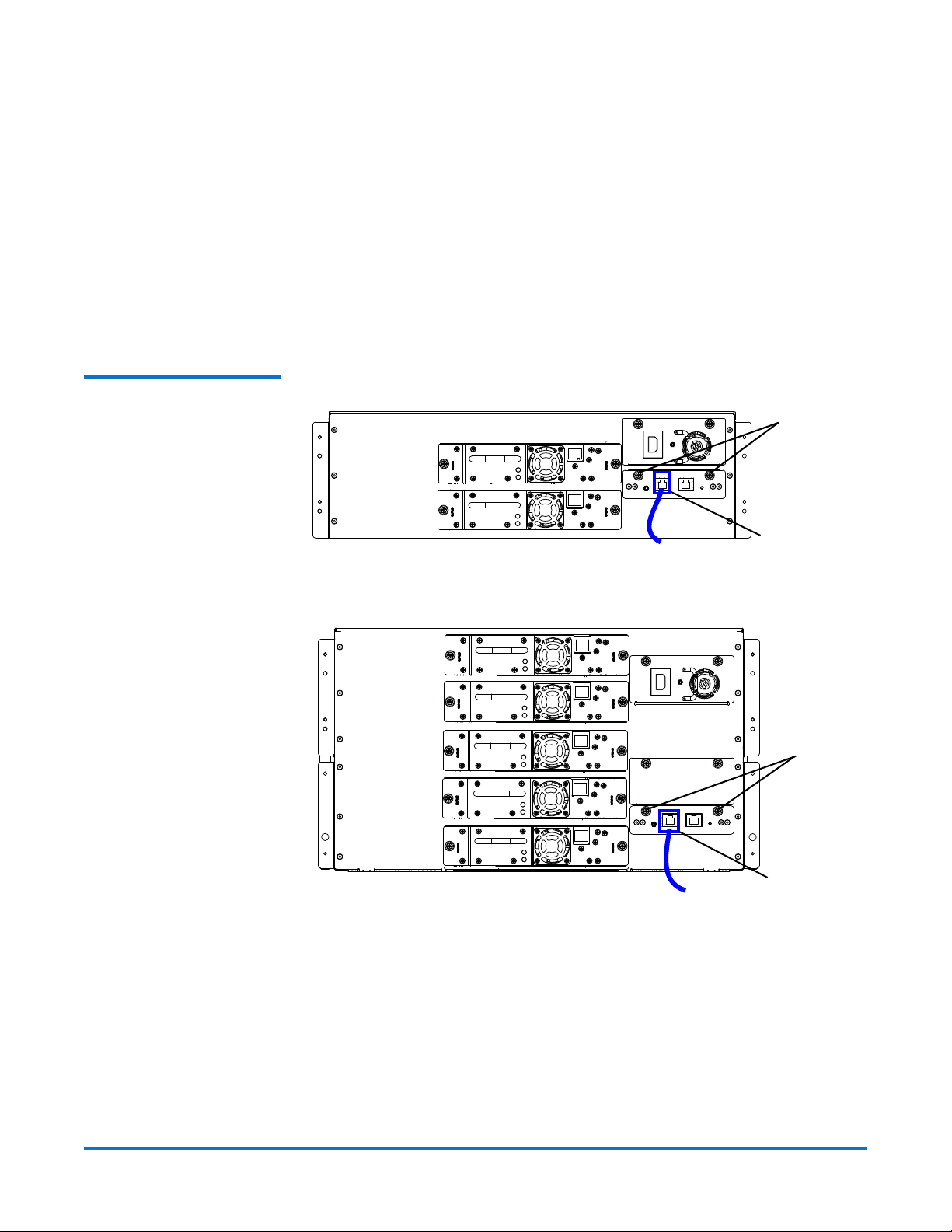

Figure 1 Ethernet Port

Locations on the SCB

Thumbscrews

Ethernet port

Scalar i40

Scalar i80

Quantum Scalar i40 and Scalar i80: System Control Board Replacement

6-66556-04 Rev B

February 2014

4Replacing the System Control Board

Replacing the System Control Board

These instructions explain how to replace the defective SCB.

1Position the new SCB for installation as follows:

aPlace the board components face up. (The flat part of the board faces

down.)

bBe sure the thumbscrews are on the upper side of the SCB back plate

(see Figure 1 on page 3).

2To install the new SCB, complete the following steps:

aPush the SCB into the slot until it stops.

It should slide smoothly and easily.

bWhen it reaches the end of its travel, press firmly on the back panel of

the SCB to “snap” it into place.

cTighten the two thumbscrews finger tight.

3Connect the Ethernet cable to the LEFT Ethernet port on the SCB (as viewed

from the back of the library; see Figure 1 on page 3).

Installing Library Firmware

These instructions explain how to install the firmware for the library.

1Connect the power cords to the power supplies on the back of the library.

Make sure that each power supply is plugged into a grounded AC outlet.

2To turn the library ON, press the power button on the front panel.

The LED on the SCB should illuminate green. The green power LED on the

library front panel above the power button illuminates, and the Operator

panel screen turns on. The library goes through a connection and

initialization sequence that takes up to 60 seconds.

When initialization is complete, the Library Installation screen appears on

the Operator panel, displaying the text, “The library needs to have

its IP Address configured.” The purpose of this screen is to set the IP

address so you can access the library via the Web client and download

firmware. (After you have loaded firmware, you can change or reconfigure

IP addresses, if needed.)

3From the Operator panel, press Next.

The screen displays the text, “Current protocol: IPv4. Set protocol

to IPv6?”

4Press one of the following options:

•Yes — The library supplies a stateless IPv6 address and displays it, along

with other network settings, on two screens. Use the Next and Back

Quantum Scalar i40 and Scalar i80: System Control Board Replacement

6-66556-04 Rev B

February 2014

Configuring the Library 5

buttons to view the screens. You can only change these settings via the

Web client.

•No — You are asked if you want to use DHCP.

• If you press Yes, the library receives an IPv4 address from the DHCP

server and displays the information on the screen.

• If you press No, use the Up and Down buttons to enter a static IP

address, mask, and gateway. Set the numeric value for each

segment of the address, then press the Right button to go to the

next segment. To save the values, press Apply.

5Take note of the IP address.

6Download the latest library firmware to a known location on your computer.

Library firmware is available at http://www.quantum.com/

serviceandsupport/softwareanddocumentationdownloads/si40/index.aspx.

aNavigate to the appropriate firmware version.

bDownload the firmware image file.

7From your browser, enter the library IP address that you obtained in Step 5.

The Web client displays a screen instructing you to select the firmware

image you want to load on the library.

aClick Browse and select the firmware image you downloaded in Step 6

to install on the library.

bClick OK, then click OK again to agree to restart the library.

The Web client displays the following message:

Decoding installation bundle...done.

Validating bundle...good.

Installing firmware...library will reboot when complete.

After the library reboots, the Setup Wizard appears on the Operator

panel. It may take up to 20 minutes before the Setup Wizard screen is

displayed.

Configuring the Library

To configure the library, do one of the following:

• If you have saved a library configuration that you want to restore on the

library, go to Restoring the Library Configuration on page 5.

• If you do NOT have a saved library configuration to restore on the

library, go to Manually Reconfiguring the Library on page 7.

Restoring the Library

Configuration

Follow the instructions in this section if you have a saved library configuration

that you want to reinstall on the library.

1From the Operator panel, press Cancel to exit the Setup Wizard.

Quantum Scalar i40 and Scalar i80: System Control Board Replacement

6-66556-04 Rev B

February 2014

6Configuring the Library

2Take note of the library’s IP address; from the Operator panel, select Reports

> Network Settings.

3From the Web client, enter the IP address and log in using the default user

name and password:

• User name: admin

• Password: password

Note: Once you restore the configuration, all your former user names and

passwords are restored.

4To restore the configuration using the Web client, complete the following

steps:

aSelect Tools > Save/Restore Configuration.

bSelect Restore System Configuration.

cClick Browse. Navigate to the saved configuration and click Open.

dClick Apply.

eClick OK.

Note: Restoring the configuration does NOT restore your network

settings.

5Check the library’s date, time, and time zone settings and reconfigure if

necessary. (From the Web client, select Setup > Date & Time.)

6If you changed the IP address from what it was originally, update host and

other applications that access the library.

7Save the library configuration.

aFrom the Web client, select Tools > Save/Restore Configuration.

bSelect Save System Configuration, and click Apply.

Note: You must ensure the library is fully functional with the new SCB

installation and configuration selections by running the Installation and

Verification Test.

8Run the Installation and Verification Test (IVT).

aFrom the Operator panel, select Tools > IVT.

bFollow the instructions and run the test.

The IVT takes about 30 minutes. If any problems are detected, the library

issues a diagnostic ticket.

9Package the old SCB in the packaging that shipped with the new SCB, and

send the old SCB back to Quantum using the return shipping label included

in the package.

Quantum Scalar i40 and Scalar i80: System Control Board Replacement

6-66556-04 Rev B

February 2014

Configuring the Library 7

Manually Reconfiguring

the Library

Follow the instructions in this section if you do not have a saved library

configuration.

When the firmware update is complete, the Setup Wizard appears on the

Operator panel screen. The Setup Wizard helps you configure the date, time, IP

address, IPv6 enable/disable, licenses, partitions, I/E slots, and cleaning slots.

Note: If you had licenses installed on your library, have them available so you

can reinstall them. If you no longer have them, you can obtain them at

http://www.quantum.com/licensekeys, or from Quantum Support.

1From the Operator panel, complete the steps displayed in the Setup

Wizard.

If you make a mistake or do not complete all the screens, you can change

the configuration later using the Operator panel or Web client Setup

menus.

Note: You cannot update the host name of the library or time zone on the

Operator panel. If the displayed host name of the library or time

zone is incorrect, you can change it later using the Web client (see

Step 5).

2Take note of the library’s IP address (from the Operator panel, select

Reports > Network Settings).

3From the Web client, enter the IP address from Step 2 and log in using the

default user name and password:

• User name: admin

• Password: password

4If you changed the IP address from what it was originally, update host and

other applications that access the library.

5Update the library name, time zone, and any other configuration settings, if

required, using the Web client Setup menus.

6If you are connecting to a Scalar Key Manager (SKM), take note that TLS

certificates will need to be loaded onto the library. For instructions, refer to

the

Scalar i40 and i80 User Guide, Checking and Installing TLS Certificates

on the Library

7Save the library configuration.

aFrom the Web client, select Tools > Save/Restore Configuration.

bSelect Save System Configuration, and click Apply.

8To ensure the library is fully functional with the new SCB installation and

configuration selections, run the Installation and Verification Test (IVT).

aFrom the Operator panel, select Tools > IVT.

bFollow the instructions and run the test.

The IVT takes about 30 minutes to complete. If any problems are

detected, the library issues a diagnostic ticket.

Quantum Scalar i40 and Scalar i80: System Control Board Replacement

6-66556-04 Rev B

February 2014

8Configuring the Library

9Package the old SCB in the packaging that shipped with the new SCB, and

send the old SCB back to Quantum using the return shipping label included

in the package.

Andere Handbücher für Scalar i40

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Quantum Lagerung Handbücher

Quantum

Quantum ActiveScale P100E3 Montageanleitung

Quantum

Quantum Scalar i40 Bedienungsanleitung

Quantum

Quantum DPM 5500 Bedienungsanleitung

Quantum

Quantum DLT-S4 Bedienungsanleitung

Quantum

Quantum Scalar i2000 Bedienungsanleitung

Quantum

Quantum StorNext QD7000 Handbuch

Quantum

Quantum ActiveScale P100E3 Bedienungsanleitung

Quantum

Quantum Tape Drive A-Series Bedienungsanleitung

Quantum

Quantum Scalar 24 Bedienungsanleitung

Quantum

Quantum DXi4500 Bedienungsanleitung

Quantum

Quantum Scalar 100 Bedienungsanleitung

Quantum

Quantum Atlas V Bedienungsanleitung

Quantum

Quantum LTO-9 HH SAS Bedienungsanleitung

Quantum

Quantum DLTtape DLT1 Bedienungsanleitung

Quantum

Quantum P4000 Series Montage- und Bedienungsanleitung

Quantum

Quantum DLTtape DLT1 Bedienungsanleitung

Quantum

Quantum SuperLoader 3A Series Bedienungsanleitung

Quantum

Quantum StorNext QD7000 Bedienungsanleitung

Quantum

Quantum StorNext QD7000 Installations- und Betriebshandbuch

Quantum

Quantum LTO 2U Merkblatt

Quantum

Quantum Tape Drives A-Series Bedienungsanleitung

Quantum

Quantum StorNext QD7000 Bedienungsanleitung

Quantum

Quantum DLTtape DLT 7000 Bedienungsanleitung

Quantum

Quantum DLT 2500 Bedienungsanleitung

Beliebte Lagerung Handbücher anderer Marken

QNAP

QNAP TS 32PXU Series Bedienungsanleitung

LaCie

LaCie RUGGED RAID Bedienungsanleitung

Freecom

Freecom CLS DOCK Bedienungsanleitung

PNY

PNY Attache P-FD64MBATT3 Bedienungsanleitung

HP StorageWorks MSL2024 Bedienungsanleitung

OLT

OLT 6x6 Maximizer Bedienungsanleitung

Transcend

Transcend JetFlash 160 Bedienungsanleitung

LaCie

LaCie RUGGED MINI Bedienungsanleitung

Thunderbolt

Thunderbolt 600 Bedienungsanleitung

Panasonic

Panasonic LB-DH8 series Handbuch

Intel

Intel RAID High Availability Bedienungsanleitung

LaCie

LaCie 12big Thunderbolt 3 Bedienungsanleitung

Spectra Logic

Spectra Logic T-Series Spectra T50e Bedienungsanleitung

Panasonic

Panasonic LKM-F931-1 Bedienungsanleitung

Tabernus

Tabernus Enterprise Erase E2400 Bedienungsanleitung

Rocstor

Rocstor COMMANDER 3F series Bedienungsanleitung

HP P9000 Bedienungsanleitung

Western Digital

Western Digital Ultrastar Data60 Bedienungsanleitung
