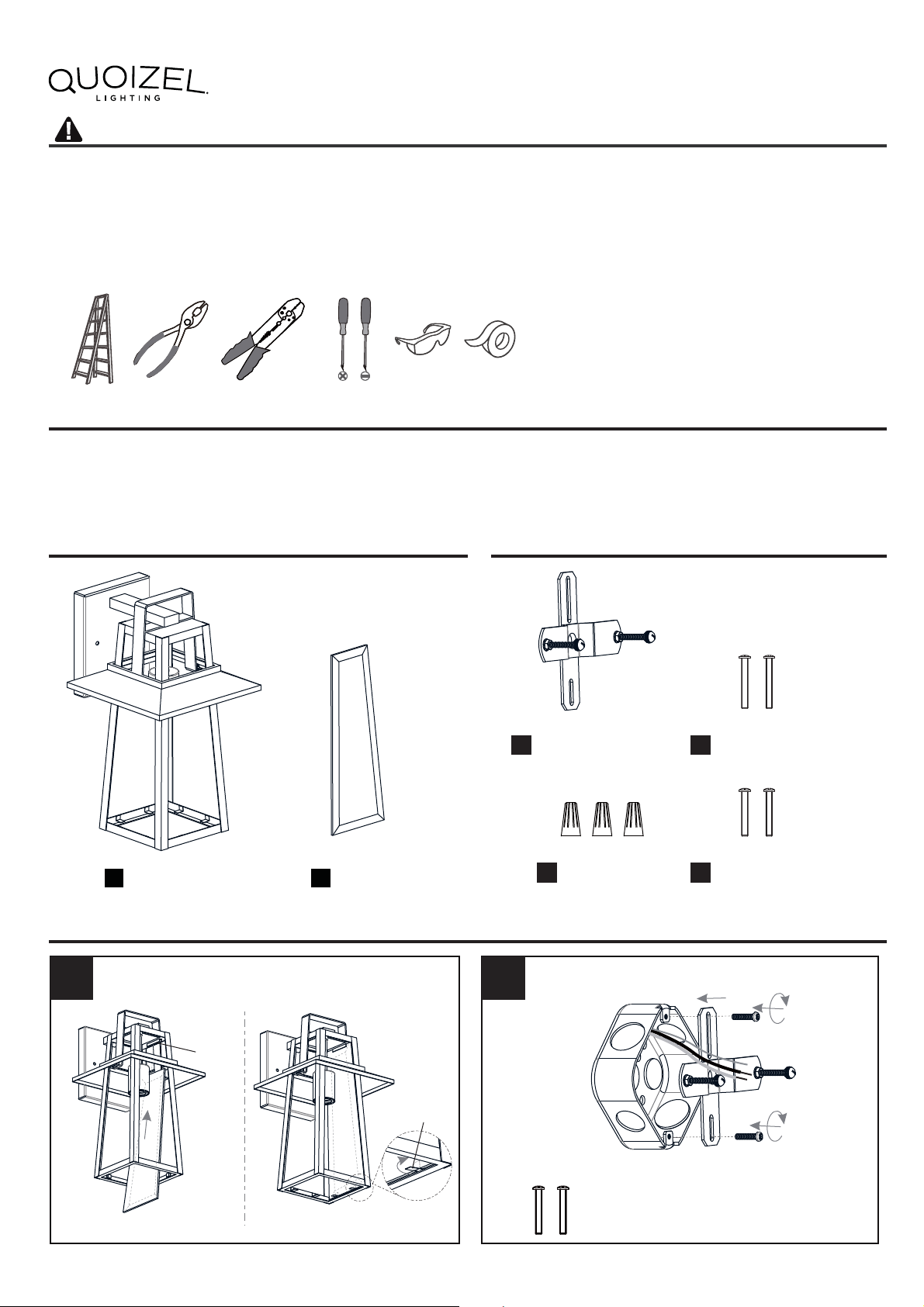

INSTALLATION GUIDE FOR DEV8407MBK

CARE AND MAINTENANCE

SAFETY INFORMATION Released Date: 2021-08-30

• Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean ﬁxture as they may damage

the ﬁnish.

If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am - 5:00pm EST), or visit us on-line at

www.quoizel.com.

Please read and understand this entire manual before attempting to assemble, install or operate the product.

WARNING

• RISK OF ELECTRIC SHOCK - Before beginning installation, turn oﬀ electricity at the circuit breaker box or the main fuse box.

• RISK OF FIRE - Use bulbs speciﬁed by the markings and/or labels on the ﬁxture.

CAUTION

• For your safety, read instructions completely before beginning installation.

• If in doubt about electrical installation, consult a licensed electrician.

• Turn oﬀ electricity to ﬁxture before replacing the bulb(s).

TOOLS REQUIRED

PACKAGE CONTENTS

Crossbar Assembly

Wire Connector

CC Outlet Box Screw

AFixture Body

x 1

INSTALLATION

Alternate

Mounting Screw

MOUNTING HARDWARE

Install Glass Panels

Insert narrow edge into slot

BGlass Panel

Install Crossbar Assembly

(2) Alternative Screws

*Alternative screws are provided to

replace pre-assembled mounting

screws if necessary.

* Beveled side is outside.

Slot

Fold tabs to secure glass panel

Tab

- of 2 -2

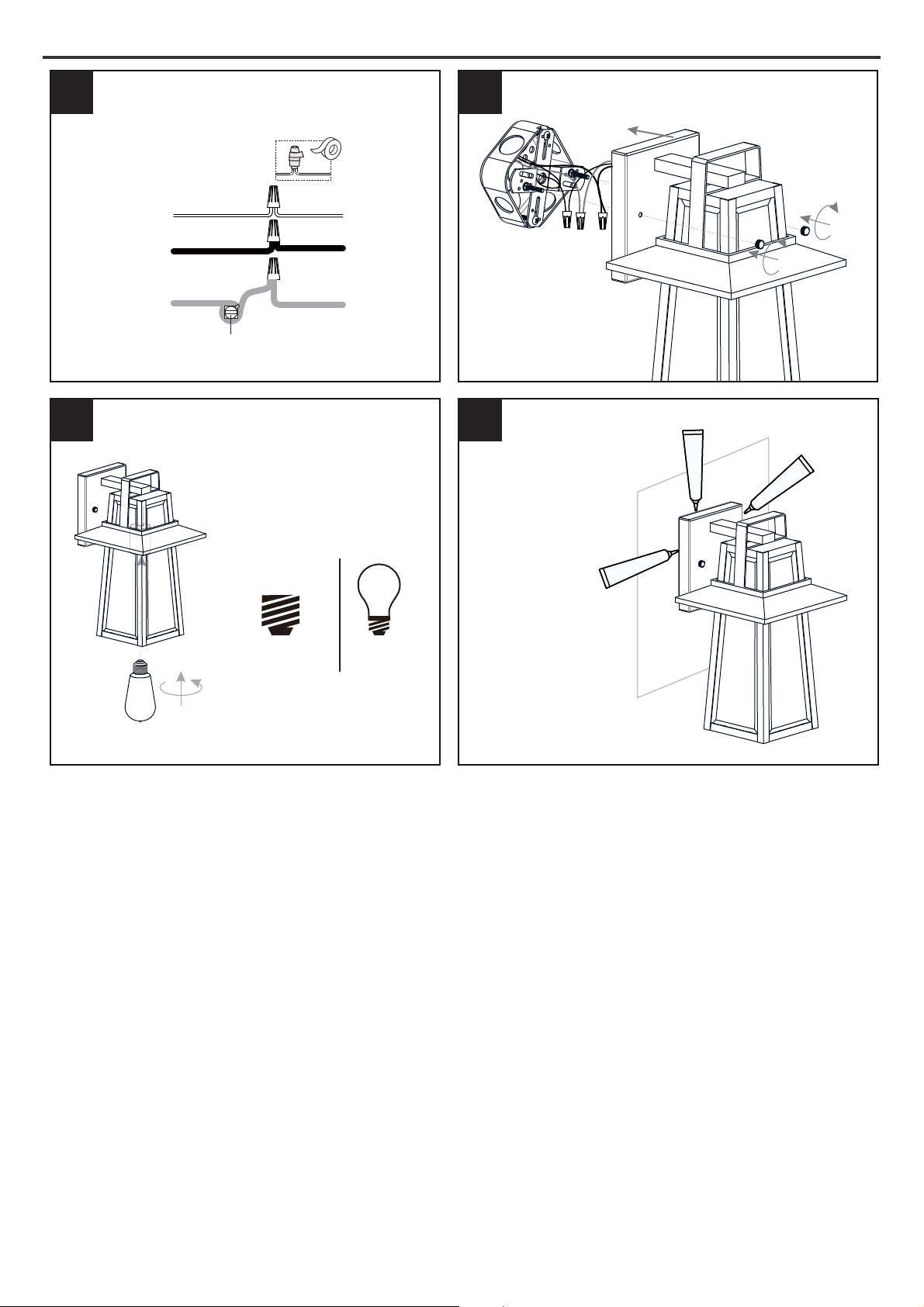

INSTALLATION

Your installation is now complete! Restore electricity and save this sheet for future reference.

BULB BASE TYPE

Medium (E26)

BULB TYPE

TYPE A

100W

MAX

Install the correct bulb referring to

ﬁxture markings and/or labels for

maximum wattage.

Recommended Bulb Type (not

included):

Install Bulb

ECxterior aulk

Apply Caulking

* Note: Do NOT caulk the

bottom of the backplate to

allow moisture to escape.

Install Fixture Body

White wire from supply White from ﬁxture

Black (or red) wire from supply Black from ﬁxture

Ground wire from supply

Ground wire

from ﬁxture

Green ground screw

Wiring
